Mastering Diesel Generator Droop Control

When operating a diesel generator, especially in a setup where multiple generators work in unison, ensuring stable power delivery and efficient load distribution is paramount. One fundamental concept that underpins this stability, particularly in traditional systems, is 'speed droop'. This seemingly simple mechanism plays a critical role in preventing chaos when two or more generators are tasked with sharing an electrical load. Without it, you'd face a constant battle of power surges, frequency fluctuations, and potentially damaging imbalances across your power generation system. Understanding speed droop isn't just for mechanics; it's essential for anyone who relies on robust, consistent power from diesel generators.

Understanding Speed Droop: The Core Principle

At its heart, speed droop refers to the intentional decrease in an engine's speed (and consequently, the generator's output frequency) as the load on the engine increases. This characteristic is not an accidental flaw but a deliberate design feature incorporated into the governor system. Imagine two diesel generators running in parallel, both supplying power to a common electrical grid. If both tried to maintain a perfectly constant speed regardless of load, they would essentially 'fight' over who gets to supply the power. Even the slightest difference in their speed settings or fuel delivery would cause one to take on more load, speed up, and then dump that load back onto the other, leading to instability.

This is where speed droop becomes the elegant solution. By allowing the engine's speed to drop slightly as the load increases, the governor provides a natural mechanism for load sharing. When one generator starts to take on more load, its speed drops, which signals its governor to increase fuel. Crucially, because its speed has dropped, its output frequency also drops slightly. This slight frequency difference between the two generators means that the generator with the higher frequency will naturally shed some of its load to the one with the lower frequency, until a new equilibrium is reached. This proportional sharing of the load, based on the change in speed and frequency, was the highly effective method for paralleling diesel generators for many years.

While this load sharing arrangement using droop was, and still is, very common in many installations, more modern methods have emerged. The most prominent of these is isochronous load sharing, where an advanced electronic engine controller precisely manages the engine speed. In an isochronous system, the engine maintains a constant speed (and thus a constant frequency) regardless of the load, with the electronic controller actively balancing the load between multiple generators. However, for many existing systems and for understanding the foundational principles, grasping speed droop remains absolutely vital.

The Inner Workings of a Speed Droop Governor

A speed droop governor is a marvel of mechanical engineering, designed to maintain engine speed within acceptable limits under varying load conditions while facilitating load sharing. The regulation achieved by these governors typically falls within a range of 3 to 5 percent. This percentage indicates how much the engine's speed will drop from no-load to full-load conditions.

The precise control of this governor regulation is achieved by manipulating the effective length of the governor control spring. This spring is a critical component, and its characteristics directly influence the governor's sensitivity and response. By either decreasing or increasing the effective length of this spring, its spring rate – essentially how stiff it is – also changes. This, in turn, dictates how much the governor reacts to changes in engine speed.

The governor control spring is typically threaded into an adjusting cap assembly, often referred to as the control rod assembly. This design allows for manual adjustment. When the adjusting cap is turned in the clockwise direction (as viewed from the fuel transfer pump end of the engine), the control rod spring shortens. A shorter spring becomes less sensitive to speed changes, thereby increasing the governor's regulation. This means the engine's speed will drop more significantly for a given increase in load. Conversely, turning the adjusting cap in the anti-clockwise direction increases the control rod spring's effective length and its sensitivity. This action will decrease the governor regulation, making the engine's speed more stable under load.

The External Droop Adjustment Screw: Your Control Point

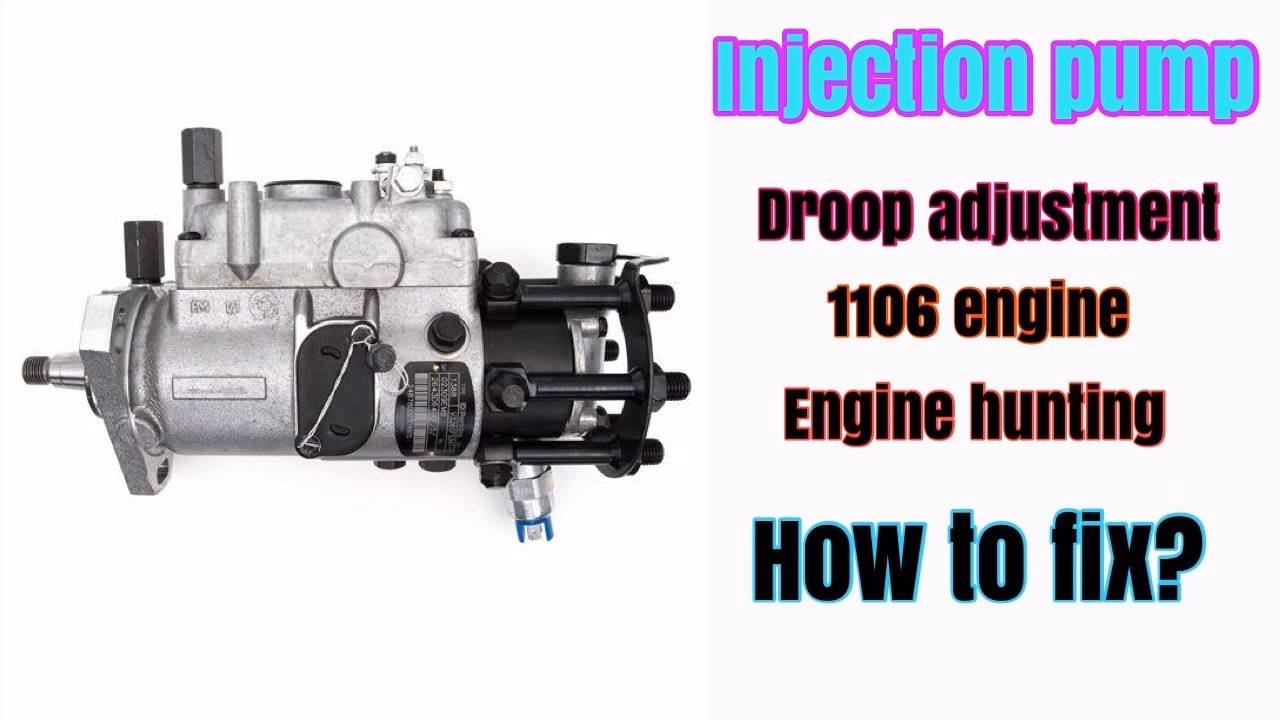

Beyond the internal adjustments, many diesel generator governors feature an external speed droop adjustment screw. This screw is typically located at the rear of the fuel injection pump housing and serves as a convenient point for fine-tuning the governor's sensitivity and, consequently, the speed droop characteristic. The droop screw adjustment varies the governor regulation by effectively changing the spring rate of the control spring assembly without needing to disassemble the governor.

It's important to note that adjusting this screw will affect both the full load and no-load frequency settings of the generator. This means that after making droop adjustments, you might also need to reset the high speed stop screw to bring the no-load frequency back to the desired level. This interdependency highlights the need for careful and systematic adjustment procedures.

The definition of speed droop itself can be understood as the fuel injection pump’s ability to respond to changing engine loads. A higher droop setting means the pump is less sensitive and allows for a greater drop in speed for a given load increase, which can be beneficial for load sharing but results in a wider frequency range. A lower droop setting means the pump is more sensitive, maintaining a more constant speed but potentially making load sharing more challenging without other controls.

The Critical Art of Adjusting Speed Droop

Adjusting the speed droop on a diesel generator governor is a precise task that requires patience and adherence to a specific procedure. Incorrect adjustment can lead to unstable operation, poor load sharing, or even engine damage. Always remember that speed droop adjustments must be made while the engine is operating, but with a crucial caveat: after each significant adjustment of the droop screw, the engine must be shut down briefly. This momentary shutdown allows the governor spring to unload and the internal adjusting mechanism to seek its final, stable position in the spring. Failing to do this can lead to inaccurate settings and further instability.

Here's a step-by-step guide to adjusting the governor, as detailed in many service manuals:

1. Operate the Engine Until Normal Operating Temperature is Obtained (195°F):

   Before any adjustments, ensure the engine is at its normal operating temperature. This is crucial because the engine's performance characteristics, including fuel viscosity and internal friction, change with temperature, affecting governor response. If you experience serious surging during the warm-up period, turn the speed droop adjusting screw clockwise until the surging stops. This initial adjustment can stabilise the engine sufficiently to reach operating temperature.

2. When the Engine Reaches Operating Temperature, Position the Throttle to Attain Rated Speed and Apply 100 Percent Load:

   Once the engine is warm, set the throttle to achieve the generator's rated speed (and thus rated frequency). Then, apply a full 100 percent load to the generator. You may need to adjust the throttle position slightly as necessary to obtain 100 percent performance under this full load condition.

3. Remove the Load and Check for the Specified No-Load or, in the Case of a Generator Set, Note the Frequency:

   After operating at full load, carefully remove the entire load from the generator. Immediately check the engine's no-load speed or, for a generator set, note the resulting frequency. If the no-load speed or frequency is incorrect (i.e., not within the specified range for your generator), you'll need to make an adjustment. Loosen the locking cap on the speed droop adjusting screw. Turn the speed droop adjusting screw clockwise for increased droop (meaning a greater speed drop from no-load to full-load, and a lower no-load frequency) or anti-clockwise for less droop (meaning a smaller speed drop and a higher no-load frequency).

   If surging occurs when the load is removed, turn the adjusting cap (or the droop screw, depending on the specific governor design) clockwise to eliminate the surge. This indicates that the governor is overreacting to the sudden change in load. Once the desired no-load speed/frequency is achieved and any surging is eliminated, tighten the locking cap to secure the adjusting screw. Remember, when speed droop adjustments are made, it is often necessary to re-adjust the throttle position to fine-tune the base speed.

4. Check the 100 Percent Load and No-Load Performance Again and Make Adjustments as Necessary:

   The adjustment process is iterative. After making changes, re-apply the 100 percent load, check performance, then remove the load and check no-load performance again. You may need to repeat steps 2 and 3 several times until both the full-load and no-load speed/frequency are within specification and the engine operates stably under both conditions and during load changes. Turning the screw in shortens the control spring, making it less sensitive and increasing speed droop. Turning the adjusting screw out has the opposite effect, increasing sensitivity and decreasing speed droop. This iterative process is key to achieving optimal governor performance.

Droop vs. Isochronous Load Sharing: A Comparative Look

While speed droop has been a cornerstone of generator paralleling for decades, modern technology has introduced more sophisticated methods. Understanding the differences is crucial for appreciating the evolution of generator control systems.

The choice between droop and isochronous control depends heavily on the application. For connecting to a large utility grid, droop is often preferred because the grid itself acts as an infinite bus, effectively having a 'zero droop' characteristic. Your generator's droop characteristic allows it to contribute power proportionally without trying to dictate the grid's frequency. For isolated parallel systems where precise frequency and load sharing are critical, isochronous control offers superior performance and reliability.

Benefits and Limitations of Speed Droop

Despite the advent of more advanced electronic controls, speed droop governors continue to be a fundamental component in many diesel generator systems, and for good reason. Their benefits are particularly evident in certain applications, though they do come with their own set of limitations.

Benefits:

• Simplicity: Mechanically, droop governors are less complex than their electronic counterparts, leading to easier maintenance and often greater robustness in harsh environments.
• Reliability: With fewer electronic components, these systems can be less prone to failures caused by electrical interference or component degradation, offering a high degree of dependability.
• Natural Load Sharing: For paralleled generators, droop provides an inherent, self-regulating mechanism for load distribution without requiring complex communication or control signals between units.
• Cost-Effectiveness: Generally, mechanical droop governors are less expensive to manufacture and implement than sophisticated electronic control systems, making them suitable for budget-conscious installations.
• Grid Compatibility: As mentioned, droop is ideal for paralleling with a large utility grid, allowing the generator to contribute power without destabilising the grid's frequency.

Limitations:

• Frequency Variation: The most significant drawback is the inherent change in output frequency as the load fluctuates. While often within acceptable limits, applications requiring extremely tight frequency control (e.g., sensitive electronic equipment) may find this unacceptable.
• Less Precise Load Sharing: While it facilitates load sharing, it's not as precise or dynamic as electronic isochronous control, especially under rapidly changing load conditions.
• Mechanical Wear: Being a mechanical system, it is subject to wear and tear over time, which can lead to drift in settings and require periodic re-calibration.
• Manual Adjustment: Adjustments often require manual intervention and can be time-consuming, as demonstrated by the detailed procedure required.

Frequently Asked Questions (FAQs)

What exactly is speed droop in a diesel generator?

Speed droop is the intentional decrease in an engine's rotational speed (and thus the generator's output frequency) as the electrical load applied to the generator increases. It's a built-in characteristic of the governor system designed to facilitate stable operation, especially when multiple generators are running in parallel.

Why is droop needed when paralleling generators?

Droop is crucial for load sharing. When generators run in parallel, if one takes on more load, its speed drops slightly due to droop. This change in speed and frequency signals the governor to increase fuel, and more importantly, it allows the other generators (running at a slightly higher frequency) to shed some of their load onto the 'drooping' generator until a new, stable load distribution is achieved. Without droop, generators would 'fight' for the load, leading to instability and potential system collapse.

Can I adjust droop while the engine is running?

Yes, the external speed droop adjustment screw is designed to be adjusted while the engine is running. However, it's critical to briefly shut down the engine after each significant adjustment. This allows the internal governor spring and mechanism to settle into their final position, ensuring the adjustment is accurately applied and preventing further instability.

What happens if droop is incorrectly set?

If droop is set too high, the generator's frequency will vary excessively with load, potentially affecting sensitive equipment. If set too low (or effectively zero, trying to achieve isochronous operation with a droop governor), generators in parallel may become unstable, 'hunt' for load, or experience load oscillations, leading to poor power quality or even tripping off-line.

What is the typical droop regulation percentage?

Governor regulation with speed droop typically ranges from 3 percent to 5 percent. This means that the engine's speed (and frequency) will drop by 3% to 5% from its no-load speed to its full-load speed.

Conclusion

Speed droop, though a concept deeply rooted in mechanical engineering, remains a cornerstone of diesel generator operation, particularly in parallel systems. It provides a simple yet ingenious mechanism for load sharing, preventing the chaotic struggle that would otherwise ensue when multiple power sources try to feed a common load. While modern electronic isochronous systems offer tighter control and constant frequency, understanding and correctly adjusting speed droop is still an invaluable skill for maintaining the reliability and efficiency of countless generator installations worldwide. By mastering the principles and the practical adjustment procedures, you ensure your diesel power systems operate smoothly, stably, and effectively, delivering consistent power when it matters most.
