Wheel Alignment Unpacked: Caster & Camber

Proper wheel alignment is far more than just a trivial adjustment; it's a fundamental aspect of vehicle maintenance that dramatically enhances your driving experience, improves the stability of your automobile on the road, and significantly extends the life of your tyres. While several parameters contribute to precise wheel alignment, such as toe-in and toe-out, two of the most critical and often misunderstood are the caster and camber angles. Understanding these intricate angles is key to appreciating how your car handles and why regular alignment checks are so important. This comprehensive guide will delve into the specifics of both caster and camber, explaining their definitions, effects on steering, handling, and even tyre wear, ensuring you're well-equipped to understand this vital aspect of your vehicle's mechanics.

Understanding Caster Angle

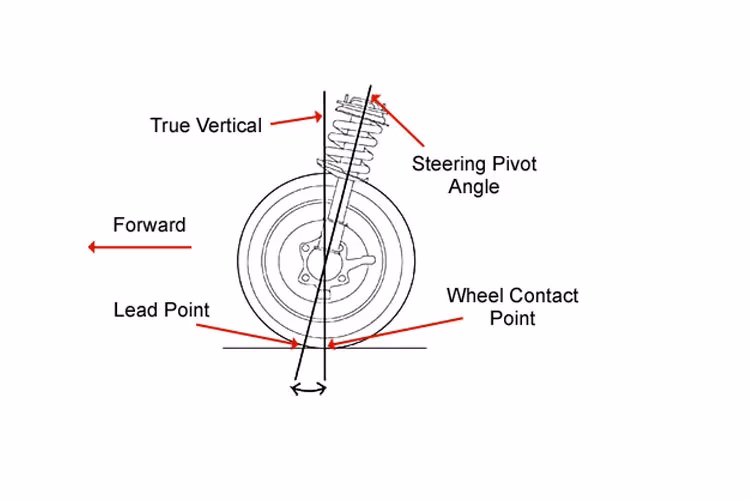

When viewed from the side of your vehicle, the caster angle is defined as the angle made by the axis of the kingpin (also known as the steering axis) with a vertical axis of the wheel. This angle plays a crucial role in your car's directional stability and how its steering feels.

Types of Caster Angle

Caster is primarily categorised into two types:

• Positive Caster Angle
• Negative Caster Angle

Positive Caster Angle

A positive caster angle occurs when the top of the steering axis (kingpin axis) is tilted behind the vertical wheel axis. This configuration is widely adopted in most modern vehicles due to its significant benefits for directional stability, especially when driving on straight roads.

Let's explore how positive caster achieves this stability. When your vehicle navigates a turn on a curved road, centrifugal force acts upon it, attempting to push the vehicle outwards from the turn. To counteract this, a frictional force between the road surface and the tyre acts in the opposite direction. With a positive caster angle, this frictional force acts away from the steering axis. This creates a powerful restoring torque in the wheel, which inherently helps to realign the car’s wheels back to the centre position after a turn. This self-aligning action is what allows your vehicle to automatically run in a straight line without constant steering corrections once you've completed a corner. Generally, a caster angle of up to 2° to 3° positive is considered optimal for generating effective restoring torque.

Negative Caster Angle

Conversely, a negative caster angle is present when the top of the steering axis is tilted ahead of the vertical axis. This configuration has significantly different effects on vehicle handling compared to its positive counterpart.

How Caster Affects Steering

The effects of positive and negative caster angles on steering are quite distinct and directly impact your driving experience:

• A positive caster angle typically results in heavier steering, meaning you'll need to exert more effort to turn the wheel. However, this 'heavier' feel is a trade-off for enhanced stability, particularly when driving in a straight line. The self-aligning torque, a direct consequence of positive caster, ensures that the steering wheel returns to its central position smoothly and quickly after you've completed a turn, contributing significantly to driving safety and comfort.
• A negative caster angle makes the steering feel lighter and easier to turn. While this might seem desirable, it comes at the cost of directional stability. A car with negative caster will struggle to maintain a straight line and may 'wander' on the road, requiring constant small corrections from the driver.

How Caster Affects Cornering

Caster angle primarily influences a car’s steering feel and its behaviour during cornering:

• A vehicle with a higher degree of positive caster will feel harder to turn initially, but this stiffness is often desirable. Firstly, the increased resistance means the car is more eager to realign itself after cornering. The steering wheel returns to centre faster, significantly increasing safety and reducing driver fatigue.
• Secondly, positive caster can actually increase traction during a corner. For example, high-performance vehicles or sports cars often feature higher amounts of positive caster. This allows them to stay more 'planted' in turns, enhancing their cornering prowess.

Return to Centre

To truly grasp how caster influences a car’s ability to straighten out, consider the simple act of pushing a shopping trolley or rolling an office chair. As you push them forward, all the castering wheels naturally align themselves with the direction of your push. Your car's front wheels operate on a similar principle. As you accelerate, the wheels naturally want to align themselves with the forward momentum. Most cars have fixed rear wheels, meaning only the front wheels can turn. By increasing the positive caster on the front wheels, you make them want to return to centre faster, which makes controlling the car significantly easier and more intuitive. Observe a shopping trolley's front caster wheels; they often have a considerable amount of positive angle for precisely this reason.

Negative Caster

In contrast, a car with negative caster will tend to 'wander' rather than straightening out as you accelerate out of a corner. Worse still, it might even want to lock into a specific direction. You can experience the sensation of negative caster by giving a shopping trolley a strong shove backwards; it will likely veer in every direction except straight, as its wheels cannot align with the force and will 'lead' rather than 'trail' as intended. This erratic behaviour is clearly undesirable in a moving vehicle.

More Traction

Another significant advantage of positive caster in handling is its ability to mimic the effects of negative camber when you turn the car. A wheel with positive caster will tilt inwards as you turn, remaining more perpendicular to the road. This happens without the typical downsides of excessive static negative camber. During a turn, the angle of the tyre to the road changes, and the contact patch – the area of the tyre touching the road – naturally shrinks. While negative camber increases the tyre's contact patch during cornering, leading to better grip, it also causes increased tyre wear when driving straight. By utilising positive caster, you achieve the benefit of an increased contact patch during turns, but maintain a flat contact patch when driving straight, leading to superior tyre wear characteristics overall.

How Caster Affects Highway Driving

Positive caster contributes significantly to a car's stability when travelling in a straight line on the motorway, for the same reasons it aids in returning to centre after a corner. Reverting to the shopping trolley analogy, you can easily visualise this: as you push the trolley forward, it naturally wants to travel in a straight line and resists turning because its wheels are eager to remain aligned with the direction of the force. This inherent stability translates directly to a smoother and more relaxed highway driving experience.

Reduced Sensitivity to Road Conditions

While it might seem counter-intuitive to make the steering wheel require more effort to turn, this characteristic of positive caster actually enhances comfort. Roads are rarely perfectly smooth; they are riddled with bumps and imperfections. If the steering input were overly sensitive, every minor imperfection would be transmitted directly to your wrists, causing the steering wheel to jerk around. With positive caster, the steering system is better able to absorb these road imperfections without causing the car to deviate from its intended path. On long motorway journeys, this means you don't have to make constant, tiny corrections to stay on the road, leading to a much more comfortable and less fatiguing drive.

How Caster Affects Tyre Wear

Unlike camber or toe, caster does not dramatically alter the rate of tyre wear. However, issues can arise if the caster is severely out of adjustment or uneven between the wheels. One specific issue that can occur is called 'feathering'.

Feathering

Feathering causes a tyre's tread to appear jagged, resembling gills. Ideally, when you examine the top of the tread, it should be even, with all tread blocks at a consistent height. Excessive feathering, however, results in an uneven, saw-tooth pattern across the tread. The primary concern with feathering is its negative impact on the tyre's ability to effectively expel water, which can compromise wet-weather grip. While not the most severe form of tyre wear, feathering does indicate a problem that will necessitate earlier tyre replacement than would otherwise be required.

When to Adjust Caster

There are two main indicators that it might be time to have your caster checked and adjusted:

1. Service Schedule: Your vehicle's service schedule will outline recommended intervals for checking and adjusting your wheel alignment. Your caster will typically be adjusted to the manufacturer's specifications every time a full alignment is performed.
2. Vehicle Misbehaviour: If you notice your car exhibiting unusual handling characteristics, such as excessive wandering on the motorway, or if it struggles to straighten out quickly after a corner, it's a strong sign that your caster might be out of spec. Generally, other alignment adjustments like toe and camber often require servicing before caster does, so it's less common to notice caster wear exclusively.

Understanding Camber Angle

Camber is the angle between the vertical axis of the road and the imaginary centreline passing through the tyre, as viewed from the front of the vehicle. This angle significantly influences how much of the tyre's surface makes contact with the road, which in turn affects tyre wear.

Types of Camber Angle

Similar to caster, camber angle is categorised into two main types:

• Positive Camber Angle
• Negative Camber Angle

Positive Camber Angle

A positive camber angle exists when the upper part of the wheel is tilted outwards from the vehicle. In this configuration, the outward surface of the tyre makes more contact with the road, leading to increased wear on that specific portion of the tyre. Many vehicle manufacturers set a slight positive camber angle as standard. This is often done because, under typical driving loads, the suspension compresses, causing the camber angle to become minimal, bringing the tyre's centreline closer to being perpendicular to the road. This ensures that the maximum possible surface of the tyre comes into contact with the road under normal operating conditions, optimising grip.

Negative Camber Angle

Conversely, a negative camber angle is present when the upper part of the wheel is tilted inwards towards the vehicle. In this scenario, the inward surface of the tyre makes more contact with the road, resulting in increased wear on that inner portion. Some vehicles, particularly those designed for performance or spirited driving, are set with a negative camber angle to enhance stability when cornering on curved roads. However, this increased stability in corners can come at the expense of stability when driving in a straight line.

How Camber Affects Steering

The effects of positive and negative camber angles on steering and handling are as follows:

• A positive camber angle generally helps to reduce the effort required for steering the vehicle, making the steering feel lighter.
• A negative camber angle is primarily used to increase stability when a vehicle is moving on curved roads, enhancing cornering grip. However, it can slightly lower the stability for straight-line driving and lead to uneven inner tyre wear.

Caster vs. Camber: A Comparative Look

To further clarify the distinctions between these two critical alignment angles, here is a comparative table:

Frequently Asked Questions (FAQs)

What is the typical caster angle for a car?

Over time, the various joints and components within your car's suspension system can loosen or wear out. When these crucial components that hold the wheels in place fall out of tolerance, it can lead to poor handling characteristics or significantly accelerate tyre wear. To rectify these issues, all cars are equipped with adjustable components that allow for precise wheel alignment.

While there are three primary properties centred around wheel alignment – toe, camber, and caster – caster's impact is unique. Unlike camber and toe, which frequently cause direct tyre wear, bad caster generally won't ruin your tyres, but it profoundly affects how your car feels on the road.

For almost all cars, the design specification calls for between three to six degrees of positive caster. This range is chosen specifically because negative caster can lead to highly undesirable driving characteristics, such as wandering and poor straight-line stability. It's important to note that unlike camber and toe, which are often adjusted during routine alignment, caster is typically only adjusted if it deviates significantly from the manufacturer's recommendations. On some more budget-friendly vehicles, it may not even be possible to adjust caster at all, as it's a fixed component.

Being positive is more than just a mindset; it's a fantastic way to keep your car stable and quick through the corners. Caster may not be the first thing that comes to mind when you think about tyre alignment, but its subtle yet profound influence on your vehicle's handling and stability cannot be overstated. Next time you pick out a shopping trolley, take a moment to observe how its front wheels behave. An erratic trolley can certainly ruin your day; ensure your car doesn't behave the same way by understanding and maintaining proper wheel alignment.
