Inside Your Engine: The Bottom End Explained

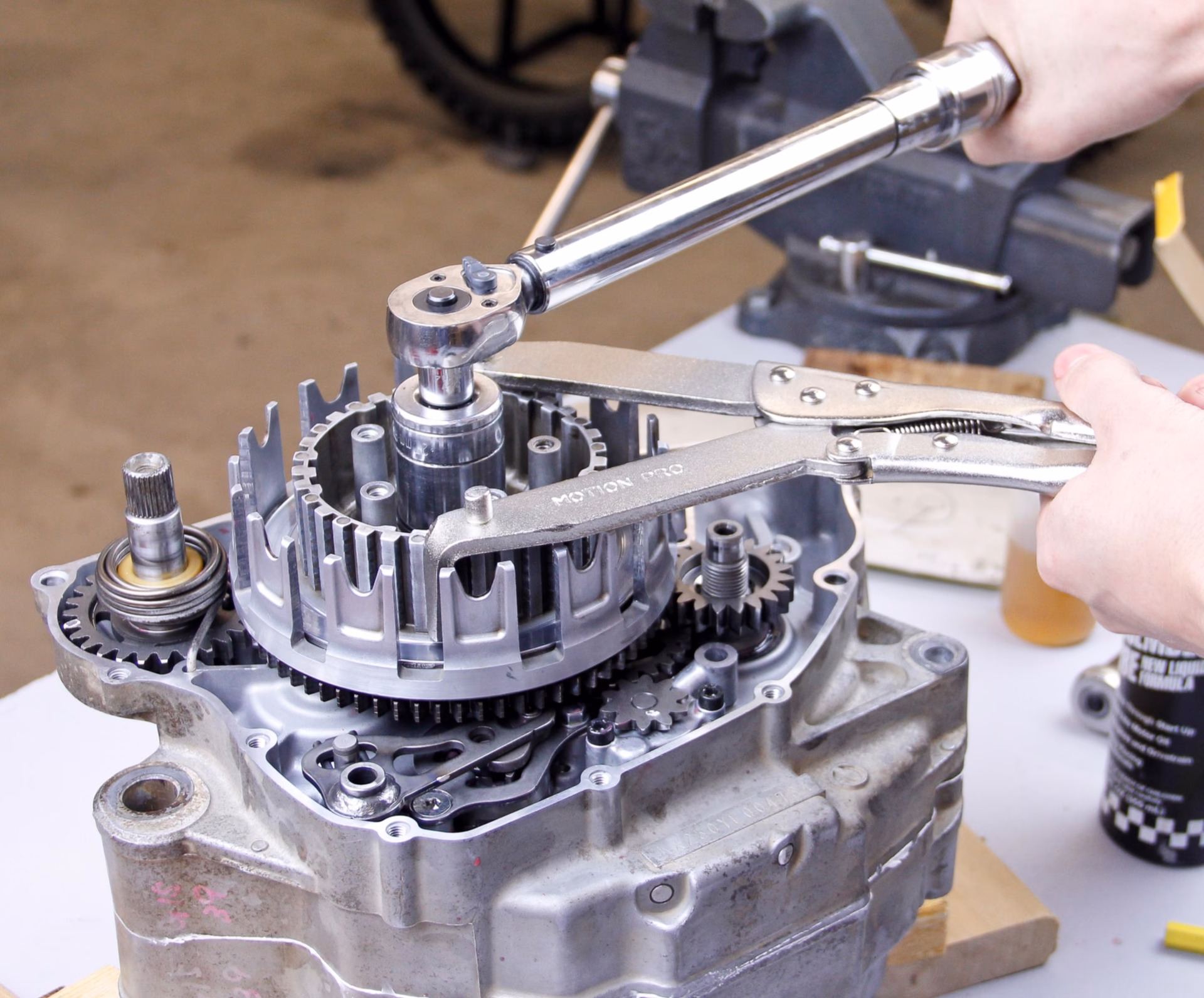

The engine bottom end is, without a doubt, the most critical section of your vehicle's powertrain. It's the powerhouse, the heart that transforms fuel into motion, and its intricate assembly of parts must work in perfect harmony to ensure your car runs smoothly and reliably. Far from being a single entity, the bottom end is a complex system composed of numerous specialised components, each playing a vital role in the engine's overall operation. The quest for improved automotive performance has long been driven by meticulous research and development focused on enhancing these very bottom-end parts. It's important to remember that not all engines are created equal; the specific parts and their configurations can vary significantly depending on the vehicle's year, make, model, engine size, and even optional features. However, a core set of components consistently forms the foundation of most engine bottom ends.

The components of an engine are often categorised for clarity, with the 'bottom end' referring to the lower section of the engine block and its associated rotating and reciprocating parts. Other common categorisations include the 'engine top end' (cylinder head, valves, camshafts, etc.), the 'front end' (timing components), the 'oil pan' (sump), and various external ancillaries.

Let's explore the most common parts that constitute the engine bottom end:

The Short Block: The Foundation

The 'short block' is a fundamental assembly that includes the cylinder block itself, along with all its internal rotating and reciprocating components. Think of it as the core engine assembly before the cylinder head and other top-end components are attached. Within the short block, you'll find the pistons, connecting rods, crankshaft, and their associated bearings, all meticulously installed within the cylinder block.

The Bare Block: The Canvas

A 'bare block', also known as a 'bare cylinder block', is essentially the engine block with all internal parts removed. It's the foundational casting, featuring the precisely machined holes and bores that will house the crankshaft, camshafts (in some designs), and cylinders. This is the starting point for building or rebuilding an engine.

Block Deck Surface: The Sealing Point

The 'block deck surface' is a critical flat, machined surface on the top of the cylinder block. This is where the cylinder head will be bolted down, forming a seal for the combustion chambers. The flatness and integrity of this surface are paramount to prevent combustion gases from escaping and coolant from entering the cylinders.

Cylinders: The Power Chambers

The 'cylinders' are large, precisely machined holes within the cylinder block. Each cylinder is where the combustion process takes place, with the piston moving up and down within it. In most modern engines, the cylinders are an integral part of the engine block casting. However, in some cases, especially in performance or heavy-duty applications, 'cylinder sleeves' or 'liners' are used.

Cylinder Sleeves or Liners: The Replacements

'Cylinder sleeves' or 'liners' are precisely engineered tubes that are inserted into the cylinder block to form the cylinder walls. They offer a solution for worn cylinders, allowing for repair without replacing the entire engine block. There are two primary types:

• Dry Sleeves: These are inserted into a bore that completely surrounds them, and they do not come into direct contact with the coolant.
• Wet Sleeves: These are exposed to the coolant on their outer surface, acting as a barrier between the combustion process and the cooling system.

Machined Holes and Bores: The Passages

The cylinder block is riddled with various precisely machined holes and bores, essential for housing other components and facilitating the flow of oil and coolant. These include:

• Lifter Bores: House the valve lifters (or tappets) that actuate the valves.
• Cam Bores: Provide a mounting point for the camshaft(s).
• Main Bores: Precisely machined housings for the crankshaft's main bearings.
• Oil Galleries: Passages through which lubricating oil is circulated to various engine parts.
• Water Jackets: Channels that surround the cylinders, allowing coolant to circulate and dissipate heat.

Main Bearing Caps: Securing the Crankshaft

The 'main bearing caps' are robust metal components that bolt to the bottom of the engine block. They form the lower half of the main bores, cradling the crankshaft. Large, high-strength bolts are used to secure these caps to the block, ensuring the crankshaft remains precisely positioned during operation.

Main Bearings: The Smooth Ride

'Main bearings' are split, semi-circular shells made of a special bearing material. They are installed in both the cylinder block's main bores and the main bearing caps. These bearings provide a low-friction surface for the crankshaft's main journals to rotate upon, minimising wear and ensuring smooth operation.

Crankshaft: The Motion Converter

The 'crankshaft' is a masterfully engineered component that converts the linear, up-and-down (reciprocating) motion of the pistons into rotational motion. It sits within the main bores of the block and features precisely machined journals that ride on the main and connecting rod bearings. The crankshaft typically includes integral counterweights to balance the forces generated by the pistons and connecting rods, oil passages for lubrication, and a rear flange for attaching the flywheel and transmission. A 'rear main seal' at the back of the crankshaft prevents oil from escaping the engine.

Main Journals: The Crankshaft's Support

The 'main journals' are the precisely machined and polished surfaces on the crankshaft that rotate within the main bearings. Their smooth finish and exact dimensions are crucial for efficient lubrication and minimal wear.

Rod Journals: Connecting to the Pistons

The 'rod journals' are offset sections of the crankshaft where the connecting rods attach. These journals are also precision-machined and polished to provide a smooth bearing surface for the connecting rod bearings.

Flywheel: Smoothing the Power Pulses

The 'flywheel' is a heavy metal disc bolted to the rear of the crankshaft. Its significant mass provides rotational inertia, which smooths out the power pulses generated by the engine's firing order. This inertia keeps the crankshaft turning smoothly between power strokes, preventing jerky operation. The flywheel also serves as the mounting surface for the starter motor's ring gear and, in manual transmission vehicles, for the clutch assembly.

Harmonic Balancer: Taming Vibrations

Attached to the front of the crankshaft, the 'harmonic balancer' is designed to counteract torsional vibrations generated by the engine's rotating assembly. It helps to reduce stress on the crankshaft and other components, contributing to a smoother and more durable engine.

Connecting Rod: The Link Between Piston and Crank

The 'connecting rod' is a strong metal link that connects each piston to a rod journal on the crankshaft. It acts as the crucial intermediary, converting the piston's reciprocating motion into the crankshaft's rotational motion.

Connecting Rod Cap: The Rod's Closure

The 'connecting rod cap' is the lower section of the connecting rod, bolted to the main body of the rod. It encloses the rod journal of the crankshaft.

Rod Bearings: The Crankshaft's Dance Partners

'Rod bearings' are similar to main bearings, being split shells that fit into the connecting rod and its cap. They provide a low-friction surface for the crankshaft's rod journals, allowing the connecting rod to pivot smoothly. Worn rod bearings are a common cause of a distinct 'knocking' sound from the engine.

Piston: The Force Transfer Unit

The 'piston' is a cylindrical metal component that moves up and down within the cylinder bore. It forms the moving base of the combustion chamber and is responsible for transferring the force generated by the expanding gases during combustion to the crankshaft via the connecting rod.

Wrist Pin (Piston Pin): The Pivot Point

The 'wrist pin', also known as a piston pin, is a cylindrical pin that passes through the piston and the small end of the connecting rod. It allows the piston to articulate or swivel relative to the connecting rod, accommodating the changing angle of the connecting rod as the crankshaft rotates.

Piston Rings: The Seals of Efficiency

Piston rings are split rings that fit into grooves on the outer diameter of the piston. They perform several vital functions:

• Sealing: They create a seal between the piston and the cylinder wall, preventing combustion gases from escaping into the crankcase (blow-by) and oil from entering the combustion chamber.
• Heat Dissipation: They help transfer heat from the piston to the cylinder walls, which then dissipates into the cooling system.
• Oil Control: They scrape excess oil from the cylinder walls, preventing it from being drawn into the combustion chamber and being burnt.

Balance Shafts: Minimising Engine Shake

In some engines, particularly those with an inline configuration or a V-configuration with uneven firing orders, 'balance shafts' are employed. These counterweighted rotating shafts are designed to cancel out vibrations and rotational imbalances, leading to a smoother-running engine.

Oil Pump: The Lubrication Lifeline

The 'oil pump' is a critical component responsible for circulating engine oil under pressure to all the moving parts of the engine, including the bearings, pistons, and camshafts. This constant lubrication is essential for reducing friction, preventing wear, and helping to cool the engine's internal components.

Oil Pan and Sump: The Oil Reservoir

The 'oil pan', typically made of sheet metal or aluminium, bolts to the bottom of the engine block. It serves as a reservoir for the engine's lubricating oil, holding a reserve supply for the oil pump to draw from. The 'sump' is the lowest point within the oil pan where the oil collects.

Comparative Table of Bottom End Components

Frequently Asked Questions (FAQs)

• What happens if the bottom end fails? A failure in the engine bottom end is usually catastrophic. It can lead to severe internal damage, rendering the engine inoperable and often requiring a complete rebuild or replacement. Symptoms can include loud knocking noises, loss of oil pressure, and complete engine seizure.
• Can I upgrade my engine's bottom end? Yes, performance enthusiasts often upgrade bottom-end components such as forged pistons, stronger connecting rods, and performance crankshafts to handle increased power output and improve durability.
• How does oil affect the bottom end? Engine oil is absolutely vital for the bottom end. It lubricates the bearings, reduces friction between moving parts, and helps dissipate heat. Insufficient or degraded oil can lead to rapid wear and catastrophic failure.
• What's the difference between a short block and a long block? A short block typically includes the cylinder block, crankshaft, pistons, connecting rods, and bearings. A long block adds the cylinder head, valves, camshafts, and associated valvetrain components to the short block assembly.

In conclusion, the engine bottom end is a marvel of engineering, a symphony of precisely machined parts working in concert to power your vehicle. Understanding its components and their functions underscores the importance of regular maintenance. Adhering to scheduled oil changes, fluid flushes, and timely replacement of wear items like belts and hoses is the most effective way to ensure the longevity and reliability of your engine and prevent the costly misfortune of a bottom-end failure. By taking good care of your vehicle's heart, you ensure it keeps beating strong for years to come.
