Uneven Brake Pad Wear: Diagnosis & Repair

Imagine cruising along, approaching a red light, and as you gently press the brake pedal, your car veers unexpectedly to one side. This unsettling experience is a tell-tale sign of uneven brake pad wear, a common yet serious issue that demands immediate attention. It compromises your vehicle's stopping power and can lead to dangerous situations on the road. Understanding why your brake pads wear unevenly is the first step towards ensuring your car remains safe and predictable under braking.

Is Uneven Brake Pad Wear Normal?

No, uneven brake pad wear between your vehicle's left and right sides is not normal. It's a clear indicator that one brake is working harder than the others, signalling a problem within your braking system that needs prompt investigation. However, it is quite normal for your front brake pads to wear out quicker than the rear brake pads. This phenomenon occurs because braking inherently shifts the vehicle's weight forward, placing significantly more stress on the front brake pads as they bear the brunt of reducing your car's momentum.

In certain scenarios, however, modern traction control and stability systems can cause the rear brakes to engage more frequently. This increased engagement can accelerate the wear rate of the rear pads, especially since they are often designed to be thinner than their front counterparts. While some variance is expected, any significant disparity in wear patterns across the same axle warrants professional inspection.

7 Common Causes and Solutions for Uneven Brake Pad Wear

Understanding the root causes of uneven brake pad wear is crucial for effective diagnosis and repair. Here are the primary culprits behind this critical issue:

1. Disc Thickness Variation (DTV)

Disc Thickness Variation, or DTV, describes a condition where your vehicle’s brake rotors exhibit varying levels of thickness across their surface. This typically happens when parts of the rotor become flatter or rougher due to factors such as rust, frequent aggressive braking, accumulation of debris, or a sticking brake caliper. When the brake pad scrapes over these inconsistent spots, it does so more aggressively, leading to uneven and accelerated pad wear in specific areas.

The Fix: A qualified mechanic can often machine (resurface) the rotors to iron out flat spots and clean them thoroughly with a dedicated brake cleaner before reinstallation. This process removes brake pad dust and rust, which are significant contributors to uneven wear. However, rotors have a minimum thickness threshold; once worn beyond this limit, resurfacing is no longer viable, and a full brake rotor replacement becomes necessary. It's also wise to inspect the caliper piston and its rubber boot if the rotor and pad are severely worn, as their improper retraction can perpetuate uneven pad pressure and wear.

2. Caliper Failure

The brake caliper houses a piston that is responsible for pushing the brake pads against the rotor to slow or stop your vehicle. If the rubber seal designed to retract this piston wears out or fails, the piston may not retract properly. The consequence is that the brake pad continues to rub against the rotor non-stop, even when the brakes aren't applied. This leads to premature brake pad wear, excessive heat build-up, and potential rotor damage. Furthermore, rust or accumulated debris on the caliper can impede the piston's smooth movement, causing it to stick and increasing brake pad wear.

The Fix: Have an expert examine your brake caliper. Depending on the extent of the damage or corrosion, the caliper may need to be rebuilt with new seals and components, or in more severe cases, completely replaced.

3. Corroded Slide Pins

Also known as guide pins, sliding pins allow the brake caliper to move freely back and forth, ensuring that the brake pads apply even pressure across the rotor. When these pins become corroded or if a piston is stuck, the caliper's ability to slide smoothly is severely compromised. This often results in the brake caliper becoming stuck in one position, leading to significant uneven or accelerated brake pad wear on one side.

The Fix: Light corrosion can often be removed using a wire brush, followed by thorough cleaning and lubrication with high-temperature grease. If the slide pins are heavily corroded or damaged beyond repair, replacing them with new ones is essential to restore proper caliper function.

4. Misaligned Brake Pads

Correct brake pad alignment is fundamental for ensuring that the pads squeeze the rotor evenly. Unfortunately, improper installation can lead to a misaligned brake pad, which will inevitably result in uneven pad wear. Issues arising from misaligned pads typically become noticeable within weeks or months following the brake service or installation.

The Fix: It's crucial to have a professional mechanic inspect the installation. They will often depress the brake pedal and visually check if both pads are contacting the rotor simultaneously and evenly. If not, they will realign or reinstall them correctly.

5. Corroded or Dirty Rotors

Even new rotors can experience accelerated brake pad wear if they accumulate dirt, grease, or corrosion, particularly if the vehicle isn't driven regularly. Particles of dirt or rust act like abrasive sandpaper between the pad and the rotor, significantly accelerating wear on both components.

The Fix: Clean the rotors thoroughly with a high-quality brake cleaner that leaves no residue after its solvents evaporate. During routine car maintenance, you can also ask your mechanic to apply an anti-rust coating or treatment to the rotor surface to prevent future corrosion.

6. Warped Rotors

A warped rotor is characterised by a deformed or wavy surface, which commonly occurs when a very hot rotor comes into contact with cold water (e.g., driving through a puddle after heavy braking). When a brake pad attempts to contact a warped rotor, it can only make consistent contact with the rotor's high points, leading to concentrated friction and, consequently, uneven brake pad wear.

The Fix: To prevent warping, avoid spraying cold water directly onto your wheels immediately after a long drive or heavy braking. Allow the rotors sufficient time to cool down naturally. If rotors are already warped, they may need resurfacing or, more commonly, replacement if the warpage is severe.

7. Different Types of Brake Pads

Using brake pads from different manufacturers or made from dissimilar materials (e.g., ceramic vs. semi-metallic) on the same axle will inevitably lead to different wear rates. These variations can also extend to differences in initial pad thickness. While it might be acceptable to use different materials on the front and rear axles, it is absolutely critical to avoid mixing different pad types or brands on the same axle.

The Fix: Always have a qualified mechanic select and install brake pads to ensure your vehicle is fitted with the correct and matched pads for optimal and even performance.

Can You Change the Brake Pads on One Side Only?

No, you should never install new brake pads on only one side of an axle. Doing so will almost certainly lead to further uneven pad wear and compromise your vehicle's braking balance. A new pad will have a different thickness and friction coefficient compared to an older, worn pad. This disparity in thickness and braking efficiency will result in uneven pressure and stopping force, which is dangerous and can cause your vehicle to pull to one side during braking. Always replace both front brake pads together, or both rear brake pads together, as a pair.

Understanding Common Brake Pad Wear Patterns

Identifying specific wear patterns on your brake pads can provide invaluable clues about the underlying problem. Here are the most common patterns and their typical causes:

A. Inner Pad Wear

Inner pad, or inboard pad, wear is a relatively common pattern. If your vehicle features a floating caliper brake system, it's considered somewhat normal for the friction material of the inside pad to wear slightly faster than the outer brake pad. However, this difference in wear should ideally not exceed 2-3 mm. If a mechanic observes significant inboard pad wear during a brake caliper inspection, the most likely culprits are a seized or faulty caliper pin (slide pin) or a stuck caliper piston, often due to a worn piston seal or internal corrosion. In some rare instances, a fault within the master cylinder can also contribute to excessive inner pad wear.

The Fix: A professional will meticulously inspect the hydraulic braking system and the caliper for any residual brake pressure. They will also thoroughly check the guide pins and piston boots for signs of corrosion or damage and replace them as necessary. If the master cylinder is implicated, it will also require attention or replacement.

B. Outer Pad Wear

It is less common for the outer pad, or outboard pad, to wear out first. This is why wear sensors are typically designed for the inner pad. Wear on the outboard pad usually occurs when the outer friction material continues to rub against the rotor even after the caliper piston has retracted. This condition is most frequently attributed to faulty guide pins that prevent the caliper from floating correctly.

The Fix: Call a mechanic to service or replace the caliper guide pins and bushings. In more severe cases, a complete caliper rebuild may be necessary. If the outboard pad wear is significantly beyond recommended levels, installing new brake pads is essential.

C. Tapered Pad Wear

If the friction material on your brake pad exhibits a tapered or wedged wear pattern, either horizontally or vertically, it's a strong indication of an issue. This can mean:

• The caliper has excessive movement or play.
• One side of the pad is seized within the caliper bracket.
• Corrosion under the abutment clip (the metal clip that helps brake pads slide evenly) is preventing proper movement of the pad ends.

While a tapered brake pad wear pattern can be normal in certain vehicles, particularly those with small rear floating calipers on the rear brake (where the brake pad manufacturer will specify normal wear conditions), it's more often a sign of faulty installation or worn guide pins. In some multi-piston calipers (e.g., 4-piston, 6-piston), blocked internal drillings for pressure equalisation can also cause this.

The Fix: The pad may need to be reinstalled correctly, or a brake hardware kit might be required to replace worn caliper guide pin bushings. Servicing or replacing caliper hardware and lubricating sliders are also common solutions.

D. Glazed Wear or Cracked Pads

Brake pad overheating can manifest as cracked, glazed, or lifted edges of the friction material. These high temperatures occur due to excessive friction from brake overuse, a defective pad, a partially engaged parking brake, or a malfunctioning caliper that isn't releasing properly. As a result, the pad's raw components can break down, potentially causing the friction material to separate from the backing plate (the metal mounting for the brake pad's friction material).

The Fix: This type of brake pad wear necessitates replacing and correctly installing a new pad in your disc brake. When doing so, you should also have your parking brake adjusted if it's affecting the wheel in question.

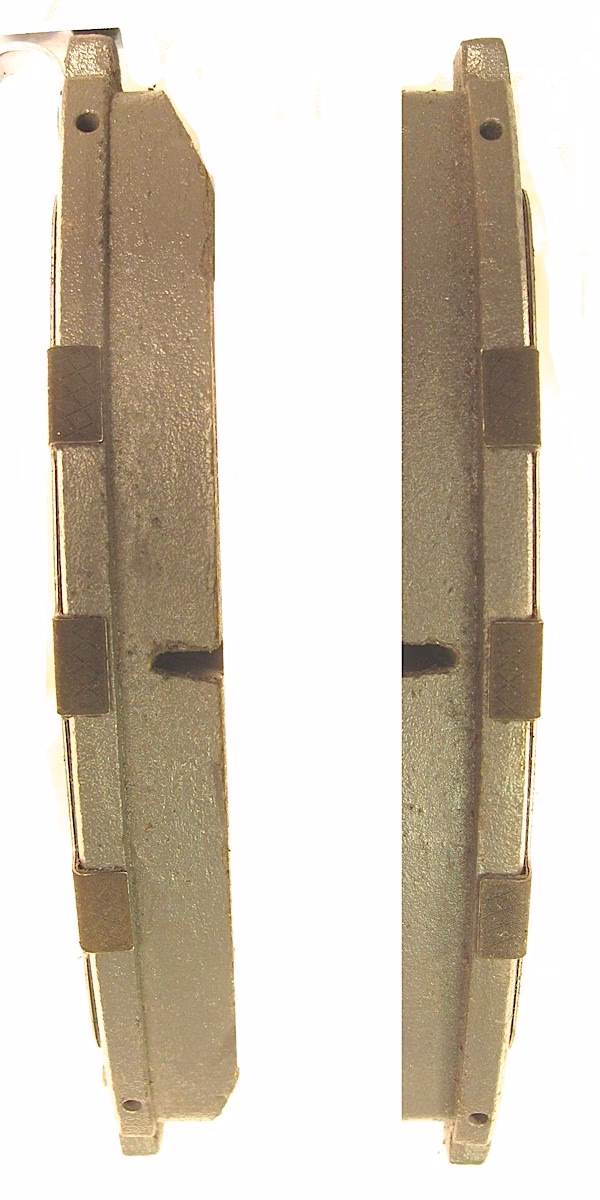

E. Overlapping Pad Wear

Overlapping pad wear occurs when the top edge of the brake pad extends beyond and rubs against the top of the brake disc. The most common causes for this specific wear pattern include installing the incorrect brake pads or discs for the vehicle, or excessive wear to the guide pins, caliper, or caliper bracket, which allows the pad to sit too high.

The Fix: To prevent overlapping wear, always ensure that the correct type of brake pads and discs are fitted to your vehicle according to the manufacturer's specifications. If guide pins or caliper components are worn, they must be replaced.

Comparative Table: Brake Pad Wear Patterns & Their Causes

When Should You Get Your Brake Pads Checked?

It's generally recommended to have your brake pads checked approximately every 50,000 miles. However, you should contact a qualified mechanic much sooner if you notice any of these specific symptoms of brake pad wear or braking system issues:

• Difficulty in braking, requiring more pedal effort than usual.
• A shaking or vibrating steering wheel when you apply the brakes.
• Your vehicle takes longer than usual to come to a complete stop.
• Your vehicle's nose pulls noticeably to one side upon braking, indicating uneven braking force.
• A high-pitched squealing sound, a faint scraping, or a buzzing noise whenever you press the brake pedal.
• A clicking sound heard when you push or release the brake pedal.

Additionally, some modern electronic braking systems can exhibit abnormal brake pad wear rates, particularly if the rear brakes are heavily involved in controlling nose dive during braking. If you experience wear sooner than expected, a comprehensive inspection of the entire brake system or a full brake service should be booked immediately.

Frequently Asked Questions About Uneven Brake Pad Wear

Q1: Why are my front brake pads wearing faster than my rear ones?

It's completely normal for front brake pads to wear faster. During braking, weight shifts to the front of the vehicle, causing the front brakes to do most of the work to slow the car down. However, if the difference is extreme, or if rear pads are wearing unusually fast, it could indicate issues with stability control systems or a sticking rear caliper.

Q2: Can uneven brake pad wear affect my car's performance?

Absolutely. Uneven brake pad wear can significantly reduce your car's overall braking effectiveness. It can lead to longer stopping distances, a pulling sensation when braking, reduced stability, and increased wear on other braking components like rotors and calipers. It compromises safety and should be addressed promptly.

Q3: What does a sticking brake caliper feel like?

A sticking brake caliper often manifests as a pulling sensation to one side when braking, a burning smell (from overheating brakes), reduced fuel economy, or a wheel that feels excessively hot after driving. You might also hear grinding noises as the pad constantly rubs against the rotor.

Q4: How important are brake caliper slide pins?

Brake caliper slide pins are critically important. They allow the caliper to float and move freely, ensuring that the brake pads apply even pressure to the rotor from both sides. If these pins seize, the caliper cannot move correctly, leading to uneven pad wear, reduced braking efficiency, and potential overheating.

Q5: Is it safe to drive with uneven brake pad wear?

No, it is not safe to drive with significant uneven brake pad wear. It reduces your vehicle's ability to stop effectively and predictably, increasing the risk of an accident. The issue will only worsen over time, potentially leading to complete brake failure or severe damage to other components. Get it inspected and repaired as soon as possible.

Restore Your Brakes to Optimal Condition

Uneven wear on your brake pads is a concerning issue that directly impacts your vehicle's safety and braking performance. It often results in reduced or uneven braking force, which can be incredibly dangerous on the road. To ensure your safety and the longevity of your braking system, regular inspections of your brakes are paramount. As soon as you notice any problems, such as a shaking steering wheel, unusual brake noises, or your car pulling to one side, it's crucial to seek a professional brake pad replacement or service.

Don't delay addressing these critical issues. Prompt diagnosis and repair by a qualified professional will ensure your braking system remains in optimal condition, providing you with the peace of mind you need every time you get behind the wheel.
