Modern Car Fuel Injection Systems Explained

Modern cars have moved a long way from the days of carburetors. The heart of a well-performing and efficient engine today is its fuel injection system. These sophisticated setups are responsible for delivering the precise amount of fuel needed for optimal combustion, directly impacting everything from power output and fuel economy to emissions control. Understanding the different types of fuel injectors used in today's vehicles is key to appreciating the engineering prowess under the bonnet. This article will delve into the various fuel injection systems that power our modern vehicles.

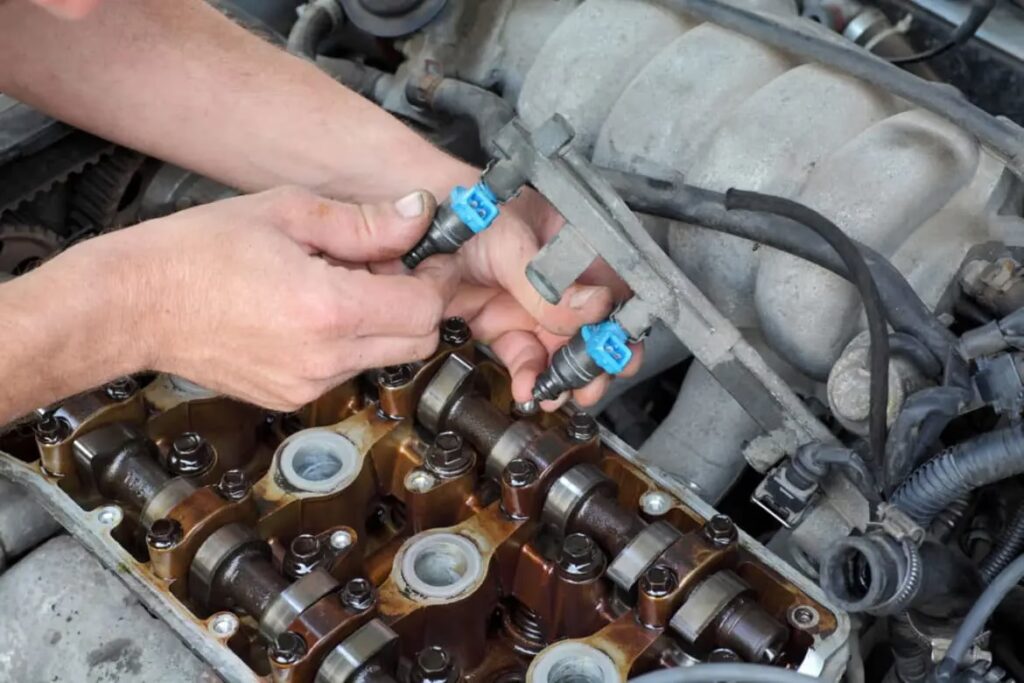

Fuel injectors are crucial components within modern automotive engines, playing a pivotal role in delivering meticulously metered quantities of fuel to the combustion chamber, thereby ensuring efficient combustion. As automotive technology continues its relentless march forward, a variety of fuel injector types have been developed to meet the diverse demands of different engine designs and performance aspirations. In this comprehensive exploration, we will dissect the different categories of car fuel injectors, examine their unique characteristics, and elucidate their vital functions in the pursuit of optimised engine performance and superior fuel efficiency.

1. Port Fuel Injection (PFI)

Port Fuel Injection (PFI) systems represent a significant advancement over older carbureted systems. In a PFI setup, the fuel injectors are strategically positioned within the intake manifold, typically located close to the intake valve of each cylinder.

Functionality:

The primary function of a PFI injector is to spray atomised fuel into the intake port. This fuel then mixes with the incoming air before being drawn into the combustion chamber during the intake stroke. The injector itself is usually a solenoid-operated valve. When an electrical signal is sent from the engine control unit (ECU), the solenoid energises, opening the valve and allowing fuel to be sprayed. When the signal ceases, the valve closes, halting fuel flow.

Design:

PFI injectors are designed to atomise fuel effectively, creating a fine mist that readily mixes with air. This atomisation is critical for efficient combustion. The spray pattern and angle are carefully calibrated to ensure optimal fuel-air mixing within the intake port.

Versatility:

PFI injectors are incredibly versatile and are commonly found in a vast array of petrol-powered vehicles. Their application spans from economical daily drivers to potent, high-performance sports cars. Their reliability and relatively straightforward design have made them a staple in the automotive industry for many years.

2. Direct Fuel Injection (GDI/DI)

Direct Fuel Injection (GDI), often referred to simply as DI, represents a more advanced and increasingly prevalent fuel delivery strategy in modern petrol and diesel engines.

Functionality:

Unlike PFI systems, GDI injectors are mounted directly within the combustion chamber itself. This means fuel is injected straight into the cylinder, bypassing the intake port entirely. This direct delivery allows for much finer control over the combustion process.

Efficiency:

GDI systems are lauded for their significant improvements in fuel efficiency, power output, and emissions control when compared to traditional PFI systems. By injecting fuel directly into the cylinder, engineers can achieve leaner fuel mixtures and more precise control over ignition timing. This often results in a measurable boost in both horsepower and miles per gallon.

Precise Fuel Delivery:

The core advantage of GDI lies in its ability to precisely dictate the timing, duration, and quantity of fuel injected into the cylinder. This granular control allows the ECU to optimise combustion under a wide range of operating conditions, leading to smoother engine operation and reduced pollutant formation.

3. Throttle Body Injection (TBI)

Throttle Body Injection (TBI) systems, while less common in new vehicles today, were an important transitional technology from carburetors to more advanced injection systems.

Functionality:

In TBI systems, one or two injectors are typically located within the throttle body assembly. This is the component that regulates the amount of air entering the engine based on throttle pedal position. The injectors spray fuel directly into the incoming air stream as it passes through the throttle body, before it enters the intake manifold.

Simplicity:

TBI systems are notably simpler and less expensive to manufacture than PFI or GDI systems. This cost-effectiveness made them an attractive option for entry-level vehicles where budget was a primary consideration.

Limited Precision:

However, the fuel metering provided by TBI injectors is considerably less precise compared to PFI or GDI. Because the fuel is introduced earlier in the intake path and has to travel further to reach the combustion chamber, achieving a uniform fuel-air mixture can be challenging. This can sometimes lead to compromises in overall engine performance and emissions control, especially under dynamic driving conditions.

4. Multi-Point Fuel Injection (MPFI)

Multi-Point Fuel Injection (MPFI) is essentially an evolution of the PFI concept, often used interchangeably in discussion, but with a subtle emphasis on the distribution.

Functionality:

MPFI systems feature individual fuel injectors strategically placed at each intake port, directly before the intake valve of each cylinder. This ensures that each cylinder receives its own dedicated fuel supply.

Balanced Fuel Distribution:

A key benefit of MPFI is its ability to facilitate balanced fuel distribution among all cylinders. By having an injector dedicated to each intake port, the system promotes more uniform fuel-air mixing and, consequently, more consistent combustion across all cylinders. This leads to smoother engine operation and improved overall performance.

Common in Modern Engines:

MPFI systems are widely adopted in modern petrol engines. They offer a marked improvement in fuel efficiency, power delivery, and emissions control compared to the older, carbureted engine designs. They strike a good balance between performance and cost.

5. Sequential Fuel Injection

Sequential Fuel Injection is not a separate type of injector hardware but rather a sophisticated control strategy that can be applied to PFI or MPFI systems.

Functionality:

In a sequential system, fuel is delivered to each cylinder in a specific, predetermined sequence. This sequence is meticulously synchronised with the engine’s firing order – the specific order in which each cylinder ignites. The ECU dictates precisely when each injector opens and for how long.

Precision Timing:

The paramount advantage of sequential injection is its exceptional timing precision. By delivering fuel to each cylinder at the optimal moment relative to its intake stroke, combustion efficiency is maximised, and harmful emissions are minimised. This advanced timing control allows the engine to operate at its peak potential under all driving scenarios.

Complexity:

Implementing sequential injection systems adds a layer of complexity. These systems require sophisticated engine control units (ECUs) and a network of sensors to accurately monitor engine speed, load, temperature, and other critical parameters. This allows the ECU to manage fuel delivery, injection timing, and other vital engine functions with remarkable accuracy.

Comparison Table: Fuel Injection System Types

Frequently Asked Questions (FAQs)

What is the main difference between PFI and GDI?

The primary difference lies in where the fuel is injected. PFI injects fuel into the intake port before it enters the cylinder, while GDI injects fuel directly into the combustion chamber. GDI offers greater precision, leading to better efficiency and performance.

Are all modern cars Sequential Fuel Injection?

Not all modern cars utilise sequential injection, but it is the most common and advanced control strategy used in contemporary vehicles, especially those with MPFI or GDI systems. Simpler systems might still use batch or simultaneous injection.

Can a fuel injector be cleaned?

Yes, fuel injectors can often be cleaned. This is typically done either through a professional fuel system cleaning service, which involves special additives or a direct cleaning process, or sometimes with aftermarket fuel additives. However, severely clogged or malfunctioning injectors may need replacement.

What are the symptoms of a faulty fuel injector?

Symptoms can include rough idling, engine misfires, reduced power, poor fuel economy, difficulty starting, and illuminated check engine lights. A noticeable smell of fuel could also indicate a leak from a faulty injector.

Which type of fuel injection is best?

For overall performance, fuel efficiency, and emissions control, Direct Fuel Injection (GDI) systems, particularly when combined with sequential injection control, are generally considered the most advanced and beneficial. However, the "best" system can depend on the specific application and design goals of the vehicle manufacturer.

Fuel injectors are indispensable components in the intricate machinery of modern automotive engines. They are absolutely vital in ensuring that fuel is delivered with the utmost accuracy for the combustion process. By fostering a deeper understanding of the various types of car fuel injectors and their respective operational characteristics, both vehicle owners and automotive aficionados can gain a greater appreciation for the sophisticated technologies that are meticulously employed to enhance engine performance, optimise fuel economy, and minimise environmental impact. Regardless of whether your vehicle is equipped with port fuel injection, direct injection, throttle body injection, multi-point injection, or a sequential injection strategy, each distinct type of fuel injector plays an instrumental role in contributing to the overall efficiency and robust performance of the engine. As the field of automotive technology continues its trajectory of constant evolution, anticipate further groundbreaking advancements in fuel injection systems that will undoubtedly lead to even greater engine efficiency, more potent power outputs, and a more sustainable automotive future.
