Mastering Semi-Sintered Brake Pad Bedding-In

When it comes to vehicle safety and performance, your brakes are undeniably paramount. Whether you're navigating the bustling streets of London or carving through the winding roads of the Scottish Highlands, having confidence in your stopping power is non-negotiable. For many enthusiasts and everyday drivers alike, upgrading to or maintaining performance brake pads, such as semi-sintered types, is a common pursuit. However, simply bolting on new pads isn't enough; to truly unleash their potential and ensure longevity, a critical process known as 'bedding-in' is required. This guide will walk you through everything you need to know about effectively bedding in your semi-sintered brake pads, ensuring optimal performance and a safer ride.

What Exactly Are Sintered and Semi-Sintered Brake Pads?

Before diving into the bedding-in process, it's crucial to understand the characteristics of the pads you're working with. The world of brake pads offers a variety of compositions, each designed for specific applications and performance profiles. Let's clarify the distinction between sintered and semi-sintered options.

Sintered Brake Pads: The Performance Powerhouses

As you might know,

sintered brake pads

are crafted using a unique manufacturing process involving intense heat and pressure to fuse metallic particles together. This creates a dense, highly durable friction material. The primary advantage of sintered pads lies in their exceptional resistance to friction-induced heat, which is a common cause of 'brake fade' – a significant loss of braking efficiency under extreme conditions. This makes them a favourite for high-performance vehicles, racing applications, and heavy-duty use where consistent, powerful braking is essential. While they offer superior stopping power, a common trade-off is that they can be considerably noisier than other pad types due to their metallic composition.

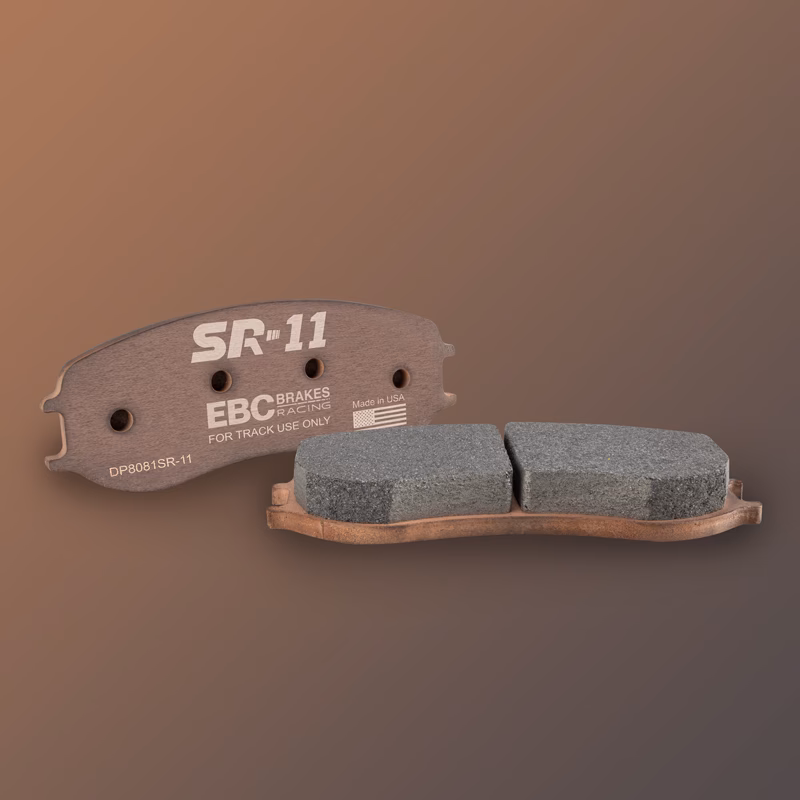

Semi-Sintered Brake Pads: The Best of Both Worlds?

Semi-sintered brake pads, as their name suggests, represent a hybrid approach. They typically combine a blend of metallic elements, similar to those found in fully sintered pads, with organic or ceramic compounds. The aim of this blend is to strike a balance: to provide much of the high-performance braking and heat resistance of full sintered pads, but with reduced noise and less aggressive rotor wear, which are often associated with their pure metallic counterparts. They offer a good initial bite, consistent performance across a range of temperatures, and are often considered an excellent upgrade for performance street driving, spirited touring, and occasional light track use. They provide a significant step up from standard organic or semi-metallic pads without the full commitment to the characteristics of a pure sintered pad.

To give you a clearer picture, here's a comparative overview of common brake pad types:

Why Bed-In Your New Brake Pads? It's More Than Just a Suggestion!

Bedding-in, also known as 'burnishing' or 'seating' the pads, is a crucial process that conditions your new brake pads and discs for optimal performance. It's not just a recommendation; it's an essential step that impacts safety, performance, and the lifespan of your braking components. Here's why it's so important:

• Material Transfer

  The primary goal of bedding-in is to facilitate an even transfer of friction material from the brake pads onto the surface of the brake disc. When done correctly, this creates a thin, uniform layer of pad material on the disc, known as the 'transfer layer'. This layer is vital because it's the interaction between the pad material and this transfer layer (rather than direct pad-to-metal contact) that provides the majority of your braking force. Without it, braking can be inconsistent and less effective.

• Preventing Brake Judder and Vibration

  Uneven heating or improper material transfer can lead to inconsistent friction across the disc surface. This often manifests as brake judder – a vibrating sensation felt through the pedal or handlebars. By carefully bedding in your pads, you ensure even heating and material deposition, which minimises the risk of judder and promotes a smooth, consistent braking feel.

• Optimising Braking Performance

  New pads, especially performance-oriented ones like semi-sintered, won't deliver their full stopping power straight out of the box. The bedding-in process heats the pads and discs to their optimal operating temperatures, curing the resins in the pad material and preparing them for consistent, high-friction performance. This ensures that when you truly need to stop quickly, your brakes are ready to perform at their peak.

• Extending Pad and Disc Life

  Proper bedding-in reduces premature wear on both the pads and discs. An evenly distributed transfer layer protects the disc surface, while the conditioning of the pad material prevents chipping or glazing that can occur with harsh, un-bedded use. This translates to fewer replacements and lower maintenance costs in the long run.

The Step-by-Step Guide to Bedding-In Semi-Sintered Brake Pads

This process requires a safe, open road where you can perform a series of controlled stops without interruption from traffic or pedestrians. Always prioritise safety and adhere to local speed limits where applicable. Ensure your vehicle is in good working order before starting.

Phase 1: Preparation and Initial Gentle Stops

1. New Pads and Clean Discs

   Before you even start the engine, ensure your new semi-sintered pads are correctly installed and that your brake discs are clean and free of grease or debris. If you're using new discs, give them a wipe down with brake cleaner. If reusing old discs, ensure they are not excessively worn or grooved. The ideal scenario is new pads on new discs for optimal bedding-in.

2. Initial Gentle Driving

   Start by driving gently for a few miles, using very light brake applications. This helps to warm up the entire braking system and allows the pads to make initial contact with the discs. Avoid any sudden or harsh braking during this phase.

Phase 2: Progressive Braking Cycles

This is the core of the bedding-in process, where the crucial material transfer occurs. You'll need a stretch of road where you can accelerate and brake safely.

3. First Series of Stops (Moderate Pressure)

   • Accelerate your vehicle to approximately 60 mph (or 100 km/h).
   • Apply the brakes firmly but progressively, reducing your speed to around 10-15 mph (or 20-25 km/h). Do NOT come to a complete stop.
   • Release the brakes completely and accelerate back up to 60 mph immediately. The airflow over the discs during acceleration helps dissipate heat.
   • Repeat this process 6 to 8 times. You might notice a slight smell of resin or a little smoke – this is normal and indicates the pads are heating up and outgassing.

4. Second Series of Stops (Firmer Pressure)

   • After the first series, allow the brakes to cool slightly by driving at a moderate speed for a few minutes without braking. This prevents overheating.
   • Repeat the acceleration to 60 mph and braking to 10-15 mph cycle, but this time apply the brakes with slightly more pressure. Aim for a firmer, more aggressive stop, but still avoid engaging ABS or locking the wheels.
   • Perform another 3 to 5 repetitions of this firmer braking cycle. Again, do not come to a complete stop during these runs.

Phase 3: Cool Down and Finalisation

5. Extended Cool Down

   After completing the progressive braking cycles, drive for at least 10 to 15 minutes at a moderate speed without using the brakes. This allows the entire braking system to cool down slowly and evenly. This cool-down period is absolutely critical; stopping with hot brakes can cause an uneven transfer layer or even warp the discs, leading to judder.

6. Final Check

   Once the brakes have completely cooled, they should be fully bedded in. You should notice a significant improvement in braking performance, consistency, and pedal feel. The discs might show a faint, even discolouration from the transferred pad material, which is a good sign.

Common Mistakes to Avoid During Bedding-In

While the process seems straightforward, several pitfalls can ruin your efforts and potentially damage your braking system:

• Coming to a Complete Stop with Hot Brakes: This is arguably the biggest mistake. Stopping while your brakes are hot can leave an imprint of the pad material on the disc, creating a high spot that will lead to judder and inconsistent braking. Always keep the vehicle moving during the progressive braking cycles.

• Engaging ABS or Locking Wheels: While you need to apply firm pressure, don't brake so hard that you engage the Anti-lock Braking System (ABS) or lock your wheels. This indicates excessive force and can also lead to uneven material transfer.



• Insufficient Cooling: Rushing the cool-down phase or not allowing enough time between cycles can overheat the system, leading to glazing of the pads or disc warping.

• Ignoring the Process: Skipping bedding-in entirely will result in subpar performance, increased noise, and premature wear. Your brakes will never perform as intended.

• Hard Braking Immediately: Avoid emergency stops or very aggressive braking for the first 100-200 miles after installing new pads, even after bedding them in, to allow for full conditioning.

Signs of Properly Bedded-In Pads

Once the bedding-in process is complete and the brakes have cooled, you should experience the following:

• Consistent Pedal/Lever Feel: The brake pedal or lever should feel firm and consistent throughout the application.
• Improved Stopping Power: You'll notice a significant increase in the effectiveness of your brakes.
• Reduced Noise: While semi-sintered pads can be moderately noisy, proper bedding-in often reduces excessive squealing or grinding.
• No Judder or Vibration: The braking should feel smooth and free from any pulsating or shaking sensations.
• Even Disc Discolouration: The brake disc surface might have a uniform, slightly greyish or bluish tint, indicating an even transfer layer.

Maintenance Tips Post Bedding-In

After successfully bedding in your semi-sintered brake pads, a few ongoing maintenance practices will help ensure their continued performance and longevity:

• Regular Inspection: Periodically check your brake pads for wear and your discs for signs of scoring, cracks, or excessive run-out. Pay attention to any unusual noises or changes in braking feel.

• Brake Fluid Checks: Ensure your brake fluid level is correct and that the fluid itself is clean. Brake fluid degrades over time and should be changed according to your vehicle manufacturer's recommendations (e.g., every two years for many motorcycles like the Kawasaki ZX6R G, which recommends DOT 4 fluid and a change every 24 months or 20,000 km).

• Cleanliness: Keep your wheels and brake components clean. Dirt, dust, and road grime can affect brake performance and accelerate wear.

• Avoid Potholes and Bumps: While not directly brake-related, sudden impacts can stress your suspension and brake components, potentially leading to issues down the line.

Frequently Asked Questions About Brake Pad Bedding-In

Q1: How long does the bedding-in process typically take?

The active bedding-in process itself (the progressive braking cycles) usually takes about 15-30 minutes, depending on how many cycles you perform and the specific pad manufacturer's recommendations. However, the crucial cool-down period can add another 10-15 minutes, and it's advisable to avoid harsh braking for the first 100-200 miles of normal driving afterwards to allow the pads to fully condition.

Q2: What happens if I don't bed in my new brake pads?

Failing to bed in your pads can lead to several problems: reduced braking performance, increased noise (squealing or grinding), inconsistent pedal feel, premature wear of both pads and discs, and most commonly, brake judder or pulsation due to uneven material transfer or glazing.

Q3: Do all brake pads need to be bedded in?

While the process is most critical for performance-oriented pads like semi-sintered or fully sintered types, it's generally good practice to bed in any new brake pads, regardless of their composition. Even basic organic or semi-metallic pads benefit from proper bedding-in to ensure optimal performance and longevity.

Q4: Can I bed in old brake pads?

No, the bedding-in process is specifically for new pads. Once pads have been used, their friction surface has already developed, and attempting to bed them in will likely not yield the desired results and could even cause further issues if they have existing wear patterns or glazing.

Q5: Why are my new brakes noisy after bedding in?

Some noise is inherent with performance pads, especially metallic ones like semi-sintered. However, excessive noise (like persistent squealing) could indicate an issue. Possible causes include: improper bedding-in (uneven material transfer), a foreign object caught in the caliper, worn brake hardware, incorrect installation, or simply the nature of the pad material itself (some performance pads are inherently louder). Re-bedding might help if the initial process was flawed, but sometimes, it's just the characteristic sound of the pad type.

Q6: What is brake fade?

Brake fade occurs when the braking system loses its ability to slow down the vehicle effectively due to excessive heat. As brakes get hotter, the friction material can outgas, creating a layer of gas between the pad and disc, or the friction material itself can degrade, leading to a significant reduction in friction. This results in a spongy pedal feel and a dramatic loss of stopping power. Sintered and semi-sintered pads are designed to be highly resistant to brake fade, making them ideal for demanding driving conditions.

By following these guidelines, you'll ensure your semi-sintered brake pads are primed to deliver their best, providing you with reliable and powerful stopping capability for miles to come. Remember, patience and precision during the bedding-in process pay dividends in safety and performance.
