Bike Brake Pad Replacement Guide

Maintaining your motorcycle's braking system is paramount for safety and performance. A common task for any rider looking to keep their bike in top condition is the replacement of brake pads. This process, while straightforward, requires attention to detail and the right approach. This guide will walk you through the essential steps, focusing on the crucial aspect of removing retaining plates and ensuring your new pads are fitted correctly.

Understanding Your Brake System

Before diving into the replacement, it's helpful to understand the two main types of brake caliper systems you're likely to encounter. The first type, often seen on performance bikes like those with Brembo calipers, utilises retaining pins to secure the brake pads. The second common system uses two bolts that directly hold the pads in place. Regardless of the system your bike employs, the fundamental principles of pad replacement remain similar.

Step 1: Safely Remove the Calipers

The initial step in accessing your brake pads is to remove the brake calipers from the front fork assembly. You'll need to locate the two bolts that secure the caliper. These bolts can become quite tight over time due to exposure to the elements and the forces they endure. You might find that a longer wrench or a breaker bar is necessary to provide the extra leverage needed to loosen them. Be prepared for some resistance.

If your bike's design incorporates retaining bolts that specifically hold the brake pads, it's advisable to loosen these slightly before you fully detach the caliper. Attempting to remove the caliper with these bolts fully tightened can make them incredibly difficult to loosen later. Once the retaining bolts (if present) are adequately loosened, you can proceed to remove the entire caliper from the brake disc. In some cases, you may need to gently push the brake pads back into their housing to create enough space to slide the caliper off the disc. This is often best achieved with a flat-bladed screwdriver, but be cautious not to damage the piston or the pad itself.

Step 2: Removing Retaining Pins and Plates

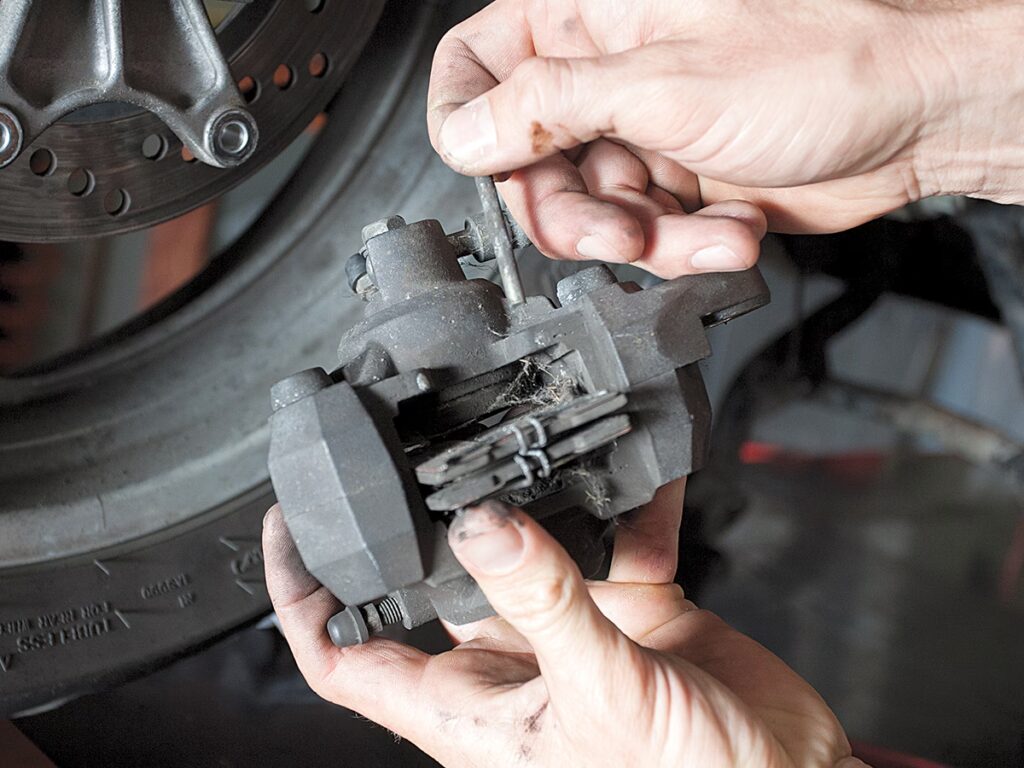

This is where the specific design of your caliper becomes important. If your motorcycle uses split-pins to secure the brake pad retaining pins – a common feature on many Brembo and similar caliper systems – you'll need a pair of pointy-nosed pliers. Carefully grip the end of the split-pin with the pliers and pull it outwards. Once the split-pin is removed, the retaining pin can usually be slid out, allowing the retaining plate to be freed.

The retaining plate is a small metal piece that helps to keep the pads firmly seated and can also contribute to reducing vibration. Its removal is essential to gaining access to the old brake pads.

Step 3: Extracting the Old Brake Pads

With the retaining plate removed, there should be nothing obstructing the brake pads. You should now be able to slide or lift the old brake pads out from the rear of the caliper housing, the area where the retaining plate was fitted. As you remove the pads, take a moment to inspect the area for any build-up of dirt, dust, or corrosive residue. This is a common occurrence, especially on bikes that are regularly ridden in damp or dusty conditions. Pay close attention to the brake pistons and their surrounding areas. If you discover significant rust or heavy residue, it might indicate that the calipers themselves are in need of a rebuild or even replacement.

Step 4: Cleaning Pistons and Calipers

A clean braking system operates more efficiently and reliably. Use a light scourer or a soft wire brush to gently clean the brake pistons. The aim is to remove any accumulated grime or residue without damaging the piston surface or its seals. Any persistent build-up can interfere with the seals, potentially leading to leaks or reduced braking performance. It's crucial to keep these components as clean as possible.

While cleaning, it's also a good opportunity to check for any seized pistons. A simple test is to gently apply the brake lever. Ideally, all pistons within the caliper should move outwards simultaneously and evenly. If one or more pistons are sticking, they may require more intensive cleaning, lubrication, or even replacement.

Step 5: Installing the New Brake Pads

When fitting new brake pads, you have the option of using an anti-squeal compound. Applied to the back of the pads, this can help to prevent common braking noises, though it's not strictly essential for function. Be aware that new pads fitted to slightly worn discs can sometimes produce a squealing noise. This can often be rectified by lightly filing the upper and lower edges of the friction material on the new pads to create a slight chamfer.

Once the new pads are in position, you'll need to ensure the pistons are fully retracted to create enough space for the new, thicker pads to fit around the brake disc. This can sometimes be challenging, as the pistons may be stiff. While a dedicated brake piston retraction tool is the recommended method, a large flat-bladed screwdriver can be used with extreme care. However, avoid using excessive force or levering against the pad material, as this can damage the piston or the new pads. Always ensure the pistons are pushed back evenly.

Step 6: Reattaching the Calipers

With the new pads installed and the pistons retracted, you can now reattach the calipers to the fork assembly. It is highly recommended to use a torque wrench for this step. Overtightening or undertightening these bolts can have serious consequences for your braking system. Always consult your motorcycle's owner's manual for the specific torque settings recommended by the manufacturer.

Step 7: Inspecting Brake Fluid

Brake fluid is a critical component of your hydraulic braking system. Its condition and level should be checked regularly. Begin by removing any old fluid from the master cylinder reservoir and cleaning the inside thoroughly. It's also a good practice to flush the entire brake system. The brake lines should be as clean and dry as possible, as brake fluid is hygroscopic – meaning it absorbs moisture from the air. Even a small percentage of water contamination can significantly lower the fluid's boiling point, leading to brake fade under heavy use.

A syringe or a vacuum pump can be very useful for efficiently removing old fluid. Don't forget to clean the cap and the rubber seal of the master cylinder reservoir as well.

Step 8: Understanding Brake Fluid Types

Brake fluids are categorised by DOT (Department of Transportation) standards. DOT 3 and DOT 4 fluids are typically glycol-ether based, while DOT 5 is silicone-based. It is absolutely crucial never to mix these types. Using DOT 5 fluid in a system designed for DOT 3 or DOT 4, without a complete and thorough flushing of the entire system, can cause severe damage to the rubber seals and potentially lead to brake failure. Always refer to your motorcycle's maintenance manual to confirm the correct type of brake fluid for your specific model.

Step 9: Bleeding the Brakes

Bleeding the brake system is a vital step to ensure you have strong, firm brakes with no spongy feel. This process removes any air bubbles trapped within the brake lines and calipers. Air in the hydraulic system is compressible, which is why it leads to a soft or spongy brake lever.

To begin bleeding, attach a length of clear rubber tubing to the bleed nipple located on the caliper. A specialised tool with a one-way valve at the end can be highly beneficial. This valve creates just enough back pressure to prevent air from being drawn back into the system when you release the brake lever. Place a collection cup or container at the end of the tube to catch the old fluid. Remember that a small amount of fluid will naturally come out during this process.

Step 10: The Bleeding Process

With the tubing in place, you'll typically need to pump the brake lever a few times to build up pressure. Once the lever feels firm, you'll need to loosen the bleed nipple slightly while maintaining pressure on the brake lever. As you loosen the nipple, old fluid will flow into the tube, and you'll notice the brake lever becoming softer. Immediately tighten the bleed nipple before releasing the brake lever. Repeat this sequence – pump the lever, hold the lever, open the nipple, close the nipple, release the lever – until you see new, clean fluid flowing through the tube without any air bubbles.

It's essential to keep the brake fluid reservoir topped up throughout the bleeding process. If the fluid level drops too low, you risk drawing air back into the master cylinder, negating the work you've just done and requiring you to start the bleeding process again. While simple rubber tubing and a collection jar can work, tools designed for brake bleeding, such as vacuum bleeders or pressure bleeders, can make the job significantly easier and more efficient.

Important Note: Always refer to your motorcycle's service manual for specific procedures and torque values related to your model. If you are unsure about any step, it is always best to consult a qualified motorcycle mechanic.
