Washing Machine Clutch: Your Spin Cycle's Secret Weapon

When your washing machine decides to take a holiday from its spinning duties, it can be a frustrating experience. You might be left with damp clothes and a nagging question: what on earth is going on inside that drum? While many components contribute to a washing machine's performance, one often overlooked hero is the clutch assembly. If your washer is stubbornly refusing to spin, or if you're hearing unusual noises during operation, there's a strong possibility that the clutch is the culprit. This article will delve into the function of a washing machine clutch, the tell-tale signs of its demise, and a step-by-step guide to replacing it, empowering you to get your laundry cycles back on track.

The Humble Hero: What Does a Washing Machine Clutch Do?

At its core, the clutch in a washing machine serves a critical purpose: it's the intermediary between the motor and the drum, facilitating the transition between different operational modes. Think of it as the transmission for your washing machine. Its primary function is to engage and disengage the drive system, allowing the machine to switch smoothly between the agitation cycle (where the drum tumbles clothes) and the high-speed spin cycle (where it wrings out excess water). When the clutch is working correctly, it smoothly transfers power from the motor to the drum for spinning. If it fails, this power transfer is interrupted, leading to the common symptom of a washer that won't spin.

When Things Go Wrong: Symptoms of a Bad Clutch

A malfunctioning clutch rarely goes unnoticed. Several key indicators can point towards a failing clutch assembly:

• Failure to Spin: This is the most prominent symptom. If your washer goes through its wash and rinse cycles but fails to enter the spin phase, the clutch is a prime suspect.
• Unusual Noises: A worn-out clutch can produce a range of unpleasant sounds, from grinding and rattling to a loud humming or thumping. These noises often occur when the machine attempts to engage the spin cycle.
• Slipping Sensation: While more subtle, you might notice the drum not spinning as vigorously as it should, or it may seem to slip during the spin cycle.
• Burning Smell: In severe cases, excessive friction due to a failing clutch can generate a burning odour, similar to that of an overheating brake pad.
• Error Codes: Some modern washing machines are equipped with diagnostic systems that can flag specific component failures. For instance, an F7E5 error code on certain Whirlpool Direct Drive models is a strong indicator of a faulty clutch.

Understanding Clutch Failure: Reasons for Damage

Like any mechanical component, washing machine clutches are subject to wear and tear over time. Several factors can contribute to their premature failure:

• Constant Use and Wear: The friction materials within the clutch are designed to engage and disengage repeatedly. Over years of use, this constant friction naturally wears down these materials, leading to slippage and reduced effectiveness.
• Overloading the Machine: Consistently overloading your washing machine places extra strain on the clutch and other drivetrain components. This can accelerate wear and tear.
• Improper Installation: If a clutch or related component was not installed correctly during a previous repair, it can lead to premature failure.
• Foreign Objects: Small items like coins, buttons, or even underwire from bras can sometimes get lodged in the drum or drive system, potentially damaging the clutch assembly.
• Motor or Gearcase Issues: While less common, problems with the motor or gearcase can sometimes manifest as clutch failure, or vice-versa.

Safety First: Preparing for the Repair

Before you even think about getting your hands dirty, safety is paramount. Always follow these essential precautions:

1. Unplug the Appliance: Disconnect the washing machine from its power source at the wall socket. Never attempt to work on a plugged-in appliance.
2. Turn Off Water Supply: Locate the hot and cold water shut-off valves, typically behind the machine, and turn them off completely.
3. Disconnect Hoses: Carefully disconnect the water supply hoses from the rear of the washing machine. Have a towel and a bucket ready, as some residual water may spill out.
4. Drain the Machine: Disconnect the drain hose. Again, be prepared for some water to drain out.

How to Access and Replace the Washing Machine Clutch Assembly (Part #285785)

Replacing a washing machine clutch can be a manageable DIY project for those with some mechanical aptitude. The exact procedure may vary slightly depending on your machine's make and model, but the general steps are as follows:

Step 1: Accessing the Agitator

1. Open the washing machine lid to expose the agitator.
2. If your machine has a rinse dispenser, you may need to pull up the lock ring, twist the dispenser upward, and remove it.
3. Using a slot screwdriver, gently pry off the agitator cap from the top of the agitator.
4. If your model has a dust cap, remove that as well.

Step 2: Removing the Agitator

1. With one hand, hold the base of the agitator steady.
2. Using a 7/16-inch socket, remove the bolt located inside the agitator.
3. Now, carefully pull the agitator straight up and out of the tub. Set it aside in a safe place.

Step 3: Gaining Access to the Drivetrain

1. Carefully lay the washing machine on its back. It's advisable to do this on a soft surface like a carpet or a thick towel to prevent scratching the floor or the machine.
2. Locate the pump clips that secure the drain pump to the motor shaft. Unscrew or unclip these.
3. Gently wiggle the pump off the motor shaft.
4. Disconnect the wire harness from the motor. You may also need to unclip the wires from any plastic retainers.

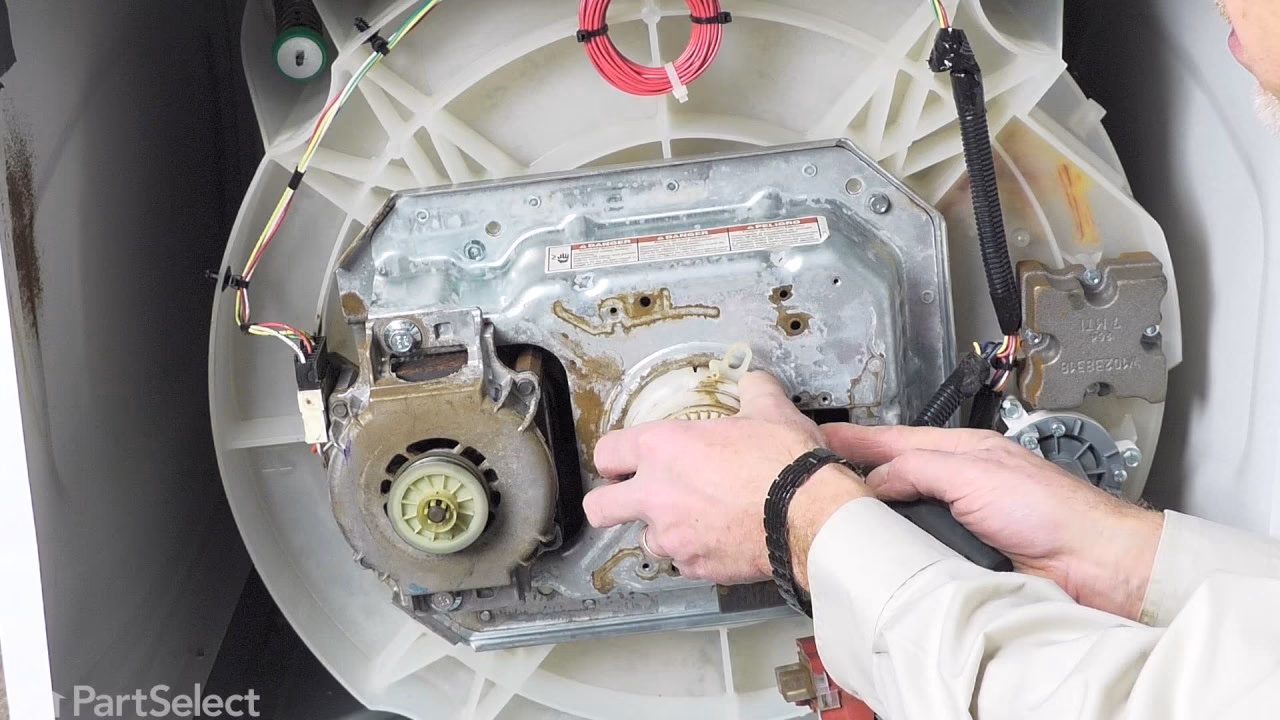

Step 4: Removing the Motor and Gearcase Assembly

1. Using a ½-inch socket, remove the bolts that hold the gearcase to the base of the washing machine.
2. With the bolts removed, you should now be able to carefully remove the motor and gearcase assembly from the washer.

Step 5: Detaching the Old Clutch

1. Once the assembly is out, you'll need to remove the thrust washer from the gearcase shaft.
2. Using needle-nose pliers, carefully remove the clutch support ring.
3. With a slot screwdriver, pry off the retainer ring that holds the clutch in place.
4. Now, you should be able to slide the old clutch assembly off the gearcase shaft.
5. To fully free the clutch, you'll need to detach the brake cam by removing the C-clip that secures it.

Installing the New Clutch Assembly

With the old clutch removed, it's time to install the new one. Follow these steps in reverse order:

1. Insert an isolator ring into the new clutch housing.
2. Place the new brake cam onto the drive tube and secure it with the new C-clip provided with your replacement clutch.
3. Slide the new clutch assembly onto the gearcase shaft.
4. Secure the new clutch by replacing the original support ring and then fitting the new retainer ring.
5. Reinstall the thrust washer onto the shaft.
6. Carefully slide the motor and gearcase assembly back into its position within the washer. Ensure that the clutch spring is positioned opposite the brake cam.
7. Manipulate the assembly until the gearcase sits flush against the base of the washer.
8. Reconnect the wire harness to the motor, ensuring all clips and retainers are secured.
9. Align the drain pump with the motor shaft and slide it back on.
10. Reinstall both pump clips to secure the pump.

Step 6: Reassembly

1. Carefully return the washing machine to its upright position.
2. Reinstall the agitator. This is done in the reverse order of its removal. Ensure it's seated correctly and the securing bolt is tightened.
3. Reconnect the water supply hoses to the rear of the machine.
4. Plug the washing machine back into the power outlet and turn the water supply valves back on.

Testing and Troubleshooting

Once everything is reassembled, run a test cycle. Your washer should now agitate and spin as it did before. If, however, you still encounter issues, it might be time to call in a professional appliance repair technician. While clutch replacement is often the solution, other underlying problems could be at play.

How to Test the Clutch for Problems

While visual inspection and listening for symptoms are key, a simple test can sometimes help confirm clutch issues, though it's often more relevant for car clutches. For washing machines, the most telling sign is the absence of spin. If you suspect a clutch issue and are hesitant to dive into disassembly, you can perform a basic operational test:

Spin Cycle Observation: During the spin cycle, listen carefully. Does the motor sound like it's running at full speed, but the drum isn't rotating? Do you hear grinding or slipping noises? If the motor seems to be working but the drum is sluggish or stationary, the clutch is highly suspect.

Frequently Asked Questions

Q1: How do I know if my washing machine clutch is damaged?
Common signs include the washer not spinning, unusual grinding or slipping noises during the spin cycle, or a burning smell. If your machine fails to spin, the clutch is a primary component to investigate.

Q2: Can I drive a car with a bad clutch?
While this article focuses on washing machines, for cars, driving with a bad clutch is generally not recommended. It can lead to further damage, difficulty shifting gears, and potential safety hazards.

Q3: What is the lifespan of a washing machine clutch?
The lifespan can vary greatly depending on usage, maintenance, and the quality of the component. However, many clutches are designed to last for several years, often 8-10 years or more, with proper care.

Q4: Is it worth repairing a washing machine clutch?
Generally, yes. The cost of a replacement clutch is significantly less than the cost of a new washing machine, making it a cost-effective repair, especially if the rest of the machine is in good working order.

Q5: What tools do I need to replace a washing machine clutch?
Essential tools typically include a slot screwdriver, a 7/16" socket, a 1/2" socket, and needle-nose pliers. A socket wrench set is also highly recommended.

Conclusion

The washing machine clutch, though often unseen, plays an indispensable role in the efficient operation of your appliance. By understanding its function and recognizing the signs of failure, you can take proactive steps towards resolving spin-related issues. While the DIY replacement process requires careful attention to detail and safety, it's a rewarding task that can save you money and restore your washing machine to its former glory. If at any point you feel unsure, don't hesitate to consult a qualified appliance repair professional. Keeping your washing machine in optimal condition ensures fewer breakdowns and many more years of reliable service.
