The Legendary P-51 Mustang: A Deep Dive into its Fuel and Capabilities

The North American P-51 Mustang is a name synonymous with aerial prowess during World War II and beyond. Designed at Britain's request, this iconic fighter aircraft evolved significantly throughout its service life, becoming a symbol of Allied air superiority. But beyond its famed combat record, many are curious about the practicalities of its operation, such as its fuel consumption and the specific engines that powered its legendary performance. This article will explore the technical aspects of the P-51 Mustang, delving into its fuel requirements, engine variants, and the evolution that made it a truly world-beating aircraft.

The P-51's Genesis: A British Request, An American Icon

The story of the P-51 begins with a proposal from North American Aviation to the British Aircraft Purchasing Commission in April 1940. The goal was to design a fighter aircraft from the ground up, rather than merely producing existing designs under license. The initial concept, dubbed the 'Mustang' by the British, was a low-wing monoplane powered by an Allison engine. While this early iteration showed promise with its low-drag laminar-flow wing and efficient cooling system, providing exceptional speed and range at lower altitudes, the Allison engine lacked a potent high-altitude supercharger. This limitation restricted its effectiveness in the high-altitude engagements that characterised much of the air war in Europe. The first P-51s entered combat with the RAF in April 1942, with approximately 1,579 Allison-powered units produced. These were typically armed with a mix of .50-calibre and .30-calibre machine guns, though some variants featured 20-mm cannons or were adapted for dive-bombing (A-36A).

The Merlin Engine: A Game Changer

The true transformation of the P-51 arrived with the integration of the British Rolls-Royce Merlin engine, later produced under licence in the United States by the Packard Motor Company. Tests conducted in 1942 revealed that the Merlin's efficient mechanical supercharger dramatically improved the Mustang's speed and service ceiling. This engine upgrade was a pivotal moment, allowing the P-51 to truly excel at the higher altitudes where aerial combat often took place. The Merlin-powered P-51Bs first entered combat over Europe in December 1943, quickly establishing superiority over German fighters like the Me 109 and Fw 190, particularly above 20,000 feet. The Merlin-powered variants offered an operational range of over 1,600 miles (2,500 km) with jettisonable drop tanks, enabling long-range bomber escort missions deep into enemy territory. This capability was instrumental in reducing bomber losses and paving the way for effective round-the-clock bombing campaigns.

P-51 Variants and Production Numbers

The P-51 Mustang saw numerous production versions, each with its own specific characteristics and production figures:

Between 1941 and 1945, the USAAF ordered a total of 14,855 Mustangs, with the P-51D being the most prolific at 7,956 units. The Mustang also served with the Royal Australian Air Force (RAAF) during the Pacific and Korean Wars.

Fuel Specifications and Engine Performance

The P-51 Mustang's operational performance was closely tied to the fuel it used. Initially, P-51Bs were delivered with the Packard Merlin V-1650-3 engine. By April 1944, replacement aircraft began receiving the V-1650-7, which offered improved maximum power at lower altitudes. The aircraft initially operated on 100/130 grade fuel. However, to extract even more performance, particularly for combat operations, the U.S. Army Air Forces authorized modifications for the use of higher-octane Grade 150 fuel.

Flight tests conducted in 1944 confirmed that the Packard-built Rolls-Royce V-1650-7 engine could satisfactorily comply with a 75-inch Hg manifold pressure war emergency rating with Grade 44-1 (150 octane) fuel. This required several modifications to the P-51, including:

• Modification of the manifold pressure regulator.
• Modification of the supercharger volute drain valve.
• Installation of new type induction centre manifold extension gland seals.
• Use of specific spark plugs (Lodge RS5/5 or KLG RC5/3).
• Installation of bulged exhaust stacks.
• Resetting the supercharger aneroid switch.

By June 1944, the P-51 was cleared for operation at 75" Hg manifold pressure. Deliveries of Grade 100/150 aviation fuel to Eighth Air Force fighter airfields commenced around the same time, coinciding with the introduction of the P-51D. While the USAAF cleared the P-51 for 75" Hg, the Eighth Air Force often opted for a slightly lower 72" Hg as its War Emergency Rating. However, combat reports suggest that 75" Hg was indeed used operationally.

The introduction of a new fuel blend, "Pep," containing increased levels of ethylene dibromide (1.5T), was intended to reduce spark plug fouling. While it did reduce fouling, approximately thirty days after its widespread adoption in early 1945, a sharp increase in valve trouble was experienced. Inspection revealed that hydrobromic acid, a byproduct of the fuel additive, was eroding the silchrome valve seat inserts, significantly reducing their lifespan. This led to a reversion to the standard 100/150 grade fuel (1.0T ethylene dibromide) by the end of March 1945.

Fuel Capacity of the P-51 Mustang

While the exact fuel capacity could vary slightly between specific sub-variants and configurations, the P-51 Mustang typically carried a substantial amount of fuel to support its long-range missions. The internal fuel capacity of a P-51D was approximately 300 US gallons (around 1,135 litres). This could be significantly augmented by the use of external drop tanks. Commonly, two 110-gallon drop tanks were carried under the wings, adding an additional 220 gallons (around 833 litres) and greatly extending its operational range. This meant a fully loaded P-51D could carry over 500 gallons of fuel.

The P-51's Combat Role and Effectiveness

The P-51 Mustang is widely regarded as one of the finest all-around piston-engined fighters of World War II. Its combination of speed, range, and armament, particularly after the Merlin engine upgrade, made it a formidable opponent. Its ability to escort bombers deep into enemy territory, providing crucial protection against Luftwaffe fighters, significantly reduced Allied bomber losses. For example, bomber sortie losses over Germany fell dramatically between October 1943 and February 1944, a period that saw the P-51 become increasingly prevalent.

The P-51's superiority was particularly evident above 20,000 feet. By March 1944, the availability of P-51s in large numbers, alongside the P-47 Thunderbolt and P-38 Lightning, allowed the Allies to gain air superiority over Germany. The P-51 played a disproportionately large role in defeating the Luftwaffe, despite being outnumbered by some other Allied fighters.

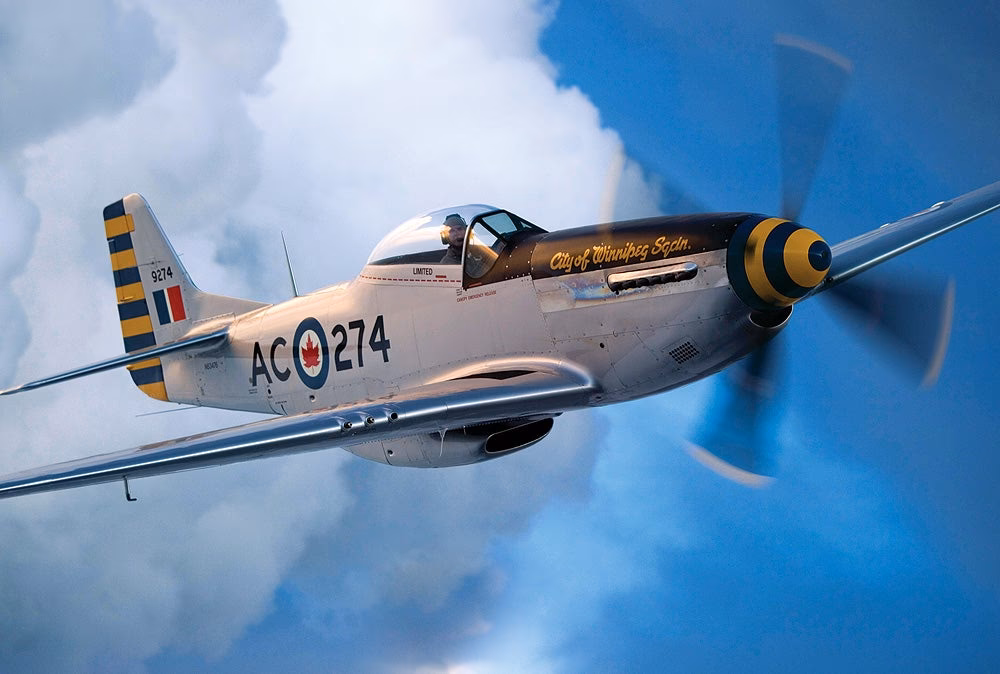

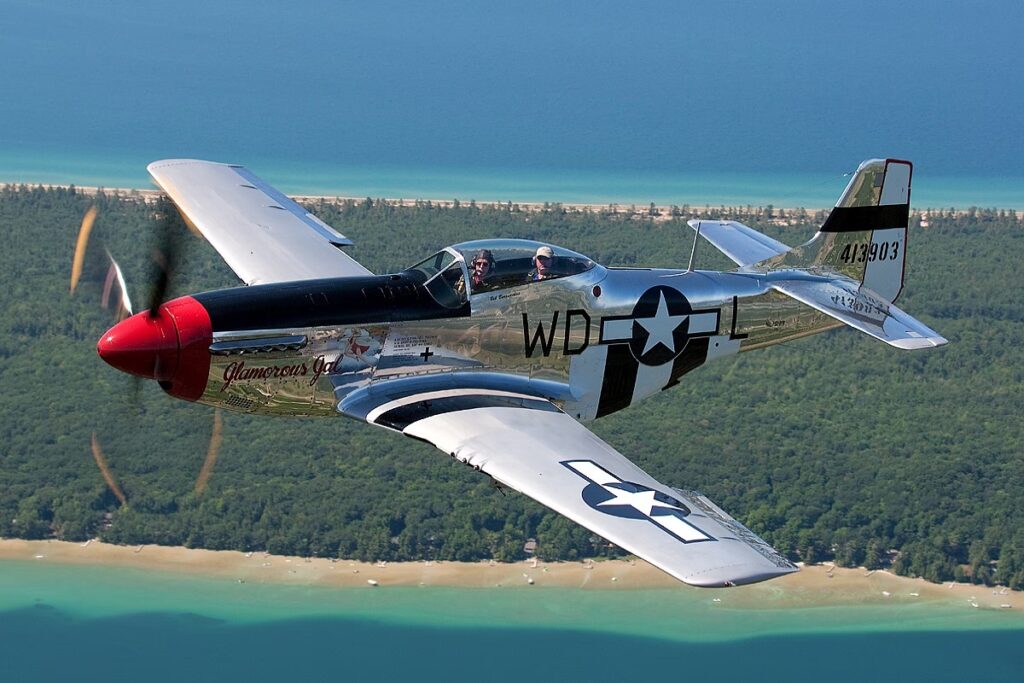

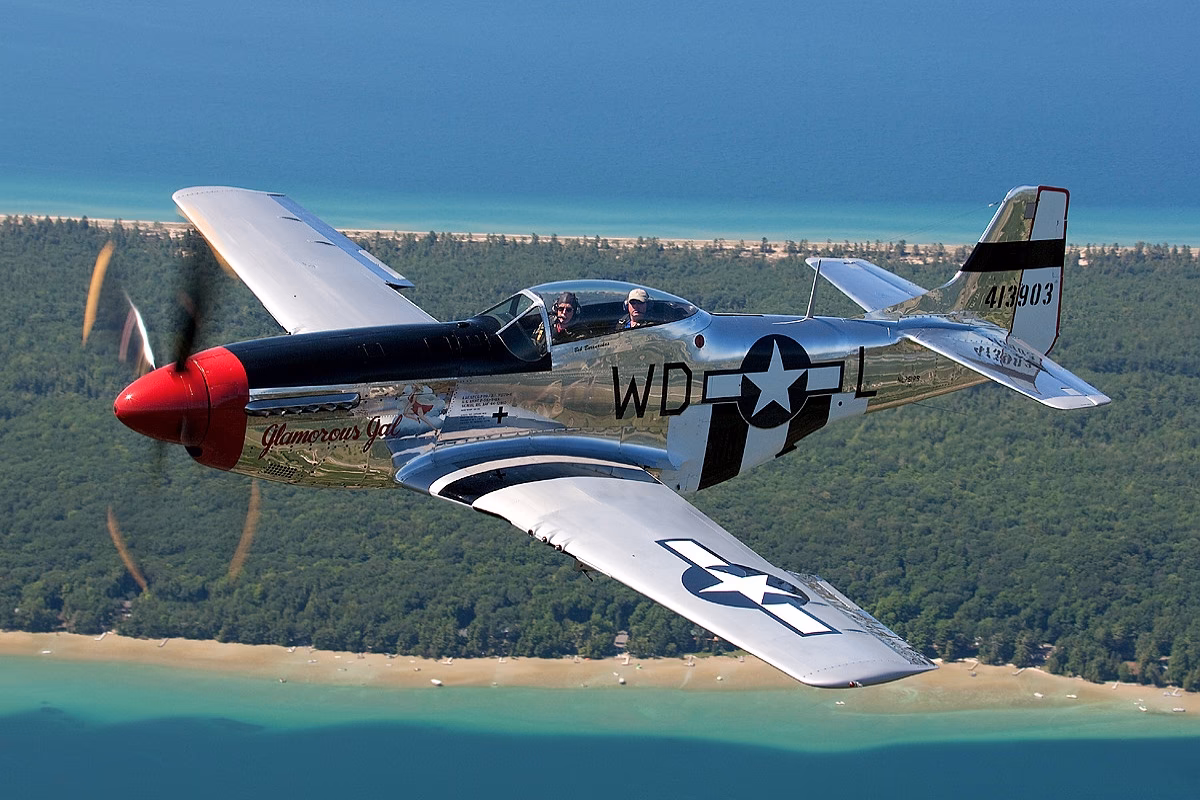

The P-51D, with its distinctive "bubble" canopy offering excellent all-around visibility, could reach speeds of around 440 mph (700 km/h) and an operating ceiling of almost 42,000 feet (12,800 metres). It was typically armed with six .50-inch (12.7-mm) machine guns. Additionally, hardpoints under the wings allowed for the carriage of bombs or rockets, enhancing its capability for close air support missions.

Operational History Beyond WWII

The Mustang's service life extended well beyond the end of World War II. Although production contracts were cancelled, the P-51 remained in service with the U.S. Air Force for several years. Mustangs, including those brought out of storage, were deployed for ground-attack missions during the early stages of the Korean War (1950–53). They also saw service with Nationalist forces in the Chinese Civil War and with Israel during the 1956 Sinai invasion. The versatile Mustang continued to serve in less developed nations into the 1960s and even saw combat in the 1969 Soccer War between El Salvador and Honduras.

Frequently Asked Questions

Q: How much fuel does a P-51 take?

A: The internal fuel capacity of a P-51D was approximately 300 US gallons. With the addition of typical 110-gallon drop tanks, the total fuel load could exceed 500 gallons.

Q: When did the P-51 become a fighter aircraft?

A: The P-51 Mustang first entered combat operations with the RAF in April 1942. However, it was the later Merlin-engined variants, entering combat in December 1943, that truly established the P-51 as a premier fighter aircraft, particularly at high altitudes.

Q: What engine did the P-51B use?

A: The P-51B was the first production version to be equipped with the Rolls-Royce Merlin engine, specifically the Packard V-1650-3, and later the V-1650-7.

Q: Is a P-51 a good fighter?

A: Yes, the P-51 Mustang is widely regarded as one of the best piston-engined fighters of World War II. Its excellent performance, long range, and significant impact on air combat made it a legendary aircraft.

Conclusion

The P-51 Mustang's journey from a British request to an Allied air superiority icon is a testament to engineering innovation and strategic adaptation. The integration of the Rolls-Royce Merlin engine, coupled with meticulous aerodynamic design, transformed the Mustang into a highly capable fighter. Understanding its fuel requirements and engine evolution provides crucial insight into how this aircraft dominated the skies and played such a vital role in the Allied victory during World War II and beyond.
