Fuel Injection Control: The ECU Explained

The heart of your car's modern engine management system lies within a sophisticated piece of technology known as the Engine Control Unit (ECU), often referred to as the fuel injection control unit. This unassuming box of electronics is the brain, constantly making critical decisions to ensure your engine runs as smoothly, efficiently, and powerfully as possible. Gone are the days of carburetors, where mechanical adjustments dictated fuel delivery. Today, it's all about precision, and the ECU is the maestro orchestrating this complex symphony of combustion. Understanding how it works can demystify engine performance, fuel economy, and even some common drivability issues.

The ECU: A Digital Maestro

At its core, the ECU is a powerful computer. It receives a constant stream of data from various sensors dotted around your vehicle, each monitoring a specific aspect of the engine's operation and its environment. This data is then processed according to pre-programmed maps and algorithms, allowing the ECU to make instantaneous adjustments to crucial engine parameters. The primary goals are to deliver the correct amount of fuel to the cylinders and to initiate the spark at precisely the right moment for optimal combustion. This intricate dance ensures the engine performs efficiently across a wide range of operating conditions, from a cold start on a frosty morning to full throttle on the open road.

Key Sensors: The ECU's Eyes and Ears

The ECU's ability to manage the engine effectively hinges on the information it receives from its network of sensors. Each sensor plays a vital role in painting a comprehensive picture of what's happening under the bonnet:

• Mass Airflow (MAF) Sensor: This sensor measures the volume and density of air entering the engine. More air generally means more fuel can be injected for a power increase.
• Manifold Absolute Pressure (MAP) Sensor: Located in the intake manifold, this sensor measures the pressure (or vacuum) of the air entering the engine. It's another key indicator of engine load.
• Throttle Position Sensor (TPS): This sensor tells the ECU how far the throttle pedal is being pressed, indicating the driver's demand for power.
• Coolant Temperature Sensor (CTS): This monitors the engine's operating temperature. A cold engine requires a richer fuel mixture (more fuel) than a warm one.
• Air Temperature Sensor (ATS): Measures the temperature of the incoming air. Colder air is denser, meaning more oxygen is available for combustion, requiring more fuel.
• Oxygen (O2) Sensors (Lambda Sensors): Found in the exhaust system, these sensors measure the amount of unburnt oxygen in the exhaust gases. This provides feedback on how efficiently the fuel is being burned, allowing the ECU to fine-tune the air-fuel ratio for optimal emissions and economy. Modern vehicles often have multiple O2 sensors, including upstream (before the catalytic converter) and downstream (after the catalytic converter) sensors.
• Crankshaft Position Sensor (CKP): This is crucial for ignition timing. It detects the rotational speed and position of the crankshaft, allowing the ECU to know exactly when to fire the spark plugs.
• Camshaft Position Sensor (CMP): Similar to the CKP sensor, this monitors the position of the camshaft(s), which helps the ECU determine which cylinder is on its intake or exhaust stroke, particularly important for sequential fuel injection.
• Knock Sensor: Detects engine knock or pinging, which is an abnormal combustion event. If detected, the ECU can retard ignition timing to prevent engine damage.

How the ECU Controls Fuel Injection

The ECU uses the data from these sensors to calculate the precise amount of fuel that needs to be injected into each cylinder. This calculation is based on complex mathematical models and pre-programmed fuel maps stored within its memory. The ECU doesn't just inject a continuous stream of fuel; it pulses the fuel injectors open and closed. The duration that each injector remains open (known as the 'pulse width') directly controls the amount of fuel delivered.

Consider a scenario: you suddenly press the accelerator pedal. The TPS reports a rapid increase in throttle opening. Simultaneously, the MAF or MAP sensor detects an increase in airflow into the engine, and the O2 sensors might indicate a momentary lean condition as the engine demands more fuel. The ECU processes this information and commands the fuel injectors to open for a longer duration, delivering more fuel to match the increased air intake. This happens in milliseconds, ensuring a smooth and responsive acceleration.

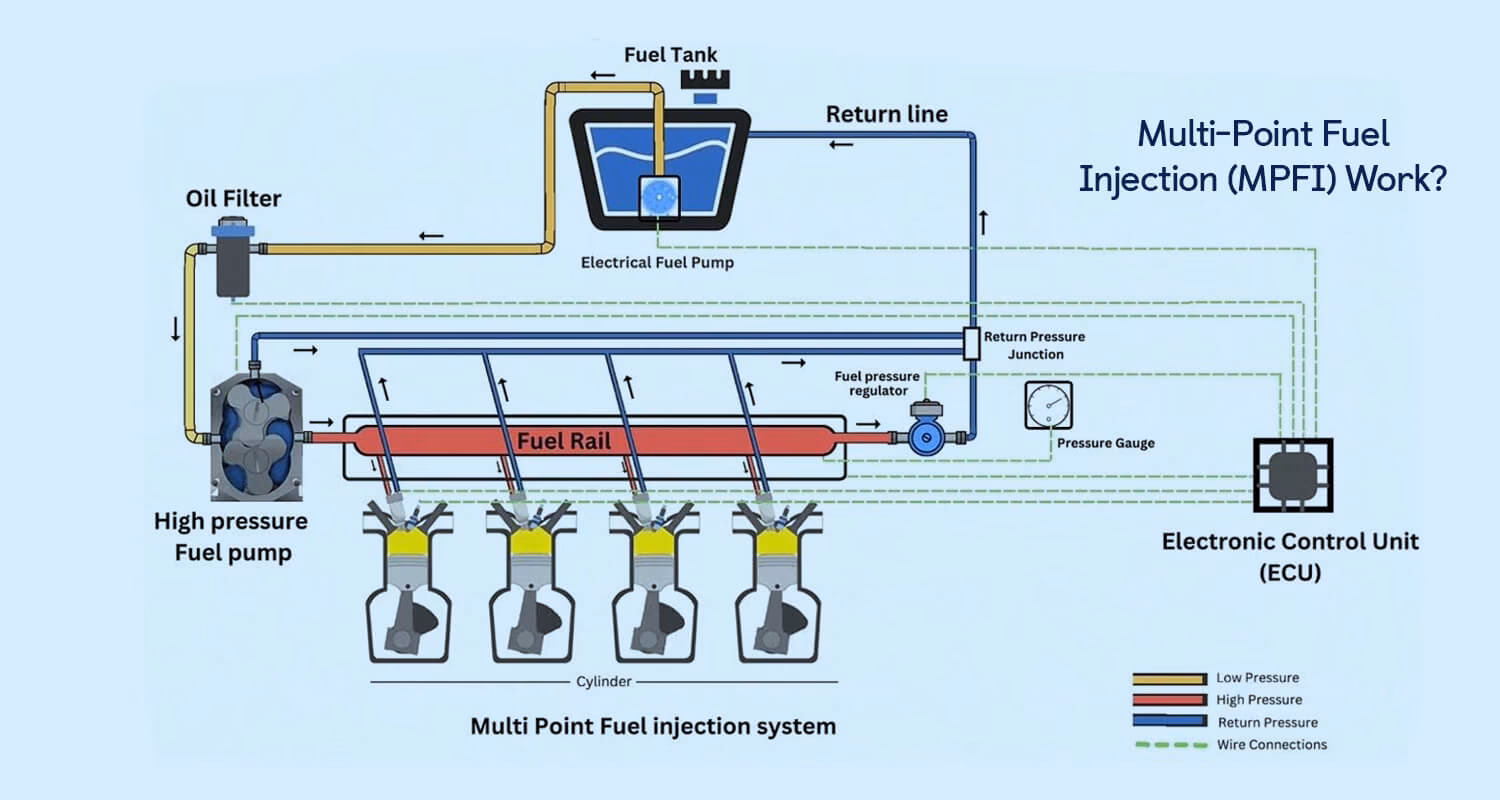

Understanding Multi-Point Fuel Injection

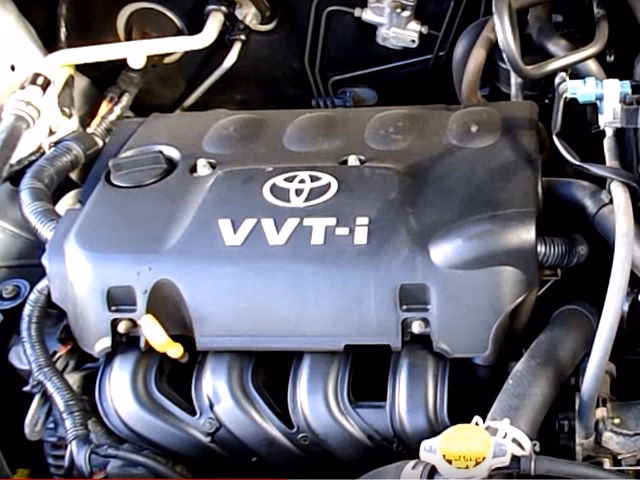

A common type of fuel injection system is multi-point injection (MPI). In an MPI system, each cylinder has its own dedicated fuel injector, typically located in the intake manifold, just before the intake valve. This allows for more precise fuel delivery to each cylinder compared to older single-point injection systems, where a single injector was positioned in the throttle body.

The operation of a multi-point injector is a marvel of electro-mechanical engineering. Each injector is essentially a small, fast-acting valve. It receives a 12-volt electrical supply, usually from the fuel injection relay or directly from the ECU. The injector itself contains a solenoid, which is an electromagnetic coil. When the ECU sends an electrical signal to the solenoid, it energizes the coil. This magnetic field attracts a plunger or armature, which lifts a small valve needle off its seat. This action opens the injector, allowing pressurized fuel to spray into the intake manifold. A spring holds the valve closed when the solenoid is not energized. The ECU controls the timing and duration of these electrical pulses to precisely meter the fuel.

Ignition Timing Control

The ECU doesn't just manage fuel; it also dictates ignition timing. By analysing data from the crankshaft position sensor, engine speed, load, and even the knock sensor, the ECU determines the optimal moment to fire the spark plug. Advancing the ignition timing (firing the spark earlier) can improve power and efficiency, but if done too aggressively, it can lead to engine knock. Retarding the timing (firing the spark later) can prevent knock and improve smoothness but may reduce power. The ECU constantly balances these factors to achieve the best overall performance.

The ECU's Role in Engine Efficiency and Emissions

The primary benefit of a sophisticated ECU is its ability to maintain the air-fuel ratio at or very close to the stoichiometric ideal (approximately 14.7 parts air to 1 part fuel by weight for petrol). This precise control, guided by the O2 sensors, ensures that most of the fuel is burned completely within the combustion chamber. Incomplete combustion leads to wasted fuel and increased emissions of harmful pollutants like carbon monoxide (CO) and unburnt hydrocarbons (HC). By optimising combustion, the ECU significantly improves fuel economy and reduces the environmental impact of the vehicle. Furthermore, the ECU plays a crucial role in managing the catalytic converter, ensuring it operates at the correct temperature and receives the right exhaust gas composition to effectively neutralise pollutants.

Troubleshooting and Common Issues

When the ECU detects a fault within the fuel injection system or with one of its sensors, it will typically illuminate the 'Check Engine' light on your dashboard. This light is a warning that something is amiss and the vehicle may not be running optimally. Common issues that can affect ECU performance or lead to fault codes include:

• Faulty Sensors: A malfunctioning MAF, O2, or TPS sensor can send incorrect data to the ECU, leading to poor fuel economy, rough idling, or hesitation.
• Injector Problems: Clogged or faulty fuel injectors can disrupt fuel delivery, causing misfires or uneven running.
• Wiring Issues: Damaged wiring or poor connections to sensors or injectors can interrupt the electrical signals.
• ECU Failure: While less common, the ECU itself can fail due to electrical surges, water ingress, or internal component failure.

Diagnosing issues often involves using an OBD-II scanner to retrieve fault codes stored by the ECU, which can pinpoint the area of the problem. Regular maintenance, including keeping fuel injectors clean and ensuring sensor connections are secure, can help prevent many of these issues.

Future of Fuel Injection Control

The technology behind ECUs continues to evolve. Modern systems are becoming even more powerful, incorporating more complex algorithms and integrating with other vehicle systems like stability control and adaptive cruise control. The drive for even greater fuel efficiency and lower emissions means ECUs are constantly being refined, often utilising advanced injection strategies like direct injection, where fuel is injected directly into the combustion chamber, offering even greater precision and control.

Frequently Asked Questions

What does ECU stand for?

ECU stands for Engine Control Unit. It is also sometimes referred to as the ECM (Engine Control Module).

Can a faulty sensor affect my car's fuel economy?

Yes, absolutely. Sensors like the MAF and O2 sensors provide critical data for fuel calculations. If they provide inaccurate readings, the ECU can deliver the wrong amount of fuel, leading to reduced fuel economy.

How does the ECU know when to inject fuel?

The ECU uses information from sensors like the crankshaft position sensor to determine engine speed and load, and then calculates the precise moment and duration to pulse the fuel injectors open.

What is 'pulse width' in fuel injection?

Pulse width refers to the amount of time the fuel injector is held open, allowing fuel to flow. A longer pulse width means more fuel is injected.

Is it possible to 'reprogram' an ECU?

Yes, in many modern vehicles, the ECU's software can be updated or 'tuned' to alter engine performance characteristics, fuel economy, or emissions control. This is often referred to as 'chipping' or 'remapping'.
