Walbro GSS342 Fuel Pump Explained

Understanding the Walbro GSS342 Fuel Pump: A Performance Upgrade

When it comes to enhancing your vehicle's performance, the fuel system plays a pivotal role. A reliable and powerful fuel pump ensures that your engine receives the optimal amount of fuel needed to achieve its full potential, especially under demanding conditions. Among the many options available in the aftermarket, the Walbro GSS342 has established itself as a popular choice for enthusiasts seeking improved fuel delivery. This article delves into what makes the GSS342 stand out, its technical specifications, and why it's a favoured upgrade for many.

What is the Walbro GSS342?

The Walbro GSS342 is an in-tank electric fuel pump renowned for its high-output capabilities. Manufactured by TI Automotive (formerly known as Walbro), this pump is designed to deliver a significantly greater volume of fuel at higher pressures compared to standard OE (Original Equipment) fuel pumps. Its primary function is to supply a consistent and robust fuel flow to the engine's fuel rail, ensuring adequate fuel delivery for performance tuning, modified engines, or simply as a reliable replacement for a worn-out factory pump.

Key Features and Benefits of the GSS342

The GSS342 boasts several features that contribute to its popularity:

• High Flow Rate: The GSS342 is typically rated at 255 litres per hour (LPH). This is a substantial increase over many stock fuel pumps, allowing for more fuel to be injected into the combustion chamber.
• High-Pressure Performance: What sets the GSS342 apart is its ability to maintain a strong flow rate even at elevated fuel pressures. For instance, at 80 PSI, a standard 255 LPH pump might deliver around 132 litres per hour. However, the GSS342, often referred to as a high-pressure (HP) version, can deliver over 210 litres per hour at the same 80 PSI. This is crucial for turbocharged or supercharged engines, or those running aggressive tuning maps.
• Proven Gerotor Design: Walbro utilises a time-tested gerotor design for its fuel pumps. This design is known for its efficiency, durability, and quiet operation.
• Compact Dimensions: Despite its increased performance, the GSS342 maintains compact outside dimensions. This allows it to fit into existing hanger assemblies without requiring significant modifications, simplifying the installation process for a wide range of vehicles.
• Broad Application Coverage: The GSS342 is compatible with a vast array of vehicles, particularly popular in many Acura, Honda, and other import applications. This makes it a versatile upgrade option.

Walbro GSS342 vs. Other Walbro Pumps

Walbro offers a range of fuel pumps catering to different needs. Understanding the distinctions is important:

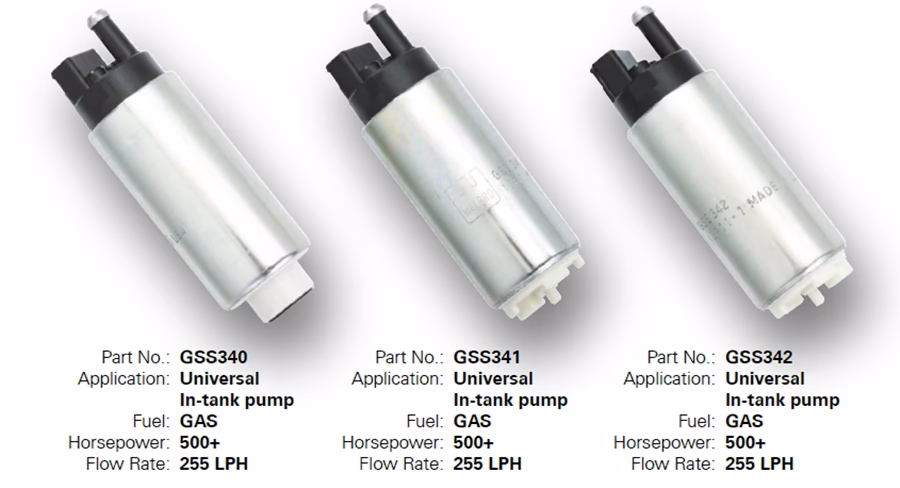

The GSS342, along with its siblings like the GSS340 and GSS341, are all 255 LPH high-pressure, in-tank fuel pumps. They are designed to be installed within the fuel tank, submerged in the fuel. This placement helps with cooling and lubrication of the pump.

In contrast, the GSL392 is also a 255 LPH high-pressure fuel pump, but it is an inline pump. This means it is typically mounted externally to the fuel tank, often in the fuel line itself. Inline pumps can be useful for certain custom setups or when an in-tank replacement is not feasible, but they may require additional fittings and plumbing.

Walbro also offers even higher flow pumps like the 450 LPH and 485 LPH models (e.g., F90000267/F90000274). These are designed for extreme performance applications, supporting engines well over 750 horsepower and are often E85 compatible. While the GSS342 is a significant upgrade over stock, these higher-flow pumps are for more specialised, high-demand builds.

The Importance of an Installation Kit

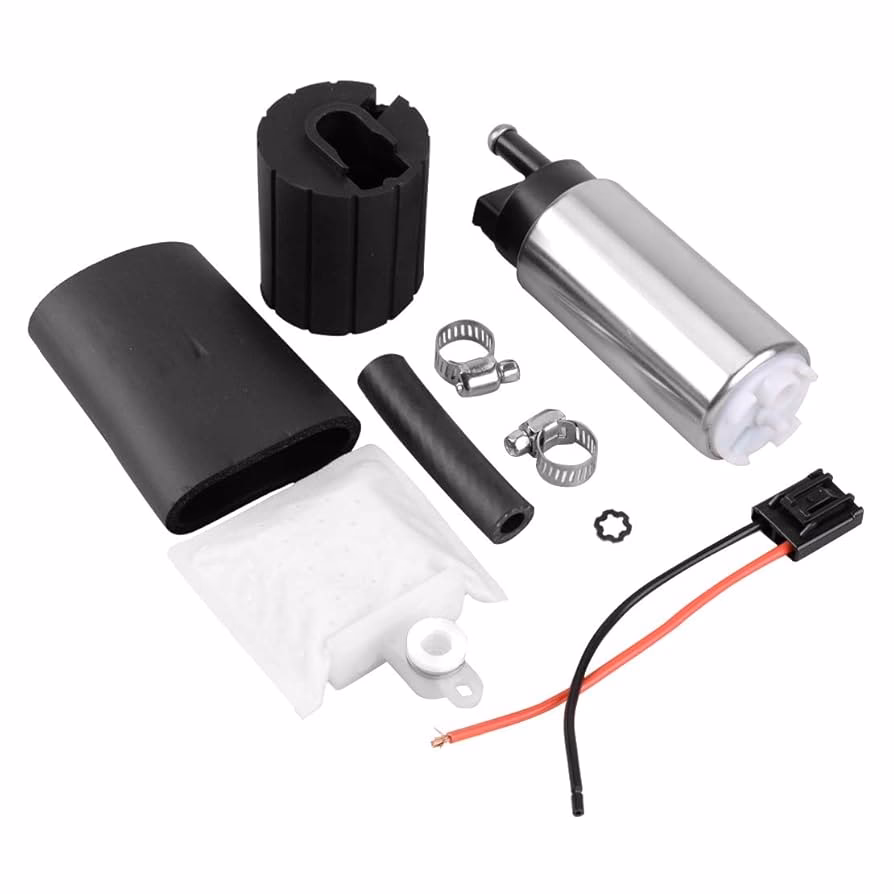

While the GSS342 can be purchased as a standalone pump, Walbro strongly recommends using their optional universal installation kit. This kit is crucial for ensuring the longevity and reliability of the pump:

• Pre-filtration: Installing a high-performance pump without adequate pre-filtration can lead to premature failure. The kit includes a depth media filter that acts as a wicking mechanism. This ensures a consistent fuel supply to the pump, even if the fuel level in the tank is low, preventing the pump from running dry and overheating.
• Wiring Harness: The kit also typically includes a GSS wiring harness. This allows for a safe, secure, and proper electrical connection to the new fuel pump, minimising the risk of electrical issues.

Using an old or clogged fuel filter with a new, high-output pump can lead to similar detrimental results. Investing in a proper installation kit is an investment in the pump's lifespan and your vehicle's performance.

When to Consider the Walbro GSS342

Several scenarios warrant considering the GSS342:

• Engine Modifications: If you've upgraded your engine with a turbocharger, supercharger, performance camshafts, or have significantly increased the engine's displacement, your stock fuel pump may struggle to keep up. The GSS342 provides the necessary fuel volume to support these modifications.
• ECU Tuning: When remapping your engine's ECU for increased power, adequate fuel delivery is paramount. The GSS342 ensures that your fuel system can meet the demands of a tuned engine, preventing lean conditions that can lead to catastrophic engine damage. It is generally recommended for vehicles aiming to support up to 500 horsepower.
• Replacement of a Failing Pump: If your factory fuel pump is showing signs of weakness (e.g., hesitation, loss of power under load), the GSS342 is an excellent, albeit more powerful, replacement option. It's important to note that installing a high-pressure pump in a non-performance vehicle will not harm the engine. The fuel system's pressure regulator and injectors will only deliver the amount of fuel the engine requires, returning any excess to the tank.
• E85 or Flex Fuel Conversion: While Walbro offers specific E85-compatible pumps (like the 450/485 LPH models), the GSS342 is generally not recommended for prolonged use with E85 fuel due to potential material compatibility issues. For E85 applications, dedicated E85 pumps are a safer and more reliable choice.

Installation Considerations

Installing a fuel pump typically involves accessing the fuel tank, which is often located under the rear seats or within the trunk. The process usually includes:

1. Safely disconnecting the battery.
2. Relieving fuel system pressure.
3. Removing the fuel pump assembly from the tank.
4. Replacing the old pump with the GSS342 and any associated filters or strainers.
5. Reassembling the unit and ensuring all seals are properly seated.
6. Reinstalling the assembly into the tank and reconnecting electrical and fuel lines.

Given the nature of working with fuel systems, it's highly recommended to have this work performed by a qualified mechanic, especially if you are not experienced with automotive fuel systems. Safety is paramount.

Walbro and TI Automotive: A Legacy of Performance

It's worth noting that Walbro is now a brand under TI Automotive. TI Automotive is a global leader in automotive fluid systems, with their technology found in a vast majority of vehicles worldwide. Their expertise extends to high-performance applications, powering vehicles like the Bugatti Veyron and various Dodge SRT Hellcat models. This heritage ensures that Walbro-branded products, including the GSS342, are built with a deep understanding of fluid dynamics and engineering excellence, backed by extensive testing and quality control. All Walbro branded products are manufactured in the USA.

Frequently Asked Questions

Q1: Is the Walbro GSS342 a high-pressure fuel pump?

A1: Yes, the Walbro GSS342 is specifically designed as a high-pressure fuel pump, capable of delivering significantly more fuel at higher pressures than standard pumps.

Q2: Can I use the Walbro GSS342 with E85 fuel?

A2: While some users may attempt it, the GSS342 is not typically recommended for sustained use with E85 fuel due to potential material compatibility issues. Walbro offers specific E85-compatible pumps (like the 450/485 LPH models) for such applications.

Q3: Will installing a Walbro GSS342 damage my non-performance engine?

A3: No, installing a higher-flow fuel pump like the GSS342 in a standard vehicle will not cause damage. The fuel system's pressure regulator ensures that only the required amount of fuel is delivered to the engine, with excess fuel being returned to the tank.

Q4: Are Walbro pumps genuine?

A4: Walbro is a renowned US brand. When purchasing, ensure you buy from reputable dealers to guarantee genuine products. Walbro performance fuel pumps are supplied in the UK with UK warehouse warranty.

Q5: Are Walbro pumps the same as TI Automotive?

A5: Yes, Walbro is now a brand of TI Automotive. The specifications and manufacturing standards remain the same; only the branding has evolved.

Conclusion

The Walbro GSS342 fuel pump represents a significant upgrade for vehicle owners looking to improve fuel delivery for performance tuning or reliable replacement. Its high flow rate, superior performance at higher pressures, and compact design make it a versatile and effective choice for a wide range of vehicles. By understanding its capabilities and opting for a proper installation kit, you can ensure optimal performance and longevity for this crucial component of your vehicle's fuel system.
