W219 CLS: Unravelling Start/Stop & Drive Loss

The Mercedes-Benz W219 CLS, particularly the 2009 model, is a vehicle that blends distinctive coupé styling with saloon practicality. As a sophisticated machine, it incorporates various technologies that, while advanced for their time, can sometimes lead to questions or concerns for owners, especially those new to the brand. One common area of inquiry revolves around the presence and functionality of features like the start/stop button, the intricacies of the automatic transmission, and the critical issue of sudden drive loss.

Understanding your W219's systems is key to effective maintenance and troubleshooting. When faced with a perplexing symptom, such as a non-responsive button or a sudden loss of motive power, it's natural to seek clarity. This article aims to shed light on these very topics, providing a comprehensive overview of the 2009 W219 CLS's pertinent features and offering guidance on how to approach a serious mechanical failure like losing drive, particularly when accompanied by a loss of hydraulic pressure.

Does a 2009 W219 Have a Start/Stop Button?

It's a common misconception, but a 2009 Mercedes-Benz W219 CLS does not typically feature an engine start/stop system in the modern sense, which automatically shuts off the engine at traffic lights to save fuel. This technology became more widespread in later models. The button you might observe on the gear selector, as found in your vehicle, is almost certainly related to the Mercedes-Benz 'Keyless-Go' system.

Keyless-Go allows you to start and stop the engine simply by pressing this button, provided the smart key is inside the vehicle. It removes the need to insert the physical key into the ignition slot. If your vehicle is equipped with Keyless-Go, pressing this button should start the engine when the brake pedal is depressed, and stop it when the vehicle is stationary and the button is pressed again. If nothing happens when you press it, it suggests one of two things:

1. The Keyless-Go option was not specified when the car was new, despite the physical button being present as part of a standard console moulding. Mercedes often includes the physical interface even if the underlying system isn't activated.
2. There is a fault with the Keyless-Go system itself, such as a faulty button, a problem with the key recognition, or an issue with the control module.

To confirm if your car has Keyless-Go, you can check the original vehicle specification sheet, often available via a VIN decoder. If it's listed and still not working, then a diagnostic scan by a Mercedes specialist would be necessary to pinpoint the fault.

Understanding the 7G-Tronic (722.9) Transmission

Your VIN check revealing '722902' confirms your assumption: your 2009 W219 CLS is indeed equipped with the Mercedes-Benz 7G-Tronic automatic transmission, specifically the 722.9 variant. This transmission was a significant step forward for Mercedes when it was introduced, offering seven forward gears for improved fuel economy and smoother power delivery compared to its 5-speed predecessor.

The 7G-Tronic is generally a robust unit, but like any complex mechanical component, it has its known characteristics and maintenance requirements. It relies heavily on precise hydraulic pressure and electronic control for its operation. Here's a brief comparison:

Regular fluid and filter changes are paramount for the longevity of the 7G-Tronic. Mercedes initially claimed 'sealed for life' for some transmissions, but experience has shown that fresh, clean fluid significantly extends transmission life and prevents many common issues. Using the correct Mercedes-Benz specified fluid is absolutely critical; substitutes can cause severe damage.

Sudden Loss of Drive and 'Oil Line Lost Pressure'

This is the most critical issue you've described. Losing drive, especially after putting your foot down, combined with traction control activation and a subsequent loss of 'oil line pressure', points towards a severe transmission or hydraulic system failure. The sequence of events is highly telling:

1. Putting your foot down & Traction Control kicking in: This suggests a sudden demand for power, which the transmission was unable to deliver effectively. Traction control activates when it detects wheel spin or a significant difference in wheel speeds, implying a loss of grip or, in this context, a potential inability of the engine's power to be transferred smoothly to the wheels. This could be a symptom of the transmission slipping or struggling internally.
2. Car losing drive: This means the transmission is no longer transmitting power from the engine to the wheels. The engine might still be running, but the car won't move.
3. 'Oil line lost pressure': This is the most alarming part. Automatic transmissions rely entirely on hydraulic pressure to function. This pressure is generated by an internal pump and is crucial for engaging clutches and bands, controlling shift points, and lubricating components. A loss of pressure means the transmission cannot operate.

Potential Causes of Pressure Loss and Drive Failure:

• Severe Fluid Leak: A burst transmission cooler line, a damaged pan gasket, or a crack in the transmission casing could lead to a rapid loss of fluid. If the fluid level drops below a critical point, the pump will starve, leading to a complete loss of hydraulic pressure. This is a common and often sudden cause of drive loss.
• Transmission Pump Failure: The pump is responsible for circulating fluid and maintaining pressure. If the pump fails internally, pressure will be lost, and the transmission will cease to function.
• Internal Transmission Damage: Severe wear or breakage of internal components, such as a valve body, clutch packs, or the torque converter, can lead to internal leaks or blockages that prevent pressure from being maintained in the correct circuits.
• Torque Converter Issues: The torque converter acts as a fluid coupling between the engine and the transmission. If it fails, it can cause a loss of drive and potentially significant internal damage that affects pressure.
• Conductor Plate/Valve Body Failure: The conductor plate, a circuit board within the transmission, and the valve body, which directs hydraulic fluid, are common failure points in 7G-Tronic transmissions. While they often cause erratic shifting or limp mode, a catastrophic failure could potentially lead to a complete loss of drive and pressure.

Given the description, especially the 'oil line lost pressure', it is highly likely that your transmission has suffered a significant internal failure or a catastrophic external leak. The fact that the car rolled onto your drive and parked is a small mercy, as driving it further, even for a short distance, would have caused irreparable damage to the transmission.

Immediate Steps and Professional Diagnosis

Your plan to contact the used car dealer and arrange recovery is absolutely the correct course of action. Do not attempt to drive the vehicle or even run the engine for extended periods if you suspect a significant fluid leak or pressure loss. Running an automatic transmission without adequate fluid or pressure will quickly destroy its internal components.

When the car reaches the workshop, they will need to perform a thorough diagnosis. This will typically involve:

• Visual Inspection: Checking for external leaks, especially around the transmission pan, cooler lines, and bell housing.
• Fluid Level and Condition Check: Verifying the transmission fluid level and observing its colour and smell. Burnt fluid or metallic particles indicate severe internal wear.
• Diagnostic Scan: Connecting to the car's onboard diagnostic (OBD) system to read fault codes from the Transmission Control Unit (TCU). Codes related to pressure, gear monitoring, or clutch slippage will provide critical clues.
• Pressure Tests: If possible and safe, performing line pressure tests to confirm the hydraulic system's integrity.

It's vital that the workshop has experience with Mercedes-Benz automatic transmissions. They will be able to accurately identify the source of the pressure loss and determine whether it's a relatively simple fix (like a burst hose) or a major internal rebuild/replacement job.

Finding a Reputable Mercedes Specialist in Birmingham

Being new to Mercedes ownership and based in Birmingham, finding a trustworthy specialist is crucial. While you mentioned MSL Stratford Road from a Google search, it's always wise to do further due diligence. Here's what to look for when seeking a good Mercedes specialist:

• Mercedes-Specific Expertise: Look for workshops that specifically advertise Mercedes-Benz servicing and repairs. They should have diagnostic tools (like STAR Diagnosis or XENTRY) that are compatible with Mercedes vehicles.
• Technician Qualifications: Enquire about their technicians' experience and qualifications, especially with automatic transmissions.
• Reviews and Recommendations: Check online reviews (Google, independent garage review sites) and ask for recommendations from local Mercedes owners' clubs or forums.
• Transparency: A good garage will be transparent about their diagnosis, proposed repairs, and pricing. They should be willing to explain the problem in detail and provide a clear breakdown of costs.
• Warranty: Enquire about warranties on parts and labour for any repairs undertaken.

Don't be afraid to get a second opinion if the initial diagnosis seems overly expensive or unclear. A major transmission repair can be costly, so ensuring you're with a competent and honest garage is paramount.

Maintenance and Prevention for Your W219 CLS

While your current issue seems to be a sudden failure, regular maintenance is the best way to prevent future problems with your 7G-Tronic transmission and other vehicle systems. For the 7G-Tronic, adhere to the recommended fluid and filter change intervals, typically around 37,500 miles or every five years, whichever comes first. This is arguably the most important preventative maintenance for this gearbox.

Beyond that, general vehicle health checks are important:

• Regularly check engine oil and coolant levels.
• Inspect for any visible fluid leaks under the car.
• Pay attention to any unusual noises, vibrations, or changes in driving behaviour.
• Address warning lights on the dashboard promptly.

By being proactive with your W219's care, you can significantly reduce the likelihood of unexpected and costly breakdowns.

Frequently Asked Questions (FAQs)

What is Keyless-Go on a W219?

Keyless-Go is an optional feature on the W219 CLS that allows you to start and stop the engine with a button on the gear selector or dashboard, and unlock/lock the car by simply touching the door handles, all without needing to remove the key from your pocket or bag. It's about convenience, not fuel saving.

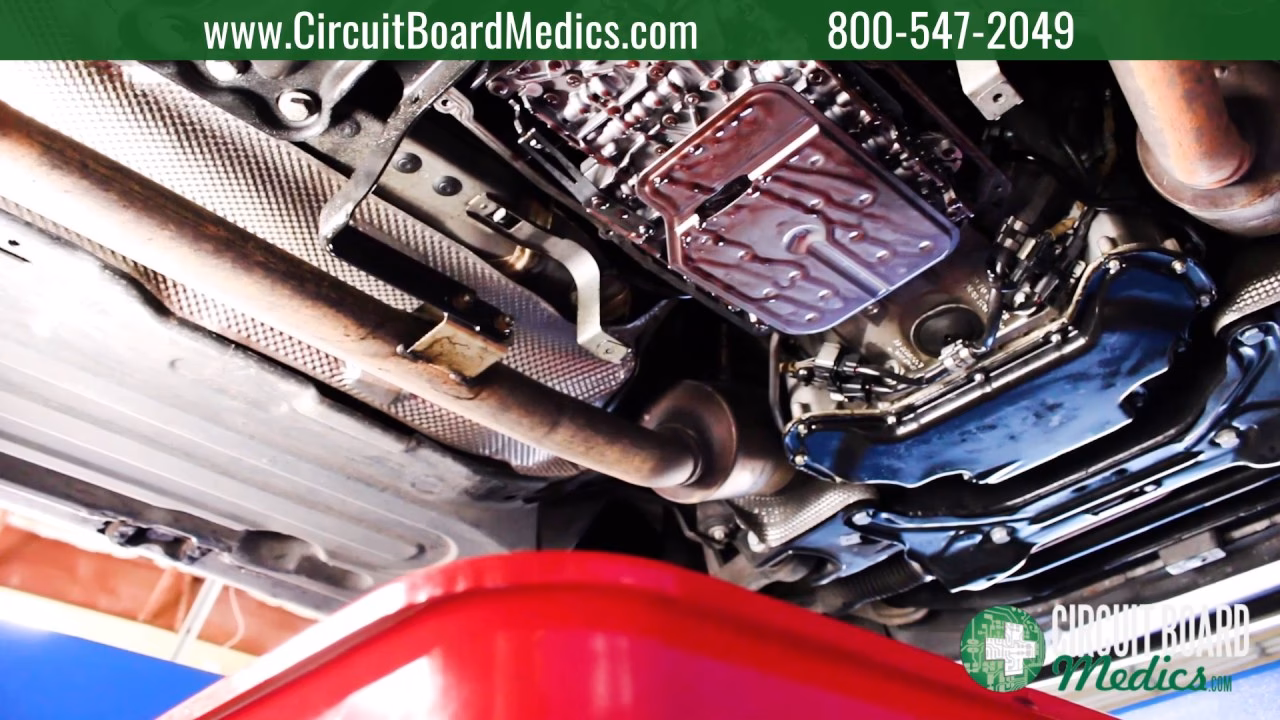

How often should 7G-Tronic fluid be changed?

Despite some initial 'sealed for life' claims, Mercedes-Benz now recommends a transmission fluid and filter change for the 7G-Tronic (722.9) every 37,500 miles or every 5 years, whichever comes first. This is crucial for the longevity and smooth operation of the gearbox.

What are common signs of 7G-Tronic issues?

Common signs include harsh or delayed shifts, slipping gears, a feeling of 'hunting' for gears, a car going into 'limp home mode' (limiting gears to protect the transmission), fluid leaks, or unusual noises from the transmission area.

Can I drive my car if it loses drive?

Absolutely not. If your car loses drive, it means the transmission is no longer transferring power. Continuing to drive, or even running the engine, can cause catastrophic and irreparable damage to the transmission, turning a potentially repairable fault into a complete replacement job. Always recover the vehicle.

What does 'traction control kicked in' mean?

Traction control activates when the car's computer detects that one or more wheels are spinning faster than others, indicating a loss of grip. It then reduces engine power or applies individual brakes to regain traction. In your case, it could be a symptom of the transmission struggling or slipping, causing perceived wheel speed differences before the total failure.

Why would an 'oil line lose pressure' in a transmission?

An automatic transmission relies on hydraulic fluid pressure to operate. A loss of 'oil line pressure' means this critical pressure is no longer being maintained. This can be caused by a severe external fluid leak (e.g., burst cooler line), a failure of the internal transmission pump, or significant internal damage that prevents the hydraulic system from holding pressure correctly.

Conclusion

The 2009 Mercedes-Benz W219 CLS is a sophisticated vehicle, and understanding its unique features, like the Keyless-Go system on the gear selector, is part of being a well-informed owner. More importantly, recognising and acting swiftly on critical mechanical failures, such as a sudden loss of drive coupled with a loss of transmission fluid pressure, is paramount. Your prompt decision to stop driving and arrange for recovery has likely saved your transmission from further, more extensive damage. Entrusting your vehicle to a reputable Mercedes-Benz specialist for a thorough diagnosis is the next essential step to getting your elegant CLS back on the road and ensuring many more miles of smooth, luxurious motoring.
