Embarking on the journey of DIY automotive maintenance can seem daunting, yet it offers immense satisfaction, significant cost savings, and a deeper understanding of your vehicle. For Volkswagen owners, particularly those with a keen interest in maintaining their drivetrain, tackling tasks like differential and transmission fluid changes can be incredibly rewarding. While the garage might seem the easier option, with the right approach, tools, and a bit of perseverance, you can ensure your VW's vital components are lubricated with precision, extending their lifespan and maintaining optimal performance. Let's delve into the intricacies of these essential fluid services, offering insights and practical tips gleaned from real-world experience.

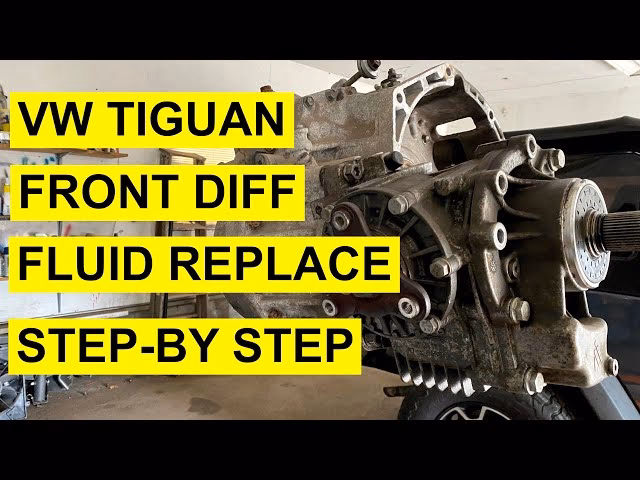

Demystifying Differential Fluid Changes
The differentials in your vehicle, both front and rear, are crucial for distributing power to the wheels, allowing them to rotate at different speeds during turns. Over time, the lubricating fluid within these units can degrade, losing its effectiveness. Regular fluid changes are paramount to prevent premature wear and ensure smooth operation. While often overlooked, this task is well within the scope of a determined DIY mechanic.
One of the primary challenges encountered during a differential fluid change, especially on the rear differential, is often the limited access and tight working space. Identifying the correct drain and fill plugs is the first critical step. For many VW models, the rear differential drain plug might be a small Allen-key fitting located at the back of the differential housing. Always double-check your vehicle's specific service manual or reliable online resources to confirm plug locations and fluid capacities.
Filling the differential can be surprisingly tricky. While some might attempt to run a hose from topside, this can often lead to considerable mess and wasted fluid. A more effective and cleaner method involves using a large syringe. By pouring the new gear oil (such as a 90w viscosity) into a measuring beaker, you can then accurately draw the fluid into the syringe and inject it directly into the fill port. For the rear differential, a capacity of approximately 1 litre is common. This method drastically reduces spills and ensures you get the correct amount of fluid into the housing.
It's always insightful to inspect the drained fluid. Even after 40,000 miles, you might be surprised to find it relatively clean, but its lubrication factor can be noticeably diminished. It won't feel as 'slick' as fresh fluid. When refilling, consider using high-quality synthetic gear oils like Valvoline Synpower Plus. For vehicles equipped with Electronic Differential Lock Systems (EDLS), adding an additive like an old-school Toyota syncro slickum can further enhance performance and protection.
Essential Tools for Differential Fluid Changes
| Tool | Purpose | Notes |
|---|---|---|
| Socket/Allen Key Set | Removing drain/fill plugs | Ensure correct sizes for your vehicle. |
| Fluid Drain Pan | Collecting old fluid | Wide, shallow pan recommended. |
| Large Syringe with Hose | Accurate fluid filling | Makes the job much cleaner. |
| Measuring Beaker | Precise fluid measurement | Ensures correct fill volume. |
| Torque Wrench | Tightening plugs to spec | Prevents overtightening/leaks. |
| Shop Rags/Cleaners | Cleanup | For inevitable spills. |
| Safety Glasses & Gloves | Personal protection | Always wear them. |
Haldex and Automatic Transmission: Next on the List?
Beyond the differentials, many modern Volkswagens feature a Haldex all-wheel-drive system and an automatic transmission, both of which require dedicated fluid maintenance. The good news is that these systems often incorporate more straightforward drain and fill procedures compared to some differential setups, making them more approachable for the DIY enthusiast.
The Haldex system, responsible for engaging the rear wheels when needed, has its own dedicated fluid and filter. Its service is generally considered quite manageable, often involving a simple drain plug and a fill plug, much like a conventional differential but with a specific Haldex fluid. Similarly, many automatic transmissions, particularly those with a dedicated drain plug, simplify the fluid change process immensely. While some transmissions require a pan drop and filter replacement, others allow for a simple drain and refill to refresh a portion of the fluid. Always consult your vehicle's service manual for the exact procedure and fluid specifications for your model.
The Tiptronic Transmission: A Deeper Dive into Fluid Service
The Tiptronic transmission, a sophisticated piece of engineering, demands careful attention during fluid service. Unlike a simple drain and fill, proper Tiptronic fluid replacement involves precise temperature monitoring and often unique filling methods. It's not just about changing the fluid; it's about ensuring the correct level at the optimal temperature for peak performance and longevity.
One common misconception is the 'filter' in these transmissions. Often, it's not a traditional paper filter but rather a fine screen designed to catch larger debris. While some prefer to drop the pan to clean or replace this screen, a fluid-only change can still be highly beneficial, especially if the screen was serviced previously.
Crucial Temperature Management
Temperature is king when setting the fluid level in a Tiptronic transmission. Using diagnostic tools like a VCDS cable is essential. You can typically find the ATF temperature in measuring blocks (e.g., Group 006 or 010) which should give identical readings. The recommended temperature for level setting is usually quite specific, often in the lower Celsius range (e.g., around 35°C). An infrared (IR) thermometer can provide a general pan temperature, but the internal sensor reading via VCDS is far more accurate for critical level setting.
It's not uncommon to find the transmission over-filled when you first remove the drain plug, even if the vehicle is level and at the correct temperature. A surprising amount of fluid might drain out. This 'overflow' indicates that the previous fill was likely incorrect. Inspecting the drained fluid's condition is vital; if it looks dirty, a change is definitely justified. Measuring the drained amount, even the 'overflow,' provides a baseline, but don't assume this is the full capacity.
Fluid Capacity Confusion and Filling Methods
The stated 'service refill capacity' for Tiptronic transmissions can vary wildly across different sources (e.g., 7.0 litres on a Fuchs website, 5.5 quarts from others). However, the actual amount drained during a simple fluid change (without dropping the pan) is often much less, perhaps around 2.8 litres. This discrepancy can be confusing and concerning. Your ELSA manual might advise adding only 3 litres after draining, which aligns more closely with what often comes out. The safest approach, especially if you're not dropping the pan, is to replace only the amount of fluid that came out, assuming the initial level wasn't critically low (which it wasn't if fluid overflowed).
Filling these transmissions can be a challenge due to the specific fill port location. While gravity feeding with a funnel and long hose is an option, innovative methods can simplify the process. A pressure garden sprayer, for example, can be repurposed effectively. By removing the spray nozzle and attaching an 8mm clear tube to the metal shaft, then connecting the other end to a suitable filling attachment (like a VAS6262-2), you can create a pressurised filling system. The sprayer's trigger acts as an excellent flow controller, allowing for precise and mess-free fluid transfer. This method makes it easy to monitor the fluid going in and prevents spills.
Post-Fill Procedures and Level Setting
After refilling the transmission, quickly reinsert the drain plug to prevent excessive loss, even if some fluid initially overflows. Then, start the vehicle and cycle through the gears (R, N, D) for about 10 seconds in each, repeating this several times with your foot on the brake. This circulates the new fluid thoroughly. It's crucial to allow the transmission to cool down to the specified temperature range before performing the final level check. If the ambient temperature is high, this can take several hours. Once the transmission is within the correct temperature window, remove the drain plug again. Fluid should dribble out slowly. If nothing comes out, add more fluid until a steady dribble appears. If a lot pours out, let it drain until it slows to a trickle, then replace the plug. This ensures the correct, precise fluid level.
Choosing the Right Fluids: A Quick Guide
The type of fluid you use is as critical as the change itself. Always refer to your vehicle's specific owner's manual or service manual for the exact fluid specifications. Using the wrong fluid can lead to serious and costly damage.
For differentials, a high-quality 90w gear oil is often specified. Some manufacturers might also recommend 75W/90. Brands like Valvoline Synpower Plus are excellent choices for their synthetic properties, offering superior protection and longevity. For EDLS systems, specific friction modifiers might be required or beneficial, such as the 'syncro slickum' mentioned earlier.
When it comes to automatic transmissions, particularly Tiptronic units, the fluid is highly specialised. These are typically synthetic Automatic Transmission Fluids (ATF) designed for specific friction characteristics and temperature ranges. Brands like Fuchs are often recommended by manufacturers. It's vital to match the fluid to the OEM specification (e.g., VW G 052 162 A2). Regarding your query about Nulon, they do produce a range of gear oils, including 75w/90 'smooth change' variants. However, for a Tiptronic transmission, you must use an ATF that meets VW's precise specifications, not a standard gear oil, which is for manual gearboxes or differentials. Always cross-reference the Nulon product's specifications with your vehicle's requirements.
Fluid Specification Checklist
- Differential Fluid: Check viscosity (e.g., 75W/90, 90W) and API GL rating (e.g., GL-5).
- Haldex Fluid: Specific OEM part number or equivalent. Never use standard gear oil.
- Automatic Transmission Fluid (ATF): Crucial to match OEM specification (e.g., VW G 052 162 A2). Using generic ATF can cause irreparable damage.
Frequently Asked Questions About Drivetrain Fluid Changes
Q: How often should I change my differential and transmission fluids?
A: Service intervals vary by manufacturer and driving conditions. For differentials, 40,000-60,000 miles is a common recommendation. For automatic transmissions, it can range from 40,000 to 100,000 miles, or even 'lifetime' in some cases (though 'lifetime' often means the life of the warranty, not the vehicle!). It's always best to follow your VW's specific service schedule, but proactively changing fluids, especially under harsher driving conditions, can only benefit your vehicle.
Q: What happens if I use the wrong fluid?
A: Using incorrect fluid can lead to catastrophic failure of the component. For example, using gear oil in an automatic transmission or the wrong ATF can cause overheating, slipping, hard shifts, and eventually internal damage due to incorrect friction properties or insufficient lubrication.
Q: Is it okay if some fluid drips out when I first remove the transmission drain plug?
A: Yes, especially with Tiptronic transmissions, it's common for some fluid to drain out even when the transmission is theoretically at the correct level. This is often due to the design of the internal level tube. The critical part is to ensure the level is correct at the specified temperature during the final check.
Q: Can I really use a garden sprayer to fill my transmission?
A: Yes, with proper modification to the nozzle and hose, a pressure garden sprayer can be an incredibly effective and clean method for filling transmissions, especially those with fill ports that are hard to access for gravity filling. Just ensure the sprayer is clean and used solely for this purpose to avoid contamination.
Q: Should I always replace the transmission filter when changing the fluid?
A: For some transmissions, particularly those with a true filter, replacement is highly recommended during a fluid change. For Tiptronic units that use a screen, a pan drop to clean or replace the screen is an option, but a fluid-only change can still be beneficial if the screen was previously serviced or if you prefer not to drop the pan. Consult your service manual for your specific transmission's requirements.
By understanding these processes and equipping yourself with the right tools and knowledge, you can confidently take on drivetrain fluid maintenance for your Volkswagen, ensuring it remains a reliable and enjoyable vehicle for years to come.
