Brake Sensor Wires: Your Car's Vital Warning

In the intricate ballet of modern automotive engineering, every component plays a crucial role in ensuring not only performance but, more importantly, safety. Among these unsung heroes is the brake sensor wire, a small yet vital part that acts as your vehicle's early warning system for worn brake pads. Understanding its function is key to proactive maintenance, preventing more extensive and costly repairs down the line, and ultimately, keeping you safe on the UK's bustling roads.

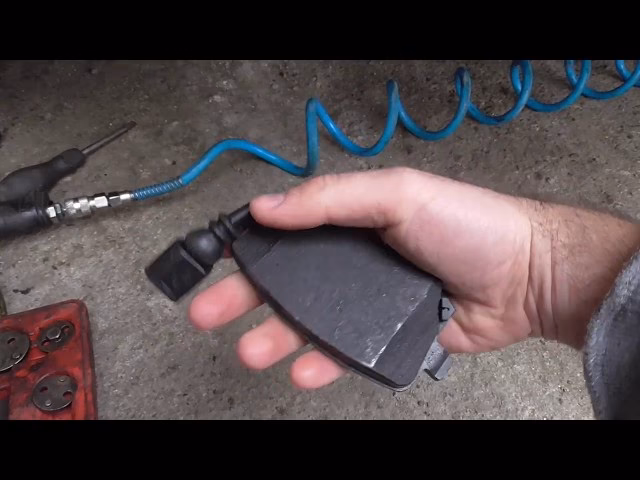

What Exactly is a Brake Sensor Wire?

A brake sensor wire, often found on modern vehicles, particularly European models, is a simple but ingenious device designed to detect when your brake pads have worn down to a critical level. It's an integral part of your car's braking system, providing an electrical signal to the vehicle's onboard computer (ECU) which, in turn, illuminates a warning light on your dashboard, typically an amber or red icon indicating brake wear.

The sensor itself usually consists of two wires: a yellow wire that is grounded, and a red wire that is a live sensor wire, typically carrying 12 volts. These two wires are connected by an embedded bridge within the brake pad material itself. This bridge connection is strategically placed so that as the brake pad wears down from regular use, the tip of the sensor, which contains this bridge, eventually makes contact with the brake disc (rotor) or simply wears away. During normal operation, with sufficient pad material remaining, the embedded bridge ensures that the red live wire is 'pulled to ground' by the grounded yellow wire. This completes a circuit, telling the car's system that everything is in order.

When the brake pad wears thin, the embedded bridge connection is broken. This interruption means the red wire is no longer pulled to ground, and its voltage state changes (it might 'float high' or go to 12V, depending on the system's design). This change in circuit status is what signals the vehicle's ECU that the brake pads require attention. It's a clever, direct method of monitoring pad thickness without requiring complex mechanical linkages.

The Critical Role of Brake Wear Sensors in Your Vehicle's Safety

These seemingly minor wires play a significant role in vehicle safety and maintenance. Without them, drivers would largely rely on audible cues (like a grinding noise from metal-on-metal contact) or visual inspections to determine brake pad wear. By the time these other indicators become apparent, it might be too late, potentially leading to a number of undesirable outcomes:

• Compromised Braking Performance: Severely worn brake pads reduce your car's stopping power, increasing braking distances and making emergency stops far more dangerous.
• Damage to Brake Discs: Once the pad material is gone, the metal backing plate of the brake pad grinds directly against the brake disc. This causes rapid and severe damage to the discs, often necessitating their replacement along with the pads, significantly increasing repair costs.
• Calipers and Other Components: Prolonged metal-on-metal contact can generate excessive heat and stress, potentially damaging the brake calipers and other components of the braking system.
• Unexpected Breakdowns: Catastrophic brake failure, while rare, is a possibility if pads are neglected to an extreme degree.

The brake sensor wire provides a timely, proactive warning, allowing you to schedule maintenance before these serious issues arise. It's about preventative care, not reactive repair.

How Do Brake Wear Sensors Work? A Deeper Dive

Let's elaborate on the electrical principle. Imagine a simple circuit where current flows. The ECU sends a small voltage (e.g., 12V) through the red wire. As long as the embedded bridge in the brake pad connects this red wire to the grounded yellow wire, the voltage at the sensor's output (as read by the ECU) will be close to zero volts (pulled to ground). This 'low' signal tells the ECU that the pads are healthy. However, once the pad wears down and the bridge connection is severed, the red wire is no longer connected to ground. The ECU then 'sees' the full 12V (or a high voltage) on that line. This 'high' signal is interpreted as a fault or wear, triggering the dashboard warning light. This type of circuit is often referred to as a 'normally closed' circuit, which 'opens' when a fault or wear occurs.

This design ensures that even a broken wire (e.g., from physical damage) will trigger the warning, as it would also result in the red wire not being pulled to ground, thus functioning as a fail-safe system.

Distinguishing Between Electrical and Mechanical Brake Wear Indicators

It's worth noting that not all cars use electrical brake wear sensors. Many older or more basic models rely on a simpler, mechanical indicator. This typically consists of a small metal tab or 'squealer' attached to the brake pad's backing plate. When the pad wears down to a certain point, this metal tab comes into contact with the brake disc, producing a distinctive, high-pitched screeching sound. While effective, this audible warning is often less precise than an electrical sensor and can be quite jarring. Electrical sensors offer a quieter, earlier, and more precise warning, which is why they are increasingly common.

Recognising the Signs: When Your Brake Sensor Wire Triggers an Alert

The most obvious sign that your brake sensor wire has done its job is the illumination of a specific warning light on your car's dashboard. This light typically looks like a circle with dashed lines on either side, often coloured amber or yellow. In some systems, particularly those indicating a more critical issue or a system malfunction, it might be red. When you see this light, it means that at least one of your brake pads has worn down to the point where the sensor has activated. It is not an alarm to be ignored; it's a clear signal that your brakes need immediate inspection and likely replacement.

While the light itself is the primary indicator, some drivers might also notice a slight change in braking feel or perhaps hear a very faint scraping sound if the sensor has just begun to make contact. However, the dashboard light is designed to be the definitive 'first' warning.

Replacing Brake Sensor Wires: A Necessary Step During Pad Changes

Due to their design, brake sensor wires are generally considered a single-use component. They are designed to wear out along with the brake pad they are monitoring. Therefore, whenever you have your brake pads replaced, it is standard practice to also replace the corresponding brake sensor wire. Attempting to reuse an activated sensor, or even one that hasn't activated but is nearing its wear limit, is ill-advised as it defeats the purpose of the warning system.

The replacement process is relatively straightforward for a competent DIY mechanic or, more commonly, a professional. It involves:

1. Lifting the Vehicle: Safely raising the car on jack stands or a lift.
2. Removing the Wheel: Taking off the wheel to access the brake assembly.
3. Locating the Sensor: The sensor wire is typically clipped into the brake pad and routed along the brake hose or suspension components to a connector block.
4. Disconnecting and Replacing: Carefully detaching the old sensor wire from its clips and electrical connector, then installing the new sensor wire, ensuring it is correctly routed and securely connected to avoid snagging or damage.
5. Installing New Pads: The new brake pads are then installed.
6. Reassembly: Reattaching the wheel and lowering the vehicle.
7. Resetting the Warning Light: In some vehicles, the warning light will automatically extinguish once the new sensor is connected and the circuit is restored. In others, particularly certain premium German marques, a manual reset procedure via the car's onboard computer or a diagnostic tool is required.

It's crucial to use the correct sensor for your specific vehicle make and model, as there can be variations in design and connector type.

Common Issues and Troubleshooting Your Brake Sensor System

While generally reliable, brake sensor systems can occasionally present issues beyond simple wear:

• False Alarms: A warning light might illuminate even if the pads aren't worn. This could be due to a faulty sensor (rare), a damaged wire (e.g., severed during installation or from road debris), or corrosion in the electrical connector.
• Wire Damage: During brake service, if the sensor wire is not routed correctly, it can get snagged, pinched, or rub against moving parts, leading to damage and a false warning.
• Connector Issues: Dirt, moisture, or corrosion in the electrical connector can disrupt the circuit and trigger the warning light.
• System Malfunction: Less commonly, a fault within the vehicle's ECU or wiring harness could cause incorrect readings.

If your brake wear light comes on and you're certain the pads were recently replaced, or if the pads still look thick, it's worth checking the sensor wire itself for visible damage and ensuring the connector is clean and secure. However, it's always best to have it inspected by a qualified mechanic to rule out actual brake wear or other underlying issues.

The Broader Benefits of Timely Brake Maintenance

The brake sensor wire is just one piece of the puzzle when it comes to maintaining a healthy braking system. Its primary benefit is enabling timely brake pad replacement. This proactive approach extends far beyond simply avoiding a dashboard light:

Regular visual inspections of your brake pads (if accessible) and paying attention to any unusual sounds or braking feel should complement the warning system provided by the sensor wires.

Frequently Asked Questions (FAQs)

Can I ignore the brake wear sensor light?

Absolutely not. The brake wear sensor light is a critical safety warning. Ignoring it can lead to severely worn pads, damage to your brake discs, compromised braking performance, and potentially dangerous driving conditions. Have your brakes inspected as soon as possible when this light appears.

Do all cars have brake wear sensors?

No, not all cars are equipped with electrical brake wear sensors. They are more common on modern vehicles, particularly those from European manufacturers (e.g., BMW, Mercedes, Audi, VW) and higher-trim models. Many older or more basic cars rely on mechanical squealers or simply require visual inspection.

Is it safe to bypass a brake wear sensor?

While technically possible to bypass the sensor (e.g., by connecting the two wires together to simulate a healthy circuit), it is strongly not recommended. Bypassing the sensor removes a vital safety feature, meaning you will not receive a warning when your brake pads wear down. This could lead to serious safety hazards and costly damage to your braking system.

How much does it cost to replace a brake sensor wire?

The cost of the sensor wire itself is relatively inexpensive, usually ranging from £10 to £30 in the UK. However, it's almost always replaced as part of a brake pad change, so the overall cost will include the new brake pads and labour for the entire job. Labour costs vary depending on the garage and vehicle type.

What's the difference between a brake wear sensor and an ABS sensor?

These are two entirely different components. A brake wear sensor detects the thickness of your brake pads. An ABS sensor (Anti-lock Braking System sensor), also known as a wheel speed sensor, monitors the rotational speed of each wheel. This information is crucial for the ABS system to prevent wheel lock-up during hard braking and for other systems like traction control and stability control. While both are related to braking, their functions are distinct.

Why does my brake light stay on after replacing pads and sensor?

If the light remains on after replacing the pads and sensor, it could be due to several reasons: the sensor wasn't connected properly, the new sensor is faulty (rare), the vehicle requires a manual reset procedure using a diagnostic tool (common on some European cars), or there's another underlying issue with the braking system (e.g., low brake fluid, a fault with the ABS system, or a parking brake issue).

Conclusion

The brake sensor wire, though small and often overlooked, is a testament to the continuous evolution of automotive safety. It provides an indispensable early warning, transforming a potentially dangerous situation into a manageable maintenance task. By understanding its function and heeding its warning, you ensure the longevity of your vehicle's braking system and, more importantly, the safety of everyone on board. So, the next time that amber brake warning light illuminates on your dashboard, remember the tiny wire that just did its job, prompting you to take the necessary steps to keep your car stopping safely and efficiently.
