Number Plate Lights Not Working? Find Out Why!

It can be a frustrating experience when your vehicle's number plate lights decide to pack in. Not only is it an MOT failure, but it also means your registration plate isn't properly illuminated, which could lead to unwanted attention from the authorities. When you've gone through the usual checks – fuses are sound, bulbs appear fine – and still find yourself in the dark, where do you turn? This article delves into the common culprits behind non-illuminated number plate lights and guides you through a systematic troubleshooting process, drawing on the experience of a common scenario where power seems to disappear en route to the rear of the vehicle.

Understanding the Number Plate Light Circuit

Before we dive into troubleshooting, it's helpful to understand the basic circuit. A number plate light, like most electrical components in a car, relies on a complete circuit to function. This circuit typically involves:

• Power Source: Usually comes from the vehicle's battery, regulated by the ignition system.
• Fuse: Protects the circuit from overcurrent.
• Switch: In this case, often tied to the vehicle's lighting stalk or even the tailgate opening mechanism (though less common for the lights themselves).
• Wiring Loom: The network of wires carrying the electrical current.
• Bulb Holder and Bulb: The component that illuminates.
• Ground Connection: Essential for completing the circuit, allowing current to flow back to the battery.

In the scenario described, the user has confirmed fuses are good and has checked for power at various points, including the multiplug on the tailgate trim, the rubber boot through the tailgate, and a large multiplug in the rear headlining. The fact that only the heated rear screen has power at the headlining multiplug is a significant clue.

Common Causes for Non-Working Number Plate Lights

When your number plate lights fail, especially after you've checked the most obvious things, the problem often lies deeper within the wiring or the connections.

1. Wiring Harness Issues

This is a very common cause, particularly in vehicles where the wiring passes through flexible points like the tailgate or door hinges. Over time, the constant opening and closing of the tailgate can cause the wires within the harness to:

• Snap: The copper core of the wire can break due to repeated flexing.
• Chafe: Insulation can rub away, leading to short circuits or breaks.
• Corrode: Moisture ingress, especially at connection points, can lead to corrosion, increasing resistance and eventually breaking the connection.

The user's experience of finding no power at the multiplug that also feeds the heated rear screen, but finding power to the heated screen itself, strongly suggests a break in the wiring loom *after* the point where the heated screen's power branches off, but *before* the number plate light connections are made. The rubber boot that goes through the tailgate is a prime suspect for this type of damage.

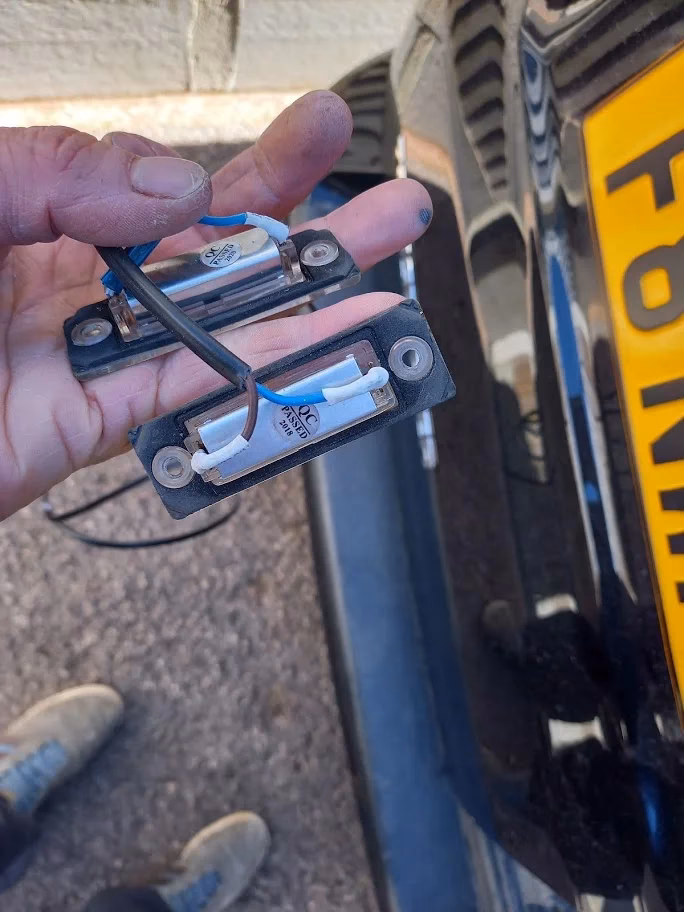

2. Faulty Bulb Holder or Connector

Even if power is reaching the bulb holder, a corroded or damaged connector within the holder itself can prevent the bulb from illuminating. The metal contacts can become loose, dirty, or corroded, creating a high-resistance connection or an open circuit.

3. Grounding Problems

A faulty ground connection is just as detrimental as a lack of power. If the circuit cannot be completed due to a poor ground, the bulb will not light up. This can be due to:

• A loose or corroded ground wire connection.
• A damaged ground wire.

While the user hasn't specifically mentioned checking the ground, it's a crucial step in troubleshooting any electrical fault.

4. Switch or Control Module Issues

Less commonly, the fault could lie with the light switch itself or a body control module (BCM) that controls various vehicle functions, including lighting. However, given that other lights might be working, this is usually a secondary consideration.

Troubleshooting Steps

Let's break down a systematic approach to diagnose the problem, building on the user's initial checks.

Step 1: Re-check Fuses (Even if you think they're okay)

While you've stated the fuses are okay, it's always worth a double-check. Sometimes a fuse can look fine but have a microscopic break. Use a multimeter or a dedicated fuse tester to confirm continuity.

Step 2: Inspect the Wiring Loom in the Tailgate

This is where the evidence points. The rubber boot that protects the wiring harness as it passes from the vehicle body into the tailgate is a notorious wear point. Carefully inspect this area for:

• Visible damage: Look for any signs of chafing, cuts, or breaks in the wires within the boot.
• Stiff or brittle insulation: This can indicate internal wire damage.
• Corrosion: Pay close attention to the multiplugs at either end of this section of wiring.

If you find damaged wires, you'll need to repair them. This typically involves cutting out the damaged section and splicing in new wire using heat-shrink connectors for a durable and weatherproof repair. Soldering and then using heat shrink is the preferred method for longevity.

Step 3: Test Continuity

If no obvious damage is visible, the next step is to test the continuity of the wires. You'll need a multimeter for this.

Testing the Power Wire:

1. With the ignition on and the lights switched on, set your multimeter to measure DC voltage.
2. Place the red probe on the suspected power wire terminal in the multiplug at the tailgate or the headlining connection, and the black probe on a good ground point (e.g., the vehicle's chassis). You should see a voltage reading (typically 12V).
3. If you get no voltage here, the problem lies further up the loom.

Testing for Breaks in the Loom:

1. Turn off the ignition and remove the key.
2. Set your multimeter to the continuity setting (often indicated by a symbol like a speaker or a diode).
3. At the multiplug where you expect power to arrive (e.g., in the headlining or at the tailgate trim), probe the terminal that should be connected to the number plate light's power feed.
4. Now, go to the other end of that suspected wire (e.g., at the multiplug in the headlining, or even further back if you can identify the wire). Probe the corresponding wire terminal.
5. If the multimeter beeps or shows a low resistance reading, the wire has continuity. If it shows no reading or infinite resistance, the wire is broken somewhere in between.

You will need to perform this continuity test on both the positive feed wire and the ground wire for the number plate lights.

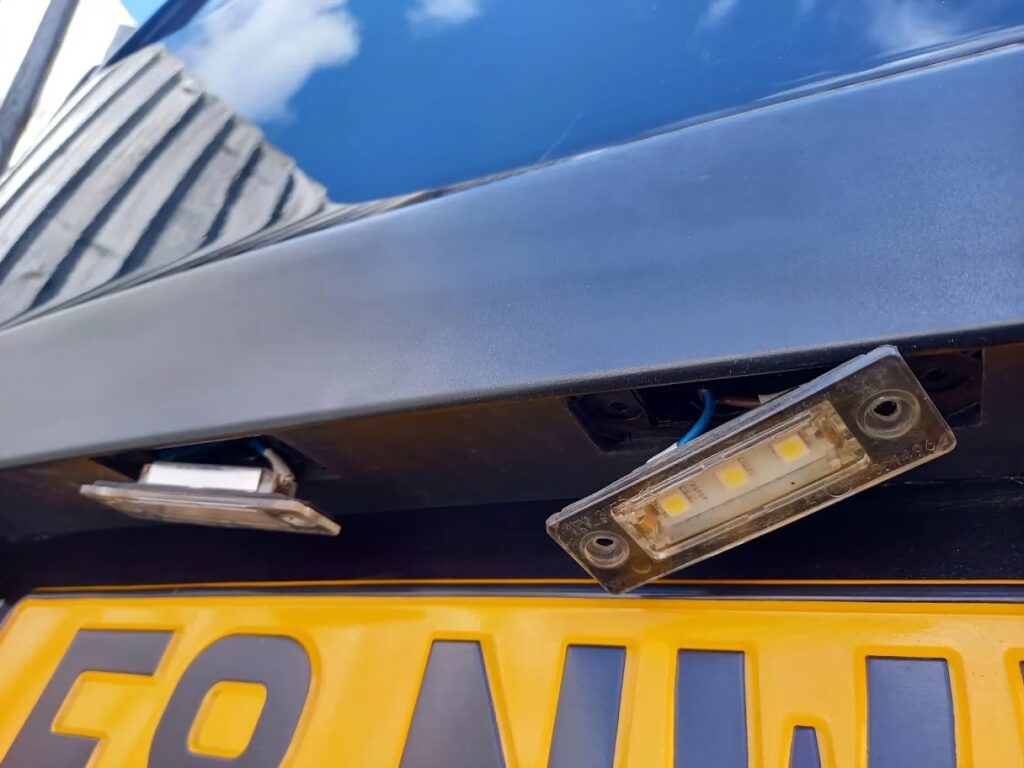

Step 4: Inspect Bulb Holders and Grounds

If you have power reaching the bulb holder but the light still doesn't work, remove the bulb holder and inspect it for corrosion or damage. Clean the contacts with a wire brush or electrical contact cleaner. Also, check the ground connection for the number plate light assembly. Ensure the ground wire is securely attached to a clean metal surface.

Step 5: Consult Wiring Diagrams

Accessing a wiring diagram for your specific vehicle model is invaluable. This will show you the exact routing of the loom and the colour codes of the wires. This can help you trace the power feed and ground connections accurately. You can often find these online through vehicle-specific forums or by purchasing a Haynes manual.

Wiring Loom Routing: Where Does it Go?

In most vehicles, the wiring for the rear lights, including the number plate lights, originates from a main harness that runs along the chassis or under the carpets on one side of the vehicle. It then typically passes through a grommet or multiplug into the tailgate or boot area. The specific routing can vary significantly between manufacturers and models. For instance, the power feed for the number plate lights might branch off from the main rear light harness before entering the tailgate, or it could be routed directly into the tailgate from a central point. The fact that the heated rear screen has power suggests the main feed is likely entering the tailgate area correctly, but a specific circuit for the number plate lights is interrupted.

Table: Common Failure Points in Tailgate Wiring

Frequently Asked Questions

Q1: My number plate lights suddenly stopped working. What's the first thing I should check?

A1: Start by checking the relevant fuses. If the fuses are fine, then move on to inspecting the bulbs and the bulb holders for any obvious signs of damage or corrosion. The next crucial step is to inspect the wiring harness, particularly in flexible areas like the tailgate.

Q2: I've checked the bulbs and fuses, and the wiring looks okay. Could it be the switch?

A2: It's possible, but less likely if other exterior lights are functioning correctly. The number plate lights are often on the same circuit as other rear lights. If you suspect the switch, you might need to test its continuity or consider a fault in a body control module, which would likely require professional diagnosis.

Q3: How do I repair a broken wire in the tailgate harness?

A3: The best method is to cut out the damaged section, strip the ends of the wires, and use automotive-grade crimp connectors or solder the wires together. Insulate the repair with heat shrink tubing for a durable and weatherproof connection. Ensure the repair is not too stiff, which could cause it to break again.

Q4: What does it mean if I have power at one point in the loom but not further down?

A4: This indicates a break or a poor connection in the wiring loom between those two points. The most common place for this to happen is in areas subjected to repeated flexing, such as the wiring harness that passes through the tailgate.

Q5: Can I bypass the faulty section of wiring?

A5: While it might be possible to run a new, separate wire to temporarily bypass a damaged section, it's not a recommended long-term solution. It's best to repair the original wiring loom correctly to maintain the integrity of the vehicle's electrical system and ensure proper protection.

Conclusion

Diagnosing non-working number plate lights, especially when power seems to vanish, often leads back to issues within the wiring harness. The common scenario of power disappearing en route, as described, strongly points towards a break or corrosion within the tailgate wiring. By systematically checking fuses, inspecting the wiring, testing for continuity, and examining bulb holders and ground points, you can pinpoint the fault. Remember, a reliable repair often involves addressing the root cause in the wiring loom to ensure your number plate lights are illuminated for safety and legal compliance.
