T4 Brake Health: When to Replace Components

For any Volkswagen T4 owner, understanding the health of your braking system isn't just about maintenance; it's fundamentally about safety. Your T4 is a robust vehicle, often used for adventures or as a trusty workhorse, and its ability to stop effectively is paramount. Ignoring the warning signs of worn brakes can lead to dangerous situations and costly repairs down the line. So, how do you know if your T4 brakes need replacing? Let's delve into the tell-tale signs and essential checks.

The braking system on your T4 is a complex network of components working in harmony. When you press your brake pedal, you want to have the absolute confidence that the fluid in your T4 brake master cylinder will operate the front and rear T4 brakes with total efficiency. Any compromise in this system can significantly impact your stopping distance and overall vehicle control. It's not just about the obvious suspects like discs and pads; other vital elements, such as brake hoses and brake fluid, play an equally critical role in ensuring your T4 stops safely every time.

Understanding the Core Components and Their Vulnerabilities

Before we dive into the symptoms of wear, let's briefly recap the main parts of your T4's braking system and what makes them susceptible to issues.

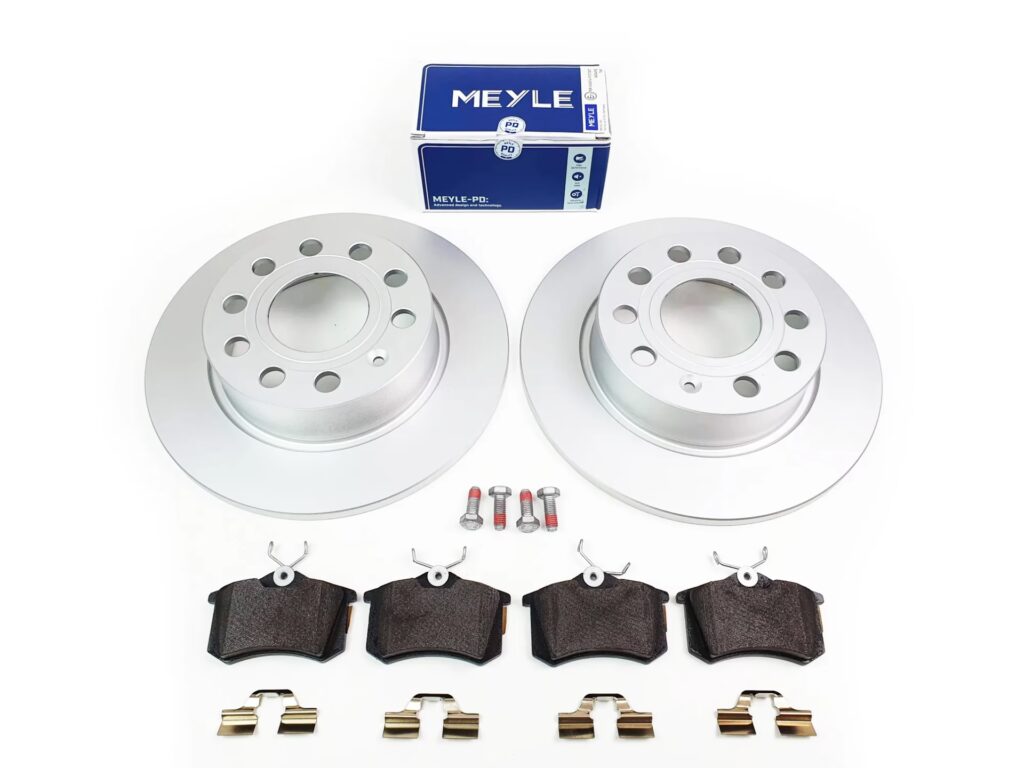

Brake Pads and Discs: The Friction Duo

Your T4's brake pads and discs are the primary friction components responsible for slowing and stopping your vehicle. Pads, made of a friction material, press against the metal discs (rotors) to create the necessary resistance. Over time, this friction naturally wears down both the pads and, to a lesser extent, the discs.

• Corrosion: Discs, being metal, are prone to rust, especially if the vehicle sits unused for periods or in damp conditions. While a light surface rust will often wear off with use, deeper corrosion can create uneven surfaces.
• Dents and Warping: Extreme heat generated during braking, especially under heavy loads or spirited driving, can cause discs to warp. This means they are no longer perfectly flat, leading to inconsistent contact with the pads.
• Wear: Brake pads have a finite lifespan. As they wear down, their effectiveness diminishes. Discs also wear, developing grooves or becoming too thin.

Brake Hoses: The Vital Connectors

Often overlooked, the T4 brake hoses are just as important as the discs and pads! These flexible lines carry hydraulic pressure from the master cylinder to the calipers. They are constantly subjected to pressure fluctuations and environmental exposure.

• Corrosion: While the hoses themselves are typically rubber or braided, the metal fittings can corrode. More critically, the internal condition can degrade due to the brake fluid.
• Cracks and Bulges: Over time, rubber hoses can become brittle, developing cracks, especially near their connections. Bulges indicate internal damage or weakening, which could lead to a catastrophic failure.
• Leaks: Any breach in a brake hose will result in a loss of hydraulic pressure, severely compromising braking ability.

Brake Fluid: The Unsung Hero

T4 brake fluid is a non-compressible hydraulic fluid that transmits the force from your pedal to the calipers. It's a critical element that ensures consistent brake performance. However, brake fluid has a significant vulnerability: it absorbs moisture.

• Moisture Absorption: This is the primary reason T4 brake fluid should be changed every few years. Brake fluid is hygroscopic, meaning it readily absorbs water from the atmosphere. Water in the system lowers the fluid's boiling point, which can lead to 'vapour lock' – where the fluid boils, creating compressible steam bubbles, resulting in a spongy or non-existent brake pedal.
• Corrosion: The absorbed moisture also makes the fluid less effective and highly likely to corrode the internal components of the T4 brake hoses, master cylinder, and calipers, which can cause leaks and component failure.

Key Signs Your T4 Brakes Need Attention

Now that we've covered the components, let's look at the specific symptoms that signal it's time for an inspection or replacement.

1. Unusual Noises

Your brakes should generally operate quietly. Any new or persistent noises are a strong indicator of a problem.

• Squealing: Often the first sign of worn brake pads. Many pads have a small metal 'wear indicator' tab that scrapes against the rotor when the friction material gets low, producing a high-pitched squeal. This is usually a warning that replacement is needed soon, but not immediately critical.
• Grinding: A much more serious sound, indicating that the brake pads are completely worn down, and you're hearing metal-on-metal contact between the backing plate of the pad and the brake disc. This causes rapid damage to the discs and requires immediate attention. Driving with grinding brakes is dangerous and will significantly increase repair costs.
• Clicking: Less common, but a clicking noise when braking can sometimes indicate issues with the brake pad retaining clips, a loose caliper, or even a foreign object lodged in the braking mechanism.

2. Vibrations or Judder

This is a very common sign that your T4 brake discs and pads need replacing, as mentioned in the initial information provided. Vibrations can be felt through the brake pedal, the steering wheel, or even the entire vehicle.

• Judder through the Brake Pedal: This almost always points to warped brake discs. As the warped disc rotates, it makes uneven contact with the brake pads, causing the pedal to pulsate.
• Vibration in the Steering Wheel: If the vibration is primarily felt in the steering wheel during braking, it often indicates an issue with the front brake discs.
• General Vehicle Shake: If the entire vehicle shakes, it could be severe disc warping on one or more wheels, or possibly issues with suspension components exacerbated by braking.

3. A Spongy or Soft Brake Pedal

If your T4's brake pedal feels unusually soft, or if it travels further towards the floor than it used to before the brakes engage, this is a serious warning sign.

• Air in the System: The most common cause of a spongy pedal. Air is compressible, unlike brake fluid, so hydraulic pressure is lost. This can happen after brake work if the system wasn't bled properly, or due to a leak.
• Brake Fluid Leak: A drop in brake fluid level (check your reservoir) usually indicates a leak somewhere in the system – from a hose, caliper, master cylinder, or wheel cylinder. This is an urgent issue.
• Failing Master Cylinder: The master cylinder is responsible for generating hydraulic pressure. If it's failing internally, it may not hold pressure effectively, leading to a soft pedal.
• Old, Contaminated Fluid: As mentioned, brake fluid absorbs moisture. If the fluid boils due to excessive heat (e.g., during heavy braking or on a long downhill), it creates vapour bubbles, leading to a spongy pedal.

4. Your T4 Pulls to One Side During Braking

If your T4 consistently pulls to the left or right when you apply the brakes, it indicates an uneven braking force across the wheels.

• Sticking Caliper: A common culprit. If one brake caliper is seizing up or not releasing properly, it can cause one wheel to brake more effectively than the others.
• Uneven Pad Wear: One side's pads might be significantly more worn than the other, leading to unbalanced braking.
• Contaminated Brake Pads: Oil, grease, or brake fluid on one pad can reduce its friction, causing the vehicle to pull towards the side with effective braking.
• Hose Issues: A partially collapsed or restricted brake hose can prevent fluid from reaching a caliper effectively, leading to reduced braking on that wheel.

5. Increased Stopping Distance

This is perhaps the most dangerous sign because it directly impacts your safety margin. If you notice your T4 takes longer to stop than it used to, or if you have to press the pedal harder for the same stopping power, your brakes are severely compromised.

• Severely Worn Pads and Discs: Reduced friction material means less stopping power.
• Low Brake Fluid: Insufficient fluid means insufficient hydraulic pressure.
• Air in the System: As discussed, air reduces effective pressure.
• Fading Brakes: Overheating of brake components can lead to 'brake fade', where braking efficiency dramatically reduces. This is often a sign of components being pushed beyond their limits or requiring replacement.

6. Brake Warning Light On Your Dashboard

Modern T4s (and many vehicles with ABS) will have dashboard warning lights related to the braking system. These lights are there for a reason and should never be ignored.

• Brake System Warning Light: Usually a red light, often an exclamation mark within a circle, or the word 'BRAKE'. This typically indicates a critical issue such as low brake fluid level, a fault with the parking brake, or a major system malfunction. Stop driving immediately and have it checked.
• ABS Warning Light: A yellow light, often showing 'ABS'. This indicates a fault with the Anti-lock Braking System. While your regular brakes might still work, the ABS function (which prevents wheel lock-up during hard braking) will be disabled. This needs professional diagnosis.

DIY Checks You Can Perform

While professional inspection is always recommended, there are some basic visual checks you can do yourself to assess your T4's brake health.

• Visual Inspection of Brake Pads: You can often see the brake pads by looking through the wheel spokes. Look at the thickness of the friction material. Generally, if it's less than 3-4mm, they are due for replacement. Some pads have wear indicators that are visible grooves; if these are nearly gone, it's time.
• Visual Inspection of Brake Discs: Look for deep grooves, scoring, or visible signs of warping (though warping is harder to spot visually). Run your finger across the disc surface; if it feels very uneven or has a noticeable lip on the edge, it indicates significant wear. Heavy rust or blue spots (from overheating) are also red flags.
• Check Brake Fluid Level and Colour: Locate your T4's brake fluid reservoir (usually a translucent plastic container under the bonnet). Ensure the fluid level is between the 'min' and 'max' marks. Also, observe the colour. New brake fluid is typically clear or light amber. If it's dark brown or black, it's old and contaminated and needs changing immediately.
• Inspect Brake Hoses: Carefully examine the flexible rubber hoses leading to each wheel caliper. Look for any cracks, bulges, fraying, or signs of leakage. Gently flex them to see if they feel brittle. Any damage here means urgent replacement.

Comparative Table: Symptoms and Potential Causes

To help you quickly diagnose potential issues, here's a handy table:

The Importance of Timely Maintenance

Ignoring the signs of worn brakes on your T4 is a false economy and a major safety risk. Delaying replacement can lead to:

• Increased Repair Costs: A small issue like worn pads can quickly escalate. If pads wear down completely, they will damage the discs, turning a relatively inexpensive pad replacement into a more costly pad and disc replacement. Similarly, a leaking hose ignored can lead to more extensive damage to other hydraulic components.
• Reduced Safety: This is the most critical factor. Compromised brakes mean longer stopping distances, reduced control, and a higher risk of an accident. Your T4's ability to stop reliably is non-negotiable.
• MOT Failure: Worn or faulty brakes are a common reason for MOT failure in the UK. Ensuring your brakes are in good condition will save you time, money, and hassle when it comes to your annual inspection.

Frequently Asked Questions About T4 Brakes

How often should T4 brake fluid be changed?

T4 brake fluid should be changed every two years, or as specified in your vehicle's service manual. This is crucial because, as mentioned, it absorbs moisture over time, which degrades its performance and can lead to internal corrosion within the braking system.

Can I replace T4 brake pads myself?

While it is possible for a competent DIY mechanic to replace T4 brake pads and discs, it requires specific tools, knowledge, and an understanding of the correct procedures (e.g., bleeding the brakes, torquing bolts correctly). If done incorrectly, it can severely compromise your braking system's safety. If you're unsure, it's always best to entrust this job to a qualified mechanic.

What's the average lifespan of T4 brake pads and discs?

The lifespan of T4 brake pads and discs varies significantly depending on your driving style, the type of roads you drive on (city driving with frequent stops vs. motorway driving), and whether you carry heavy loads. Generally, brake pads can last anywhere from 20,000 to 70,000 miles, while discs might last through two sets of pads, roughly 40,000 to 100,000 miles. Regular inspection is key.

Why are brake hoses just as important as discs and pads?

Brake hoses are critical because they are the conduits for the hydraulic pressure that activates your brakes. If a hose fails, you lose hydraulic pressure to that wheel (or potentially the entire system), leading to a sudden and significant loss of braking ability. A corroded or weakened hose is a ticking time bomb, and a catastrophic failure can happen without much warning, making them just as vital as the friction components.

Why is my brake pedal hard to press?

A hard brake pedal usually indicates an issue with the brake servo (also known as the brake booster). This component uses engine vacuum to assist your foot pressure, making it easier to depress the pedal. If the servo or its vacuum lines are faulty, the pedal will feel stiff and require much more effort to stop the vehicle effectively.

Conclusion

Paying close attention to your T4's braking system is non-negotiable for safe driving. By being aware of the common warning signs – from unusual noises and vibrations to a spongy pedal or pulling sensation – you can identify problems early. Remember that brake hoses are just as important as discs and pads, and neglecting brake fluid changes can lead to significant issues. Regular visual checks and adherence to service schedules will ensure your T4's braking system remains in optimal condition, providing you with the confidence and safety you need on every journey. If you ever have doubts about your T4's brakes, always consult a qualified mechanic immediately.
