T3 Fuel Tanks: Your Essential Replacement Guide

For many cherished T3 owners, the question of fuel tank replacement is no longer a matter of 'if', but 'when'. These iconic vehicles are reaching an age where their original components, particularly the fuel tank, are showing their years. A failing fuel tank isn't just an inconvenience; it can lead to safety hazards and costly breakdowns. This comprehensive guide will navigate you through the complexities of T3 fuel tanks, helping you understand the different types, identify what's right for your van, and highlight the essential components to consider replacing during this vital maintenance task.

Replacing a fuel tank is a significant undertaking, but it offers a prime opportunity to inspect and protect other critical areas of your T3. Before you even think about the new tank, remember to take advantage of the access granted by its removal. This is the perfect moment to meticulously check the condition of your clutch pipes, brake pipes, and power steering pipes – all vital for your T3’s safe operation. Additionally, take a good look at the vehicle's floor directly above the tank. If everything appears to be in good order, consider applying a protective coating to these areas to ensure they remain in excellent condition for years to come. Proactive protection now can save you a world of trouble and expense down the line.

Identifying Your T3 Fuel Tank Type: A Crucial First Step

Understanding which fuel tank your T3 requires is paramount, as there isn't a one-size-fits-all solution. Broadly speaking, there are three primary types of T3 fuel tanks: Early, Late, and Fuel Injection. Each has distinct characteristics that dictate compatibility with your vehicle's setup. Incorrect identification can lead to frustrating compatibility issues and wasted effort, so let's delve into the specifics.

The Non-Negotiable: Fuel Injection Tanks

Let's begin with the simplest and most critical distinction: if your T3 is equipped with a fuel injection engine, then you unequivocally need a fuel injection tank. This applies universally, whether your engine is a standard factory-fitted unit or an engine conversion that now utilises fuel injection technology. The key difference lies in the larger outlet designed to accommodate the fuel pump required for injection systems. Attempting to use a standard carburettor or diesel tank with a fuel injection engine will not work correctly due and could lead to major fuel delivery problems. There is simply no workaround for this; compatibility is absolute.

Early Tanks: The Metal Filler Neck Era

Early T3 tanks were typically fitted on models produced up to 1985. The most straightforward way to identify an early tank is by its filler neck. These tanks feature a large opening for the filler neck, measuring approximately 68mm in diameter, and were originally paired with a metal filler neck. Whether your T3 runs on petrol or diesel, if it falls into this early production window and retains its original setup, the tank design (excluding fuel injection variants) is generally consistent. So, if you spot a metal filler neck on your T3, you can be reasonably confident you have an early tank. However, as we'll explore, there’s a small twist to this seemingly simple rule.

Late Tanks: The Plastic Filler Neck Evolution

Moving on to models from 1985 onwards, we typically encounter late tanks. Ignoring the fuel injection engines for a moment, these tanks are also largely identical for both petrol and diesel applications. The defining characteristic of a late tank is its plastic filler neck and a smaller filler hole, measuring around 48mm. Therefore, if your T3 was manufactured post-1985, features a plastic filler neck, has the smaller filler hole, and is powered by a carburettor or diesel engine, you almost certainly have a late tank. This transition to plastic was a design improvement by VW, addressing common issues associated with the earlier metal versions.

The Filler Neck Conundrum: When Plastic Isn't Always Late

As with many things in the world of classic vehicle maintenance, what appears simple on the surface can sometimes hide a layer of complexity. While a metal filler neck definitively indicates an early tank, the presence of a plastic filler neck does not automatically guarantee you have a late tank. At some point after 1985, Volkswagen recognised the shortcomings of the metal filler neck – a familiar tale for owners of older Golfs and Sciroccos. Consequently, they ceased supplying steel filler necks as replacement parts. Instead, VW provided a later plastic neck, cleverly designed with a larger seal, enabling it to convert an early tank to accept the newer plastic neck. This means an early tank could, in theory, be sporting a plastic filler neck due to a past replacement.

To definitively identify your tank type if you have a plastic filler neck, the simplest and most reliable method is to visually inspect the seal through the hole in the chassis. You should be able to discern the type of rubber seal being used. If you're still unsure, taking a clear photo of this area and consulting with a specialist supplier can often provide a definitive answer. Interestingly, if you discover you have an early tank that has been converted to use a plastic filler neck with the larger seal, you might consider swapping to a late tank and its standard, smaller seal when replacing. Why? Simply put, the standard late tank seal is typically more affordable, offering a small but welcome saving on your replacement parts bill.

For further assistance in identifying your specific T3 tank type, many specialist suppliers offer 'Early/Late' calculators that can help determine your vehicle's specifications based on its chassis number. This can be a valuable tool to ensure you order the correct components.

Beyond the Tank: Essential Replacement Components

Once you've identified the correct tank, the next step is to consider the associated components. While sometimes original parts can be reused, it's often a case-by-case scenario, and sometimes, it simply makes sense to replace certain items while everything is accessible. We can't provide an exact shopping list without seeing your specific vehicle, but here's a detailed breakdown of parts commonly associated with a T3 fuel tank replacement, working from the filler neck downwards.

Filler Neck Components: A Detailed Breakdown

• Filler Surround: This is the trim piece that finishes the filler neck area on the exterior of your van. It often degrades over time and can be a good candidate for replacement to improve aesthetics and prevent dirt ingress.
• Filler Neck Rubber: A crucial seal that ensures a tight connection between the filler neck and the bodywork, preventing fuel spills and odours.
• Retaining Ring with Screws: Secures the filler neck assembly in place. These can corrode or fasteners can seize, making replacement a sensible option.
• Fuel Filler Neck: The actual pipe through which fuel is poured. Depending on your tank type, this will be either the metal early version or the plastic late version.
• Early Seal / Late Seal / Seal to Convert Late Filler to Early Tank: These seals are vital for preventing leaks at the filler neck. As discussed, ensure you select the correct seal for your specific tank and filler neck combination. The quality of this seal is paramount for safety and cleanliness.

Breather System Essentials: Keeping Your Fuel System Happy

The breather system plays a critical role in allowing air to enter and exit the fuel tank as fuel is consumed or added, preventing vacuum lock or pressure build-up. Neglecting these components can lead to fuel delivery issues or even tank deformation. On the top of the T3 tank, you'll find three grommets for the breather system. At the time of writing, quality aftermarket alternatives are readily available and highly recommended. These grommets are prone to perishing over time, leading to potential leaks or vapour loss. Complementing these are the breather balance pipes, which ensure proper air circulation within the system. Furthermore, the braided hoses connecting the breather pipe to the arch tanks are often overlooked. A metre of suitable braided hose is usually sufficient to replace all these connections. For those seeking superior longevity and resistance to modern fuel formulations, consider investing in ethanol and bio-safe fuel hose, which offers enhanced durability.

Fuel Level Sender: Ensuring Accurate Readings

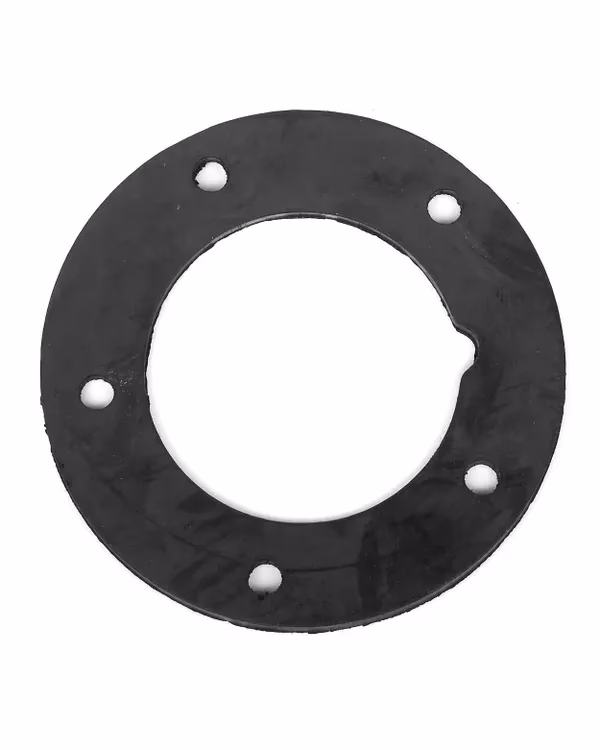

The fuel level sender is responsible for relaying your fuel level information to the gauge on your dashboard. Like the tanks, there are early and late versions of the sender, corresponding to the tank types. When replacing your tank, you'll also need to consider the sender and its seal. While new tanks often come with a seal, and new senders include one too, it's a common observation that these supplied seals can be quite hard and notoriously difficult to fit correctly, often leading to leaks. Surprisingly, the old, original seal from your previous tank, if it's still pliable and in good condition, can sometimes be the best option due to its aged flexibility. However, if you prefer to fit a new, reliable seal, specific high-quality replacement seals are available from specialist suppliers that offer superior fitment and sealing properties. Investing in a good quality seal here will save you the headache of fuel smells or drips.

Tank Protection: Longevity for Your New Investment

Once your new tank is installed, or even before, it's highly advisable to apply a protective coating. The underside of your vehicle, including the fuel tank area, is constantly exposed to moisture, road salt, and debris, all of which contribute to corrosion. Products like Dinitrol underbody sealant are excellent for this purpose. A single 0.5-litre or 1.0-litre can is typically sufficient to coat the new tank thoroughly and provide additional protection to the surrounding chassis area above the tank. This preventative measure significantly extends the lifespan of your new tank and helps to keep the entire underbody in better condition, safeguarding your investment against the elements.

T3 Fuel Tank Types at a Glance

Frequently Asked Questions About T3 Fuel Tank Replacement

Do I absolutely need a fuel injection tank for a fuel injection engine?

Yes, absolutely. This is not optional. Fuel injection engines require a specific tank design that accommodates a larger outlet for the fuel pump, ensuring proper fuel delivery and system integrity. Using any other type of tank with a fuel injection engine will lead to significant issues and is not recommended.

How do I know if my T3's fuel tank needs replacing?

Common signs include visible rust or corrosion on the tank's exterior, fuel leaks (even small drips), persistent fuel odours inside or outside the vehicle, or a failing fuel gauge despite replacing the sender (though this is less common). Given the age of most T3s, if you're still on the original tank, it's highly likely to be nearing the end of its serviceable life and warrants a thorough inspection.

What should I inspect when the old tank is removed?

With the tank out, seize the opportunity to thoroughly inspect the clutch pipes, brake pipes, power steering pipes, and the vehicle's floor directly above where the tank sits. Look for any signs of corrosion, wear, or damage. If they are in good condition, apply a protective coating to help preserve them. This is an ideal time for preventative maintenance on these critical components.

Can I reuse the fuel level sender seal that comes with a new tank or sender?

While new seals are typically supplied, it's a common observation that they can be quite stiff and challenging to fit correctly, potentially leading to leaks. Many experienced T3 mechanics find that a pliable, original seal from the old tank, if in good condition, can offer a better fit. If you opt for a new seal, source a high-quality replacement specifically designed for a superior fit.

Is it worth replacing other components like breather hoses and filler neck seals at the same time?

Absolutely. While some original components might appear functional, their age means they are often brittle or nearing failure. Replacing them while the tank is out and everything is easily accessible is highly recommended. This prevents the need for further disassembly later on, saving you time and effort, and ensures the entire fuel system is refreshed and reliable.

Replacing your T3's fuel tank is a significant investment in your vehicle's future, ensuring its safety, reliability, and longevity. By carefully identifying the correct tank type, understanding the function of each associated component, and taking the opportunity to protect surrounding areas, you'll be well on your way to many more happy miles in your classic VW. Don't rush the process, and when in doubt, consult with specialists who can provide expert advice and high-quality parts tailored to your T3's specific needs.
