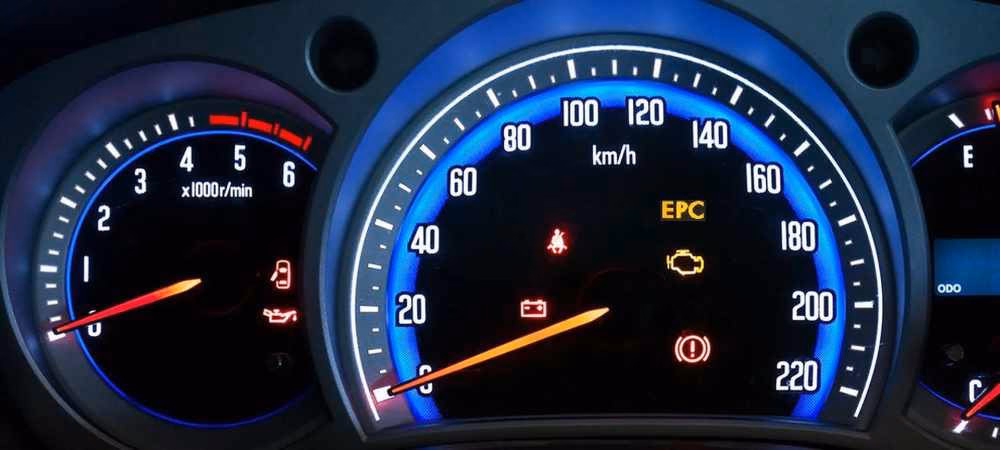

The illuminated EPC (Electric Power Control) light on your Volkswagen dashboard can be a source of concern for many drivers. Often accompanied by a noticeable change in how your vehicle performs, this warning light signifies a potential issue within your car's electronic throttle control system. While it might seem like a minor inconvenience, understanding what the EPC light means and how to address it promptly is crucial for maintaining your Volkswagen's performance, safety, and longevity.
What Exactly is the EPC System?
The Electric Power Control system, or EPC, is an integral part of your Volkswagen's modern engine management. It acts as a guardian for several key operational areas, ensuring your vehicle runs efficiently and safely. The EPC system is responsible for monitoring and regulating:
- Throttle System Functionality: This is the core of the EPC. It manages the electronic throttle body, which controls the amount of air entering the engine based on your accelerator pedal input.
- Traction Control: Helping to prevent wheel spin during acceleration, especially on slippery surfaces.
- Electronic Stability Control (ESC): Assists in maintaining vehicle control during skids or sudden manoeuvres.
- Power Steering Assistance: In some models, the EPC system can influence the electronic power steering.
- Cruise Control Operation: Ensuring your cruise control functions as intended.
When the EPC light illuminates, it means the system has detected an anomaly in one or more of these critical areas or their associated sensors. This often translates into noticeable performance changes, such as a reduction in engine power (often referred to as 'limp mode'), rough idling, inconsistent acceleration, or even a complete inability to accelerate.
Common Culprits Behind the EPC Light
While the EPC light can be triggered by a variety of issues, some are more prevalent than others. Identifying the most common causes can help you understand the potential problem with your Volkswagen.
Throttle Body Issues
The electronic throttle body is a frequent offender when it comes to EPC lights. Over time, carbon deposits can build up within the throttle body, hindering its smooth operation. This buildup can cause the throttle plate to stick or not respond correctly to commands from the accelerator pedal. Issues with the throttle body itself, such as a malfunctioning motor or sensors within the unit, can also trigger the EPC light.
Accelerator Pedal Position Sensor (APPS) Problems
Your accelerator pedal doesn't have a physical cable directly connected to the throttle body in modern Volkswagens. Instead, it uses a sensor (APPS) to measure how far you're pressing the pedal and sends this information electronically to the engine control unit (ECU). If this sensor fails or provides inaccurate readings, the EPC light will illuminate.
Brake Light Switch Malfunction
It might seem unusual, but a faulty brake light switch can also trigger the EPC light. The brake light switch is often linked to the cruise control and electronic stability systems. If it's not functioning correctly, it can send incorrect signals, leading to the EPC warning.
ABS Sensor Failures
The Anti-lock Braking System (ABS) relies on wheel speed sensors to function. If one of these sensors fails, it can affect other systems that rely on wheel speed data, including traction control and stability control, which are managed by the EPC system. This can result in the EPC light coming on.
Steering Angle Sensor Issues
The steering angle sensor informs the ESC system about the direction your vehicle is being steered. If this sensor malfunctions, it can lead to inaccurate readings for the stability control system, consequently triggering the EPC warning light.
Electrical Connection Failures
Loose wiring, corroded connectors, or damaged wiring harnesses can disrupt the communication between various sensors and the ECU. Any interruption in the electrical signals within the EPC system can cause the warning light to appear.
Can I Drive with the EPC Light On?
No, it is strongly advised not to drive your Volkswagen with the EPC light illuminated. While your car might still appear to be running, the EPC light indicates a problem that directly affects your vehicle's performance and safety. Driving with the EPC light on can lead to:
- Reduced Power (Limp Mode): Your engine's power output will likely be significantly reduced, making acceleration sluggish and highway driving difficult or dangerous.
- Unpredictable Acceleration: The throttle response may become erratic, making it hard to control your speed.
- Compromised Safety Systems: Traction control and stability control systems may not function correctly, increasing the risk of accidents, especially in adverse driving conditions.
- Potential for Further Damage: Continuing to drive with a fault can exacerbate the underlying issue, leading to more extensive and costly repairs down the line.
The safest course of action is to pull over to a safe location as soon as possible and arrange for your Volkswagen to be diagnosed and repaired.
How to Address a VW EPC Light
When faced with an illuminated EPC light, a systematic approach is best. Here’s a breakdown of common diagnostic and repair steps:
1. Scan for Trouble Codes
The most effective first step is to use an OBD-II (On-Board Diagnostics II) scanner. This device plugs into your car's diagnostic port and can read the specific trouble codes stored in the ECU that are causing the EPC light to illuminate. These codes provide valuable clues about the nature of the problem.

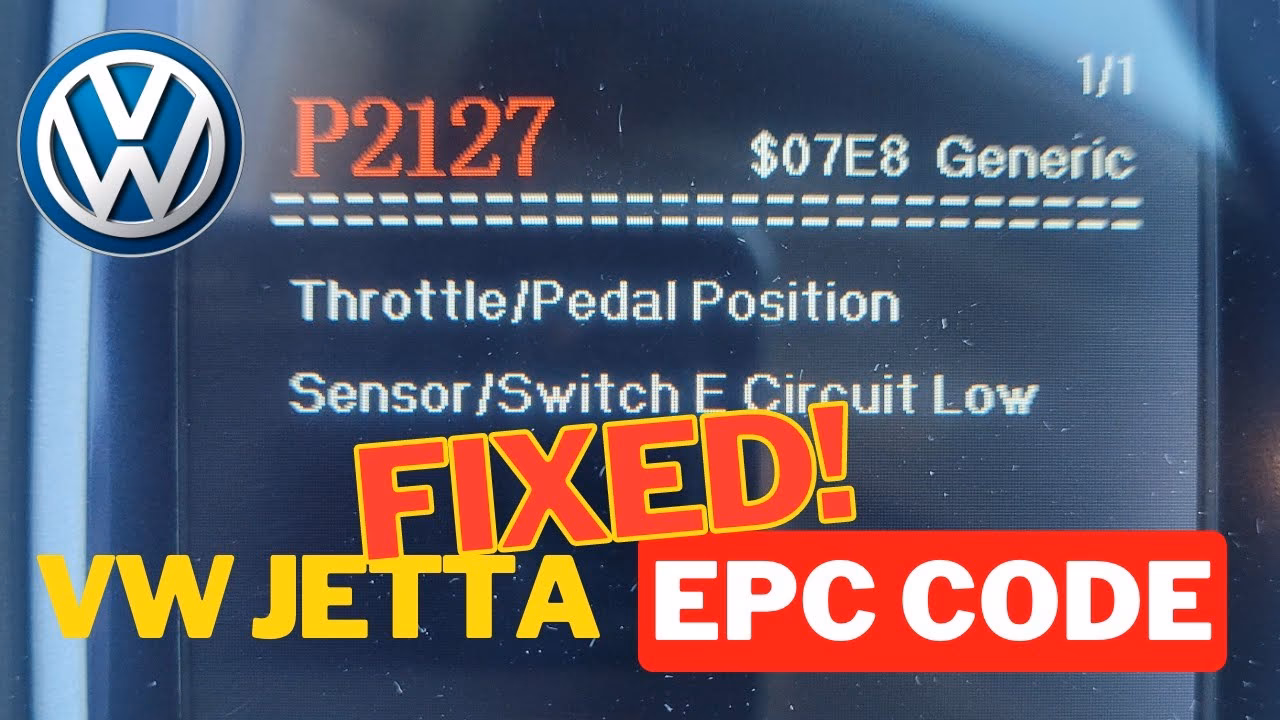

Common Trouble Codes Associated with EPC Lights:
| OBD-II Code | Potential Cause |
|---|---|
| P0121 | Throttle Pedal Position Sensor (TPS) / Switch A Circuit Range/Performance |
| P2135 | Throttle Pedal Position Sensor/Switch A/B Voltage Correlation |
| P1550 | Maximum Engine Output Limp Mode Activated by Other Control Module |
| P0222 | Throttle/Pedal Position Sensor/Switch B Input Circuit Low |
| P0171 | System Too Lean (Bank 1) - Can sometimes be related to airflow issues affecting the EPC |
2. Inspect and Clean the Throttle Body
If the trouble codes point towards the throttle body, a thorough inspection and cleaning might be necessary. Using a specialized throttle body cleaner and a soft cloth, carefully remove any carbon buildup. Ensure the throttle plate moves freely after cleaning.
3. Check Sensor Connections and Wiring
Examine the wiring and connectors for the accelerator pedal position sensor, throttle body, ABS sensors, and steering angle sensor. Look for any signs of damage, corrosion, or loose connections. Repairing or replacing faulty wiring can often resolve the issue.
4. Test and Replace Faulty Sensors
If the OBD-II scan indicates a specific sensor is faulty, it will need to be tested and likely replaced. This includes the accelerator pedal position sensor, brake light switch, ABS wheel speed sensors, and steering angle sensor.
5. Reset the System (Temporary Fix)
In some instances, for minor electronic glitches, disconnecting the car battery for approximately 15 minutes can reset the vehicle's control modules. After reconnecting the battery, start the engine and see if the EPC light remains off. However, this is often a temporary solution, and if the underlying problem persists, the light will likely return.
6. Professional Diagnosis
For most drivers, especially those unfamiliar with automotive diagnostics, seeking professional help is the most reliable approach. A qualified mechanic, particularly one specializing in European vehicles like Volkswagen, will have the expertise and specialized equipment to accurately diagnose the root cause of the EPC light and perform the necessary repairs.
Understanding Maintenance for Prevention
Regular maintenance is key to preventing many issues that can lead to an EPC light. Ensure your Volkswagen receives:
- Regular Servicing: Follow the manufacturer's recommended service schedule, which includes checks of the engine, throttle system, and related electronic components.
- Fuel System Cleaning: Periodic fuel system cleaning can help prevent excessive carbon buildup in the throttle body and intake system.
- Quality Fuel: Using high-quality fuel can contribute to a cleaner-burning engine.
Frequently Asked Questions About the VW EPC Light
Q1: What is the most common cause of the Volkswagen EPC light?
A1: The most frequent culprits are issues with the electronic throttle body or the accelerator pedal position sensor.
Q2: Can I ignore the EPC light?
A2: No, it is not recommended to ignore the EPC light. It signifies a problem that can affect your car's performance and safety, and driving with it on could lead to further damage.
Q3: How much does it cost to fix an EPC light?
A3: The cost can vary significantly depending on the cause. Simple fixes like cleaning the throttle body might be relatively inexpensive, while replacing sensors or the throttle body itself can be more costly.
Q4: Will disconnecting the battery fix the EPC light permanently?
A4: Disconnecting the battery can sometimes reset the system and temporarily turn off the light for minor electronic glitches. However, if there's a persistent mechanical or electrical fault, the light will return.
Q5: Do I need a specialist to fix the EPC light?
A5: While many general mechanics can diagnose the issue, a specialist in European cars, particularly Volkswagens, will have more in-depth knowledge and experience with these specific systems.
In conclusion, the EPC light on your Volkswagen is a signal that should not be overlooked. By understanding its meaning, common causes, and the proper steps for diagnosis and repair, you can ensure your vehicle remains safe, reliable, and enjoyable to drive.
