VW Jetta TDI Manual Gear Oil Change Guide

Maintaining your vehicle's transmission is paramount for ensuring a long, smooth, and reliable driving experience. For owners of the A5/MK5 VW Jetta TDI from 2005-2006, undertaking a manual transmission gear oil change is a vital service that, when performed correctly, can significantly enhance shifting performance and prevent premature wear. Unlike many older Volkswagen models, these particular Jettas have a unique characteristic that requires a specific approach to refilling the transmission fluid, making a standard 'drain and fill' procedure insufficient. This comprehensive guide will walk you through every step, ensuring you have the knowledge to complete this essential task with confidence.

The Unsung Hero: Why Your Gear Oil Needs Attention

Much like engine oil, the gear oil in your manual transmission plays a crucial role, albeit with different demands. It provides lubrication to the gears, bearings, and synchronisers, reducing friction and heat build-up. Over time and miles, this oil degrades, loses its lubricating properties, and can become contaminated with microscopic metal particles from normal wear. Neglecting to change your gear oil can lead to:

• Notchy or difficult gear changes.
• Increased noise from the transmission.
• Accelerated wear on internal components.
• Potential for costly transmission failure.

Changing your transmission gear oil every 70,000 to 90,000 miles (depending on usage) will help keep the car's transmission shifting smoothly and prevent excess wear. If your driving involves frequent heavy traffic, towing, or extreme climates, consider shortening this interval.

Navigating the Nuances of Your MK5 Jetta TDI (2005-2006) Manual Transmission

The A5/MK5 Volkswagen Jetta TDI from 2005.5-2006, specifically those equipped with the 5-speed 0A4 GQQ manual transmission, presents a unique challenge when it comes to refilling the gear oil. Volkswagen changed the transmission angle, resulting in the fill hole being too low to allow all the specified fluid back in the normal way. This means simply filling until fluid drips out of the fill hole will lead to an underfilled transmission.

For this reason, it is absolutely critical to measure the amount drained to confirm that you have removed approximately 1.8 litres. This precise measurement then allows you to add the correct amount of new fluid back into the transmission, irrespective of the fill hole's position. This procedure was documented in a Technical Service Bulletin (TSB) by Volkswagen to correct a humming noise from the differential, which involved adding a new gear oil. While earlier 2005.5-2007 Bentley service manuals may not have mentioned this, it was corrected in the 2005-2010 edition.

An alternative method, if you are absolutely certain you have drained the full amount of old oil, is to tilt the car by placing the front on jack stands. This raises the front of the transmission, allowing the fill hole to be at a more appropriate level for adding the correct quantity.

Gathering Your Arsenal: Tools and Parts Required

Before you begin, ensure you have all the necessary tools and parts ready. This will make the process smoother and prevent interruptions.

Essential Tools:

• 17mm Allen wrench (for drain and fill plugs)
• Torque wrench
• Catch pan (at least 2-litre capacity)
• Torx bit (for shifter pin cover)
• Fluid pump: A gravity pump (siphon), a hand pump, or a compressed air tank with a hose and nozzle for more advanced methods.
• Jack and jack stands
• Wheel chocks
• Basic socket set (including a 22mm or 23mm deep socket for the reverse sensor, if using that refill method)
• Funnel and hose (for gravity/siphon method)
• Clean rags or shop towels
• Driveway spill absorber or cat litter
• Safety glasses and gloves

Parts & Fluids:

• 1.8 litres (1.9 quarts) of gear oil (the transmission and differential share the same oil in the manual transmission).
• VW G52 gear oil (OEM recommendation).
• (Optional) New O-ring for the shifter bearing pin (though often not strictly necessary if existing one is in good condition).

Gear Oil Selection: The Crucial Choice

VW G52 gear oil has been shown to be thinner than most 75W-90 oils. It may result in smoother shifting and better fuel economy. It is important to note that this is not the same G50 gear oil used in older cars. Many VW transmissions should only use a GL-4 gear oil, not a GL-5 gear oil, which includes popular options like Mobil 1 75W-90 GL-5. The sulphur-phosphorus additives in GL-5 oils can be corrosive to yellow metals (brass, bronze) found in synchronisers, leading to premature wear and shifting issues.

Many people have had good results with aftermarket GL-4 compatible oils such as Redline MTL (Manual Transmission Lubricant) or MT-90, or Royal Purple Max Gear (ensure it specifies GL-4 compatibility for VW applications). Since Volkswagen is always changing its official recommendations on correct gear oil, it's worth researching current advice or trying a reputable GL-4 alternative. For cold climates, Redline MTL is often preferred as it results in positive shifting in cold conditions and its viscosity is close to the OEM gear oil.

The Procedure: A Step-by-Step Guide

I. Safety First – Always

Before getting under your car, ensure it is safely supported. Engage the parking brake, jack up the car, and rest it securely on jack stands at the factory jack points. Chock the front and/or rear wheels as needed. Make absolutely certain the car is safe and secure before getting underneath. While the transmission does not have to be perfectly level for the fill, having the car as level as possible will help during the draining process. Many owners use sturdy wood blocks under the wheels to raise the car safely.

II. Draining the Old Fluid

1. Remove the plastic splash shield cover under the engine. There are typically 8x T25 Torx screws on the sides and 3x T30 Torx screws on the rear. Note the angle during removal, as this is the angle it will want to go back in.
2. Clean the area around the fill and drain holes. This crucial step prevents dirt and debris from entering the transmission when the plugs are removed.
3. Locate and loosen the fill hole (green arrow in typical diagrams). This is usually a 17mm Allen plug. Always loosen or remove the fill hole first to ensure that you can successfully refill the transmission once the old fluid has been drained. Imagine draining the fluid only to find you cannot open the fill plug!
4. Place your catch pan under the transmission's drain plug (red arrow in typical diagrams), which is also usually a 17mm Allen plug. Loosen and remove the plug, allowing the old gear oil to drain completely.
5. Drain from the shifter bearing pin: For a more thorough drain, you will also need to remove the shifter bearing pin (blue arrow in typical diagrams), as some oil will come out from here. Before removing it, first lock the shifter. This is typically done by pressing down on the shifter assembly on top of the transmission and rotating a black pin upwards into a locked position. The service manual suggests replacing the O-ring on the shifter bearing pin; while some owners skip this without issue, it's good practice.
6. Measure the amount of gear oil drained. This is perhaps the most critical step for your specific Jetta model. Use a clean, marked container to accurately measure the volume. Aim for approximately 1.8 litres.
7. Properly dispose of your used gear oil. Never pour it onto the ground or down a drain. Most local auto parts stores or waste disposal facilities accept used automotive fluids. If a spill occurs on your driveway, dab it with towels, then pour absorbent material (like cat litter or a dedicated spill absorber) onto the stain. Grind the litter into the stain and let it sit to absorb before sweeping up.

III. The Art of Refilling – Ensuring Correct Level

1. Reinstall the drain plug and shifter bearing pin. Clean the drain plug thoroughly before reinstallation. Torque the drain plug to 22 ft-lbs. For the shifter bearing pin, there isn't a specific torque spec mentioned in the provided information, but ensure it is good and tight without overtightening to avoid stripping the bolt. Rotate the black pin back down to unlock the shifter. If the shifter feels jammed even after unlocking, stepping on the clutch and moving the shifter should free it.
2. Tilt the vehicle for correct fluid level. As previously mentioned, your 5-speed transmission's fill hole is too low to achieve the correct fluid level by simply filling until it overflows. To correctly add the 1.8 litres of fluid, you will need to rest the front of the car on jack stands so that it is tilted back. Chock the rear wheels securely and ensure the car is absolutely safe and stable before getting underneath.
3. Choose your preferred refill method: There are several effective ways to get the new gear oil back into the transmission.
• Gravity Pump or Siphon: If you can position the gear oil bottle higher than the transmission fill hole, a simple siphon or gravity pump can be used. Connect a hose from the bottle to the fill hole and let gravity do the work.

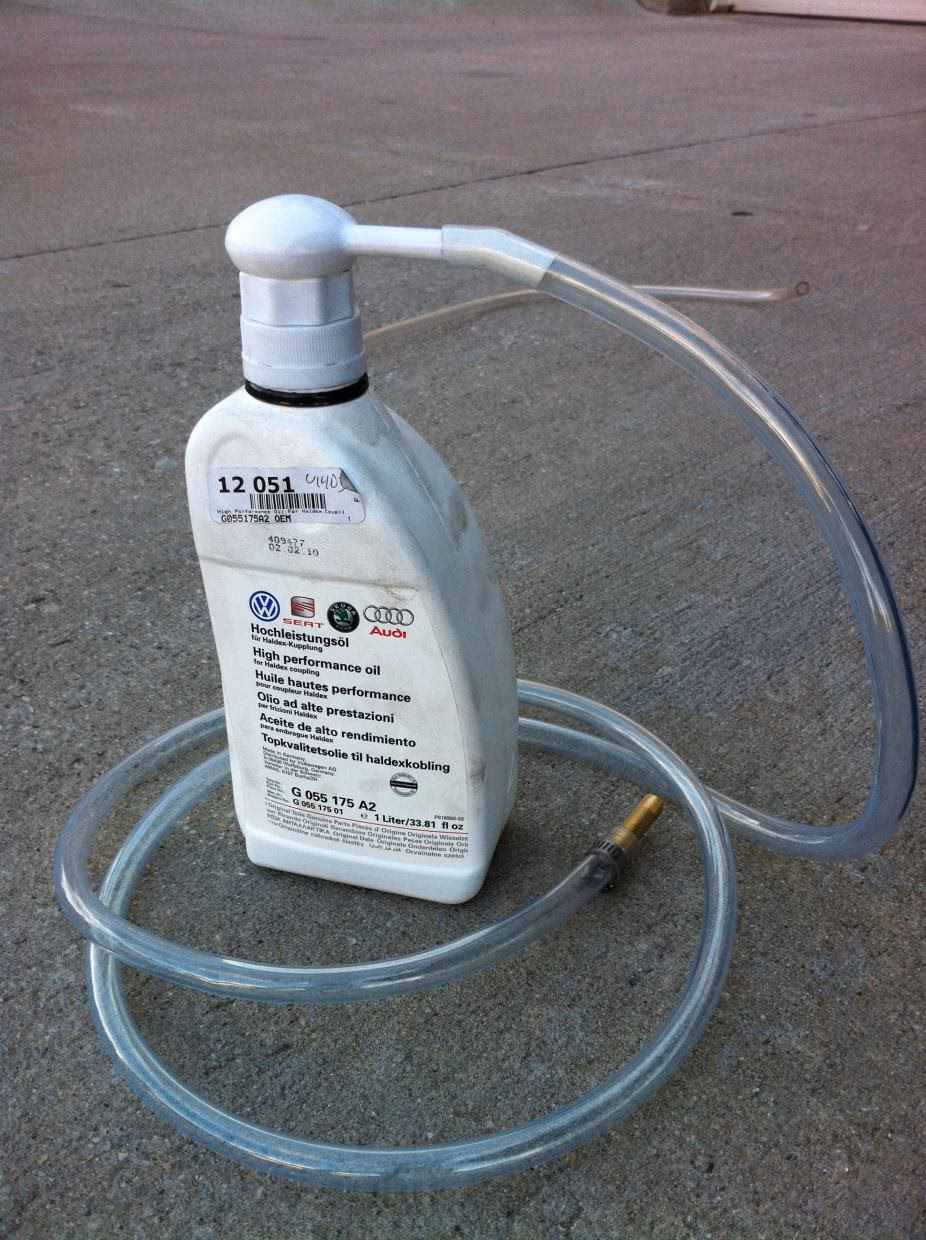

• Hand Pump: Manual hand pumps designed to transfer fluids from containers are widely available and effective. They typically screw onto the oil bottle and have a hose that inserts into the fill hole.
• Funnel and Hose from Above: This method often wastes the least oil. Snake a funnel connected to a suitable hose down from the engine bay into the transmission fill hole. This requires careful positioning but can be very efficient.
• The Factory Method (Via Reverse Switch): If gear oil starts to drip out of the fill hole before you've added the full 1.8 litres (and you're certain you drained 1.8 litres), it confirms the fill hole is too low. In this scenario, the factory method is to fill through the reverse switch hole.
• First, tighten the main fill plug.
• Remove the air intake box (consult a guide for specific details if needed).
• Locate the shifter assembly and the reverse switch sensor (often indicated by a yellow arrow in diagrams).
• Remove the sensor plug, then use a 22mm or 23mm deep socket to remove the sensor itself. Ensure your socket clears the sensor's wiring plug.
• Insert a 3/8" (10mm) fill hose through the now-open hole and top off the remaining fluid through this higher access point.
• Compressed Air Method (Advanced DIY): This method is particularly useful if the fill hose needs to go upwards or if you're filling through a small opening like the reverse switch hole.
• Setup: Take a clean gear oil bottle. Insert a short length of hose through the bottle cap, ensuring it reaches the bottom corner of the bottle without foaming. The hose diameter for the backup sensor should be a maximum of 10mm; if too narrow, oil will move slowly and build pressure.
• Poke a small air intake hole in the top of the bottle cap (ensure it's above the fluid level).
• The fill hole end of the hose can have an S-shape bent coat hanger to help it stay in place.
• Application: Regulate your compressed air pressure down to a reasonable amount. Start low to avoid the bottle popping. Apply air gradually through the intake hole. This will force fluid up the hose and into the transmission. Increase pressure slowly until the fluid is gone.
• Safety: Always wear protective safety goggles and gloves. Place your gloved hands around the bottle cap and nozzle to prevent any fluid from hitting you if the cap blows off.
• Maintenance: When moving to the next bottle, transfer the cap and poke a new air intake hole. Keep the hose clean by not letting it touch the ground and wiping it thoroughly after use. Hang the hose with a paper towel to drip dry.
4. Final step: Once 1.8 litres of fluid have been added, torque the fill plug to 22 ft-lbs. If you used the reverse switch method, reinstall the switch and its electrical connector.

Post-Service Checks and Troubleshooting

After completing the refill, lower your car safely off the jack stands. Start the engine and depress the clutch pedal a few times. Cycle through all the gears with the engine off (and then with it running, if safe to do so) to ensure smooth engagement. Take the car for a short test drive, paying attention to any unusual noises or difficulties in shifting. Check for any leaks around the drain and fill plugs after the test drive.

If you find the shifter jammed even after unlocking the pin and depressing the clutch, it might indicate an issue with shifter adjustment. While beyond the scope of this specific guide, it's a common related concern that can be addressed separately.

Frequently Asked Questions (FAQs)

Can I use any 75W-90 gear oil for my VW Jetta TDI manual transmission?

No. While many 75W-90 oils exist, it is crucial to use a GL-4 specific gear oil. Many GL-5 oils contain extreme pressure additives that can be corrosive to the yellow metal (brass, bronze) synchronisers found in VW manual transmissions, leading to premature wear and difficult shifting. Always double-check the oil's specification and ensure it's suitable for your specific VW model.

What if I don't measure the drained oil and just fill until it overflows from the fill plug?

For your specific MK5 Jetta TDI, simply filling until overflow will result in an underfilled transmission due to the low position of the fill hole. This can lead to insufficient lubrication, increased wear, and potential transmission damage over time. Accurately measuring the drained volume (1.8 litres) and adding that exact amount back is critical, using the tilting method or the reverse switch method for accurate filling.

How often should I check my manual transmission fluid level?

Manual transmissions are generally considered sealed units, and the fluid level typically doesn't need routine checking unless you suspect a leak or are performing a fluid change. However, it's good practice to inspect for leaks during other maintenance services or if you notice any changes in shifting performance.

Are there signs my gear oil is bad or low?

Yes, common signs include difficulty shifting gears (especially when cold), a 'notchy' or 'crunchy' feeling during shifts, increased transmission noise (whining or grinding), or visible leaks under the vehicle. If you experience these symptoms, it's wise to inspect your gear oil.

Is this procedure the same for automatic transmissions?

Absolutely not. Automatic transmissions use a completely different type of fluid (ATF), have different fill and drain procedures, and often require specific temperature considerations during filling. This guide is strictly for manual transmissions.

Performing your own manual transmission gear oil change on your VW Jetta TDI can be a rewarding experience, saving you money and providing valuable insight into your vehicle's mechanics. By following these detailed steps and understanding the unique requirements of your MK5 model, you can ensure your transmission continues to operate smoothly for many miles to come. Regular maintenance is the key to longevity, and this service is undoubtedly one of the most important you can perform for your cherished Jetta.
