Brake Pad Wear Sensors: Your Guide to Warnings

Few things are as unsettling as a warning light illuminating on your car's dashboard, especially one related to your brakes. The brake pad wear warning light is a common culprit, often appearing unexpectedly and leaving drivers wondering about the severity of the issue. While its primary purpose is to alert you to worn brake pads, sometimes the warning isn't due to actual wear, but rather a fault within the sensor system itself. This can be particularly perplexing when the light behaves erratically, perhaps only appearing after a downpour or a thorough car wash. Understanding these intricate systems, from their basic function to common malfunctions and repair strategies, is crucial for maintaining your vehicle's safety and your peace of mind.

Understanding Brake Pad Wear Sensors

Brake pad wear sensors are a vital, though often overlooked, component of modern vehicle braking systems. Their primary role is to provide an early warning when your brake pads are nearing the end of their service life, preventing metal-on-metal contact that can cause significant damage to your brake discs and compromise braking performance. Essentially, these sensors act as an electronic 'tripwire'.

There are generally two main types of wear sensors: the integrated type and the external, replaceable type. The most common is the simple electrical contact sensor, embedded within the brake pad material itself. As the pad wears down, the sensor's tip, made of a conductive material, eventually comes into contact with the brake disc. This contact either completes an electrical circuit, or, more commonly, grinds away the sensor's tip, breaking an existing circuit. Either way, this change in the electrical circuit sends a signal to your car's onboard computer, triggering the brake pad warning light on your instrument cluster, often represented by a circle with dashed lines on either side.

Some vehicles, particularly older or more basic models, might use a mechanical wear indicator – a small metal tab attached to the brake pad that scrapes against the rotor when the pad is thin, producing a distinctive squealing sound. While effective, these mechanical indicators don't offer the visual dashboard warning that electronic sensors do.

It's important to note that not all brake pads on a vehicle will have sensors. Typically, sensors are fitted to one or two wheels per axle, usually on the inner pad, as this side often experiences more wear due to the caliper's design. For instance, on a front-wheel-drive car, you might find a sensor on the front left wheel and the rear right wheel. The warning light illuminates regardless of which specific sensor has been triggered, indicating that at least one pad on the vehicle requires attention.

Do Big Brake Upgrades Always Include Wear Sensors?

This is a common question among enthusiasts considering performance upgrades. The answer, unfortunately, isn't a simple yes or no; it largely depends on the nature of the big brake upgrade and the manufacturer.

When you opt for an OEM+ big brake upgrade, meaning components from a higher-performance model within the same car manufacturer's range (e.g., fitting M Performance brakes to a standard BMW), there's a very high likelihood that the new calipers and pads will be designed to accommodate the original equipment brake pad wear sensors. Manufacturers typically strive for compatibility within their own lineups to simplify parts inventories and maintenance. In these cases, you would simply transfer your existing sensor, or fit a new OEM-compatible sensor, to the upgraded pads.

However, the landscape changes significantly with aftermarket big brake kits. These kits, offered by companies like Brembo, AP Racing, Alcon, or StopTech, are designed primarily for enhanced performance and often prioritise raw stopping power and heat management over certain creature comforts or OEM-specific features. Here’s how it typically breaks down:

• Dedicated Race Kits: Most race-oriented big brake kits will NOT include provisions for wear sensors. In a racing environment, drivers and pit crews are constantly monitoring component wear, and the added complexity of a sensor is deemed unnecessary. Racers often change pads based on time or feel, not a dashboard warning.
• Street Performance Kits: Many street-focused aftermarket big brake kits *do* offer compatibility with OEM wear sensors. This is particularly true for kits designed for popular enthusiast vehicles, as manufacturers understand that daily drivers still value the convenience and safety of a warning light. However, it's crucial to verify this before purchase. The product description or a quick query to the manufacturer will confirm if their pads or calipers have the necessary sensor slot.
• Universal Kits / Budget Options: Some more generic or budget-friendly aftermarket kits might not have sensor compatibility. In such cases, you might face a dilemma: either live with a permanent brake warning light on your dashboard (which can be annoying and might obscure other warnings), or you'll need to bypass the sensor circuit. Bypassing typically involves connecting the two wires of the sensor plug together, completing the circuit and 'fooling' the car into thinking the pads are fine. While this removes the warning light, it also removes a crucial safety feature, meaning you'll need to be diligent about manually checking your pad wear.

When considering a big brake upgrade, always inquire about sensor compatibility. If it's not explicitly stated, assume it might not be present. It's a small detail that can have a significant impact on your daily driving experience.

Common Issues: Broken Connectors and Wiring

While brake pad wear sensors are designed to be robust, the environment they operate in is anything but forgiving. Positioned near the wheels, they are constantly exposed to water, road salt, dirt, debris, and extreme temperature fluctuations. This harsh environment, combined with constant vibration and the occasional accidental tug during wheel or suspension work, makes them susceptible to damage. The most common culprits behind an erroneous brake pad warning light, apart from genuinely worn pads, are broken connectors or snapped wiring.

Why do they break?

• Environmental Exposure: Water ingress (especially salty water from winter roads or car washes) can corrode the delicate pins within the connector. Over time, this corrosion can lead to intermittent contact or a complete circuit break. The user's experience of the warning light appearing in rain or after washing the car strongly suggests water affecting a compromised connection.
• Physical Damage: The connector might be snagged or pulled during wheel removal, tyre changes, or suspension work. The plastic clips that hold the connector in place can become brittle with age and break, leaving the connector dangling and vulnerable.
• Vibration and Flexing: Constant vibration from driving, especially over rough roads, can cause metal fatigue in the wires or connector pins, leading to a clean snap, often right at the point where the wire enters the connector housing or where it's secured to a mounting point.
• Age and Material Degradation: The plastic used for connectors and wire insulation can become brittle and degrade over many years due to exposure to heat cycles, UV light, and chemicals.

Symptoms of a Broken Sensor or Wiring:

• Intermittent Warning Light: The light comes on and goes off seemingly randomly, often triggered by specific conditions like driving through puddles, heavy rain, or washing the car. This suggests a partial break or corrosion that is being temporarily shorted or opened by water.
• Permanent Warning Light: The light comes on and stays on, even if the brake pads are new or have plenty of life left. This indicates a permanent open circuit (if the system works by completing a circuit) or a permanent short circuit (if the system works by breaking a circuit).
• No Warning Light with Worn Pads: Conversely, if the circuit is permanently broken (e.g., a snapped wire) on a system that relies on a continuous circuit, the warning light might *never* come on, even when the pads are completely worn. This is a dangerous scenario, highlighting the importance of regular visual brake checks.

Identifying a broken connector usually involves a visual inspection. Look for frayed wires, cracked plastic housings, or connectors that are no longer securely clipped into their holders. A multimeter can be used to check for continuity through the sensor and its wiring back to the main harness.

Diagnosing the 'Brake Pad Warning' Light

When that yellow brake pad warning light illuminates, your first thought might be, "Oh no, new pads!" While often true, it's not always the case. A thorough diagnosis is essential to avoid unnecessary expense and ensure genuine issues aren't overlooked. Here's how to approach it:

1. Visual Inspection of Brake Pads: The most fundamental step. Remove the wheel(s) and visually inspect the thickness of all your brake pads, front and rear. Pay particular attention to the inner pads, as these are usually where the sensors are located and can sometimes wear faster. If the pads are genuinely low (typically less than 3mm-4mm of friction material remaining), then the sensor has done its job, and it's time for new pads and a new sensor.
2. Inspect the Sensor Wire and Connector: This is crucial if your pads look fine. Trace the sensor wire from the brake pad back to where it connects to the main vehicle loom, usually clipped to the suspension or wheel arch liner. Look for:
• Snapping: Is the wire cleanly snapped, especially where it emerges from the pad or where it connects to the main harness?
• Fraying/Chafing: Are there any signs of wear, cuts, or rubbing on the insulation?
• Connector Damage: Is the plastic connector housing cracked, broken, or are any of the internal pins bent or corroded? Is it securely clipped in, or is it dangling? The user's description of the connector breaking off where it clips is a classic symptom.
• Water Ingress: Look for signs of moisture or corrosion inside the connector, especially if the warning is intermittent and triggered by water.
3. Check All Sensors: Remember, the warning light indicates *any* sensor has been triggered. Inspect all sensors fitted to your vehicle (typically front left and rear right, or similar configurations).
4. Multimeter Test (Advanced): For those comfortable with basic electrical testing, a multimeter can confirm a broken circuit.
• Integrated Sensor (two-wire type): Disconnect the sensor from the main harness. If the system relies on continuity (most common), there should be very low resistance (close to 0 ohms) across the two pins of a *new* or *good* sensor. A worn sensor or a broken wire will show infinite resistance (open circuit).
• Vehicle Harness Side: With the sensor unplugged, check the resistance across the two pins on the vehicle's wiring harness side. This can be more complex as it depends on the car's specific wiring, but often, the car's system will look for a specific resistance or voltage drop from the sensor. If the warning light appears due to a broken sensor, the circuit on the vehicle side will be 'open' when it expects a 'closed' circuit or vice versa.
5. Scan for Fault Codes: While a generic OBD-II scanner might not always pinpoint a brake wear sensor fault specifically, a more advanced diagnostic tool (like those used by garages) can often read specific fault codes related to the braking system, which might confirm a sensor circuit malfunction.

The intermittent nature of the warning light after rain or washing strongly points towards a compromised electrical connection that is being affected by moisture. Water is conductive and can temporarily bridge a broken connection or short out an exposed wire, causing the light to flicker on or off. This is a strong indicator that the issue lies with the sensor's wiring or connector, rather than the brake pad itself.

Table: Diagnosing Brake Pad Warning Light Scenarios

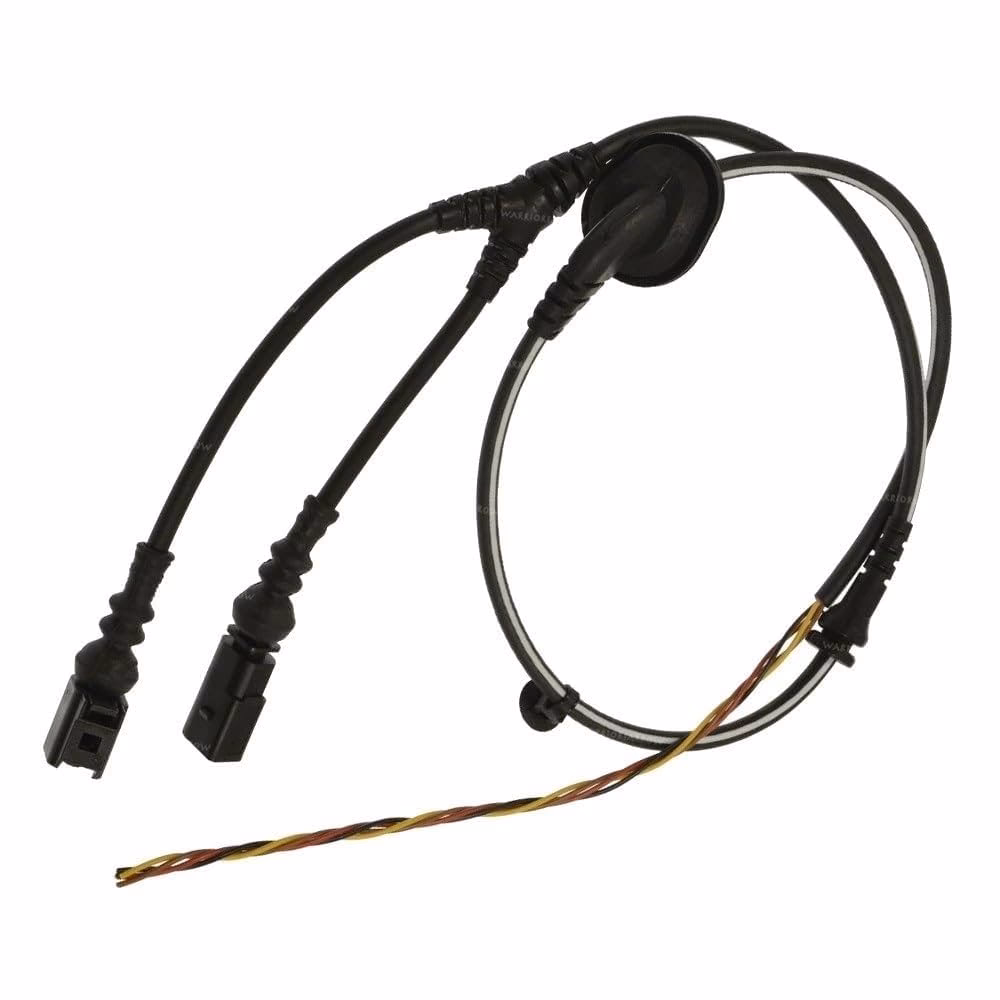

Repairing or Replacing a Damaged Sensor Connector/Loom

Once you've diagnosed that the problem lies with a damaged sensor connector or its associated wiring loom, the next step is repair or replacement. This can range from a relatively straightforward swap to a more involved electrical repair, depending on the extent of the damage and your technical skills.

Cost Considerations:

The cost of the part itself can vary significantly. A standalone brake pad wear sensor (the part that plugs into the pad) is usually inexpensive, typically ranging from £10 to £30. However, if the damage is to the connector on the main vehicle loom, or if the loom itself needs replacing, the cost can escalate. A section of wiring harness can be anywhere from £50 to several hundred pounds, especially if it's integrated with other systems like ABS or wheel speed sensors. Labour costs at a garage will add to this, as tracing and replacing a loom can be time-consuming.

Difficulty Level:

• Replacing the Sensor Only: Relatively easy. This usually involves unplugging the old sensor from the pad and the vehicle harness, then plugging in the new one.
• Replacing a Damaged Connector (Splicing): Moderate difficulty. This involves cutting out the damaged section of the connector and splicing a new connector onto the existing wires. This requires wire stripping, crimping, and often soldering, along with proper insulation (heat shrink tubing). The challenge here is ensuring a durable, waterproof, and correct electrical connection, especially if there are multiple wires of different colours (as mentioned by the user with 4 wires).
• Replacing a Section of the Wiring Loom: High difficulty. This is the most involved option. It requires identifying the exact loom section, potentially removing wheel arch liners, interior trim, or other components to access the full length of the loom. You'll need to carefully disconnect the old loom and route the new one, ensuring it's secured correctly to prevent future damage. For the user who mentioned the wire snapping clean off on the side of the loom going up through the wheel arch, this might be the necessary, albeit challenging, repair.

Step-by-Step Repair Guide (Focus on Connector/Loom Splicing):

Tools You'll Need:

• New brake pad wear sensor connector (ensure it's the correct type for your vehicle).
• Wire strippers
• Wire crimpers (if using crimp connectors)
• Soldering iron and solder (if soldering)
• Heat shrink tubing (various sizes)
• Electrical tape (high quality, self-amalgamating if possible)
• Multimeter
• Jack and axle stands
• Wheel brace / socket set
• Safety glasses and gloves
• Plastic trim removal tools (if removing wheel arch liners)
• Zip ties or cable clips

Procedure:

1. Safety First: Park your car on a level surface, engage the handbrake, and block the wheels not being worked on. Loosen the wheel nuts slightly. Jack up the car and secure it firmly on axle stands. Remove the wheel. It's also advisable to disconnect the negative terminal of your car's battery to prevent any accidental shorts while working with electrical components.
2. Assess the Damage: Locate the damaged sensor connector and wire. Determine how much of the wire is affected. If it's just the connector housing, you might only need to replace the connector itself. If the wire is snapped further up, you'll need to cut back to a clean, undamaged section.
3. Source the Correct Replacement: This is critical. Ideally, obtain an OEM replacement connector and/or wiring pigtail that includes a few inches of wire. This ensures the correct pin configuration and wire colours. If you're dealing with a multi-wire loom (like the 4-wire example), a wiring diagram for your specific vehicle is invaluable to identify which wire goes where. Without it, you're guessing, which can lead to further electrical issues.
4. Prepare the Wires: Carefully cut out the damaged section of the wiring. Strip approximately 10-15mm of insulation from the ends of the wires on both the vehicle side and the new connector/pigtail side. Ensure the wire strands are clean and untwisted.
5. Make the Connection (Crimping or Soldering):
   • Crimping: Use high-quality, insulated butt connectors or heat shrink butt connectors. Insert one stripped wire end into each side of the connector and crimp firmly. Ensure a strong mechanical connection.
   • Soldering (Recommended for Durability): Twist the corresponding stripped wire ends together. Heat the joint with your soldering iron and apply solder until it flows smoothly and covers the twisted wires. Allow to cool completely. Soldering provides a superior, more durable electrical connection.

   Crucial for Multi-Wire Connections (like 4-wire loom): You MUST ensure you connect the correct wires. If you have a wiring diagram, follow it meticulously. If not, and you're replacing a multi-pin connector where the wires are the same colour, you'll need to either mark them before cutting or use a multimeter to map continuity from one end of the loom to the other if possible, before cutting. Mistakes here can cause further electrical problems or prevent the system from working.

6. Insulate the Connections: This is paramount for preventing future corrosion and short circuits, especially in the harsh wheel well environment. Slide heat shrink tubing over each individual soldered/crimped connection. Apply heat evenly with a heat gun (or carefully with a lighter, keeping it moving) until the tubing shrinks tightly around the wire. For added protection, you can then slide a larger piece of heat shrink tubing over all the individual connections to create a single, sealed section. Alternatively, use high-quality electrical tape, wrapping it tightly and overlapping layers.
7. Secure the Wiring: Once the repair is complete, ensure the new wiring section is routed correctly and securely fastened using new clips or zip ties. It should not rub against any moving parts (suspension, steering, tyres) or hot components (exhaust). This prevents future damage from vibration or chafing. Ensure the connector itself is securely clipped into its holder, if applicable.
8. Reconnect and Test: Reconnect the new sensor to the brake pad (if replacing the sensor too) and then to the vehicle harness. Reconnect the battery's negative terminal. Turn on the ignition and check if the brake pad warning light has extinguished. If it's still on, you might need to drive a short distance or cycle the ignition a few times. In some vehicles, fault codes need to be cleared with a diagnostic scanner.
9. Reassemble: Reinstall the wheel, torque the wheel nuts to the manufacturer's specifications. Lower the car off the axle stands.

DIY vs. Professional Repair:

For a simple sensor swap, most DIYers can manage. However, for a broken connector requiring splicing or, more so, a full loom replacement, the complexity increases significantly. If you're uncomfortable with electrical work, soldering, or tracing wiring harnesses, it's always best to consult a qualified mechanic or auto electrician. They have the experience, specialist tools, and diagnostic equipment to perform a proper, durable repair and ensure your braking system is fully functional and safe.

Frequently Asked Questions (FAQs)

Q1: Can I drive with the brake pad warning light on?
A1: While you can usually drive for a short period, it's not advisable to ignore it. If the light is on due to genuinely worn pads, your braking performance could be compromised, and you risk damaging your brake discs, leading to more expensive repairs. If it's a sensor fault, it means a crucial safety warning system is offline. Get it diagnosed and repaired as soon as possible.

Q2: Do I need to replace all brake pad wear sensors when the light comes on?
A2: No. The warning light indicates that at least one sensor has been triggered. You only need to replace the specific sensor that is worn or faulty. However, it's common practice to replace the sensor on the axle where pads are being changed, as they are typically designed to be replaced with the pads.

Q3: Why does my brake pad warning light come on only when it rains or after a car wash?
A3: This is a classic symptom of a damaged or corroded sensor connector or wire. Water is conductive. When water enters a compromised connection, it can temporarily bridge a broken circuit or create a short, triggering the warning light. Once the water dries, the connection may return to normal, and the light goes off. This requires a thorough inspection and likely repair/replacement of the affected wiring/connector.

Q4: Can I bypass the brake pad wear sensor?
A4: Yes, it is technically possible to bypass the sensor by connecting the two wires of the sensor plug together (creating a closed circuit) or leaving them disconnected (creating an open circuit), depending on how your vehicle's system is designed to detect wear. However, this is strongly discouraged. Bypassing removes a critical safety feature that alerts you to worn brake pads, potentially leading to dangerous driving conditions and costly damage to your brake discs. It may also cause your vehicle to fail its MOT in the UK.

Q5: How long do brake pad wear sensors last?
A5: A brake pad wear sensor is designed to last the life of the brake pad it's installed with. They are generally considered a 'one-time use' item, as they are damaged during activation. The wiring and connectors, however, should last much longer, typically the lifespan of the vehicle, unless subjected to physical damage or severe environmental degradation.

Q6: Does replacing the sensor require bleeding the brakes?
A6: No. Replacing a brake pad wear sensor is an electrical procedure and does not involve opening the hydraulic brake system. Therefore, brake bleeding is not required.

Q7: My mechanic says I don't have brake pad wear sensors. Is that possible?
A7: Yes. Not all vehicles, particularly older or more basic models, are equipped with electronic brake pad wear sensors. Some rely solely on mechanical squealers or visual inspection during servicing. Always check your vehicle's specific manual or consult with a trusted mechanic.
