VW Golf Mk5 Brake Pad Replacement Guide

The Volkswagen Golf Mk5, a beloved hatchback known for its solid build and engaging driving dynamics, relies heavily on its braking system for safety and performance. Over time, like all vehicles, the brake pads will wear down, necessitating their replacement. This process, while seemingly daunting, is a manageable DIY task for many car owners with the right tools and a bit of patience. This guide will walk you through the essential steps to successfully change the brake pads on your VW Golf Mk5, ensuring your vehicle remains safe and reliable on the road.

Why Replace Your Brake Pads?

Brake pads are a critical component of your car's braking system. They are designed to create friction against the brake discs (rotors) when you apply the brakes, slowing the vehicle down. Over time, the friction material on the pads wears away. Several signs indicate it's time for a replacement:

• Squealing or Grinding Noises: Most brake pads have a wear indicator that emits a high-pitched squeal when the pads are low. A grinding noise usually means the pads have worn down to the metal backing plate, which can severely damage the brake discs.
• Increased Stopping Distance: If you notice your car taking longer to stop, your brake pads may be worn.
• Vibration or Pulsation: This can sometimes be due to warped brake discs, but worn pads can also contribute.
• Visual Inspection: The friction material on the brake pads should be at least 3-4mm thick. If it's significantly less, it's time for replacement.

Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials to ensure a smooth and efficient process. Having everything ready will prevent interruptions and make the job easier.

Step-by-Step Guide: Replacing Front Brake Pads

The front brake pads on a VW Golf Mk5 are typically the ones that wear out faster due to the weight transfer during braking. Here's how to replace them:

1. Prepare the Vehicle

Park your Golf on a flat, level surface. Engage the parking brake firmly and place wheel chocks behind the rear wheels to prevent the car from rolling. If you are working on the front brakes, ensure the parking brake is not engaged, or if it is a manual, leave it in gear.

2. Loosen the Lug Nuts

Before jacking up the car, use the lug wrench to slightly loosen the lug nuts on the wheel you'll be working on. Turn them counter-clockwise, about half a turn each. Do not remove them completely at this stage.

3. Jack Up the Vehicle and Remove the Wheel

Locate the correct jacking point for your Golf Mk5 (refer to your owner's manual). Place the jack and carefully lift the vehicle until the wheel is off the ground. Then, place a jack stand securely under a strong point of the chassis or subframe and slowly lower the car onto the stand. This provides a safe working environment. Now, fully remove the lug nuts and take off the wheel. Set it aside.

4. Locate the Brake Caliper

With the wheel removed, you'll see the brake disc (rotor) and the brake caliper that sits over it. The brake pads are housed within the caliper.

5. Remove the Caliper Bolts

The brake caliper is usually held in place by two bolts on the back. These are often referred to as slider pins or guide pins. Use the appropriate socket (typically 13mm or 15mm) to loosen and remove these bolts. You might need to hold the caliper bracket steady with another wrench to prevent it from turning. Once the bolts are removed, the caliper should be able to swing upwards or be gently pulled away from the rotor. Do not let the caliper hang by the brake hose. Use a piece of wire or bungee cord to support it from the suspension or chassis.

6. Remove the Old Brake Pads

The old brake pads should now be visible. They might be held in place by clips or simply slide out. Gently pry them out if necessary. Note how the old pads are oriented, as the new ones will need to be installed in the same way. Pay attention to any shims or anti-squeal hardware that may come with the pads.

7. Compress the Caliper Piston

This is a crucial step. The new brake pads are thicker than the old ones, so you need to push the caliper piston back into its housing to make space. Use a C-clamp or a dedicated brake caliper piston tool. Place the clamp across the caliper, with one end on the piston and the other on the back of the caliper body. Slowly tighten the clamp, pushing the piston back until it is flush with the caliper housing. You may need to remove the brake fluid reservoir cap (located under the bonnet) to allow the fluid to flow back into the reservoir. Watch the fluid level to prevent it from overflowing.

8. Clean and Lubricate

Use a wire brush to clean any rust or debris from the caliper bracket where the brake pads sit. Also, clean the caliper slider pins if you removed them. Apply a thin layer of brake lubricant to the slider pins and the areas on the caliper bracket where the brake pads will slide. Avoid getting lubricant on the friction surface of the pads or the rotor.

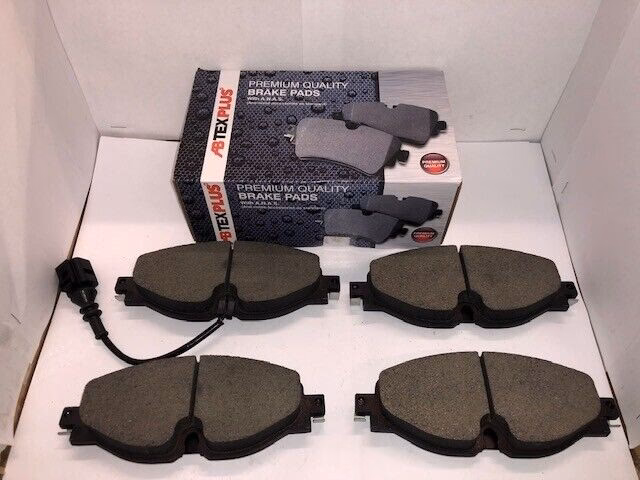

9. Install the New Brake Pads

Insert the new brake pads into the caliper bracket. Ensure they are seated correctly and that any anti-squeal shims or hardware are in place as per the manufacturer's instructions. The new pads should slide in smoothly.

10. Reinstall the Caliper

Carefully swing or place the caliper back over the new brake pads and rotor. Reinstall the caliper bolts and tighten them securely. It's best to use a torque wrench to tighten these to the manufacturer's specified torque (check your Golf's service manual). Re-inserting the slider pins and tightening the caliper bolts is a vital step for brake safety.

11. Reinstall the Wheel and Lower the Vehicle

Put the wheel back onto the hub and hand-tighten the lug nuts. Remove the jack stand and carefully lower the vehicle using the jack. Once the wheel is on the ground, use the lug wrench to tighten the lug nuts in a star pattern to ensure even pressure. Then, use the torque wrench to tighten them to the manufacturer's specified torque.

12. Repeat for the Other Side

Repeat the entire process for the other side of the same axle. It's essential to replace brake pads in pairs on the same axle for even braking performance.

13. Bed In the New Brake Pads

After installation, you need to 'bed in' the new brake pads. This process transfers a thin layer of pad material to the rotor surface, ensuring optimal braking performance and preventing noise. To do this, drive the car gently for a few miles. Find a safe, open area and perform several moderate stops (e.g., from 30 mph to 10 mph) without coming to a complete halt. Avoid harsh braking for the first 100-200 miles. This helps the pads and rotors mate properly.

Replacing Rear Brake Pads

The process for replacing rear brake pads on a VW Golf Mk5 is very similar to the front, with a few potential differences:

• Parking Brake Mechanism: Rear brakes often incorporate the parking brake mechanism. Some Golf Mk5 models may have a separate drum brake for the parking brake within the rear rotor, or the caliper itself might have a built-in mechanism.
• Caliper Piston Compression: For rear calipers with a parking brake function, you might need a special tool that screws the piston back in, rather than just pushing it. This is because of the parking brake mechanism.

Always consult your vehicle's service manual or a reliable online resource for specific instructions related to your Golf Mk5's rear brake system.

Important Considerations and Tips

• Brake Fluid: Check your brake fluid level before starting and after finishing. If it's low, top it up with the correct type of brake fluid (DOT 4 is common for VWs). If the fluid is very dark or dirty, consider a brake fluid flush.
• Brake Discs (Rotors): While replacing pads, it's a good opportunity to inspect the brake discs. If they are deeply grooved, warped, or have a lip on the edge, they may also need replacing.
• Torque Settings: Using a torque wrench is highly recommended for all critical fasteners, including lug nuts and caliper bolts, to ensure they are tightened to the correct specifications.
• Test Your Brakes: After completing the job, before driving in traffic, test your brakes at low speeds to ensure they are functioning correctly.
• Professional Help: If you are uncomfortable with any part of this process or lack the necessary tools, it's always best to seek assistance from a qualified mechanic.

Frequently Asked Questions (FAQs)

Q1: How often should I replace my brake pads?
This depends on your driving habits and conditions, but typically, brake pads need replacement every 30,000 to 70,000 miles. Regular inspection is key.

Q2: Can I just replace one brake pad?
No, you must always replace brake pads in axle sets (both front or both rear) to ensure even braking performance and safety.

Q3: What happens if I don't replace worn brake pads?
Severely worn brake pads can lead to damage to your brake discs, reduced braking efficiency, and potentially dangerous driving conditions.

Q4: Do I need to replace the brake discs when I replace the pads?
Not always. If your brake discs are still in good condition (sufficient thickness, no warping or deep grooves), they can be reused. However, it's a good time to inspect them.

Q5: How long does it take to change brake pads?
For someone with some mechanical experience, it typically takes about 1-2 hours per axle (front or rear).

Changing your brake pads is a rewarding task that can save you money and give you peace of mind, knowing your VW Golf Mk5 is equipped with a reliable braking system. Remember to always prioritise safety and consult your vehicle's manual for specific details.
