Is Your Fuel Injector Failing? A Deep Dive

Fuel injectors are critical components in your vehicle's engine, responsible for precisely delivering atomised fuel into the combustion chambers. When they function correctly, your engine runs smoothly, efficiently, and powerfully. However, like any other mechanical or electrical part, fuel injectors can and do go bad. A failing injector can lead to a cascade of issues, from minor annoyances to complete vehicle breakdowns. Understanding the signs of a faulty injector and knowing how to diagnose the problem can save you significant time and money, and potentially prevent more severe engine damage.

A common misconception is that injectors simply get clogged. While clogging from fuel contaminants is indeed one reason for failure, modern injectors, especially the sophisticated piezoelectric types found in many diesel engines like your 2010 Golf TDI, can also suffer from electrical or mechanical failures. These failures disrupt the precise timing and quantity of fuel delivery, directly impacting engine performance and efficiency. If you've noticed your car isn't running as smoothly as it once did, or if warning lights have appeared on your dashboard, a fuel injector could very well be at the heart of the problem.

Can a Fuel Injector Go Bad? Absolutely.

Yes, fuel injectors are prone to failure for several reasons. Their operational environment is harsh, dealing with high pressures, varying temperatures, and the constant flow of fuel. Over time, internal components can wear out, electrical circuits can fail, or the nozzle can become obstructed. Here are the primary ways an injector can fail:

• Clogging: Deposits from low-quality fuel or contaminants can build up on the injector nozzle, preventing it from spraying fuel correctly. This leads to a poor spray pattern or reduced fuel delivery.
• Electrical Failure: The solenoid or piezoelectric stack within the injector can fail. This might manifest as an open circuit, a short circuit, or simply a weakened signal, preventing the injector from opening or closing properly, or at all. This is often the cause behind specific diagnostic trouble codes (DTCs).
• Mechanical Wear: Internal springs, pintles, or needles can wear, leading to sticking, leaking, or improper atomisation.
• Leaking: The injector seal might fail, leading to fuel leaks externally or internally into the cylinder, causing misfires or even hydrolock in extreme cases.

Understanding these failure modes is the first step in effective troubleshooting.

Recognising the Symptoms of a Faulty Injector

Your car often gives you clues when something is amiss. A failing fuel injector will typically present a range of noticeable symptoms:

• Rough Idle: The engine feels shaky or vibrates excessively when idling. This is a very common sign, as the faulty injector disrupts the smooth combustion in one or more cylinders.
• Loss of Power or Hesitation: The vehicle may struggle to accelerate, feel sluggish, or hesitate when you press the accelerator pedal. This is due to insufficient fuel delivery to one or more cylinders, leading to a lack of power.
• Increased Fuel Consumption: A leaking or partially clogged injector can deliver too much or too little fuel, upsetting the air-fuel mixture and forcing the engine to consume more fuel to maintain performance.
• Misfires: The engine may stumble or feel like it's skipping a beat, especially under load. This occurs when a cylinder doesn't receive enough fuel for proper combustion.
• Difficulty Starting: Especially noticeable on cold starts, the engine might crank for longer than usual or require multiple attempts to turn over.
• Check Engine Light (CEL): The most obvious sign. Your car's onboard diagnostic (OBD-II) system will detect a fault and illuminate the CEL. Specific error codes will point towards the problem area.
• Strong Fuel Odour: A leaking injector can cause a noticeable smell of fuel, either inside or outside the vehicle.
• Engine Stalling: In severe cases, particularly with an electrical fault, the engine may cut out completely, as described in your situation.

The symptoms you've described – cutting out completely, excessive vibration, loss of power above 2000rpm, and difficulty starting – are all classic indicators of a significant fuel injector issue, particularly an electrical one.

Diagnosing a Fault: Focus on P0202 and Injector 2

Your use of an OBD-II scanner to pull the P0202 error code is an excellent starting point. This code specifically stands for 'Cylinder 2 Injector Circuit Malfunction'. This immediately narrows down the problem to the electrical circuit of the injector on cylinder 2, rather than a mechanical issue or a general fuel delivery problem. It suggests that the Engine Control Unit (ECU) is not seeing the expected electrical signal from or to injector 2.

Your subsequent troubleshooting steps were logical and effective:

1. Checking Wiring Harness: Visually inspecting the wiring for damage (chafing, cuts, corrosion) is crucial. If the wiring itself is intact, it points more strongly to an internal injector fault.
2. Disconnecting Injector 2 Connector: Observing no noticeable difference in how the car behaves at idle when Injector 2 is disconnected is a very strong indicator that Injector 2 was not firing correctly to begin with. If a healthy injector were disconnected, the idle would worsen significantly, as that cylinder would stop contributing to engine power. This test confirms your suspicion that Injector 2 is the problem cylinder.
3. Resistance Testing: This is where your diagnosis becomes particularly insightful, especially for a piezo injector.

Understanding Injector Resistance Readings for Piezo Injectors

Your readings of ~200kOhms for injectors 1, 3, and 4, and ~120 Ohms for injector 2, are highly significant. For a 2010 Golf TDI, you almost certainly have piezoelectric injectors. Here's why your readings point directly to a fault:

Piezoelectric injectors operate based on the expansion and contraction of ceramic crystals when an electrical voltage is applied. They do not have a traditional coil like solenoid injectors, and therefore, their resistance is typically extremely high (often in the mega-ohm or even giga-ohm range) when measured with a standard multimeter. A low resistance reading, such as your 120 Ohms, strongly suggests an internal short circuit or a breakdown within the piezo stack itself. This confirms your assumption: there is indeed an electrical fault within injector 2.

DIY Fuel Injector Replacement: Is It Feasible?

Your plan to replace the injector yourself is certainly feasible for a competent DIYer, but it's important to be aware of the specific challenges and requirements for modern TDI piezo injectors. While the Erwin workshop manuals might make it seem straightforward, there are nuances that require care and the right tools.

Tools and Preparations:

• Spline Socket: Essential for removing the injector hold-down bolt. Ensure you have the correct size.
• Torque Wrench: Absolutely critical for re-tightening the injector hold-down bolt and fuel lines to manufacturer specifications. Over-tightening can damage components, while under-tightening can lead to leaks.
• Fuel Line Disconnect Tools: Special tools might be needed for the high-pressure fuel lines.
• New Injector Seal Kits: Always replace the copper crush washer and the o-ring seals when removing an injector. These are single-use items.
• Cleanliness: This cannot be stressed enough. The common rail diesel system operates at extremely high pressures and is highly susceptible to contamination. Even a tiny speck of dirt can cause significant damage to the fuel system components. Work in a clean environment, and keep all openings covered when not actively working on them.
• VCDS or Equivalent Diagnostic Tool: This is perhaps the most crucial tool beyond the physical ones. New piezo injectors often require coding to the ECU. This tells the ECU the specific flow characteristics of the new injector, allowing it to precisely control fuel delivery for optimal performance, emissions, and smooth running. Without proper coding, the new injector may not function correctly, and the engine may run poorly or even trigger new fault codes.
• Eye Protection and Gloves: Always for safety.
• Shop Towels/Rags: For containing any spilled fuel.

General Steps for Replacement (Mk6 TDI):

1. Safety First: Disconnect the battery. Allow the engine to cool down.
2. Depressurise Fuel System: While the common rail system self-depressurises to some extent, be aware that residual pressure can still be present. Have rags ready for any fuel spills.

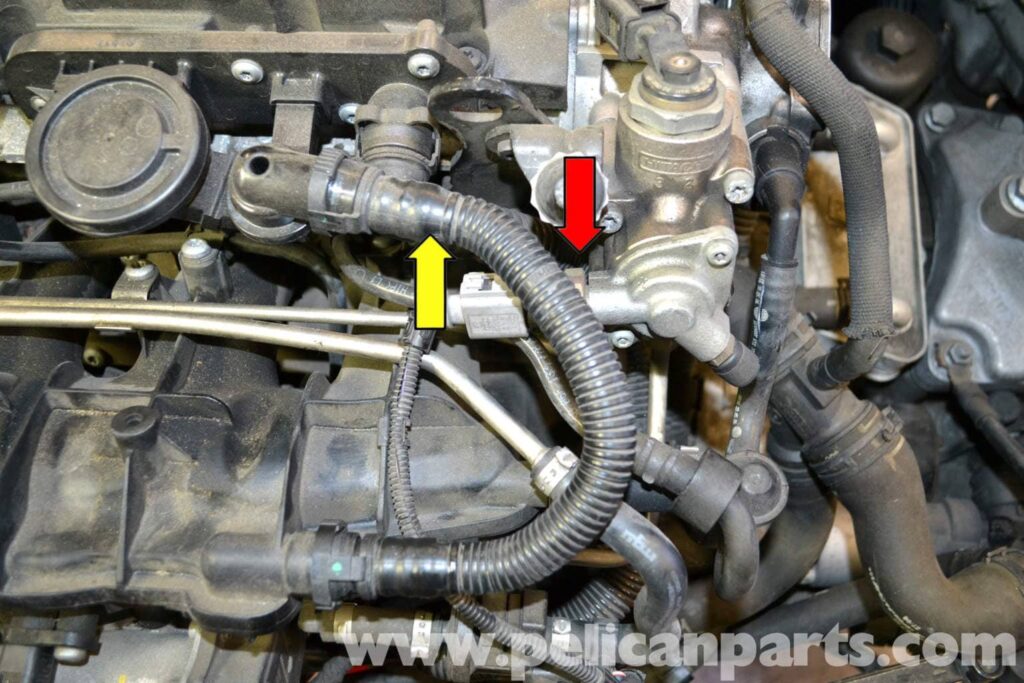

3. Access the Injectors: This typically involves removing the engine cover, potentially some air intake components, and any wiring looms or pipes obstructing access.
4. Disconnect Electrical Connector: Carefully unclip the electrical connector from the faulty injector.
5. Disconnect Fuel Lines: Disconnect the high-pressure fuel line from the injector. Be extremely careful not to bend or damage these lines. Cap them immediately to prevent contamination.
6. Remove Injector Hold-down Clamp/Bolt: Use your spline socket to loosen and remove the bolt that holds the injector in place.
7. Extract the Injector: This can sometimes be the trickiest part. Injectors can be seized in the cylinder head due to carbon buildup. Gentle twisting and pulling are often required. Avoid using excessive force or prying against delicate engine components. Special slide hammers or extractor tools are available for stubborn injectors.
8. Clean the Injector Bore: Once the old injector is out, thoroughly clean the injector bore in the cylinder head. Carbon buildup can prevent the new injector from seating correctly, leading to compression leaks. A specialized brush for injector bores is recommended.
9. Install New Seals: Place the new copper crush washer and o-rings onto the new injector. Ensure they are correctly seated.
10. Insert New Injector: Carefully slide the new injector into the bore. Ensure it seats fully and correctly.
11. Reinstall Hold-down Clamp/Bolt: Tighten the hold-down bolt to the manufacturer's specified torque using your torque wrench. This is critical for sealing and preventing leaks.
12. Reconnect Fuel Lines and Electrical Connector: Reconnect the high-pressure fuel line (again, to torque specs) and the electrical connector.
13. Bleed Air from Fuel System: Depending on the vehicle, this may involve cycling the ignition a few times or using the diagnostic tool to activate the fuel pump. Consult your workshop manual.
14. CODE THE NEW INJECTOR: This is a non-negotiable step for piezo injectors. Connect your VCDS or equivalent tool and enter the new injector's calibration code (usually printed on the injector body) into the ECU for cylinder 2. Failure to do so will result in poor running.
15. Test Drive: Start the car and check for leaks. Listen for unusual noises and take it for a test drive to ensure symptoms are resolved.

Comparative Table: DIY vs. Professional Injector Replacement

Frequently Asked Questions (FAQs)

Q: What causes fuel injector failure?
A: Common causes include clogging from fuel contaminants, electrical failure of the internal solenoid or piezo stack, mechanical wear of internal components, and failure of seals leading to leaks. High-pressure common rail systems are particularly sensitive to fuel quality and cleanliness.

Q: Can I drive with a faulty fuel injector?
A: It is strongly advised against driving with a faulty injector, especially one with an electrical fault causing misfires or engine cut-outs. Continued driving can lead to unburnt fuel damaging the catalytic converter, engine wash-down (fuel diluting engine oil), excessive vibration causing further engine damage, or even engine failure. If your car is cutting out or losing power, it's unsafe to drive.

Q: How much does a fuel injector replacement cost?
A: The cost varies significantly. A new OEM piezo injector for a TDI can range from £250 to £500+ per injector. Aftermarket or reconditioned injectors might be cheaper but come with their own risks. Professional labour costs can add another £150-£300 per injector, depending on the complexity and local rates. DIY saves on labour but requires tool investment.

Q: What is the normal resistance for a good piezo injector?
A: Unlike solenoid injectors that have low Ohm resistance (e.g., 10-20 Ohms), good piezoelectric injectors have very high resistance, often in the mega-ohm (MΩ) to giga-ohm (GΩ) range. Your reading of ~200 kOhms for your good injectors is a bit on the lower side for perfect piezo operation but functional, whereas 120 Ohms for the faulty one is definitively indicative of an internal electrical short or failure for a piezo type.

Q: Do I need to code a new fuel injector?
A: Yes, absolutely, especially for modern common rail diesel engines with piezo injectors. Each injector has unique flow characteristics, and the ECU needs to be programmed with these 'correction codes' or 'IMA codes'. This ensures precise fuel delivery, optimal engine performance, and prevents future issues or fault codes. Ignoring this step can lead to rough running, poor fuel economy, and potential engine damage.

Addressing a faulty fuel injector promptly is crucial for maintaining your vehicle's performance, fuel efficiency, and overall longevity. Your thorough diagnosis of the P0202 code and the resistance readings points strongly to an internal electrical fault within Injector 2, likely a short circuit in the piezo stack. While replacing it yourself is a rewarding task for a competent individual, remember the critical importance of cleanliness, proper torque, and especially the coding of the new injector to your ECU. If in doubt, consulting a qualified mechanic specialising in TDI engines is always a wise decision.
