Understanding the Digifant II Fuel Injection

The Digifant II fuel injection system represents a significant step forward in automotive engine management, particularly for Volkswagen vehicles. This sophisticated system, which began appearing around the mid-1980s, integrates both fuel delivery and ignition timing into a single, electronically controlled unit. For many enthusiasts and owners of classic Volkswagens, particularly the Mk2 Golf and Jetta models, understanding the Digifant II is crucial for effective maintenance and performance tuning. Unlike earlier mechanical systems, Digifant II relies on a network of sensors and an Electronic Control Unit (ECU) to precisely manage the air-fuel mixture, ensuring optimal combustion, fuel efficiency, and emissions control.

What is the Digifant II System?

At its core, the Digifant II system is an electronic fuel injection (EFI) system. The name 'Digifant' itself hints at its digital nature, combining digital control with a fan-like air flow meter. The 'II' denotes a specific evolution of this technology. This system was a departure from older, purely mechanical fuel injection systems like CIS (Continuous Injection System) and its evolution, CIS-E (CIS-Electronic). Instead of purely mechanical metering, Digifant II uses an ECU to interpret data from various sensors and then precisely control the amount of fuel injected into the engine's intake manifold.

Key Components of the Digifant II System

A well-functioning Digifant II system relies on several interconnected components:

1. Electronic Control Unit (ECU)

This is the 'brain' of the operation. The ECU receives data from all the sensors, processes it according to pre-programmed maps, and sends out signals to control fuel injectors and ignition timing. It constantly adjusts the fuel delivery to maintain the ideal air-to-fuel ratio.

2. Air Flow Sensor (AFS)

Often a large, fan-like device located in the air intake duct, the AFS measures the volume of air entering the engine. This is a primary input for the ECU to calculate the basic fuel requirement. The temperature of this incoming air is also measured, as colder air is denser and requires more fuel.

3. Fuel Injectors

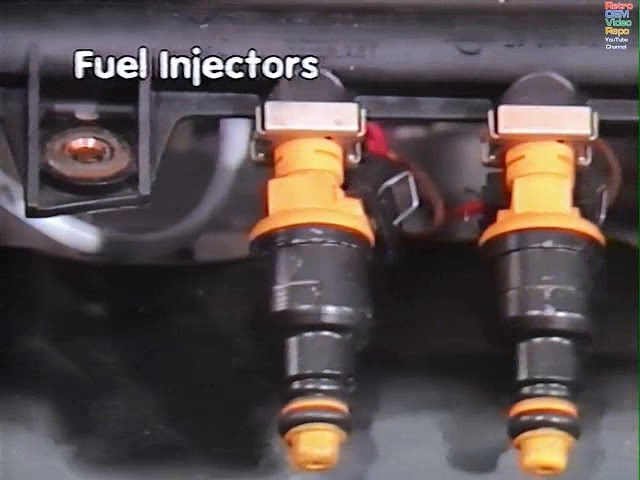

These are electrically operated solenoid valves. In the Digifant II system, typically one injector is mounted in the intake manifold runner for each cylinder. They are all fed by a common fuel rail and are triggered simultaneously by the ECU. The duration for which each injector stays open determines the amount of fuel delivered. This is often referred to as 'pulse width'.

4. Fuel Rail and Fuel Pressure Regulator

The fuel rail is a pipe that supplies fuel to all the injectors. A fuel pressure regulator is attached to the end of the fuel rail. Its job is to maintain a constant, specified fuel pressure by returning excess fuel back to the tank. Incorrect fuel pressure is a common cause of poor engine performance.

5. Throttle Position Switch (TPS) / Throttle Valve Switch

While not always referred to as a traditional TPS in the Digifant II context, switches on the throttle body inform the ECU whether the throttle is fully open (wide-open throttle, WOT) or closed (idle). This information helps the ECU adjust fuel delivery for acceleration and deceleration.

6. Coolant Temperature Sensor (CTS)

Located on the engine's cylinder head, this sensor provides the ECU with vital information about the engine's operating temperature. This is crucial for cold starts and the warm-up phase, as the ECU enriches the fuel mixture when the engine is cold.

7. Oxygen Sensor (O2 Sensor)

Positioned in the exhaust system, the O2 sensor measures the amount of unburnt oxygen in the exhaust gases. This tells the ECU how efficiently the fuel is being burned. If the mixture is too rich (too much fuel), there will be less oxygen. If it's too lean (too little fuel), there will be more oxygen. The ECU uses this feedback to make fine adjustments to the fuel mixture, known as 'closed-loop' operation.

8. Ignition Distributor

In many Digifant II applications, the ignition distributor not only distributes the spark to the correct cylinder but also often incorporates a Hall sender or other mechanism to provide the ECU with engine RPM and sometimes camshaft position information.

9. Knock Sensor

Although not always explicitly shown in basic diagrams, many Digifant II systems incorporate a knock sensor. This sensor detects engine 'knocking' or 'pinging' (detonation) and signals the ECU to retard ignition timing, preventing engine damage.

How Digifant II Manages Fuel and Ignition

The Digifant II system operates on the principle of calculating the required fuel based on the amount of air entering the engine. The ECU uses the Air Flow Sensor to determine air volume and the Coolant Temperature Sensor to account for air density changes due to temperature. Engine RPM, provided by the ignition distributor, is also a critical factor. The ECU then calculates the necessary injection pulse width (how long the injectors stay open) to achieve the desired air-fuel ratio. This basic calculation is then refined using feedback from the Oxygen Sensor during normal operation (closed-loop) and adjusted for conditions like wide-open throttle or cold starts (open-loop).

Ignition timing is also managed by the ECU, often in conjunction with the knock sensor. The ECU can advance or retard the ignition timing based on engine load, temperature, and the detection of pre-ignition, optimising both performance and efficiency.

Digifant System Variants

It's important to note that there have been variations of the Digifant system:

Troubleshooting and Maintenance

Diagnosing issues with the Digifant II system often involves checking sensor readings, fuel pressure, and basic engine settings. A low-current LED test light and a multimeter are often sufficient for testing many electrical components, including those at the ECU harness connector. A fuel pressure gauge is essential for verifying the correct fuel pressure. Crucially, the system's proper function relies on correct basic adjustments, including idle speed, ignition timing, and idle mixture (CO percentage). If these fundamental settings are incorrect, the ECU will attempt to compensate, leading to inaccurate diagnostic readings and poor performance.

Common Issues and Symptoms

• Rough Idle: Can be caused by vacuum leaks, faulty idle control valve, or incorrect base timing.
• Poor Performance/Hesitation: Often points to fuel delivery problems (low fuel pressure, clogged injectors), a faulty Air Flow Sensor, or incorrect ignition timing.
• Increased Fuel Consumption: May indicate a rich fuel mixture due to a faulty O2 sensor, temperature sensor, or incorrect ECU calibration.
• Starting Problems: Could be related to fuel delivery, ignition system issues, or a malfunctioning coolant temperature sensor.

Frequently Asked Questions (FAQ)

Q1: Can I upgrade my CIS system to Digifant II?

While technically possible, it's a complex conversion that requires sourcing all the specific Digifant II components (ECU, wiring harness, sensors, fuel rail, injectors, distributor, etc.) and significant electrical work. It's generally more practical to maintain the original system or consider a full standalone engine management system if significant upgrades are desired.

Q2: What is the typical fuel pressure for a Digifant II system?

This can vary slightly depending on the specific engine code and application, but a common range is between 2.0 and 3.0 bar (approximately 29 to 44 PSI).

Q3: Where is the Digifant II ECU located?

The ECU is typically located inside the passenger cabin, often under the dashboard, behind the glovebox, or beneath the driver's seat, depending on the specific Volkswagen model.

Q4: How do I check the Air Flow Sensor (AFS)?

Checking the AFS usually involves measuring its output voltage at different throttle openings or air flow rates using a multimeter, comparing the readings to specifications in a repair manual. A faulty AFS is a common cause of poor running.

Q5: Is Digifant II OBD-I compliant?

While Digifant II systems manage engine functions electronically, they predate the widespread adoption of standardized OBD-II (On-Board Diagnostics II) protocols. Some earlier Digifant systems (like certain Digifant I variants) might have had limited OBD-I capabilities, but Digifant II is generally not considered OBD-II compliant in the modern sense.

Conclusion

The Digifant II fuel injection system was a technologically advanced solution for its time, offering precise control over engine operation. Understanding its components and how they interact is key to maintaining the performance and reliability of classic Volkswagen vehicles equipped with it. While it requires a methodical approach to diagnostics, the benefits of its precise fuel and ignition management are undeniable.
