VW TDI Limp Mode Explained

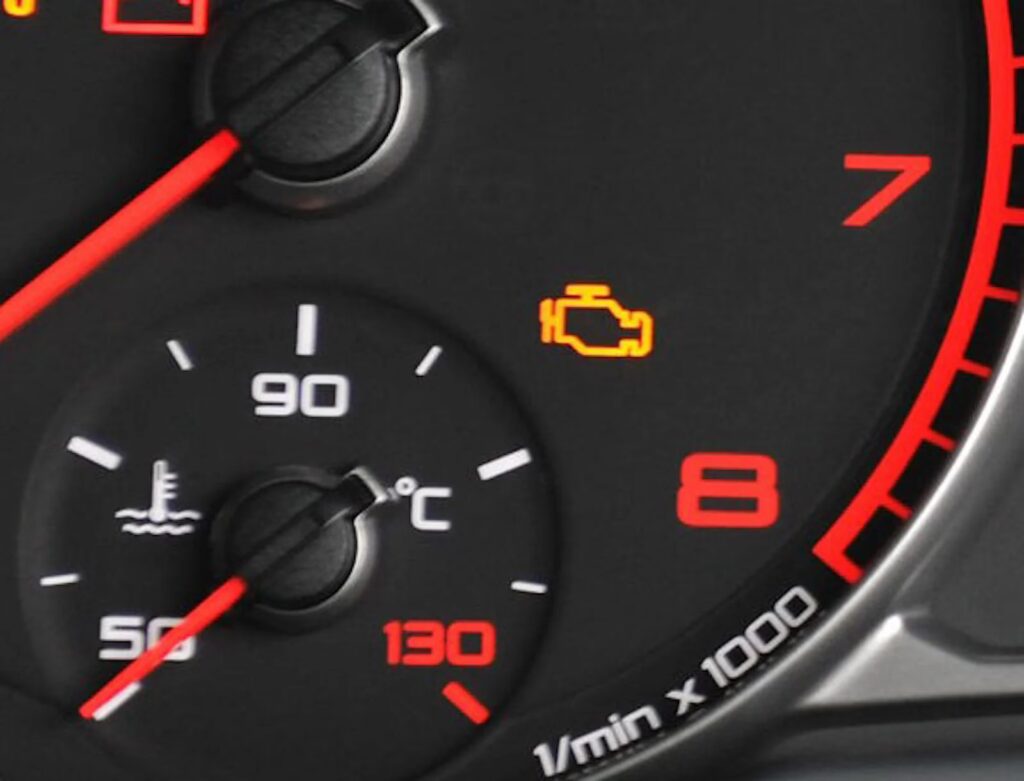

Experiencing a sudden, inexplicable loss of power in your Volkswagen or Audi TDI can be a frustrating and even alarming event. Often described as the car feeling like it's being held back, or as if the parking brake is partially engaged, this phenomenon is commonly known as 'limp mode'. While it might not be immediately apparent on a level road with light acceleration, you're far more likely to notice it when demanding more from your engine, such as on a motorway on-ramp or when tackling an incline. The check engine light (CEL) or malfunction indicator light (MIL) may or may not illuminate when this occurs. It's important to distinguish this sudden power cut from a situation of constant, unwavering low power, which might indicate different underlying issues, though there can be some overlap in symptoms and causes. This guide aims to shed light on what limp mode is, why it happens in VW and Audi TDI engines, and how you can go about diagnosing and rectifying the problem.

Understanding Limp Mode

Limp mode is essentially a safety feature implemented by your car's Engine Control Unit (ECU). The ECU is constantly monitoring a vast array of sensors that measure critical engine parameters, including airflow, exhaust gas recirculation (EGR) flow, fuel flow, boost pressure, and many more. The ECU expects these sensors to report values within a predefined range. If a sensor malfunctions, fails, or reports a reading that is significantly outside these expected parameters, the ECU will often default to a 'safe' operating map. This typically involves reducing fuel delivery and limiting turbocharger boost pressure to prevent potential engine damage from overboosting or overfuelling. In essence, the car's computer is trying to protect the engine from itself.

The result is a noticeable reduction in engine performance. You'll feel a distinct lack of power, particularly when you press the accelerator pedal, as the turbocharger may not be providing its usual boost, or the fuel system is deliberately being restricted. This can feel like the car is running on three cylinders, or that the turbo has simply stopped working. Unlike a complete engine failure, limp mode usually allows the vehicle to be driven, albeit at a significantly reduced capacity, often allowing speeds of around 40-50 mph but preventing faster acceleration.

What Limp Mode is NOT

Before diving into the common causes of limp mode, it's crucial to differentiate it from other potential engine issues that might present with similar symptoms:

• Sudden Engine Shut-off with Immobiliser Light: If your engine starts and then immediately shuts off, and you see the 'yellow car' immobiliser symbol on your dashboard, the anti-theft system is likely cutting power. This is not limp mode.
• Engine Not Cranking: If you turn the key and the engine doesn't even attempt to turn over, you have a battery, ignition, or starter motor issue, not a limp mode problem.
• Engine Shuts Off, No Glow Plug Light on Restart: If the engine shuts off during driving and the glow plug light does not illuminate at all during subsequent restart attempts (on 1996-2003 models), this could indicate a faulty Relay 109, which powers the ECU. Replacing the older black relay with a newer grey one is a common fix for this specific issue.
• Constant 1200 RPM Limit: If your engine RPM is fixed at around 1200 RPM and won't increase, this can be due to a faulty accelerator pedal position sensor (or sensors on later models) or its wiring. This will typically trigger an error code and might feel like constant low power rather than a sudden cut-out.
• Bucking or Jerking at Specific RPMs: This is often caused by a loose or cracked intake air piping. The pressure from the turbo can cause these hoses to split or a clip to dislodge, leading to a significant boost leak.
• Engine RPM Increases, Speed Does Not: If your engine revs freely but the car's speed doesn't increase proportionally, this points towards a slipping clutch or a transmission issue, not limp mode.
• Glow Plugs: It's worth noting that faulty glow plugs or their harness do not cause limp mode or affect engine power output in this manner.

Why Does Limp Mode Occur in TDI Engines?

The core reason for limp mode is the ECU's detection of a discrepancy between expected and actual sensor readings. This discrepancy can arise from a multitude of sources, often related to the engine's air intake, turbocharger system, or fuel delivery.

TDI Engine Generations

To better understand potential causes, it's helpful to be aware of the different generations of TDI engines commonly found in North America:

• Mk3: 1996-1997 Passat TDI, 1996-1999 Jetta TDI
• Mk4: 1998-2006 New Beetle, 1999-2005 Jetta, 1999-2006 Golf, 2004-2005 Passat TDI
• Mk5: 2005.5-2010 Jetta TDI (sedan and wagon)
• Mk6: 2010+ Golf, 2011+ Jetta TDI, 2012+ Passat TDI

Troubleshooting Limp Mode: A Step-by-Step Approach

The most effective way to diagnose limp mode is to first retrieve any stored diagnostic trouble codes (DTCs) from the ECU. Many auto parts stores offer free code scanning. However, for a more comprehensive understanding and to access live sensor data, a VCDS (VAG-COM Diagnostic System) cable is highly recommended. This is a VW/Audi-specific diagnostic tool that provides much deeper insight than generic scanners.

Common Causes and Solutions

1. Boost Control System Issues (N75 Valve and Boost Deviation Codes)

Error codes such as "Boost Deviation Intermittent," "Boost Deviation Negative," "Boost Deviation Positive," or codes related to intake manifold pressure deviations are very common indicators of problems within the turbocharger boost control system. These codes usually point to an underboost or overboost situation.

The N75 solenoid valve plays a critical role in regulating turbocharger boost pressure. It controls the vacuum or pressure signal sent to the turbocharger's wastegate (on Mk3 models) or Variable Turbine Geometry (VNT) actuator (on Mk4 and later models). When the ECU detects that the actual boost pressure deviates from the target pressure, it adjusts the N75 valve. If the N75 valve itself is faulty, its electrical connector is damaged, or the vacuum lines connected to it are leaking or split, it cannot regulate boost correctly, leading to limp mode.

Diagnosis and Fixes:

• Inspect Vacuum Lines: Thoroughly check all vacuum lines connected to the N75 valve and the turbo actuator for cracks, splits, or loose connections. Pay close attention to the ends of the hoses, which are prone to wear.
• Test the N75 Valve: You can try flushing the N75 valve with electronic cleaner and a small amount of WD-40 to ensure the internal solenoid moves freely. On Mk4 models, you can temporarily swap the N75 valve with the EGR solenoid to see if the problem follows the valve.
• Check Wiring: Inspect the wiring harness leading to the N75 valve for any signs of corrosion, breaks, or damage. Also, check ground connections, as poor grounds can cause erratic electrical behaviour.
• Replace the N75 Valve: If cleaning and inspection don't resolve the issue, replacement of the N75 valve is often necessary. Part numbers vary by model, so ensure you get the correct one for your TDI generation.

N75 Valve Part Numbers (Examples):

Specific Code Interpretations:

• Boost Deviation Negative: Often indicates an underboost condition, suggesting a vacuum leak, a clogged intake, a faulty turbo actuator, or stuck VNT vanes.
• Boost Deviation Positive: Typically points to an overboost condition, which could be a faulty N75 valve, leaking actuator, bad vacuum lines, or stuck VNT vanes/wastegate.

2. Variable Turbine Geometry (VNT) Actuator and Vanes (Mk4 and newer)

TDI engines from the Mk4 generation onwards utilise VNT turbochargers. The VNT system uses adjustable vanes within the turbocharger housing to optimise boost across the engine's RPM range. Over time, carbon and soot deposits can cause these vanes, or the actuator that moves them, to stick. This mechanical issue prevents the turbo from responding correctly, leading to boost deviations and limp mode.

Diagnosis and Fixes:

• Regular Hard Driving: Periodically driving your TDI at higher RPMs (once the engine is fully warmed up) can help to increase exhaust gas temperatures (EGTs) and burn off carbon deposits from the turbocharger and exhaust system.
• Lubricate and Manually Move: You can attempt to free up a sticking VNT actuator by applying a penetrating lubricant (like PB Blaster) and manually moving the actuator arm. This might offer a temporary solution.
• Check Actuator Vacuum Hold: Using a vacuum pump, you can test if the VNT actuator holds vacuum. If it leaks, the internal vanes are likely stuck.
• Turbo Removal and Cleaning: For persistent sticking, the turbocharger may need to be removed from the vehicle for disassembly and cleaning of the VNT vanes.
• Smart VNT Actuators (2004+): Newer TDIs feature 'smart' VNT actuators with integrated sensors. The wiring to these sensors is prone to damage, which can also trigger limp mode.
• Stop Screw Adjustment: On some turbos, particularly BorgWarner units on Mk5/Mk6, the stop screw adjustment is critical for proper operation and can affect hesitation and performance.

3. Intake Piping and Boost Leaks

A leak in the pressurized intake air system between the turbocharger and the engine's intake manifold will prevent the ECU from accurately measuring boost pressure. This can manifest as underboost conditions and trigger limp mode.

Diagnosis and Fixes:

• Visual Inspection: Carefully inspect all intercooler hoses, boost pipes, and connections for obvious signs of splits, cracks, or loose clamps. Pay attention to areas where hoses might rub against other components.
• Boost Leak Test: A dedicated boost leak test, using a specialised adapter to pressurise the intake system, is the most reliable way to find even small leaks that might be missed during a visual inspection.
• Secure Connections: Ensure all hose clamps are tight and that quick-connect fittings have their locking tabs intact and properly engaged. Replacement hoses or securing clips may be necessary if wear is evident.

4. EGR System Issues and Exhaust Leaks

While less common, leaks within the Exhaust Gas Recirculation (EGR) system, particularly at the EGR cooler or associated metal pipes, can sometimes lead to limp mode. Significant exhaust leaks before the turbocharger can also affect its operation by reducing the exhaust gas flow that drives the turbine.

Diagnosis and Fixes:

• Inspect EGR Pipes: Check metal EGR pipes for cracks or loose connections, especially if the intake manifold has been recently removed for cleaning.
• Look for Soot Stains: Soot marks around exhaust manifold gaskets or EGR connections can indicate a leak.

5. Fuel Filter Clogging

A severely clogged fuel filter can restrict fuel flow to the injection pump and injectors. While this typically results in a gradual power loss, in some cases, it could potentially trigger limp mode if the fuel pressure drops below a critical threshold.

Diagnosis and Fixes:

• Regular Replacement: Ensure your fuel filter is replaced according to the manufacturer's recommended service intervals (typically every 20,000 miles for TDIs).
• Fuel Quality: Poor quality diesel or a high percentage of biodiesel can sometimes contribute to filter clogging.

6. Intake Manifold Carbon Buildup

TDI engines, particularly earlier generations (Mk3 and Mk4), are prone to significant carbon buildup within the intake manifold and EGR system due to the nature of diesel combustion and the operation of the EGR valve. Excessive buildup can restrict airflow or cause the EGR valve or intake flap (on later models) to stick, leading to performance issues and potentially limp mode.

Diagnosis and Fixes:

• Intake Cleaning: Periodic cleaning of the intake manifold and EGR system is recommended maintenance for these engines. Procedures vary by TDI generation.
• EGR Valve and Intake Flap: Check for sticking or failure of the EGR valve or the intake flap (throttle valve) that often precedes the intake manifold.

7. Mass Air Flow (MAF) Sensor Issues

A faulty MAF sensor, which measures the amount of air entering the engine, can contribute to performance problems. While it doesn't typically cause limp mode on its own, it can sometimes work in conjunction with other issues to trigger it, especially in Mk4 and newer TDIs. A failing MAF sensor often does not trigger a specific error code.

Diagnosis and Fixes:

• Testing and Cleaning: MAF sensors can sometimes be cleaned, but replacement is often necessary if they are faulty.
• Data Logging: Using VCDS to log MAF sensor readings under load can help determine if it's functioning correctly.

Less Common and Rare Causes

While the above cover the most frequent culprits, other less common or rarer issues can also trigger limp mode. These might include problems with the ECU itself, faulty sensors not directly related to boost control (like crankshaft or camshaft position sensors), or issues with the transmission control module (TCM) in automatic transmissions, which can also have its own 'limp mode' to protect the gearbox.

Conclusion

Limp mode in VW and Audi TDI vehicles is a protective measure by the ECU to prevent engine damage. The most common causes revolve around the turbocharger boost control system, specifically the N75 solenoid valve, VNT actuator, and associated vacuum lines, as well as boost leaks in the intake piping. By systematically diagnosing potential issues, starting with retrieving error codes and performing thorough inspections, you can often identify and resolve the problem, restoring your TDI's full performance.
