When oil and coolant decide to mingle in your vehicle's engine, it's a sure sign that something is seriously wrong. This unwelcome combination can lead to a cascade of problems, from compromised lubrication to severe engine damage. Understanding why this happens, how to spot the signs, and what to do about it is crucial for any car owner. This comprehensive guide will walk you through the common culprits, the tell-tale symptoms, the detrimental effects, and the effective repair options for oil mixed with coolant, ensuring your engine stays healthy and performs optimally. We'll also cover essential preventative measures to keep this issue at bay.
Causes of Oil Mixed with Coolant
Several key components can fail, leading to the unwelcome emulsification of oil and coolant. Identifying the root cause is the first step towards a successful repair.
Leaking Head Gasket
The head gasket is a critical seal situated between the engine block and the cylinder head. Its primary role is to maintain compression within the combustion chambers and prevent the mixing of oil, coolant, and exhaust gases. When this gasket fails, often due to overheating, age, or improper installation, it can create a breach, allowing oil to seep into the coolant passages or vice versa.
Cracked Engine Block
More severe than a head gasket failure, a cracked engine block represents a significant structural issue. The engine block is the foundation of the engine, housing the cylinders and vital moving parts. Extreme temperature fluctuations, manufacturing defects, or physical impacts can lead to cracks forming within the block. If these cracks intersect with both oil and coolant galleries, a direct pathway for mixing is created.

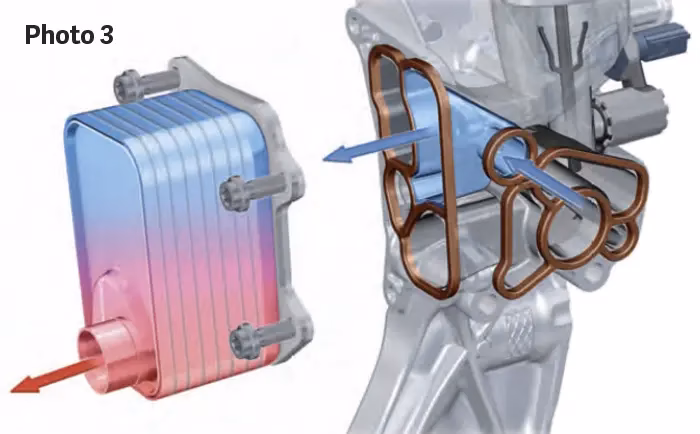

Faulty Oil Cooler
Many modern vehicles are equipped with an oil cooler, designed to regulate the temperature of the engine oil. This cooler typically uses the engine's coolant to dissipate heat from the oil. If the internal seals or structure of the oil cooler fail, it can allow the oil and coolant to mix within the cooler itself before circulating through the engine. Corrosion and external damage are common reasons for oil cooler failure.
Symptoms of Oil Mixed with Coolant
Recognising the signs of oil in your coolant is vital for early intervention. Ignoring these symptoms can lead to much more extensive and expensive repairs.
Milky Appearance of Coolant
Perhaps the most visually obvious indicator is the change in the coolant's appearance. Clean coolant is typically brightly coloured (green, orange, pink, etc.). When oil contaminates it, the mixture creates an emulsion that often resembles a coffee milkshake or frothy sludge. This can be observed in the coolant reservoir or even by opening the radiator cap when the engine is cool.
Overheating Engine
Oil in the coolant system disrupts the cooling process. Oil is a poorer conductor of heat than coolant and can form insulating layers on engine components. This reduces the coolant's efficiency in absorbing and dissipating heat, leading to the engine operating at higher temperatures. A frequently overheating engine is a serious warning sign.
White Smoke from Exhaust
If the oil and coolant mixture enters the combustion chamber, it will be burned along with the fuel. This combustion process results in a distinctive white smoke emanating from the exhaust pipe. This smoke may also have a sweet smell due to the burning coolant. This symptom often indicates a more severe internal leak, such as a blown head gasket or cracked cylinder head.
Effects of Oil Mixed with Coolant
The consequences of this contamination can be severe and far-reaching, impacting the entire engine's longevity and performance.
Reduced Lubrication
Engine oil's primary function is to lubricate moving parts, reducing friction and wear. When oil is diluted by coolant, its viscosity decreases, and its lubricating properties are significantly diminished. This leads to increased friction between critical engine components like pistons, bearings, and camshafts, accelerating wear and potentially causing catastrophic failure. This compromised lubrication is a primary concern.
Engine Damage
Beyond lubrication issues, the presence of oil in the coolant can lead to the formation of sludge and deposits within the cooling system. These deposits can clog radiator passages, heater cores, and water pump channels, severely impeding coolant flow. This blockage exacerbates overheating issues and can lead to further damage, including warped cylinder heads or cracked engine blocks. The oil can also break down the rubber seals and hoses within the cooling system, leading to leaks and further contamination.
Coolant Contamination
Coolant itself contains additives designed to prevent corrosion and freezing. When oil mixes with coolant, these additives can become ineffective, leaving the engine's metal components vulnerable to rust and corrosion. The contaminated coolant loses its ability to efficiently transfer heat, further contributing to overheating and the potential for long-term damage to the cooling system components.
Diagnosis of Oil Mixed with Coolant
Accurate diagnosis is key to ensuring the correct repair is carried out. Several tests can confirm the presence of oil in the coolant.
Coolant System Pressure Test
This test involves pressurising the cooling system with a specialised tool. A drop in pressure indicates a leak somewhere in the system. If oil is present, the pressure loss might be accompanied by oil appearing at the leak point or within the coolant itself. This test is effective in pinpointing leaks in the head gasket, cylinder head, or oil cooler.
Cylinder Compression Test
This test measures the pressure within each cylinder. A significantly lower compression reading in one or more cylinders, especially if they are adjacent, can indicate a blown head gasket allowing compression to escape into the coolant or oil passages. Comparing readings between cylinders helps identify faulty ones.
Oil Analysis
Sending an oil sample to a laboratory for analysis can reveal the presence of coolant and other contaminants. Elevated levels of water, glycol (a component of coolant), or a change in the oil's viscosity can strongly suggest coolant contamination. This is a highly reliable diagnostic method.
Visual Inspection
A thorough visual inspection of the coolant reservoir, radiator cap, and oil filler cap for milky residue or sludge is the simplest first step. Checking the oil dipstick for a frothy or milky appearance is also crucial.
| Test | Purpose | Indications of Oil/Coolant Mix |
|---|---|---|
| Coolant Pressure Test | Checks for leaks in the cooling system. | Pressure drop, coolant or oil leak at suspected point. |
| Cylinder Compression Test | Measures cylinder sealing. | Low compression in adjacent cylinders (suggests head gasket). |
| Oil Analysis | Detects contaminants in engine oil. | Elevated water/glycol content, altered viscosity. |
| Visual Inspection | Checks for physical signs of contamination. | Milky coolant, frothy oil, sludge in reservoir/cap. |
Repair Options for Oil Mixed with Coolant
The repair strategy depends entirely on the diagnosed cause.
Head Gasket Replacement
If a leaking head gasket is the culprit, it will need to be replaced. This is a labour-intensive job that involves removing the cylinder head from the engine block. Once removed, the old gasket is meticulously scraped away, and the mating surfaces are cleaned and inspected for damage. A new, high-quality head gasket is then installed, and the cylinder head is reassembled and torqued to specification. This is a critical repair that requires precision.
Engine Block Repair or Replacement
If the engine block itself is cracked, the situation is far more serious. Minor cracks might be repairable through specialised welding or epoxy procedures, but this is often a temporary solution. For significant cracks, the engine block will likely need to be replaced. This is a major undertaking, often involving the complete dismantling of the engine, transfer of components to a new block, and a full reassembly. The cost can be substantial, sometimes approaching the value of the vehicle.
Oil Cooler Replacement
If the oil cooler is found to be faulty, it will need to be replaced. This is generally a more straightforward and less expensive repair compared to head gasket or block issues. The old oil cooler is disconnected, removed, and a new unit is installed, along with new seals and potentially a flush of the cooling system to remove any residual oil.
Flushing the Cooling System
Regardless of the primary repair, it is essential to thoroughly flush the entire cooling system after the faulty component has been replaced. This process removes all traces of the oil and coolant mixture, preventing further damage and ensuring the new coolant can perform its function effectively. Multiple flushes with a specialised cleaner might be necessary.
Preventing Oil Mixed with Coolant
Proactive maintenance is the best defence against this problem.
Regular Maintenance and Inspections
Adhering to your vehicle manufacturer's recommended service schedule is paramount. This includes regular oil changes using the correct grade of oil and timely coolant flushes. Periodically inspecting hoses, connections, and the radiator for any signs of leaks or wear can help catch potential problems early.
Using High-Quality Coolant and Oil
Always use coolant and engine oil that meet or exceed your vehicle manufacturer's specifications. Using the correct fluids ensures optimal performance and compatibility between different systems. Cheap, off-brand fluids can degrade faster and contribute to internal engine problems.
Promptly Addressing Overheating Issues
Never ignore signs of engine overheating. If your temperature gauge rises into the red, pull over safely and let the engine cool down. Investigate the cause of the overheating immediately, as it could be an early indicator of an impending oil-coolant mix issue. Early detection is key.
Avoid Overloading
While not a direct cause, consistently overloading your vehicle, especially on steep inclines or in high ambient temperatures, puts extra strain on the engine and cooling system, potentially accelerating wear on components like the head gasket.
Frequently Asked Questions
Q1: Can I drive my car if I suspect oil is mixed with coolant?
A1: It is strongly advised not to drive your vehicle if you suspect oil is mixed with coolant. Continuing to drive can lead to severe engine damage, including catastrophic failure, resulting in much higher repair costs.
Q2: How much does it cost to fix oil mixed with coolant?
A2: The cost can vary significantly depending on the cause. A faulty oil cooler replacement might cost a few hundred pounds, while a head gasket replacement can range from £500 to £1500+. Replacing an engine block would be the most expensive, potentially costing thousands of pounds.
Q3: How long does a head gasket replacement take?
A3: A head gasket replacement is a labour-intensive job and typically takes a skilled mechanic 1-3 days to complete, depending on the vehicle and any complications encountered during disassembly.
Q4: Is it possible to temporarily fix oil mixed with coolant?
A4: There are no reliable temporary fixes for oil mixed with coolant. The underlying mechanical failure needs to be properly diagnosed and repaired to prevent further damage.
Q5: What are the risks of ignoring oil in the coolant?
A5: Ignoring this issue risks severe engine damage, including overheating, loss of lubrication, internal component wear, sludge formation, corrosion, and ultimately, complete engine failure, necessitating a costly replacement.
In conclusion, the presence of oil in your coolant is a critical warning sign that requires immediate attention. By understanding the causes, recognising the symptoms, and knowing the appropriate repair and preventative measures, you can protect your vehicle's engine and ensure its long-term health and reliability. Regular maintenance and prompt attention to any unusual signs are your best defence against this potentially devastating engine problem.
