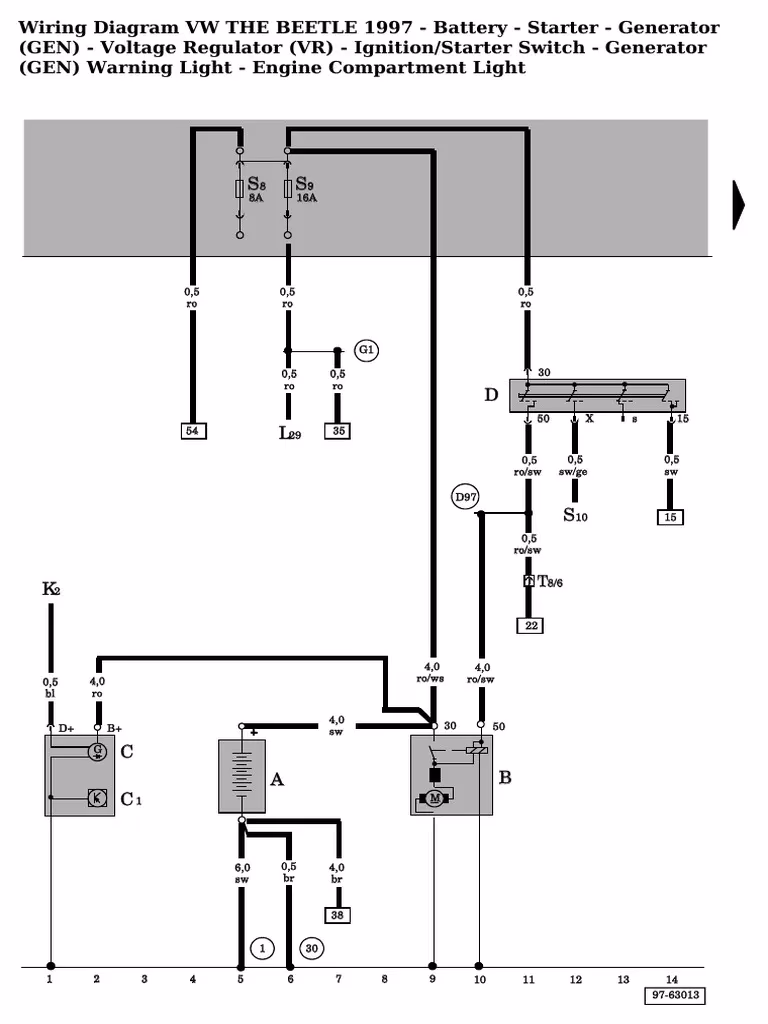

VW Beetle Fuel Systems: FI & Carb Explained

The venerable Volkswagen Beetle, a true icon of motoring, evolved significantly throughout its production run, and one of the most notable transformations occurred within its engine management and fuel delivery systems. While many fondly associate the Beetle with its simple, robust air-cooled engine fed by a carburettor, later US-spec models embraced the more advanced technology of electronic fuel injection. Understanding which system your Beetle employs, and how it functions, is paramount for effective maintenance and troubleshooting.

For owners of a '75 or later Beetle or Super Beetle, or a '75 and later Bus (assuming a US-spec model), your vehicle is likely equipped with a sophisticated fuel injection system. This marked a significant leap from the traditional carburettor, offering improved fuel efficiency, emissions control, and driveability. While Type 3 models from '67 onwards featured the D-Jetronic system, it was the L-Jetronic system that became standard on the later Beetles, Super Beetles, and Buses.

The Bosch L-Jetronic System: A Modern Marvel

The Bosch L-Jetronic fuel injection system, introduced to the Beetle, Super Beetle, and Bus in 1975, often receives an unfair reputation. Many enthusiasts express apprehension or outright dislike for it, a sentiment that largely stems from a 'fear of the unknown'. This unfortunate apprehension frequently leads owners to remove what is, in fact, a superior and more precise system, replacing it with an often inferior aftermarket carburettor setup. This decision can inadvertently degrade the vehicle's performance and reliability.

In reality, the L-Jetronic system is remarkably simple, highly reliable, and surprisingly straightforward to diagnose. You don't need a garage full of specialist equipment to work on it. The essential diagnostic tools required are a fuel pressure gauge, a multimeter, and a comprehensive workshop manual. The official VW repair manuals, particularly those from Robert Bentley Publishers, do an excellent job of detailing the diagnostic procedures for L-Jetronic. A common mistake is to attribute engine problems, especially misfires or poor running, solely to the fuel injection system, leading to an unnecessary and costly spree of replacing parts. It is absolutely imperative that before attempting any diagnosis of the fuel injection system, you first ensure the ignition system is in tip-top shape and the engine is completely free of vacuum leaks. These fundamental checks can often resolve perceived 'fuel injection' issues without touching a single FI component.

Understanding the L-Jetronic system reveals it for what it truly is: a collection of simple parts working in harmony to deliver precise fuel metering. Resources like the scanned Bosch L-Jetronic manual available online, with its clear flow-charts, can be incredibly helpful for detailed troubleshooting information.

Key Advantages of L-Jetronic Fuel Injection:

• Improved fuel economy and reduced emissions.
• Better cold starting and warm-up performance.
• More consistent engine performance across varying conditions.
• Enhanced throttle response.
• Easier diagnosis with basic tools, once understood.

The Classic Fuel System: Carburettor and Mechanical Pump

While later models adopted fuel injection, the vast majority of VW Beetles produced over its long history relied on a simpler, carburettor-based fuel delivery system. This system, prevalent in models prior to 1975 and many non-US specifications, operates on mechanical principles, differing significantly from its electronic successor. In these classic Beetles, fuel is drawn from the front-mounted fuel tank, travels through a fuel line to the engine compartment, and arrives at the mechanical fuel pump.

This mechanical fuel pump is a robust component, operated by an eccentric cam located on the distributor drive shaft. It delivers fuel to the top of the downdraft-type carburettor, where a needle valve, controlled by a float (much like the mechanism in a standard toilet cistern), maintains the precise level of fuel within the carburettor bowl. This constant fuel level is crucial for the carburettor to correctly mix fuel and air for combustion.

Diagnosing Fuel Pump Issues in Carburettor Models: The 'Poor Man's Test'

If your classic Beetle refuses to start, and you've confirmed you have spark at the plugs, the next logical step is to verify that fuel is reaching the carburettor. A simple, effective method, often called the 'Poor Man's Fuel Pump Test', can help you pinpoint issues.

1. Check Fuel Line from Tank: First, ensure the fuel line from the tank or any inline fuel filter isn't blocked. Disconnect the fuel line at the pump that comes from the fuel tank (typically around the left side of the engine). If your tank is more than half full, fuel should flow out by gravity. If not, try blowing gently into the line; you should hear bubbling in the tank, indicating a clear line. Never attempt to suck fuel through the line due to the presence of benzene, a carcinogen.
2. Inspect Fuel Filters: Look for fuel filters in the engine bay, above the gearbox where the fuel line exits the body, or under the front fuel tank. Replace any filters you find; they are inexpensive and can prevent significant aggravation.
3. Test the Fuel Pump Itself: Once you're certain of a good fuel stream from the tank, you can test the pump. Ensure the pump is securely bolted to the engine. Some older pumps feature a small filter beneath a brass bolt near the fan belt; remove and clean it if present. Note that most modern replacement pumps are sealed units and cannot be disassembled.
4. Observe Fuel Flow: Reconnect the top of the fuel pump. Set the parking brake and put the transmission in neutral. Disconnect the hose running from the fuel pump to the carburettor at the carburettor end. Using a 19mm box end spanner (ring spanner) on the alternator/generator nut, turn the engine over clockwise. You should observe squirts of fuel being pumped out of the hose. Remember, the engine pulley needs to turn twice for each squirt of fuel, as the pump operates off the camshaft, which spins at half engine revolutions.

If fuel reaches the pump but the pump isn't delivering, it's highly probable you have a defective fuel pump. Replacing it is one of the simpler VW maintenance tasks.

Fuel Pump Types and Pushrods

VW mechanical fuel pumps come in two primary shapes: the earlier 'tall' variety used with generator-equipped cars, and the later 'short' or 'squat' variety designed for alternator-equipped cars. The 'short' variety is versatile and will fit all VWs, provided the correct shortened 100mm pushrod is used. The original 'tall' pump requires a longer 108mm pushrod. It's crucial to ensure you have the correct pushrod length for your specific pump and engine setup; an incorrect pushrod will prevent the pump from operating effectively, or at all.

Fuel Pump Replacement Procedure (Carburettor Models)

WARNING: Gasoline is extremely flammable. Exercise extreme caution. Do not smoke, allow open flames, or bare light bulbs near the work area. Avoid working in garages with natural gas appliances (e.g., water heaters) that have pilot lights. Wear safety glasses and have a Class B fire extinguisher readily available. Rinse any spilled fuel off skin immediately with soap and water.

Fuel Pump Removal:

1. Disconnect the negative battery cable.
2. Carefully note which port on the fuel pump receives the line from the fuel tank and which runs to the carburettor. Misplacing these lines during reinstallation will prevent the pump from working.
3. Loosen hose clamps and remove both hoses. For '65 and earlier models, unscrew the inlet line with a line spanner.
4. Remove the two 13mm nuts connecting the pump to the engine (the rear one can be fiddly) and lift the pump off.
5. Lift out the pushrod, then remove the intermediate flange (a bakelite insulator block) and its gaskets. Be careful not to damage the bakelite flange.
6. Inspect the pushrod for wear or bending by rolling it on a flat surface.

Fuel Pump Installation:

1. Apply sealant to the engine case around the fuel pump hole, then place the lower gasket.
2. Apply sealant to the underside of the bakelite insulator block and install it, with its pushrod guide tube, into the fuel pump hole on top of the gasket.
3. Apply some grease to the fuel pump pushrod and slide it through the insulator block guide tube, pointed end down. Ensure it slides freely.
4. Apply a thin coat of sealant to the bottom of the top gasket, position it, and apply more sealant around its edges.
5. Check Pushrod Stroke: With the insulator block, pushrod, and one gasket installed, rotate the engine until the pushrod is at its lowest point. The top of the pushrod should be slightly above the gasket level. Then, rotate the engine until the pushrod is at its highest position. Measure the amount of pushrod sticking up past the gasket; this should be between 4 and 5mm (approximately 1/4 inch). If the stroke is too great, add gaskets to the top of the flange. If it's insufficient, you can carefully sand the flange a little at a time on a flat surface until the correct measurement is achieved. Always ensure at least one gasket is between the flange and the fuel pump.
6. Fill the lower chamber of the new fuel pump (where the operating lever is) with universal grease. This is the pump's chamber, not the engine block hole.
7. Set the fuel pump in place over the studs, gasket, and insulating block. Tighten the two 13mm nuts to 18 ft-lb (24 Nm).
8. Reconnect the fuel lines: the top port is the inlet from the tank, the bottom is the outlet to the carburettor. Tighten hose clamps securely.
9. Reconnect the negative battery cable.
10. Start the engine and check for any fuel leaks.

Fuel Pressure Check (Carburettor Models)

Even with a carburettor, checking fuel pressure is vital. Connect a 'tee' fitting in the fuel hose between the fuel pump and the carburettor, then attach a fuel pump pressure tester to the 'tee'. Route the gauge hose away from the drive belt. With the parking brake set and wheels blocked, start the engine in neutral and allow it to warm up. Briefly run the engine at 3400 rpm (approximating highway cruising speed). The specified pressure reading should be 2.8 psi at 3400 rpm. Ideal pressure is often considered 3-3.5 psi. If pressure is too high, it indicates too much pushrod stroke, which can be corrected by adding gaskets between the pump and the spacer.

Common Fuel Pump Issues & Troubleshooting

One recurring issue, as encountered by many Beetle owners, is the breakage of the bakelite 'intermediate flange' during removal. This plastic insulator sits between the fuel pump and the engine case. If it breaks and pieces fall into the crankcase, it can be a significant headache.

While plastic shavings are less damaging than metal, they still pose a risk. If pieces break off, try to retrieve them using long needle-nose pliers, or by drilling a small hole and inserting a self-tapping screw to pull them out. If stubbornly wedged, a piece of hacksaw blade might help cut it. Some suggest inverting the engine on a workbench so debris falls out. If small pieces fall into the crankcase, some mechanics suggest pouring thin, cheap oil into the distributor hole to wash them down to the sump plate for removal. The engine's oil pick-up has a gauze filter, so large pieces are unlikely to enter the oil system, but any debris splashed onto moving parts is a concern.

Remember, the correct pushrod length is paramount. If you've replaced a 'tall' original pump with a 'short' modern one, or vice-versa, you must ensure the corresponding pushrod (108mm for tall, 100mm for short) is used. An incorrect pushrod will lead to no fuel delivery, regardless of pump condition or other repairs.

Dave's Experience: A Timeless Lesson

Many experienced Beetle owners, like Dave, have stories about fuel pump reliability. The 'squat' type replacement pumps are now common and typically fit all engines, provided the shorter pushrod is already in place. Fuel pumps, despite their mechanical nature, are generally quite reliable components. However, even a small detail, such as a cracked gasket under a bolt on the pump's top, can lead to complete fuel pressure loss, as Dave discovered on his '63 Beetle. Simple solutions, like a small faucet washer, can sometimes be life-savers in a pinch, highlighting the importance of thorough inspection of all gaskets and sealing surfaces.

Comparing Fuel Systems: Carburettor vs. Fuel Injection

Here’s a brief comparison to help differentiate the two primary fuel delivery systems found in Volkswagen Beetles:

Frequently Asked Questions (FAQs)

What kind of fuel injection system does a VW Beetle have?

Later US-spec VW Beetles (1975 onwards) typically have the Bosch L-Jetronic fuel injection system. Earlier models and many non-US-spec Beetles use a carburettor system.

Is the Bosch L-Jetronic system reliable?

Yes, the L-Jetronic system is generally very reliable and simple once its operation is understood. Many complaints stem from a lack of familiarity rather than inherent flaws. Proper diagnosis, starting with ignition and vacuum checks, is key.

What tools do I need to diagnose L-Jetronic fuel injection?

For basic diagnostics, you will need a fuel pressure gauge, a multimeter, and a comprehensive workshop manual (such as a Bentley manual) detailing the L-Jetronic diagnostic procedures.

How do I test a mechanical fuel pump on a carburetted Beetle?

You can perform a 'Poor Man's Fuel Pump Test' by disconnecting the fuel line at the carburettor and manually turning the engine over with a spanner on the alternator/generator nut. You should observe squirts of fuel being pumped from the hose. Ensure the fuel line from the tank is clear first.

What is the correct pushrod length for a VW Beetle fuel pump?

The correct pushrod length depends on the type of fuel pump. The original 'tall' pumps used with generators typically require a 108mm pushrod. The later 'short' or 'squat' pumps used with alternators (and which fit all VWs) require a shorter 100mm pushrod. Using the wrong pushrod length will prevent the pump from working correctly.

Can I replace my fuel injection system with a carburettor?

While it is technically possible to convert a fuel-injected Beetle to a carburettor system, it is generally not recommended. The L-Jetronic system is superior in terms of efficiency, emissions, and often reliability. Conversions can lead to performance degradation and may not be road legal in all regions due to emissions regulations.

Whether your VW Beetle is equipped with the advanced L-Jetronic fuel injection or the classic carburettor and mechanical fuel pump, understanding its specific fuel delivery system is crucial. With the right knowledge and tools, maintaining and troubleshooting these iconic vehicles becomes a rewarding experience, ensuring your Beetle continues to cruise down the road for many years to come.
