VW TSI Engines Explained

Volkswagen's TSI (Turbo Stratified Injection) technology represents a significant leap forward in petrol engine design, offering a compelling blend of power, efficiency, and reduced emissions. Primarily aimed at smaller displacement engines, TSI aims to deliver the performance of larger, more traditional engines while consuming less fuel and producing fewer harmful by-products. This innovative approach has become a cornerstone of Volkswagen's powertrain strategy, appearing in a wide range of their vehicles, from the sporty Polo GT to more executive models like the Jetta and Superb.

What Exactly is TSI?

At its core, TSI is Volkswagen's nomenclature for their forced induction, direct-injected petrol engines. The technology addresses the automotive industry's growing need for more environmentally conscious and fuel-efficient engines. The challenge was to create smaller engines that could still produce comparable power and torque to their larger, naturally aspirated predecessors. TSI technology achieves this through two key components: a turbocharger and direct injection.

The Power of Turbocharging

The turbocharger is the first critical element in the TSI equation. It's essentially an air compressor driven by the engine's exhaust gases. These hot gases spin a turbine, which in turn drives a compressor. This compressor forces more air into the engine's cylinders than would be possible under normal atmospheric pressure. This increased air density means a higher percentage of oxygen is available for combustion. More oxygen allows for more fuel to be burned efficiently, resulting in a significant boost in power and torque from a relatively small engine displacement. Compared to a larger, naturally aspirated engine, a turbocharged four-cylinder engine typically has fewer moving parts, leading to reduced internal friction. Furthermore, the smaller physical size and lower weight of the engine contribute to better overall vehicle dynamics and fuel economy.

The Precision of Direct Injection

The second pillar of TSI technology is direct injection. In a direct injection system, fuel is injected directly into the combustion chamber, rather than into a pre-combustion chamber or intake manifold as seen in older multi-point injection systems. This direct delivery offers several advantages:

• Precise Fuel Metering: The engine control unit (ECU) can precisely control the amount of fuel injected, optimising the air-fuel mixture for different operating conditions.
• Enhanced Atomisation: By injecting fuel at very high pressures, it is atomised into a fine spray, leading to more complete and efficient combustion.
• Leaner Mixtures: The precise control allows for the use of leaner fuel-air mixtures (more air, less fuel), which significantly improves fuel economy and reduces emissions.
• Cooling Effect: The vaporisation of fuel within the combustion chamber has a cooling effect, which can help to prevent engine knocking and allow for higher compression ratios, further boosting efficiency and performance.

International vs. Indian TSI Engines

Internationally, the Volkswagen Group offers two main types of TSI engines:

• Turbocharged Direct Injection: This is the most common configuration, featuring a turbocharger and direct injection.
• Twin-Charged Engines: These engines combine a turbocharger with a mechanical supercharger. The supercharger provides immediate boost at low engine speeds, eliminating turbo lag, while the turbocharger takes over at higher revs for maximum power. This results in exceptionally linear and broad power delivery across the rev range.

In India, the TSI engines predominantly found in models like the Polo GT are the turbocharged direct injection variants. While the twin-charged versions offer a unique driving experience, the turbocharged TSI is a highly effective solution for delivering exhilarating performance with impressive efficiency.

A Look at TSI in India

The introduction of TSI technology in India marked a significant step for performance in smaller car segments. The Skoda Laura was one of the first cars to feature a TSI engine in India, specifically the 1.8 TSI. This engine later found its way into the Skoda Superb. Volkswagen's Jetta also received a TSI engine, although initially in a 1.4-litre displacement. The arrival of the Polo GT TSI brought this advanced technology to a more accessible segment, offering a potent combination of a spirited engine and sporty driving dynamics.

TSI vs. Naturally Aspirated Engines: A Comparison

To truly appreciate the benefits of TSI, it's helpful to compare it with traditional naturally aspirated engines:

Key Advantages of TSI:

• Higher Power-to-Weight Ratio: Smaller, turbocharged engines generally offer more power for their size and weight.
• Improved Fuel Efficiency: Direct injection and efficient turbocharging lead to better fuel economy, especially under partial load conditions.
• Reduced Emissions: Precise fuel control and lean burn capabilities help lower harmful emissions.
• Lower Friction: Fewer moving parts in a four-cylinder turbocharged engine compared to a larger V6 or V8 naturally aspirated engine mean less internal friction.
• More Compact and Lighter: This aids in vehicle packaging and improves handling.

Potential Considerations:

• Complexity: Turbocharged and direct-injection systems are more complex than naturally aspirated engines, potentially leading to higher repair costs if issues arise.
• Turbo Lag: While modern turbochargers have significantly reduced turbo lag, it can still be a factor in some applications, particularly at very low RPMs. Twin-charged engines aim to mitigate this entirely.

Here's a simplified comparison table:

High-Performance TSI: Bartek Forged Engine Packages

For enthusiasts seeking to push the boundaries of their Volkswagen or Audi vehicles equipped with TSI engines, aftermarket performance upgrades are readily available. Bartek Motorsport, in conjunction with CVP Built engine packages, offers high-performance components designed to significantly increase power output while maintaining reliability. These packages are particularly aimed at the popular EA888 engine family, commonly found in many MQB platform vehicles.

EA888 Compatibility and Key Components

Bartek's built engine packages are designed for specific generations of the EA888 2.0 TSI engine. A notable example is their package tailored for the third generation of the EA888 engine, which is found in vehicles such as the Golf 7, Audi TT, Audi A3, and Leon Cupra. These packages are engineered to handle substantial power increases, capable of safely supporting over 700 horsepower.

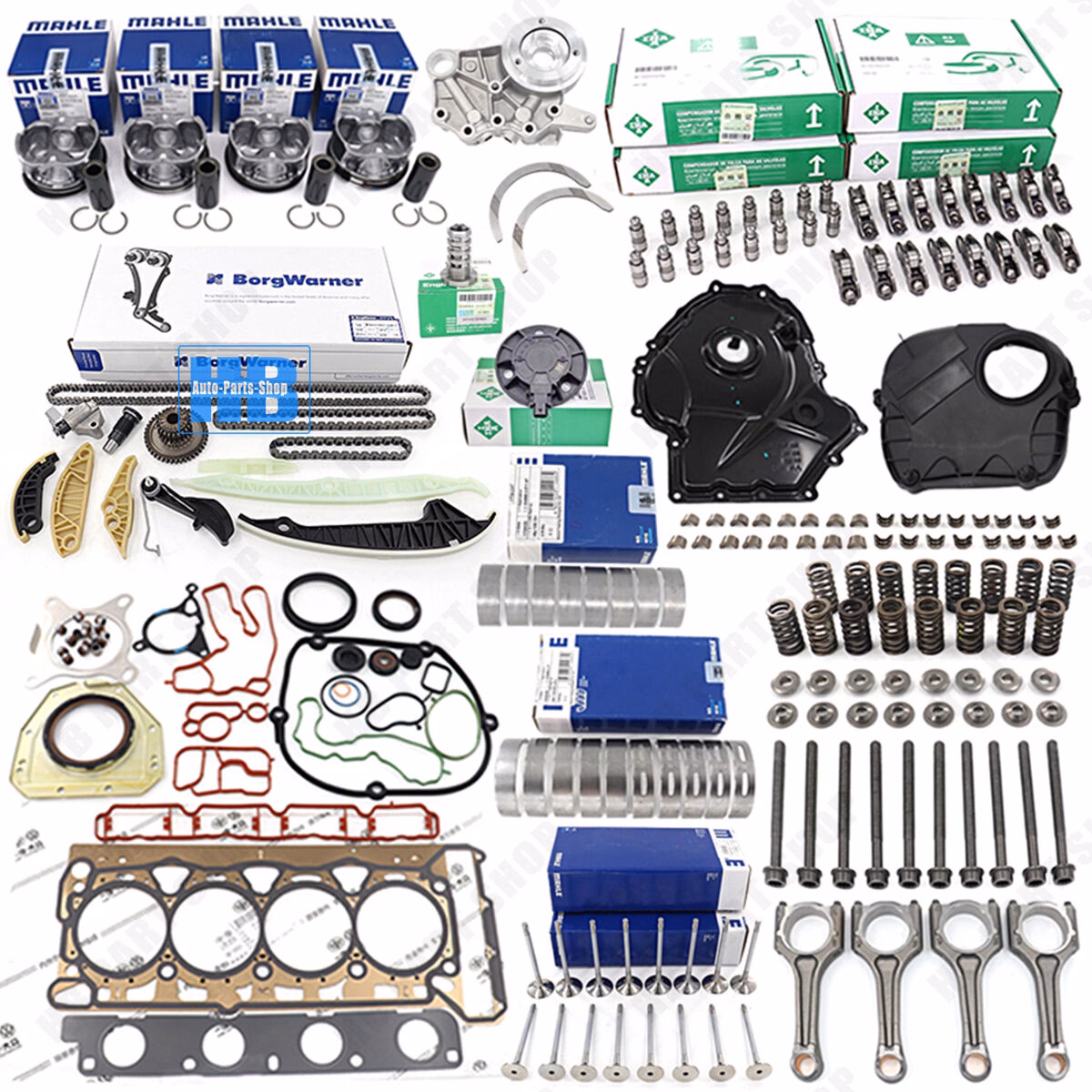

Here's a breakdown of the high-quality components typically included in such packages:

• IRP (Italian RP) Forged Pistons: Crafted from a special, extremely lightweight alloy, these pistons are reinforced for maximum performance. They are available for both standard bore sizes (82.50 mm or 83 mm) and feature a 21 mm piston pin. These are specifically designed for 2.0L TSI EA888 engines of the third generation.
• Bartek Titanium Nitrided H-Beam Connecting Rods: These connecting rods are milled from solid material and treated with titanium nitriding for enhanced strength and durability. They are suitable for extreme performance increases, rated up to 1000 hp. Their lightweight yet robust construction, combined with features like oil risers for piston pin lubrication and ARP 2000 expansion screws, ensures they can withstand immense forces. Each rod weighs approximately 600 grams.
• ACL Racing Connecting Rod Bearings: These are high-performance racing bearings with an extra coating and an additional oil hole for enhanced piston pin lubrication, crucial for high-stress applications.
• ARP Studs for Block and Head: Essential for any engine experiencing increased boost pressure, ARP studs are manufactured from 8740 chromoly steel, offering up to 40% greater tensile strength than standard bolts. These high-performance fasteners ensure the integrity of the engine block and cylinder head under extreme loads. Kits include ARP paste and additional screws for bearing blocks.
• Cometic MLS Head Gasket: A multi-layer metal (MLS) head gasket designed for optimal compression ratios (e.g., 9.5:1). This gasket is suitable for all 2.0L TSI EA888 engines with a timing chain, ensuring reliable sealing under high boost conditions.

Important Note on Purchasing: When purchasing these high-value items from Germany to the UK, be aware that VAT (currently 20%) will be payable to UK customs upon arrival. This ensures the VAT remains within the UK. Shipping is typically via DHL Express for speed and reliability.

Frequently Asked Questions

What does TSI stand for in Volkswagen?

TSI stands for Turbo Stratified Injection.

Are TSI engines good?

Yes, TSI engines are generally considered very good. They offer a strong combination of power, fuel efficiency, and lower emissions compared to similarly sized naturally aspirated engines, thanks to turbocharging and direct injection technology.

What is the difference between TSI and TFSI?

In essence, there is very little difference. Historically, 'TFSI' was Audi's designation for their turbocharged direct-injection petrol engines, while 'TSI' was used by Volkswagen and Skoda. Both terms refer to the same core technology: forced induction and direct fuel injection in a petrol engine.

Is TSI a diesel or petrol engine?

TSI engines are petrol (gasoline) engines. Volkswagen uses the TDI designation for its diesel engines.

What are the common problems with TSI engines?

While generally reliable, some earlier TSI engines, particularly the 1.4 TSI, experienced issues with timing chain tensioners and oil consumption. However, advancements in technology and design have largely addressed these concerns in later generations, such as the EA888.

Can I put a larger turbo on a TSI engine?

Yes, it is possible to upgrade the turbocharger on a TSI engine for increased performance. However, this typically requires supporting modifications such as an upgraded intercooler, fuel injectors, exhaust system, and an ECU remap to safely manage the increased boost pressure and air-fuel mixture.
