The Volkswagen Type 1 engine, famously powering the iconic Beetle, is a marvel of engineering simplicity and enduring performance. For enthusiasts and mechanics alike, understanding the sheer breadth of components available for these air-cooled powerplants is key to successful maintenance, restoration, and even performance enhancement. Whether you're undertaking a routine service or embarking on a full-blown engine rebuild, knowing where to find the right parts and what to look for can make all the difference. This guide delves into the extensive world of VW Type 1 engine parts, covering the popular 1200cc, 1300cc, 1500cc, and 1600cc variants.
Understanding the VW Type 1 Engine Family
The Type 1 engine, also known as the 'air-cooled flat-four', was produced by Volkswagen for many decades. While its core design remained consistent, there were several key displacements that became prevalent: 1200cc, 1300cc, 1500cc, and the most common, the 1600cc. Each of these had specific internal components, but many parts are interchangeable or can be adapted, offering a degree of flexibility for custom builds and repairs. The enduring popularity of these engines means a robust aftermarket supply chain exists, ensuring that owners can continue to maintain and improve their vehicles.
The Sheer Volume of Parts Available
It's not an exaggeration to say that the VW Type 1 engine is supported by an incredible number of individual parts. Specialist suppliers, like V-Dub Store, boast over 500 VW Type 1 engine parts in their catalogues. This vast selection caters to every conceivable need, from the smallest gasket to complete engine long blocks. Let's break down some of the key categories:

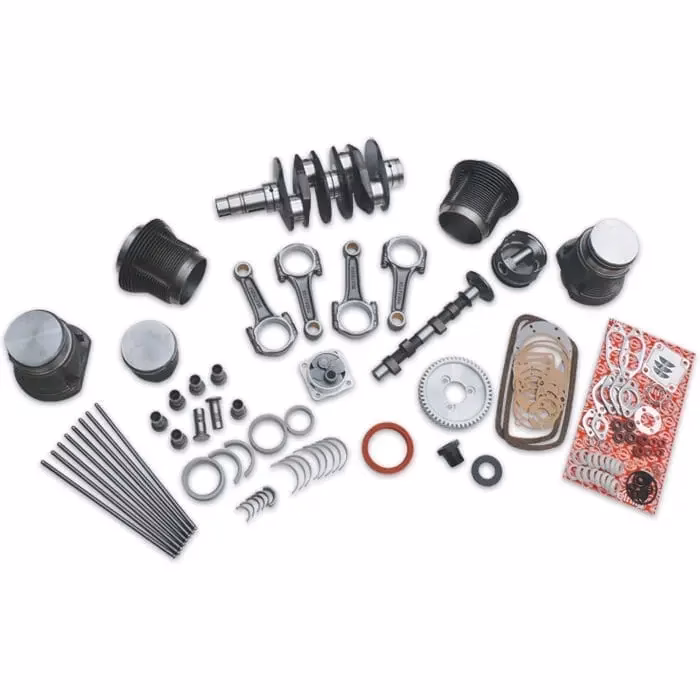

Engine Blocks and Internal Components
The heart of the engine, the engine block, is available in various specifications to match the different displacements. Within the block reside crucial components such as:
- Crankshafts: The backbone of the rotating assembly, converting linear piston motion into rotational force.
- Connecting Rods: Link the pistons to the crankshaft.
- Pistons and Cylinders: The moving parts that generate power through combustion. Different bore sizes are available for various CC capacities.
- Camshafts: Controls the opening and closing of the valves. Performance camshafts are a popular upgrade for increased power.
- Bearings: Main bearings and connecting rod bearings ensure smooth rotation of the crankshaft.
Cylinder Heads and Valve Gear
The cylinder heads are where the magic of combustion happens. These house the valves, spark plugs, and combustion chambers. The valve train includes:
- Valves (Intake and Exhaust)
- Valve Springs
- Retainers and Keepers
- Pushrods
- Rocker Arms
- Valve Covers: Often a point of visual customization, with many aftermarket options available.
Different cylinder head porting and valve sizes are available, influencing engine performance. For instance, 1600cc engines typically feature larger ports and valves than their smaller counterparts.
Fuel and Carburation Systems
Keeping the engine fed with the correct air-fuel mixture is critical. This involves:
- Carburetors: Single or dual carb setups are common. Popular options include Solex, Weber, and Zenith carburetors. Rebuild kits for these are readily available.
- Fuel Pumps: Mechanical pumps are standard, with electric options for high-performance builds.
- Fuel Lines and Filters
- Intake Manifolds: Connecting the carburetor(s) to the cylinder heads.
Ignition System Parts
Reliable ignition is paramount for a smoothly running engine:
- Distributors: Including points, condensers, and rotors. Electronic ignition conversions are a popular upgrade to improve reliability and reduce maintenance.
- Spark Plugs
- Ignition Coils
- Ignition Wires
Cooling System (Airflow) Components
While air-cooled, these engines rely on efficient airflow management:
- Cooling Fan
- Fan Shroud: Directs air over the cylinders and heads for optimal cooling.
- Oil Pump: Circulates oil for lubrication and cooling.
- Oil Cooler: An external oil cooler is a common upgrade, especially for engines used in demanding conditions.
- Oil Breather Box
Exhaust System
A performance exhaust can significantly impact engine sound and power:
- Exhaust Manifolds
- Mufflers/Silencers
- Exhaust Pipes
Clutch and Flywheel Components
Connecting the engine to the gearbox:
- Clutch Disc
- Pressure Plate
- Release Bearing
- Flywheel: Some lighter flywheels are available for quicker engine response.
Alternator and Electrical Components
Modernizing the electrical system is often desirable:
- Alternators: Replacing the original generator for higher output.
- Voltage Regulators
- Wiring Looms
Popular Engine Capacities and Key Differences
Here's a brief overview of the common Type 1 engine sizes and some of their characteristic parts:
| Engine Size | Typical Bore x Stroke | Key Differentiating Parts |
|---|---|---|
| 1200cc | 85.5mm x 88mm | Smaller bore, shorter stroke, often used smaller valves and a simpler carb. |
| 1300cc | 88mm x 88mm | Slightly increased bore over the 1200cc. |
| 1500cc | 88mm x 92mm | Increased stroke, often featuring larger valves than 1200/1300cc. |
| 1600cc | 92mm x 92mm | Square bore and stroke, larger valves, and typically more robust components. This became the standard for many later Beetles, Karmann Ghias, and Type 2 Transporters. |
Where to Source Your Parts
Finding these parts is easier than you might think. Specialist suppliers are crucial for the VW community. Companies like V-Dub Store pride themselves on offering a comprehensive range of air-cooled VW engine parts, from basic maintenance items to high-performance upgrades. They cater to specific engine sizes (1200cc, 1300cc, 1500cc, 1600cc) and can provide advice for your specific project. For those seeking classic Volkswagen supplies, online retailers like Paruzzi (identified by Paruzzi number 1719 and Volkswagen number 111198057B) are excellent resources for a wide array of components, ensuring you can find precisely what you need, whether it's a specific part number or a general category of item.
Common Maintenance and Upgrade Parts
When it comes to maintaining your Type 1, some parts are essential for longevity:
- Gasket Sets: A full engine gasket set is vital for any engine rebuild or significant repair.
- Oil Seals: Preventing leaks is key, especially around the crankshaft.
- Spark Plugs and Points: Regular replacement ensures optimal ignition.
- Carburettor Rebuild Kits: Essential for maintaining smooth running and fuel efficiency.
For those looking to enhance performance, popular upgrades include:
- Performance Camshafts
- Larger Carburetors or Dual Carb Setups
- Performance Exhaust Systems
- Electronic Ignition Conversions
- Larger Oil Coolers
- Performance Cylinder Heads
Frequently Asked Questions
Q: How many VW Type 1 engine parts are there in total?
A: Specialist suppliers often stock over 500 different VW Type 1 engine parts, covering all aspects of the engine from minor fittings to major assemblies.
Q: Can I use parts from a 1600cc engine on a 1300cc engine?
A: Some parts are interchangeable, but many are specific to the engine's displacement. For example, pistons and cylinders will differ. It's always best to verify compatibility with your specific engine code or consult an expert.
Q: Where can I buy classic Volkswagen engine parts?
A: Specialist online retailers like V-Dub Store and Paruzzi are excellent sources for classic VW engine parts, offering a wide selection and expert advice.
Q: What is the most common VW Type 1 engine size?
A: The 1600cc engine became the most prevalent and is found in many later models of the Beetle, Karmann Ghia, and Type 2 Transporter.
Q: What are some common performance upgrades for a VW Type 1 engine?
A: Popular upgrades include performance camshafts, dual carburetors, performance exhaust systems, and electronic ignition conversions.
In conclusion, the VW Type 1 engine, despite its age, remains a highly supported and versatile powerplant. The sheer number of available parts, from simple maintenance items to complex performance components, ensures that these classic engines can be kept on the road and enjoyed for generations to come. Whether you're a seasoned mechanic or a budding enthusiast, understanding the vast array of components at your disposal is the first step towards a successful project.
