Volkswagen's automotive history is a tapestry woven with innovation, and their engine development has been a particularly fascinating thread. From the revolutionary air-cooled Beetles of yesteryear to the sophisticated powerplants of today, VW has consistently strived for advancements that balance performance with everyday usability. Within this journey, one engine stands out as a particularly significant and beloved milestone: the VW 1.8T. Often described as a "superhero" of an engine, the 1.8T garnered a reputation for its robustness, efficiency, and, most importantly, its addictive blend of power and tunability.
The Genesis of the 1.8T: A New Era of Performance
The introduction of the 1.8T engine marked a pivotal moment in Volkswagen's strategy to enhance the performance credentials of its vehicles. This engine was designed to inject a dose of adrenaline into VW's lineup, and it achieved this by embracing the concept of forced induction. The integration of a turbocharger was a key differentiator, allowing smaller displacement engines to produce power comparable to larger, naturally aspirated units. This wasn't just about raw power; the 1.8T was also engineered to be relatively fuel-efficient, a testament to VW's commitment to practicality. The combination of the turbocharger and advancements in fuel delivery systems, such as early forms of direct injection in some variants, created an engine that was both potent and economical, a "magic potion" that quickly captivated enthusiasts.
Technical Marvels: What Made the 1.8T Special?
The 1.8T engine, part of the EA111 and later EA888 families, is an inline four-cylinder, turbocharged, and intercooled petrol engine. Its design philosophy was centred around achieving a strong torque curve, meaning that drivers could experience responsive acceleration across a wide range of engine speeds. This characteristic made it an excellent choice for everyday driving, offering a satisfying surge of power when needed, whether for overtakes or simply merging into traffic. The engine's modular design also facilitated its adaptation across various Volkswagen Group models, from the sporty Golf GTI and Beetle to the more executive Passat and Audi A3.
Key Features of the VW 1.8T:
- Turbocharging: The heart of the 1.8T's performance lies in its turbocharger, which forces more air into the cylinders, allowing for greater fuel combustion and thus, more power.
- Intercooling: To further enhance efficiency and prevent detonation, the engine features an intercooler, which cools the compressed air from the turbocharger before it enters the engine.
- Four Valves per Cylinder: This design improves airflow into and out of the combustion chamber, contributing to better power delivery and fuel economy.
- DOHC (Double Overhead Camshaft): This setup allows for precise control of the intake and exhaust valves, optimising engine breathing and performance.
Performance and Driving Experience
The 1.8T engine delivered a driving experience that was both exhilarating and refined. Its compact size and relatively light weight contributed to balanced vehicle dynamics, making cars equipped with this engine agile and engaging to drive. The turbocharger's boost provided a satisfying "kick" under acceleration, a characteristic that many drivers found addictive. Furthermore, the engine responded exceptionally well to modifications, making it a favourite among tuning enthusiasts. Simple upgrades like an improved exhaust system, a larger intercooler, and an ECU remap could unlock significant power gains, further cementing the 1.8T's reputation as a highly capable and versatile powerplant.
Common Issues and Maintenance Considerations
While the VW 1.8T is widely regarded as a good engine, like any complex piece of machinery, it is not immune to potential issues. Understanding these common problems and adhering to a strict maintenance schedule is crucial for ensuring its longevity and optimal performance. One of the most well-documented issues revolves around the PCV (Positive Crankcase Ventilation) system. A faulty PCV system can lead to oil leaks, rough idling, and even engine damage if left unaddressed. Regular inspection and replacement of PCV components are highly recommended.
Another area that requires attention is the coil packs. These ignition components can fail over time, leading to misfires and a noticeable drop in performance. Similarly, the turbocharger itself, while robust, can eventually wear out, especially if maintenance intervals are neglected or if the engine is consistently driven hard without proper warm-up and cool-down periods. The oil supply and return lines to the turbocharger are critical and can become clogged with sludge if oil changes are not performed regularly with the correct type of oil.

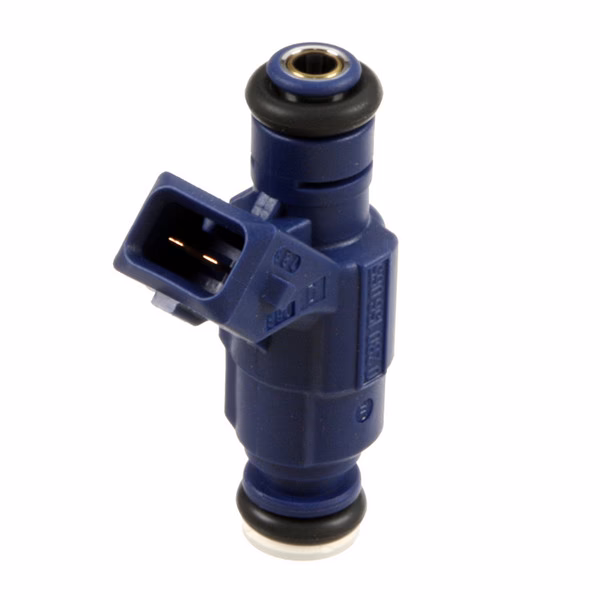

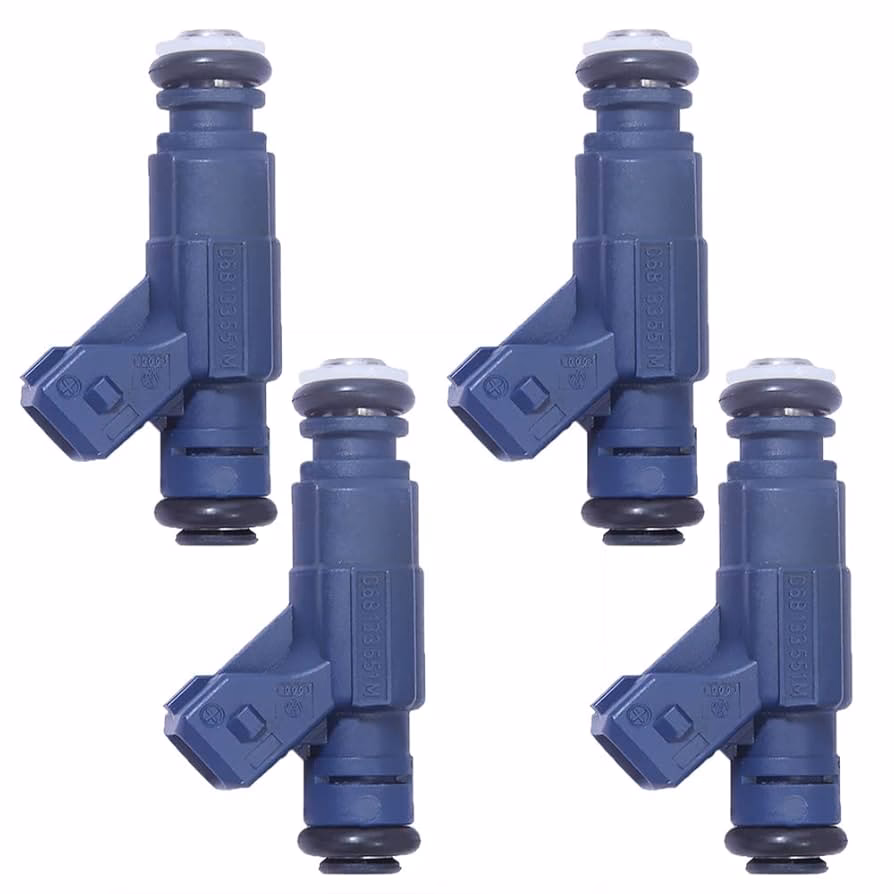

Fuel injectors are another component that can develop issues over time. While the prompt included a question about fuel injector failure, it's important to note that they are wear-and-tear items. Symptoms of failing fuel injectors can include rough idling, poor fuel economy, hesitation during acceleration, and engine misfires. If you suspect an injector issue, it's best to have them diagnosed and potentially cleaned or replaced by a qualified mechanic.
Table: Common 1.8T Issues and Symptoms
| Common Issue | Symptoms | Potential Solutions |
|---|---|---|
| PCV System Failure | Oil leaks, rough idle, whistling noises, check engine light | Replace PCV valve, breather hoses, and oil separator |
| Ignition Coil Pack Failure | Engine misfires, rough running, loss of power, check engine light | Replace faulty coil packs |
| Turbocharger Issues | Loss of power, blue smoke from exhaust, whining noises, oil leaks | Inspect turbocharger, check oil lines, consider rebuild or replacement |
| Fuel Injector Problems | Rough idle, poor fuel economy, hesitation, misfires | Clean or replace fuel injectors |
| Timing Belt/Chain Wear | Engine noise, potential catastrophic failure (if belt breaks) | Regular replacement of timing belt and associated components (e.g., water pump, tensioners) or inspection of timing chain guides and tensioners. |
Is the VW 1.8T a Good Engine? The Verdict
So, is a VW 1.8T a good engine? Absolutely. The VW 1.8T engine is a testament to Volkswagen's engineering prowess. It successfully blended performance, efficiency, and a remarkable degree of tunability, making it a favourite among driving enthusiasts for many years. Its widespread use across numerous VW Group models means that parts are generally readily available, and there's a vast community of owners and mechanics familiar with its quirks and needs. While it's not without its potential issues, particularly as it ages, these are largely well-understood and manageable with diligent maintenance and timely repairs. For those looking for an engine that offers a compelling driving experience and the potential for further enhancement, the 1.8T remains an excellent choice.
Frequently Asked Questions
Q1: How reliable is the VW 1.8T engine?
The VW 1.8T is generally considered a reliable engine, especially when properly maintained. Its robust design has allowed many examples to cover high mileages. However, like any turbocharged engine, it requires diligent maintenance, including regular oil changes with the correct specification oil, and allowing the turbocharger to cool down after hard driving.
Q2: What are the common modifications for a VW 1.8T?
Common modifications include ECU remapping (chipping), upgraded exhaust systems, larger intercoolers, improved intake systems, and upgraded turbochargers. These modifications can significantly increase power and torque output.
Q3: What is the typical lifespan of a VW 1.8T engine?
With regular maintenance and without excessive abuse, a VW 1.8T engine can easily last for 150,000 to 200,000 miles or more. Owners who are proactive with maintenance and address potential issues early often see even greater longevity.
Q4: Does the VW 1.8T use a timing belt or a timing chain?
The early versions of the 1.8T engine (e.g., the AGU, AUM engines) used a timing belt, which requires periodic replacement (typically every 60,000-80,000 miles or 5-7 years). Later versions, particularly within the EA888 family, transitioned to a timing chain, which is designed to last the life of the engine, although its tensioners and guides can sometimes be a point of failure.
Q5: Are there any specific oil recommendations for the VW 1.8T?
Yes, it's crucial to use high-quality synthetic oil that meets Volkswagen's specifications (often VW 502 00 or VW 504 00). Using the correct oil with adequate detergent properties is vital for keeping the turbocharger and PCV system clean and functioning correctly.
Conclusion
The VW 1.8T engine is a remarkable piece of engineering that has left an indelible mark on the automotive landscape. Its blend of spirited performance, relative efficiency, and aftermarket support has secured its place as a beloved powerplant for many. By understanding its strengths and potential weaknesses, and by committing to a thorough maintenance regime, owners can continue to enjoy the rewarding driving experience that the 1.8T provides for many years to come. It truly represents a golden era for Volkswagen performance engines.
