Understanding Carbon Buildup in VW 1.4 TSI Engines

The Volkswagen 1.4 TSI engine, renowned for its blend of power and fuel efficiency, is a popular choice for many enthusiasts. Found in models like the MK5, MK6, and MK7 Jettas, as well as various Golf and Audi A3 variants, this engine has seen continuous development. However, like many modern engines, particularly those with direct injection, it can be susceptible to a common issue: carbon buildup. This article delves into the specifics of carbon buildup in the 1.4 TSI, exploring why it happens, how to identify it, and what you can do to prevent or remedy it.

The TSI Engine Evolution: EA111 vs. EA211

Volkswagen has produced the 1.4 TSI in two main iterations: the EA111 and the EA211. The EA111, first introduced around 2005, gained acclaim for its innovative twin-charged variant, which combined a supercharger and a turbocharger for impressive performance. The EA211, launched around 2012, streamlined this with a focus on turbocharging alone, offering improved efficiency and a lighter construction. While both are generally well-regarded, understanding their nuances is key to addressing common issues like carbon deposits.

What is Carbon Buildup and Why Does it Occur in Direct Injection Engines?

Carbon buildup, often referred to as "carbon fouling," occurs when unburnt fuel and oil residue accumulate on critical engine components. In direct injection (DI) systems, fuel is sprayed directly into the combustion chamber at high pressure. This method offers advantages in terms of efficiency and power, but it bypasses the intake valves. In traditional port injection systems, fuel washes over the intake valves, helping to keep them clean. With direct injection, there's no fuel wash, leaving the intake valves exposed to hot crankcase vapors and oil mist, which can bake onto the valve surfaces over time, forming hard carbon deposits.

Symptoms of Carbon Buildup in Your 1.4 TSI

As carbon deposits accumulate, they can restrict airflow, interfere with proper valve sealing, and lead to a host of performance issues. Early detection is crucial to prevent more severe problems. Here are the common symptoms to watch out for:

• Sluggish Engine Performance: The most noticeable symptom is a general lack of responsiveness. Your engine may feel less powerful and hesitant during acceleration.
• Engine Misfires: Carbon deposits can disrupt the normal combustion process, leading to misfires, especially under load.
• Clogged Fuel Injectors: While the primary issue is on the intake valves, severe cases can also affect fuel delivery.
• Engine Knocking (Detonation): Carbon deposits can increase the compression ratio and create hot spots within the combustion chamber, leading to knocking or pinging sounds, particularly when accelerating.
• Poor Fuel Efficiency: With restricted airflow and inefficient combustion, your MPG will likely decrease.
• Hard Engine Starts: In more advanced stages, the buildup can make it difficult for the engine to start.
• Check Engine Light (CEL): While not exclusive to carbon buildup, a CEL can be triggered by the resulting performance issues, such as misfires or incorrect air-fuel ratios.

Factors Contributing to Carbon Buildup

Several factors can exacerbate carbon buildup in your 1.4 TSI:

• Driving Habits: Frequent short trips where the engine doesn't reach optimal operating temperature allow more unburnt fuel and oil vapors to condense on components.
• Oil Quality and Type: Using lower-quality oil or oil that doesn't meet VW's specifications can contribute to increased oil vapor and deposits.
• Fuel Quality: While less of a direct cause for intake valve buildup, using low-quality fuel can impact overall combustion efficiency.
• PCV System Issues: A malfunctioning Positive Crankcase Ventilation (PCV) system can allow excessive oil vapors into the intake tract.

Preventative Measures and Maintenance

Fortunately, there are several proactive steps you can take to minimise and manage carbon buildup:

• Regular Oil Changes: Adhere to Volkswagen's recommended oil change intervals using the specified high-quality synthetic oil. This ensures the oil performs optimally and reduces the likelihood of vapor formation.
• Use Quality Fuel: Opt for Top Tier™ gasoline, which contains detergents that help keep fuel systems clean.
• Occasional "Italian Tune-Up": Driving your car spiritedly on the motorway for 20-30 minutes (reaching higher RPMs, around 4500 RPM) once a month can help burn off some of the lighter deposits. Ensure the engine is fully warmed up before doing this.
• Fuel System Cleaners: Using an ethanol-based fuel injector cleaner periodically can help keep injectors clean and may offer some minor benefit to the combustion chamber.

Cleaning Carbon Buildup: DIY vs. Professional

When prevention isn't enough, cleaning the accumulated carbon is necessary. The most effective method for direct injection engines is often a chemical cleaning process.

1. Walnut Blasting

This is widely considered the gold standard for cleaning intake valves on direct injection engines. The process involves blasting the intake valves with finely crushed walnut shells using specialised equipment. The walnut shells are abrasive enough to remove stubborn carbon deposits but soft enough not to damage the metal of the valves or cylinder head. Many enthusiasts recommend this service every 40,000-50,000 miles for TSI engines.

DIY Difficulty: Very Difficult (Requires specialised tools and knowledge)

Professional Cost: Typically £300 - £500, depending on location and workshop.

2. Chemical Intake Cleaning (Off-Car)

In some cases, a more aggressive chemical cleaning can be performed. This usually involves removing the intake manifold and ports to soak the valves in a potent cleaning solution. This is a more involved process than walnut blasting and is generally done by professional tuners or specialist workshops.

DIY Difficulty: Extremely Difficult (Requires significant engine disassembly)

Professional Cost: Can be comparable to or higher than walnut blasting, depending on the complexity.

3. In-Cylinder Fuel System Cleaners

While not directly cleaning the intake valves, using a high-quality in-cylinder fuel system cleaner can help keep the combustion chamber and injectors free of deposits. These are added to the fuel tank.

DIY Difficulty: Easy

Frequency: Every 10,000 - 15,000 miles as part of regular maintenance.

FAQ: Your Questions Answered

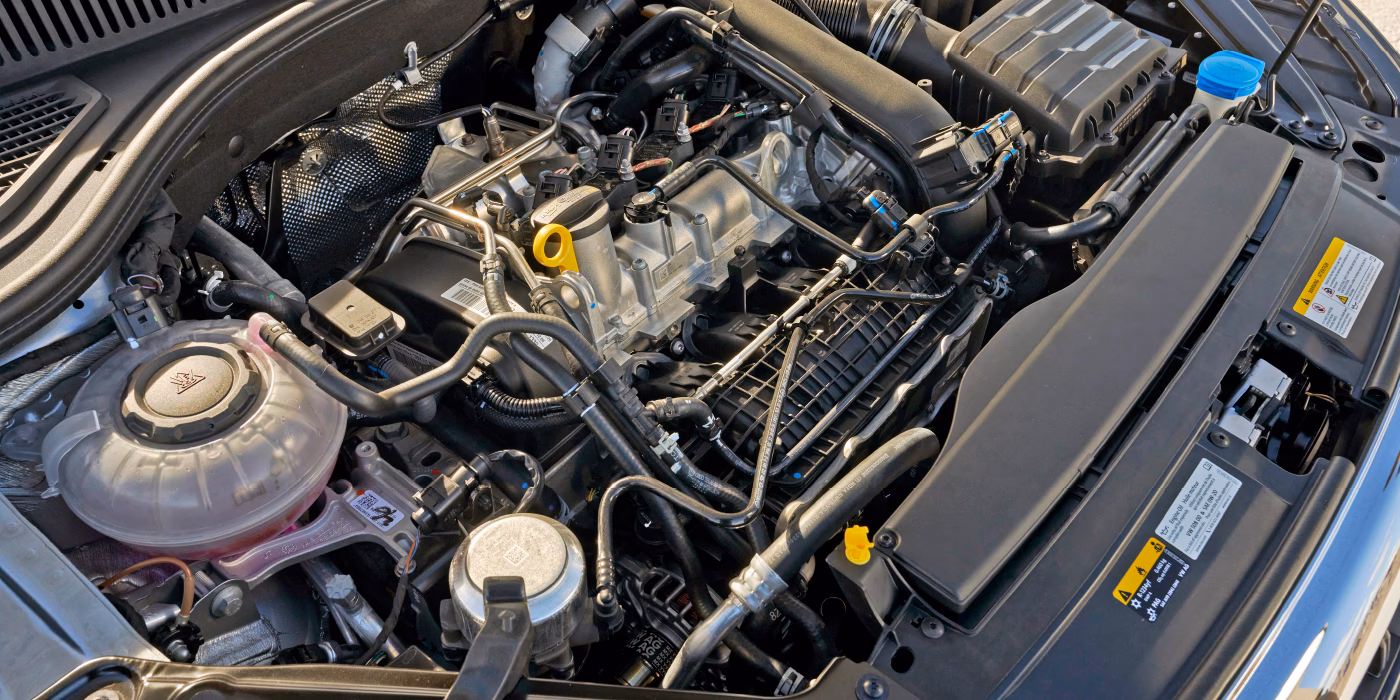

Q1: Does my 1.4 TSI definitely have carbon buildup?

If your 1.4 TSI is approaching 40,000 miles or more, and you're experiencing symptoms like sluggish performance, rough idle, or decreased fuel economy, it's highly probable that some level of carbon buildup is present. Even without obvious symptoms, it's a natural consequence of direct injection.

Q2: Can I prevent carbon buildup entirely?

Unfortunately, it's very difficult to prevent carbon buildup entirely in a direct injection engine. However, by following the preventative maintenance tips mentioned above (regular oil changes with quality oil, quality fuel, occasional spirited driving), you can significantly slow down the rate of accumulation.

Q3: How much horsepower can I lose due to carbon buildup?

Some enthusiasts report losing up to 15-20 horsepower due to significant carbon buildup on the intake valves. This is because the deposits restrict airflow, reducing the engine's ability to breathe efficiently.

Q4: Is the EA211 less prone to carbon buildup than the EA111?

Both generations of the 1.4 TSI are direct injection engines and are therefore susceptible to carbon buildup. While the EA211 might be slightly improved in some areas, the fundamental design of direct injection means the issue can still occur. Regular maintenance and cleaning remain important for both.

Q5: What is the best way to clean carbon buildup on my 1.4 TSI?

The most effective method for cleaning intake valves on a 1.4 TSI is typically walnut blasting. It’s a specialised service that thoroughly removes deposits without damaging engine components. For general maintenance, quality fuel system cleaners can help.

Conclusion: Keeping Your TSI Running Smoothly

The Volkswagen 1.4 TSI is a capable and efficient engine. While carbon buildup is an inherent characteristic of direct injection technology, it doesn't have to be a major headache. By understanding the causes, recognising the symptoms, and adopting a proactive maintenance schedule that includes preventative measures and periodic cleaning, you can ensure your TSI engine continues to perform at its best for many years and miles to come. Investing in services like walnut blasting can revitalise your engine, restoring lost power, improving responsiveness, and ensuring optimal fuel economy.
