09G Transmission: Common Issues & Solutions

The 09G automatic transmission, often found in Volkswagen and Audi models, has garnered a reputation for being somewhat problematic. While some mechanics might claim these units are inherently flawed, a closer look reveals that many issues stem from specific wear points and electrical gremlins rather than a fundamental design weakness. Understanding these common faults is the first step towards effective diagnosis and repair, ensuring your vehicle continues to perform smoothly.

Understanding the 09G Transmission

The 09G is an Aisin-Warner (a Japanese firm) designed automatic transmission. Internally, it's not necessarily a poorly constructed unit. Many of the problems users experience are not due to catastrophic internal failure but rather subtle issues that can cascade into noticeable driving problems. A significant factor contributing to its perceived issues is its adaptive shifting system. This system constantly learns and modifies its shift patterns based on the driver's habits. While this can lead to a more personalised driving experience, it also means that after repairs, a 're-learn' procedure is often necessary, and the transmission's behaviour can be erratic during this period.

Common 09G Transmission Problems

When diagnosing issues with the 09G, it's crucial to differentiate between wear and tear, valve body problems, and electrical or software glitches. Here are some of the most frequently encountered faults:

Valve Body Wear and Solenoid Issues

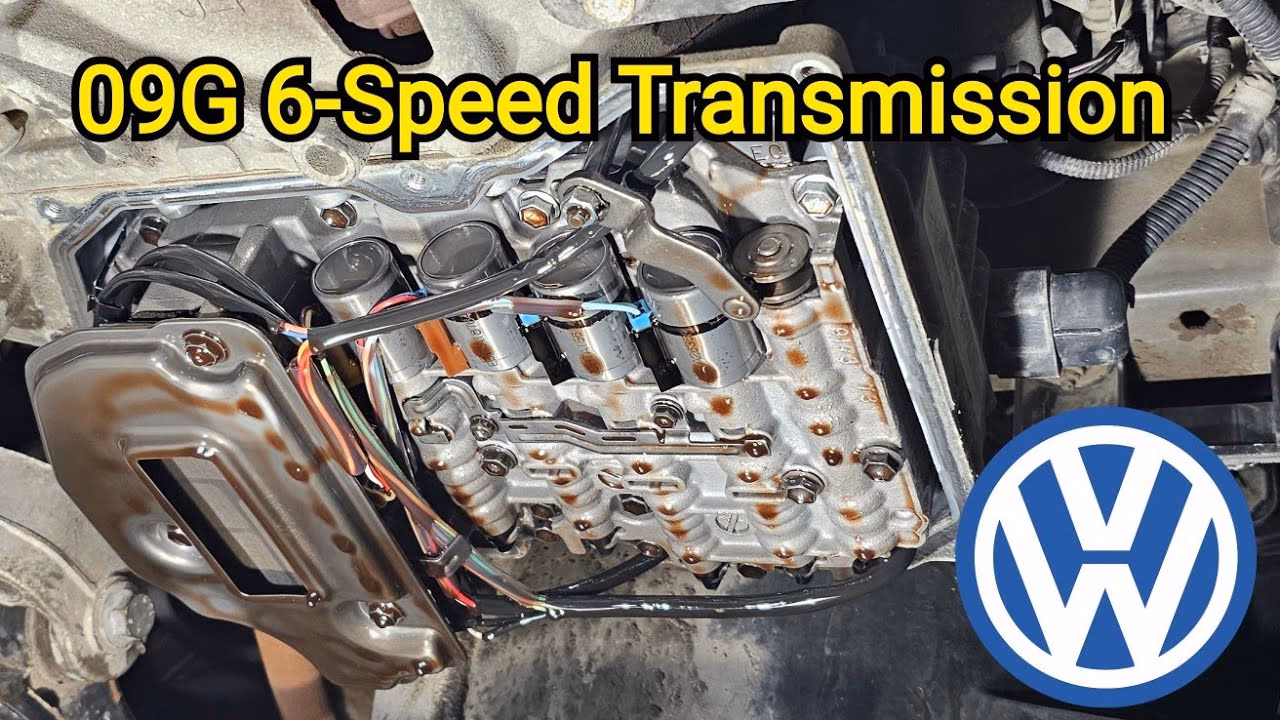

A significant percentage of 09G transmission problems are linked to the valve body. The valve body is the control centre of the transmission, directing hydraulic fluid to engage different gears. The 09G utilises linear valves that are attached to solenoids. These can suffer from:

• Valve-to-Bore Wear: Over time, the bores in which the valves slide can wear. This wear allows hydraulic fluid to leak from one side of the valve spool to another, disrupting the precise pressure control needed for smooth shifting.
• Binding Valves: The valves can also bind or stick in their bores, preventing them from moving freely. This can lead to delayed engagements, harsh shifts, or the dreaded 'slide-bang' or 'slide-bump' symptoms, where the transmission hesitates before engaging a gear.
• Solenoid Malfunctions: The solenoids themselves can fail or become contaminated, leading to incorrect hydraulic pressure application.

Electrical and Software Glitches

The sophisticated adaptive shifting system means that software issues can also play a significant role. These can manifest as:

• Erratic Shifting: The transmission may shift at inappropriate times or with unusual harshness.
• Transmission Warning Lights: Electrical faults can trigger dashboard warning lights, even if the internal mechanical components are sound.
• Adaptive Shift Program Issues: If the adaptive learning process goes awry, it can result in poor performance and shifting characteristics.

Fluid Contamination and Incorrect Fluid

While not a direct cause of wear, using the wrong transmission fluid or allowing the fluid to become contaminated can exacerbate existing issues or lead to new ones. The 09G requires a specific type of ATF with particular additive packages. Using a generic fluid that doesn't meet OEM specifications can lead to:

• Slipping Gears: Insufficient friction or incorrect fluid viscosity can cause clutches to slip.
• Harsh or Soft Shifts: The wrong fluid can alter the hydraulic pressures and clutch engagement characteristics.

Inspecting the transmission pan during a fluid change can reveal signs of wear, such as metal shavings, clutch material delamination, or bushing wear. The presence and type of debris can offer valuable clues about the internal condition of the transmission.

Diagnosing 09G Transmission Problems

Proper diagnosis is key to an effective repair. When faced with 09G issues, consider the following diagnostic steps:

Solutions and Repair Options

Fortunately, the 09G transmission is not a lost cause. Several effective repair strategies can address common problems:

Valve Body Upgrades and Rebuilds

Given that valve body issues are so prevalent, companies like Sonnax and VB Express offer upgraded or completely rebuilt valve bodies. These specialists often:

• Clean and replace worn valves and solenoids.
• Install upgraded components designed to resist wear and improve hydraulic sealing.
• Test the valve bodies on a flow bench to ensure proper operation and eliminate cross-leaks.

While these are typically more expensive than a standard repair, they offer a significantly more reliable and durable solution than a brand-new unit from the manufacturer. After a valve body rebuild or replacement, it is crucial to have the vehicle's adaptive shift re-learn procedure performed by a qualified technician or dealer. This allows the transmission's computer to correctly adapt to the newly repaired valve body.

Addressing Electrical and Software Issues

If the diagnosis points to electrical or software problems:

• Software Updates: Ensure the transmission control module (TCM) has the latest software updates from the manufacturer.
• Sensor Checks: Verify that all relevant sensors (speed sensors, throttle position sensor, etc.) are functioning correctly and providing accurate data.
• Wiring Harness Inspection: Check for any damaged wiring or poor connections that could interfere with communication between the TCM and transmission components.

Transmission Fluid and Additives

Using the correct transmission fluid is paramount. Always consult your owner's manual or the dealer for the exact specification. If you suspect the wrong fluid was used, a complete fluid flush and refill with the correct fluid is recommended. Regarding additives, their effectiveness is highly dependent on the specific product and the underlying problem. Some friction modifiers might make shifts feel firmer by reducing clutch slip, but they won't fix underlying mechanical wear. It's generally best to avoid aftermarket additives unless specifically recommended by a trusted transmission specialist for a particular issue.

Frequently Asked Questions

Is the 09G transmission inherently bad?

No, the 09G transmission is not inherently bad. Many of its perceived problems are related to specific wear points in the valve body and the complexity of its adaptive shifting system, rather than a fundamental design flaw. With proper maintenance and timely repairs addressing these specific issues, the 09G can be a reliable transmission.

What are the most common symptoms of a failing 09G?

Common symptoms include harsh or delayed gear shifts (often described as 'slide-bangs' or 'slide-bumps'), slipping between gears, erratic shifting behaviour, and transmission warning lights on the dashboard.

Do I need a special procedure after a valve body repair?

Yes, after a valve body repair or replacement, it is essential to perform an adaptive shift re-learn procedure. This allows the transmission's control module to recalibrate its shifting strategy based on the new or repaired valve body, ensuring optimal performance.

What kind of transmission fluid does the 09G use?

The 09G requires a specific type of Automatic Transmission Fluid (ATF) that meets OEM specifications. Always refer to your vehicle's owner's manual or consult a dealership to confirm the correct fluid type and specification for your particular model.

Conclusion

The 09G transmission, while capable of presenting challenges, is far from unfixable. By understanding the common failure points, particularly within the valve body and the adaptive shifting system, and by employing quality repair solutions, such as upgraded components from reputable manufacturers, you can restore your transmission's performance and longevity. Regular maintenance, using the correct fluid, and addressing symptoms promptly are key to keeping your 09G performing at its best.
