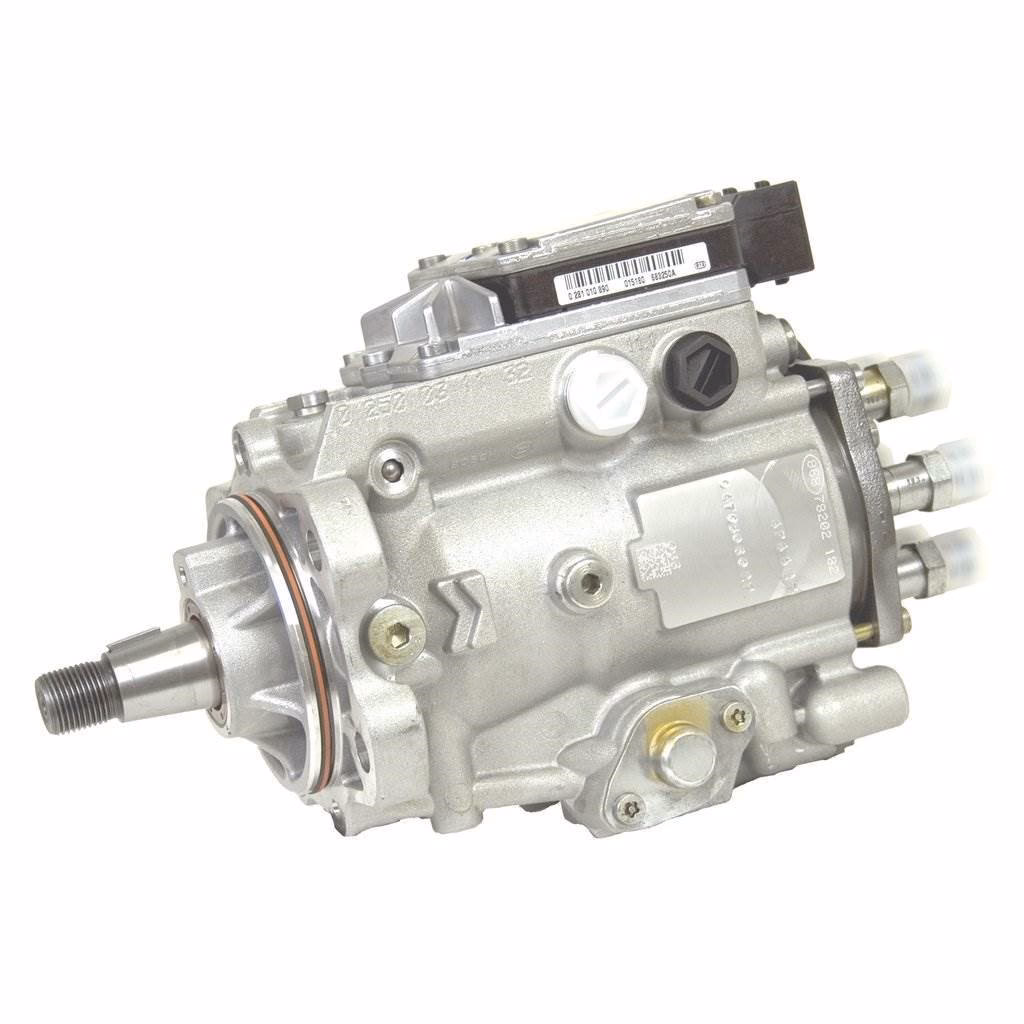

Cummins VP44 Pump Explained

The Cummins VP44 injection pump is a cornerstone of the 24-valve Cummins 5.9L diesel engine, particularly prevalent in the Dodge Ram trucks from 1998.5 to 2002. It's a sophisticated piece of engineering designed to deliver precisely metered fuel under immense pressure directly to the injectors. Unlike earlier mechanical injection pumps, the VP44 is electronically controlled, allowing for much finer tuning of fuel delivery based on various engine parameters. This electronic control is key to its performance and efficiency, but also contributes to its complexity and potential failure points. Understanding how this pump works is crucial for diagnosing issues and ensuring the longevity of your Cummins engine.

The Inner Workings of the VP44

At its heart, the VP44 is a distributor-type injection pump. This means that a single pumping element distributes the high-pressure fuel to each injector in sequence. Let's break down its key components and their functions:

1. High-Pressure Gear Pump (HPOP)

Located at the front of the VP44, the HPOP is the initial stage of fuel delivery. It draws fuel from the vehicle's tank and pressurizes it to around 10-20 PSI. This low-pressure fuel is then fed into the main pumping section of the VP44. The HPOP also plays a vital role in cooling and lubricating the VP44 itself.

2. Pumping and Distribution Section

This is where the magic happens. The VP44 utilises a single plunger driven by a camshaft. The rotation of the camshaft causes the plunger to reciprocate. As the plunger moves down, it draws fuel into the pumping chamber. As it moves up, it pressurises the fuel. The key to the VP44's operation lies in how it meters and distributes this pressurised fuel:

• Variable Timing (VT) Piston: This piston, controlled by the Engine Control Module (ECM), precisely adjusts the timing of fuel injection. By moving the VT piston, the point at which the fuel is directed to the appropriate injector port is altered, thereby advancing or retarding the injection timing.
• Pressure Control Valve (PCV): The PCV regulates the pressure within the pump's internal passages. It works in conjunction with the Electronic Control Unit (ECU) to maintain the optimal fuel pressure required for injection.
• Distributor Rotor: A precisely machined rotor spins within the pump. As the plunger pressurises the fuel, the rotor directs this high-pressure fuel through internal channels to the correct injector line at the precise moment of injection. The rotation of the rotor synchronises with the engine's firing order.

3. Electronic Control Module (ECM) Integration

The VP44's operation is heavily reliant on the ECM. The ECM receives data from various sensors on the engine, including the crankshaft position sensor, camshaft position sensor, throttle position sensor, and manifold absolute pressure sensor. Based on this data, the ECM sends electrical signals to the VP44's internal solenoids, specifically the Timing Solenoid and the Fuel Control Actuator (FCA).

• Timing Solenoid: This solenoid directly influences the position of the VT piston, thereby controlling injection timing.
• Fuel Control Actuator (FCA): The FCA regulates the amount of fuel delivered to the injectors. It works by controlling the amount of fuel that is bypassed or returned to the tank, effectively adjusting the fuel rail pressure.

Common VP44 Issues and Symptoms

Despite its robust design, the VP44 is known for certain failure modes. Understanding these can help you identify problems early:

1. Fuel Pressure Issues

Perhaps the most common cause of VP44 failure is inadequate fuel pressure from the lift pump. The VP44 requires a consistent and adequate supply of fuel at approximately 10-20 PSI. If the lift pump (often referred to as the stock lift pump) fails or weakens, the VP44 can starve for fuel. This starvation can lead to:

• Overheating: The VP44 relies on fuel for cooling and lubrication. Low fuel pressure means less fuel flowing through the pump, causing it to overheat.
• Internal Damage: Overheating can cause the internal components, particularly the electronic control elements, to fail.
• Loss of Power: Insufficient fuel delivery will result in a noticeable loss of power, especially under load.
• Hard Starting or No Start: In severe cases, the pump may not be able to deliver enough fuel to start the engine.

2. Electronic Component Failure

The electronic components within the VP44, particularly the internal circuit board and solenoids, can be susceptible to failure due to heat, vibration, or voltage spikes. Symptoms of electronic failure can include:

• Intermittent Stalling: The engine may cut out unexpectedly, only to restart later.
• Check Engine Light: The ECM may detect a fault within the pump and illuminate the check engine light.
• No Start Condition: The pump may be completely unresponsive due to a failed electronic control unit.

3. Wear and Tear

Like any mechanical component, the VP44 is subject to wear over time. Internal seals can degrade, and plungers or rotors can develop wear, leading to:

• Reduced Fuel Delivery: Over time, the pump's ability to generate and distribute fuel effectively can diminish.
• Rough Idling: Uneven fuel delivery can cause the engine to idle roughly.

Maintenance and Upgrades

Preventative maintenance and strategic upgrades can significantly extend the life of your VP44:

1. Upgraded Lift Pump

This is arguably the most critical upgrade for any VP44-equipped Cummins. Replacing the stock, often weak, lift pump with a high-flow, reliable aftermarket unit is essential. These pumps provide consistent and adequate fuel pressure, protecting the VP44 from starvation and overheating.

2. Fuel Filtration

Clean fuel is paramount. Ensure your fuel filters are replaced at regular intervals. Consider installing an additional fuel filter or a filtration system to remove even finer contaminants that could damage the delicate internal components of the VP44.

3. Fuel Pressure Monitoring

Installing a fuel pressure gauge in your cabin is highly recommended. This allows you to monitor the fuel pressure in real-time and detect any drops that could indicate a failing lift pump or other fuel system issues before they cause damage to the VP44.

4. High-Quality Fuel

Using good quality diesel fuel is important. Avoid contaminated or poor-quality fuel, as it can contain water or debris that will harm the VP44. Some owners also opt for diesel additives that can help lubricate and clean the fuel system.

VP44 vs. Common Rail: A Brief Comparison

It's worth noting that the VP44 was eventually superseded by the common rail fuel system (found in 2003 and newer Cummins engines). While both systems deliver fuel under high pressure, the common rail system operates with even higher pressures and uses electronically controlled injectors directly, rather than a central distributor pump. This generally leads to improved fuel efficiency, lower emissions, and potentially more power, but the VP44 remains a beloved and capable pump when properly maintained.

Frequently Asked Questions (FAQs)

Q1: What are the most common symptoms of a failing VP44?

A1: Common symptoms include loss of power, hard starting or no start, intermittent stalling, rough idling, and the check engine light illuminating.

Q2: How long does a VP44 typically last?

A2: The lifespan of a VP44 can vary greatly depending on maintenance, operating conditions, and whether the lift pump is adequate. With proper care and an upgraded lift pump, they can last for hundreds of thousands of miles. Without these precautions, they can fail much sooner.

Q3: Can a VP44 be rebuilt?

A3: Yes, VP44 pumps can be rebuilt by specialised diesel fuel injection shops. However, the cost of a rebuild can be significant, and many owners opt for a new or remanufactured unit, especially if the failure was due to electronic component issues.

Q4: What PSI should my VP44 fuel pressure be?

A4: The VP44 typically requires between 10-20 PSI of fuel pressure from the lift pump. It's crucial to maintain this pressure range for optimal performance and pump longevity.

Q5: Is it worth upgrading the lift pump on a VP44?

A5: Absolutely. Upgrading the lift pump is considered the single most important preventative measure you can take to protect your VP44 from premature failure.

In conclusion, the Cummins VP44 injection pump is a complex yet effective fuel delivery system. By understanding its internal mechanisms, common failure points, and the importance of diligent maintenance and strategic upgrades, you can ensure your 24-valve Cummins engine continues to perform reliably for years to come. Pay close attention to your fuel pressure, keep your filters clean, and consider investing in a quality lift pump upgrade – your VP44 will thank you for it.
