Driving should be a smooth, predictable experience. When your Volvo V40 feels like it has a mind of its own, perhaps 'kicking' unexpectedly or pulling to one side, the culprit is often found in something as fundamental as wheel alignment. Specifically, we're talking about 'toe' – a critical angle that dictates how your wheels point relative to each other and the centreline of your vehicle. Understanding toe-in, toe-out, and their implications is key to restoring your car's composure and ensuring a confident, comfortable drive.
Imagine looking down at your car's wheels from above. If the front edges of your wheels point slightly inwards, towards each other, that's known as toe-in. Conversely, if they point slightly outwards, away from each other, that's toe-out. These minute angles, often measured in minutes of a degree or decimal degrees, have a profound impact on your car's handling, stability, and even the longevity of your tyres. While a 'positive toe-in' means the wheels are angled inwards at the front, a 'positive toe-out' would mean they are angled outwards. The distinction is crucial for proper vehicle dynamics.
What Exactly is 'Toe' and Why Does it Matter?
Toe is one of the primary angles adjusted during a wheel alignment, alongside camber and caster. It refers to the symmetrical angle of the wheels relative to the vehicle's longitudinal axis. For front-wheel-drive cars, a small amount of toe-in is often specified to counteract the forces that push the wheels outwards when driving, aiming for zero toe under load. For rear-wheel-drive vehicles, a slight toe-out might be used for similar reasons, to achieve straight-ahead tracking. The goal is to ensure the wheels are perfectly parallel when the vehicle is moving down the road.
When your car has too much toe-in, the tyres are constantly scrubbing against the road surface as they try to roll straight, leading to excessive wear on the outer edges of the tyres. Conversely, too much toe-out causes wear on the inner edges. Beyond tyre wear, incorrect toe settings can lead to a host of handling issues. A car with excessive toe-in might feel overly stable at high speeds but reluctant to turn in sharply, while too much toe-out can make the steering feel twitchy and unstable, particularly at speed.
The Impact of Incorrect Toe Settings: More Than Just Tyre Wear
The effects of improper toe alignment extend far beyond simply wearing out your tyres prematurely. Consider the following:
- Handling Characteristics: As experienced with a 'kicking' sensation, incorrect toe can make the car feel unpredictable. Excessive toe-in can cause the steering to feel heavy and unresponsive, while too much toe-out can lead to a 'nervous' or 'darting' feel, especially when encountering road imperfections or crosswinds.
- Steering Wheel Position: A common symptom of misalignment is a steering wheel that isn't straight when the car is travelling in a straight line. If your steering wheel is dead ahead but the car still pulls, it suggests a combination of front and rear alignment issues.
- Fuel Efficiency: When tyres are scrubbing rather than rolling freely, it increases rolling resistance. This means your engine has to work harder to maintain speed, directly impacting your fuel economy. Every little bit of drag adds up over thousands of miles.
- Component Strain: Constant scrubbing and fighting against the road can put undue stress on suspension components, steering linkages, and wheel bearings, potentially leading to premature wear and costly repairs down the line.
Decoding Your Volvo V40's Alignment Readings
Your recent alignment check revealed a 'positive 27 minutes of Toe In' on the front, equivalent to 0.45 decimal degrees. This is a significant amount of toe-in, much higher than typical factory specifications. Such an aggressive toe-in setting would indeed cause the front wheels to point inwards excessively, leading to the tyre scrubbing and potentially the 'kicking' sensation you described. The fact that your steering wheel was dead ahead despite this suggests your driving style or other alignment parameters were compensating, or perhaps the issue was more pronounced at speed.

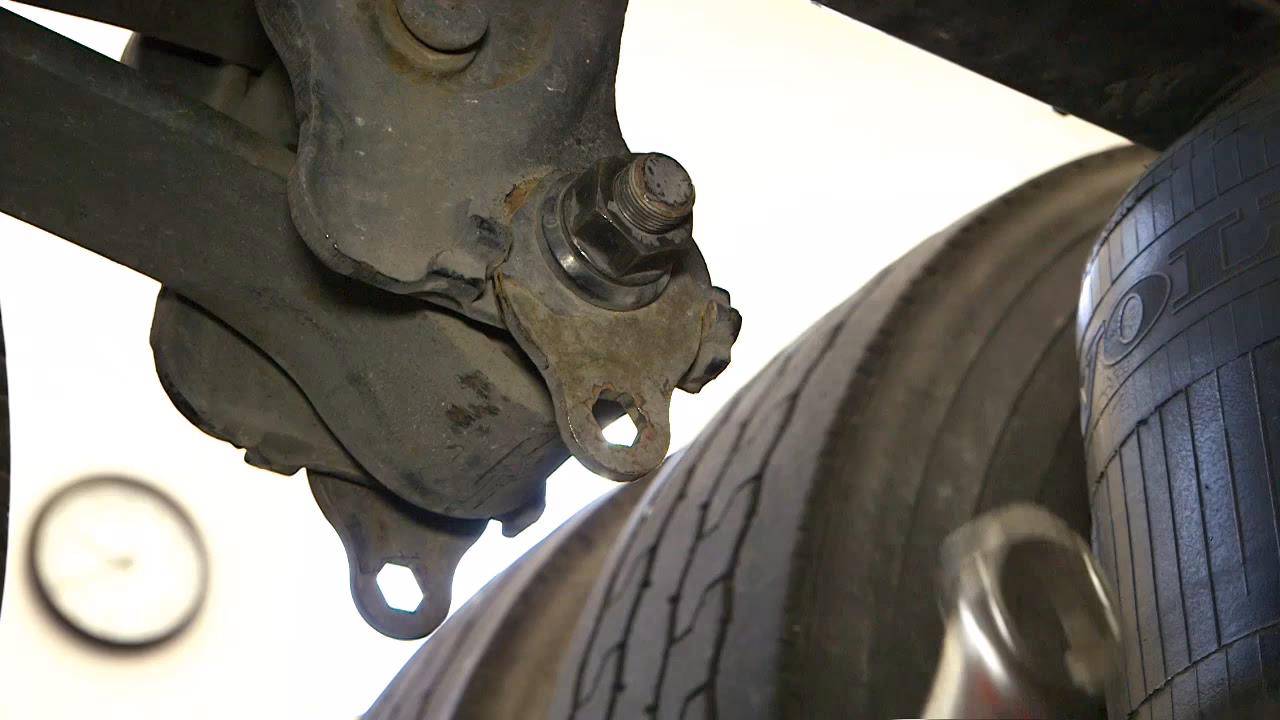

The revelation that the rear offside wheel had 'zero toe' with no toe-in is also critical. In many vehicles, particularly those with independent rear suspension, a small amount of rear toe-in is specified for stability. If one rear wheel has zero toe while the other has some, or if the overall rear toe is incorrect, it can cause the car to 'crab' down the road, leading to a constant pull and necessitating steering input to keep it straight. If the car was tracking to the right due to the rear offside wheel's zero toe, compensating with right lock would be natural. However, adjusting just the rear to factory specs (likely some toe-in) without touching the front would then require applying left lock, as you rightly deduced, to counteract the new rear axle setting.
Why Factory Specifications are Your Best Starting Point
For your Volvo V40, the factory specification for the front is 12 minutes of Toe In (0.20 decimal degrees). This is a carefully calculated setting designed by the manufacturer to provide the optimal balance of stability, handling, and tyre wear for a stock vehicle under normal driving conditions. The fact that your car previously had 27 minutes of toe-in indicates a significant deviation from these recommendations, likely contributing to your handling issues.
The factory also provides a range, from 6 minutes (0.10 decimal degrees) at the lower end to 18 minutes (0.30 decimal degrees) at the upper end. This range allows for slight adjustments based on driving style or specific performance goals. For instance, a setting closer to 6 minutes toe-in might improve turn-in response, making the car feel more eager to corner, while a setting closer to 18 minutes might offer greater straight-line stability at high speeds, albeit with a slight compromise on steering feel.
| Alignment Setting | Typical Effect on Handling | Impact on Tyre Wear |
|---|---|---|
| Excessive Toe-in | Increased straight-line stability, heavy steering, reluctant turn-in | Outer edge wear on front tyres |
| Excessive Toe-out | Nervous or 'darting' steering, improved turn-in response | Inner edge wear on front tyres |
| Zero Toe | Neutral steering, potential instability at speed (depending on vehicle) | Even wear, but may not be optimal for dynamics |
| Correct Factory Toe | Balanced handling, predictable steering, good stability | Even and extended tyre life |
The Interplay of Camber and Toe
You mentioned the car 'wandering as the camber changes'. Camber is another crucial alignment angle, referring to the inward or outward tilt of the wheel when viewed from the front of the car. Positive camber means the top of the wheel tilts outwards, while negative camber means it tilts inwards. While toe primarily affects straight-line tracking and tyre scrub, camber influences how the tyre makes contact with the road, especially during cornering. Changes in road surface or suspension compression can alter camber, and if your toe setting isn't harmonious with these camber changes, it can indeed lead to an unsettling 'wandering' sensation. A perfectly set toe helps to minimise the negative effects of dynamic camber changes.
The Iterative Process of Achieving Perfect Alignment
Your decision to reset everything back to factory specifications is an excellent starting point. It provides a known baseline from which to evaluate the car's behaviour. The process of fine-tuning alignment is often iterative:
- Set to Factory Specs: This is the foundation. Professional equipment ensures precise measurements and adjustments.
- Test Drive: Drive the car under various conditions – city, motorway, corners. Pay close attention to how it feels. Does it pull? Is the steering wheel straight? Does it feel stable?
- Evaluate and Adjust: Based on your test drive, decide if further adjustments within the factory range are needed. For instance, if the car still feels a bit vague at the front, moving towards the upper end of the toe-in range (like 18 minutes) might provide more stability. If you desire sharper turn-in, trying the lower end (6 minutes) could be beneficial.
- Repeat: Each adjustment should be followed by another test drive until the desired handling characteristics are achieved, always staying within the manufacturer's recommended tolerances to prevent excessive tyre wear or dangerous handling traits.
It's important to remember that wheel alignment is a precise science, and even a few minutes of error can be felt by a sensitive driver. The conversion from 'Decimal Degrees' to 'Minutes' (where 1 degree equals 60 minutes) highlights the fine precision involved. Trusting a reputable garage with modern alignment equipment is paramount, as their tools can measure these minute adjustments accurately.
Frequently Asked Questions About Wheel Alignment
Q: How often should I get my car's wheel alignment checked?
A: It's generally recommended to have your alignment checked annually or every 10,000 to 12,000 miles, whichever comes first. However, you should definitely get it checked immediately after hitting a large pothole, curbing a wheel, being involved in an accident, or replacing any steering or suspension components (like tie rods, control arms, or shock absorbers).
Q: What are the signs that my car needs a wheel alignment?
A: Common signs include your car pulling to one side, uneven or rapid tyre wear, a crooked steering wheel when driving straight, a loose or wandering feeling in the steering, or a vibrating steering wheel.
Q: Can I perform a wheel alignment myself?
A: While basic DIY methods exist for measuring toe, achieving a precise and comprehensive alignment (which includes camber and caster) requires specialised equipment and expertise. For accurate and lasting results, it's always best to have a professional garage with modern alignment machinery perform the service.
Q: Does wheel alignment affect all four wheels?
A: Yes, a proper alignment often involves checking and adjusting all four wheels, especially on vehicles with independent rear suspension. While front-wheel alignment is most commonly discussed, incorrect rear alignment can significantly impact handling and tyre wear, as you experienced with your Volvo V40.
Q: What's the difference between wheel balancing and wheel alignment?
A: Wheel alignment adjusts the angles of the wheels so they are parallel to each other and perpendicular to the ground, ensuring proper tracking and tyre contact. Wheel balancing corrects uneven weight distribution in the tyre and wheel assembly itself, preventing vibrations at speed. Both are crucial for optimal vehicle performance and tyre longevity.
In conclusion, the 'positive v40cc toe out' question, while referring to a condition your car didn't have, leads us to a crucial discussion about the nuances of wheel alignment. Your experience with excessive toe-in and an uneven rear toe setting perfectly illustrates how these precise measurements translate into tangible handling characteristics. By returning to factory specifications and carefully evaluating subsequent adjustments, you're on the right track to regaining that smooth, predictable driving experience your Volvo V40 was designed to deliver.
