Volvo SRS Airbag Warning: Urgent Service Needed?

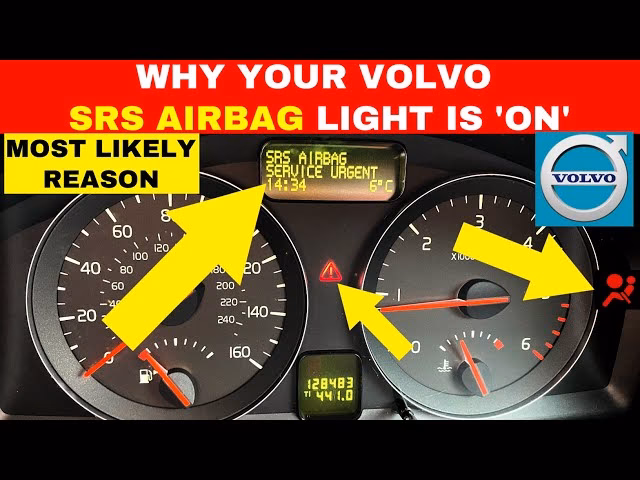

When your Volvo flashes the dreaded 'SRS Airbag Service Urgent' message on its dashboard, it's more than just a minor inconvenience; it's a critical alert demanding your immediate attention. The Supplementary Restraint System (SRS) is the cornerstone of your vehicle's passive safety features, designed to protect you and your passengers in the event of a collision. Ignoring this warning could compromise your safety, potentially leading to airbags failing to deploy, or worse, deploying unexpectedly. This comprehensive guide will delve into what the Volvo SRS airbag system entails, why this warning appears, how to diagnose it, and what steps you can take to resolve the issue, ensuring your Volvo remains as safe as it was designed to be.

Understanding Your Volvo's SRS Airbag System

The Supplementary Restraint System (SRS) in your Volvo is a sophisticated network of components working in harmony to provide crucial protection during a crash. Unlike active safety features that require driver input (like braking or steering), SRS components are passive, meaning they deploy automatically without you needing to do anything. This system is designed to supplement the protection offered by seatbelts, significantly reducing the risk of severe injuries in a collision.

Key Components of the SRS Airbag System

Your Volvo's SRS system is comprised of several vital parts, each playing a critical role:

• Airbags: These deploy rapidly upon impact, providing a cushion between occupants and hard surfaces of the vehicle.
• Impact Sensors: Strategically located around the vehicle (e.g., side door panels, front and rear bumpers), these sensors detect the force and direction of a collision, sending crucial signals to the SRS module.
• SRS Module (Airbag Control Unit): The 'brain' of the system, this module processes data from the sensors, determines the severity of the impact, and decides which airbags (if any) need to deploy within milliseconds.
• Seat Belt Pretensioners: Working in conjunction with airbags, these devices tighten the seatbelt instantly during a collision, pulling the occupant firmly into their seat to maximise the effectiveness of the airbag and prevent excessive forward movement.
• Seat Occupant Weight Sensors (OWS): Found in the passenger seat cushion, these sensors detect the presence and weight of a passenger, allowing the system to determine whether to activate the passenger airbag and with what force.
• Clock Spring: Located in the steering column, this coiled wire allows electrical signals to be transmitted from the steering wheel (for airbag, horn, and steering wheel controls) to the vehicle's electrical system while the wheel is turned.
• Airbag Igniter: This small component initiates the chemical reaction that inflates the airbag.

The Function of Airbags in Volvo Vehicles

In the unfortunate event of an accident, your Volvo's airbags are designed to inflate almost instantaneously – typically within 20-30 milliseconds of impact. This rapid deployment creates a protective barrier, cushioning occupants and distributing impact forces over a larger area, thereby minimising the risk of head, chest, and other serious injuries. It's crucial to remember that airbags are a supplementary restraint; they work best when combined with correctly worn seatbelts. Always buckle up!

Why Your Volvo SRS Airbag Warning is Displaying

The 'SRS Airbag Service Urgent' message appearing on your Volvo's dashboard indicates that the system has detected a malfunction within the SRS. This could mean a component is faulty, a sensor is misreading, or there's a communication error. When this message is active, the SRS system may be disabled, meaning your airbags might not deploy in a crash, or in rare cases, could deploy unexpectedly.

Common Causes for the SRS Warning

Several issues can trigger the SRS warning. Here are the most common culprits:

• Defective Impact Sensor: If an impact sensor is faulty, it won't send the correct signal to the airbag module during a collision, preventing deployment. These sensors can be damaged by minor impacts or simply fail over time.
• Defective Seat Belt Pretensioner: A faulty pretensioner will trigger the warning as it's a core component of the SRS. If it cannot properly restrain an occupant, the system flags an error.
• Broken Clock Spring: This is a very common cause. A broken clock spring disrupts the electrical connection to the steering wheel's airbag, horn, and control buttons. You might notice the horn not working or steering wheel buttons failing alongside the SRS warning.
• Faulty Wiring: The SRS system relies on complex wiring. Any damaged, corroded, or disconnected wires can create an open circuit, leading to communication errors and triggering the warning.
• Defective Airbag Igniter: An igniter can malfunction due to corrosion, dirt, age, or electrical failure. If it fails, the airbag won't deploy. In some rare cases, a faulty igniter can even cause an unintended deployment.
• Faulty Airbag Module (SRS Control Unit): The central control unit can fail due to internal defects, exposure to moisture, or storing crash data from a previous accident. A faulty module can lead to communication errors throughout the entire SRS.
• Previous Accident: Even a minor collision can trigger the airbag light. The SRS module stores 'crash data' after an impact, and if airbags or pretensioners deployed, they must be replaced, and the module often needs to be reset or replaced.
• Low or Dead Battery: The SRS module is sensitive to voltage fluctuations. A low battery voltage (below 12.4 volts) or a recent jump-start can cause the module to store a low-voltage fault code, triggering the warning.
• Disconnected Airbag Wires: If you've recently worked on your car's electrical system, especially components like the stereo, seats, or sensors, without first disconnecting the battery, you could inadvertently trigger the SRS warning by creating an open circuit.
• Seat Occupant Weight Sensor (OWS) or Wiring: The OWS under the passenger seat can fail, or its connecting wires can become damaged or unplugged (often from items stored under the seat).
• Seat Belt Buckle Sensor: The buckle contains a small sensor. If its wires are disconnected or the microswitch fails, it will report an open circuit.
• SIPS Unit Failure: While rare, the Side Impact Protection System (SIPS) unit can fail, triggering a warning.
• Software Issue: Sometimes, the SRS module's software needs an update, which only a Volvo dealer can perform.

Common Symptoms Beyond the Warning Message

While the primary symptom is the 'SRS Airbag Service Urgent' message or warning light, other signs may accompany it, indicating a specific underlying problem:

• No Horn: If your horn isn't working, especially in conjunction with the SRS light, it strongly suggests a broken clock spring.
• Steering Wheel Buttons Not Functioning: Similar to the horn, if buttons on your steering wheel (e.g., cruise control, radio controls) stop working, it points towards a clock spring issue.

Diagnosing and Troubleshooting Your Volvo's SRS Issue

Addressing the SRS warning requires a systematic approach. While some minor issues can be resolved at home, many require professional diagnostic tools and expertise. Always prioritise safety when working on your vehicle's electrical systems.

Using OBD-II Scanners for Volvo Troubleshooting

A generic OBD-II scanner will typically not be sufficient to read SRS fault codes. You will need a full-system scanner or a Volvo-specific diagnostic tool to access the SRS module. These advanced tools can retrieve specific Diagnostic Trouble Codes (DTCs) that pinpoint the exact component causing the issue.

1. Locate the OBD-II Port: This is usually found under the dashboard, near the steering column.
2. Connect Your Scanner: Plug in your Volvo-compatible OBD-II scanner.
3. Ignition On: Turn the ignition to the 'ON' position (engine off).
4. Select Vehicle: Follow the scanner's prompts to select your Volvo model.
5. Access SRS Module: Navigate to 'Control Units' and then select 'SRS Airbag Control Unit'.
6. Read Codes: Select 'Read Codes' to view any stored or present fault codes. Note them down.
7. Clear Codes (If Appropriate): If the issue was temporary (e.g., low battery after a jump-start), you might be able to clear 'STORED' codes. However, if the issue is 'PRESENT', it will reappear immediately until the underlying fault is fixed.

Table: Common Volvo SRS Fault Codes and Meanings

Understanding these codes is crucial for diagnosis:

Before You Visit a Mechanic: Initial Checks

Before heading to a garage, there are several checks you can perform yourself, always remembering to disconnect the negative battery terminal before working on any electrical components to prevent accidental airbag deployment or system damage:

• Check for Airbag Recalls: Volvo has issued recalls for airbags on certain models (e.g., S60, S80, V70, XC70 from 2001-2009). Check the official recall website to see if your vehicle is affected.
• Battery and Charging Condition: Ensure your car battery is healthy (above 12.4 volts). If it's old (3-5 years) or you've had recent starting issues, consider testing or replacing it. Also, check your alternator for proper charging.
• Inspect Wires and Connectors: Carefully examine wiring harnesses under seats (especially the yellow connectors for OWS), behind the dashboard, and near impact sensors for signs of damage, corrosion, or loose connections. Wires can become brittle with age or mechanical stress.
• Test Clock Spring: As mentioned, if your horn or steering wheel buttons aren't working, the clock spring is a likely culprit. Replacement requires precision; ensure your steering wheel is straight before removal and the new part is correctly centred.
• Visual Inspection of Components: Look for any visible damage, dirt, or corrosion on impact sensors, airbag igniters, and the SRS module itself (typically located behind the centre console shifter).
• Software Update: While you can't perform this yourself, call your Volvo dealer to inquire if there are any pending software updates for your SRS module. Sometimes, these updates can resolve warning messages.

Reset and Repair Solutions for SRS Warnings

Once the underlying cause of the SRS warning has been identified and rectified, the warning light needs to be reset. In some cases, if the issue was temporary (e.g., a low battery that has been recharged), simply clearing the fault code with a Volvo-specific scanner may resolve it. However, if the fault is 'PRESENT', the light will return immediately after clearing until the physical problem is fixed.

Resetting the SRS Warning Light

As discussed, a generic OBD-II scanner will not clear Volvo SRS fault codes. You need a full-system diagnostic tool. After fixing the identified problem (e.g., replacing a faulty sensor, repairing a broken wire), connect your scanner, navigate to the SRS module, and select 'Clear Codes'. If the repair was successful, the warning light should extinguish.

Common SRS System Repairs

The nature of the repair depends entirely on the diagnostic fault code:

• Component Replacement: This is the most common repair, involving replacing the faulty part, be it an impact sensor, seat belt pretensioner, clock spring, or airbag igniter.
• Wiring Repair: Damaged wires or connectors will need to be repaired or replaced to restore proper electrical continuity.
• SRS Module Reset/Replacement: If the module itself is faulty or has stored crash data, it may need to be sent to a specialist for 'crash data reset' or replaced entirely. Replacing the module can be costly, but specialist repair services offer a more economical alternative.
• Software Updates: As mentioned, some issues are resolved by simply updating the SRS module's software at a Volvo dealership.

It is paramount that any repairs to the SRS system are carried out by a qualified technician, especially when dealing with airbags and pretensioners. Incorrect handling can lead to accidental deployment or render the system ineffective, creating a significant safety hazard.

Frequently Asked Questions (FAQs)

What do Volvo Airbag Light and SRS Service Urgent Mean?

Both the airbag light and the 'SRS Airbag Service Urgent' message indicate a problem with your vehicle's Supplementary Restraint System. This means the system has detected a fault and may not function as intended in a collision, potentially disabling the airbags and other safety features until the issue is resolved.

Does removing the airbag and short-circuiting the wire solve the issue?

Absolutely not. The airbag is a vital safety feature designed to save lives. Attempting to bypass or tamper with the system by short-circuiting wires is extremely dangerous, illegal in many places, and will not resolve the underlying issue. It will disable a critical safety device and could lead to unintended deployment or non-deployment.

Can I use a multimeter tool to check the airbag igniter resistance?

No, you should never use a multimeter to check the resistance of an airbag igniter. A multimeter sends a small electrical current, which could be enough to inadvertently deploy the airbag, causing serious injury. You can visually inspect the igniter for signs of damage, corrosion, or loose wires, but do not test its electrical properties with a multimeter.

How many times can the airbag module be used?

The airbag module itself is typically a one-time use component after an airbag deployment. If airbags have deployed in a collision, the module often stores crash data that prevents it from being reset, requiring either replacement or a specialist repair service to clear the crash data.

Why is my airbag sometimes not deploying in an accident?

Airbags are designed to deploy based on the severity and type of impact. If the impact is not strong enough, or if the seatbelts alone can adequately protect the occupants (e.g., a very low-speed collision), the airbags may not deploy. They are supplementary to seatbelts, not a replacement for them. The system's logic determines deployment based on sensor data.

Why did my clock spring break again after being replaced?

If a clock spring breaks repeatedly, it could be due to improper installation (e.g., not centring it correctly), underlying electrical issues in the steering column, or using a non-genuine or incompatible replacement part. It's a delicate component that requires precise installation.

Will I fail the state inspection with the airbag light on?

This depends on the regulations in your specific country or region. In many places, a lit SRS warning light is an automatic failure for vehicle inspections, as it indicates a critical safety system malfunction. Always check your local vehicle inspection requirements.

Can I clear the Volvo airbag light by disconnecting the battery?

No. Disconnecting the battery will not clear the Volvo airbag light. The fault codes are stored in the SRS module's memory and require a specific diagnostic tool to be read and cleared. Disconnecting the battery may even trigger additional low-voltage fault codes.

Final Thoughts

The 'SRS Airbag Service Urgent' message on your Volvo is a clear indication that a critical safety system requires immediate attention. Ignoring it is not an option when your safety and the safety of your passengers are at stake. While some issues may be minor, others could severely compromise your vehicle's ability to protect you in a collision. Utilising a Volvo-specific diagnostic tool to read the precise fault codes (such as SRS-0001 or SRS-0020) is the first and most crucial step. Whether it's a faulty sensor, a broken clock spring, or a module issue, early and accurate diagnosis can save you significant repair costs and, more importantly, ensure that your Volvo's safety features are fully operational when you need them most. Always consult with a qualified professional for complex SRS repairs to guarantee proper function and peace of mind.
