DIY Front Brake Replacement: Volvo S70 (98-00)

Maintaining your vehicle's braking system is paramount for your safety and the safety of others on the road. Worn-out brake pads and rotors can significantly compromise stopping distances and overall vehicle control. While a brake job might seem daunting, replacing the front brakes on your 1998-2000 Volvo S70 is a manageable task for the keen DIY enthusiast, provided you have the right tools and follow a detailed guide. This article will walk you through each step, ensuring you restore your Volvo's stopping power efficiently and correctly.

Tools You'll Need for the Job

Before you begin, gather all the necessary tools. Having everything at hand will make the process smoother and more efficient:

• Hydraulic Jack and Jack Stands (for safe vehicle support)
• Breaker Bar or Ratchet with a long pipe (for extra leverage on stubborn bolts)
• 15mm Socket
• 19mm Socket
• T47 Torx Bit (specific to the caliper bolts)
• Flat Blade Screwdriver (large)
• Large Hammer (for rotor removal)
• Large C-Clamp (for compressing the brake caliper piston)
• Torque Wrench (essential for correct bolt tightening)
• 10mm Spanner (wrench)
• Wire Brush (for cleaning hub surfaces)
• Brake Cleaner (to remove grease and debris)
• Gloves and Safety Glasses (always prioritise personal protection)

Step-by-Step Front Brake Replacement Guide

1. Prepare the Vehicle and Remove the Wheel

Begin by parking your Volvo on a flat, stable surface. Using your 19mm socket and breaker bar, slightly loosen the lug nuts on the front wheel while the car is still on the ground. This prevents the wheel from spinning when you apply force. Once loosened, use your hydraulic jack to lift the front of the vehicle. Place sturdy jack stands securely under the vehicle's frame, never relying solely on the jack. Once the car is safely supported, fully remove the lug nuts and then carefully take off the wheel and tyre.

2. Initial Brake System Inspection

With the wheel removed, you have a clear view of your brake assembly. Take a moment to inspect the existing components. Run your fingernail along the rotor surface; you should feel only slight grooves. Deep grooves or discolouration indicate significant wear or warping, necessitating replacement. Check the thickness of your brake pads. If they are less than 3-4mm thick, or if the wear indicator is touching the rotor, they definitely need replacing. Note any uneven wear, which could suggest other issues within the braking system.

3. Removing the Brake Caliper

The brake caliper houses the brake pads and the piston. To remove it, you'll first need to locate two small dust caps covering the caliper guide bolts. Gently pry these caps off. Inside, you'll find the guide bolts, which require a T47 Torx bit to loosen. Attach the T47 Torx bit to your ratchet and loosen both bolts. You don't need to remove them entirely at this stage; just loosen them enough so they can be pulled out slightly. Next, use a large flat blade screwdriver. Carefully insert it between the outer brake pad and the rotor, or between the caliper and the rotor. Gently pry. This action serves two purposes: it helps to push the caliper piston back slightly, making it easier to remove, and it helps to free the caliper from the pads and rotor. Once loose, carefully lift the caliper off the rotor. Do not let the caliper hang by the brake hose, as this can damage the hose. Instead, use a bungee cord or a strong wire to suspend the caliper safely from the suspension component, ensuring no strain is put on the brake line.

4. Removing the Brake Pads

With the caliper safely suspended, you can now remove the old brake pads. The inner pad usually just pulls straight out. The outer pad may require a little prying with your flat blade screwdriver to dislodge it from its retaining clips. Discard the old pads responsibly.

5. Removing the Caliper Bracket

The caliper bracket is the sturdy component that holds the caliper in place and connects it to the vehicle's steering knuckle. It is secured by two 15mm bolts. These bolts are often very tight due to the high forces they withstand. Attach your 15mm socket to a breaker bar, and if necessary, use a piece of pipe over the breaker bar handle for additional leverage. Apply steady, controlled force to loosen these bolts. Once loosened, you can use your ratchet to fully remove them. Carefully remove the caliper bracket from the vehicle.

6. Removing the Old Brake Rotor

The brake rotor is typically held onto the hub by the pressure of the wheel and lug nuts. Sometimes, a small retaining screw is present, but often it's just rust and corrosion that holds it firmly in place. To remove a stubborn rotor, first thread one of your lug nuts onto a stud by a couple of turns. This prevents the rotor from falling off once it comes loose. Then, using a large hammer, strike the face of the rotor firmly a few times, rotating the rotor after each strike. Focus your blows on the centre hub area, avoiding the braking surface if you intend to reuse it (though for a replacement, it's less critical). The shock should break the rust bond, allowing the rotor to slide off the hub. Remove the lug nut and pull the old rotor away.

7. Preparing for New Components

This is a crucial step often overlooked. Before installing new components, thoroughly clean the wheel hub surface. Use a wire brush to remove any rust, dirt, or debris from the hub face where the new rotor will sit. A clean, flat surface is absolutely essential for proper rotor seating and to prevent brake pulsation later on. You can also use brake cleaner to ensure it's free of grease. A thin layer of anti-seize compound on the hub face can help prevent future rust and make future removal easier, but apply it sparingly and ensure none gets on the braking surfaces.

8. Installing the New Brake Rotor

Carefully slide the new brake rotor onto the clean hub. Ensure the lug holes align perfectly. You can thread a lug nut onto a stud to temporarily hold the rotor in place while you work, ensuring it sits flush against the hub.

9. Reinstalling the Caliper Bracket

Position the cleaned caliper bracket back onto the steering knuckle, aligning its bolt holes with those on the vehicle. Insert the two 15mm bolts and hand-tighten them to ensure they thread correctly. Once both bolts are in, use your ratchet and socket to tighten them securely. Finally, use your torque wrench to tighten these bolts to the manufacturer's specified torque of 80 foot-pounds (approximately 108 Nm). Correct torque is vital for the bracket's secure mounting and overall brake performance.

10. Preparing and Installing the New Brake Pads

Before installing the new pads, you must compress the brake caliper piston fully back into its bore. This is because your new pads are much thicker than the old, worn ones. Place one of your old inner brake pads against the piston. Then, use a large C-clamp to slowly and steadily push the piston all the way back into the caliper. Ensure the piston retracts smoothly and squarely. Once fully retracted, remove the old pad and the C-clamp. Now, install your new brake pads. The inner pad (the one with the wear indicator, if applicable) goes on the inside, and the outer pad on the outside. Ensure they are seated correctly in the caliper bracket and slide easily.

11. Reinstalling the Caliper

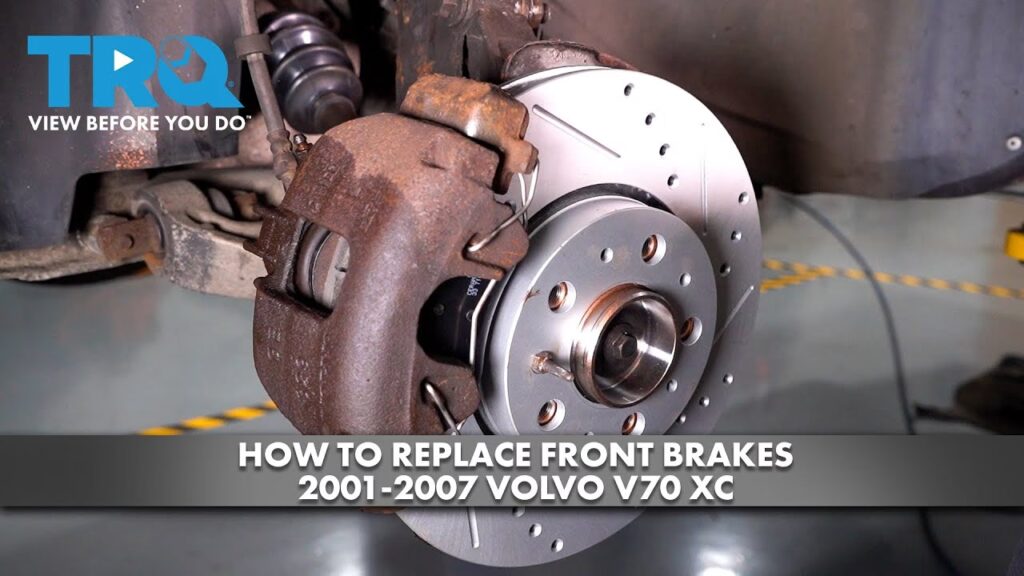

Carefully lower the caliper over the new brake pads and rotor. Align the caliper's bolt holes with the guide pins. Push the T47 Torx guide bolts back in. Hand-tighten them first, then use your ratchet to snug them down. Finally, use your torque wrench to tighten these caliper guide bolts to 25-30 foot-pounds (approximately 34-41 Nm). Do not overtighten these bolts, as they are designed to allow the caliper to float. Reattach the retaining clip (if your system has one) by hooking it onto the bottom first, then pushing it up to secure the top hooks into the caliper. Don't forget to replace the dust caps over the caliper guide bolts to prevent contamination.

12. Reinstall the Wheel and Final Checks

Carefully lift the wheel and tyre back onto the hub, aligning the lug holes. Hand-thread all the lug nuts onto their studs. Once all are on, lower the vehicle until the tyre just makes contact with the ground, taking some of the vehicle's weight. Now, use your 19mm socket and a torque wrench to tighten the lug nuts to 100 foot-pounds (approximately 135 Nm) in a star or cross-pattern. This ensures even pressure and prevents warping of the rotor or wheel. Once tightened, fully lower the vehicle and remove the jack and jack stands.

Post-Installation Procedures and Bedding-In

The most critical step after any brake job is to reset the brake pedal and properly bed-in the new pads. Before driving, pump the brake pedal repeatedly until it feels firm. This action pushes the caliper pistons out and seats the new pads against the rotor. You might hear a slight clunking sound as the pads move into position – this is normal. Never drive the vehicle without first pumping the pedal until it's firm.

Next, perform initial test stops. Drive slowly, at about 5-10 mph, and gently apply the brakes. Repeat this a few times in a safe, open area. If everything feels normal, you can proceed with the bedding-in process. This involves a series of controlled stops to transfer a thin, even layer of friction material from the pads onto the rotors, optimising performance and preventing noise.

A common bedding-in procedure involves:

1. Accelerate to 35 mph, then apply moderate brake pressure to slow down to about 5 mph. Do not come to a complete stop. Repeat this 5-6 times.
2. Allow the brakes to cool down by driving normally for several minutes without heavy braking.
3. Repeat the process, accelerating to 50 mph and braking to 5 mph, 3-4 times.
4. Allow for another cooling period.

During this process, avoid harsh braking or prolonged stops that could overheat the new components. You may notice a slight burning smell – this is normal as the new materials heat up and cure.

Frequently Asked Questions (FAQs)

Q: Why are my new brakes squealing?

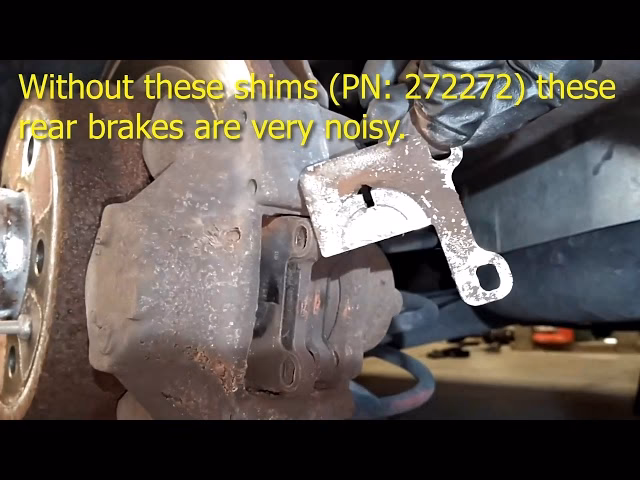

A: New brakes often squeal initially due to the pads and rotors not being fully bedded-in. Ensure you follow the bedding-in procedure. If squealing persists, it could be due to cheap pads, improper installation (e.g., missing anti-squeal shims), or an issue with the caliper guide pins. Ensure all contact points are clean and properly lubricated (with brake-specific grease, not regular grease).

Q: My brake pedal feels spongy after replacement. What went wrong?

A: A spongy pedal typically indicates air in the brake lines. This can happen if the caliper piston was pushed back too quickly, or if a brake line fitting was loosened. Pump the brake pedal repeatedly to try and firm it up. If it remains spongy, you may need to bleed the brake system to remove any trapped air.

Q: How often should I replace my brake pads and rotors?

A: The lifespan of brake components varies greatly depending on driving style, vehicle usage, and component quality. Generally, pads can last anywhere from 20,000 to 70,000 miles. Rotors typically last through two sets of pads, but should be replaced if they show signs of warping, excessive grooving, or are below their minimum thickness specification. Regular maintenance checks are key.

Q: Can I replace just the pads and not the rotors?

A: While technically possible, it's generally recommended to replace both pads and rotors at the same time for optimal performance and longevity. New pads require a perfectly flat surface to mate against for proper bedding-in. Installing new pads on worn or warped rotors can lead to premature pad wear, noise, and reduced braking effectiveness.

Q: What if I don't have a torque wrench?

A: A torque wrench is highly recommended for brake jobs. Overtightening bolts can strip threads or warp components, while undertightening can lead to dangerous loosening. If you don't own one, consider borrowing or renting one. The precise torque specifications are crucial for safety.

Performing a front brake replacement on your Volvo S70 is a rewarding task that can save you money and give you a deeper understanding of your vehicle. By following these detailed steps and paying attention to safety and proper torque specifications, you can confidently restore your Volvo's braking performance.
