Front Crank Seal Replacement Guide

It's a common frustration for car enthusiasts when a seemingly minor leak appears, marring an otherwise immaculate engine bay. You've meticulously checked everything, ensuring the crankcase ventilation is spot on, the correct oil is used at regular intervals, and even the timing belt service was performed to the highest standard. Yet, there it is – a slow, persistent weep from the front of the engine, almost certainly pointing to the front crankshaft oil seal. The question then arises: can this pesky seal be replaced without resorting to the more involved process of removing the water pump? The short answer, for many vehicles, is yes, but it requires careful planning and the right approach.

Understanding the Front Crankshaft Seal

The front crankshaft oil seal, often referred to as the crankshaft pulley or harmonic balancer seal, is a critical component. Its primary function is to prevent engine oil from leaking out of the engine where the crankshaft exits the engine block, specifically at the front. This seal works in conjunction with the crankshaft pulley, which is often a harmonic balancer. The constant rotation of the crankshaft necessitates a robust and precisely fitted seal to maintain integrity. When this seal begins to degrade, due to age, heat, or wear, oil can seep past it, leading to the aforementioned leaks. This can not only be unsightly but, if left unchecked, can lead to significant oil loss and potential engine damage.

When is Water Pump Removal Necessary?

In some vehicle designs, the water pump is integrated with or positioned in front of the crankshaft pulley and its associated seal. In these instances, to gain access to the crankshaft seal, the water pump must be removed. This significantly increases the complexity and time required for the job. However, as your situation suggests, many vehicles allow for the crankshaft seal to be accessed by removing the crankshaft pulley and potentially a timing belt cog, without disturbing the water pump. It's crucial to consult your vehicle's specific service manual to confirm the exact layout and required procedure. Your observation that the cam seals are perfectly dry strongly suggests the leak is indeed originating from the front crank seal, as you suspect.

The DIY Approach: Step-by-Step

Assuming your vehicle's design permits direct access to the front crank seal after pulley removal, here's a general outline of the process. Remember, always refer to your vehicle's specific repair manual for precise instructions and torque specifications.

Preparation and Safety First

Before you begin, ensure you have a safe working environment. If using a lift, confirm its stability. Disconnect the battery's negative terminal to prevent any electrical accidents. You'll want to have all your tools and replacement parts ready before you start dismantling.

Gaining Access

The initial steps involve removing components that obstruct access to the crankshaft pulley. This typically includes engine covers, fan shrouds, and sometimes even auxiliary belts. The key to this job, as you've identified, is removing the crankshaft pulley (harmonic balancer) and the timing belt cog beneath it.

Removing the Crankshaft Pulley and Timing Belt Cog

This is often the most challenging part of the job. The crankshaft pulley is usually held in place by a large central bolt. This bolt is often torqued to a very high specification and can be difficult to loosen. To prevent the crankshaft from turning while you attempt to break the bolt loose, you'll need to immobilise it. Common methods include:

• Using a dedicated crankshaft pulley holding tool: This is the safest and most recommended method.
• Using a pry bar against the pulley teeth: While possible, this carries a risk of damaging the pulley or the timing belt cog.
• Having a helper apply the brakes and engage a high gear (for manual transmissions): This can sometimes be enough to hold the crankshaft, but it's not always foolproof.

Once the central bolt is removed, you'll need to remove the pulley itself. Harmonic balancers can be tight and may require a pulley puller. Standard 3-jaw pullers can often work, provided they have sufficient reach and strength to grip the pulley securely without slipping. Be cautious not to damage the pulley's rubber damping material if it has one.

After the pulley is off, you'll likely find the timing belt cog directly behind it. This cog may also be a tight fit and might require a puller to remove, especially if it's held on by a keyway and a small retaining bolt. Your plan to align all the marks and then remove the pulley and cog is sound. This ensures you can correctly re-time the engine after the seal replacement.

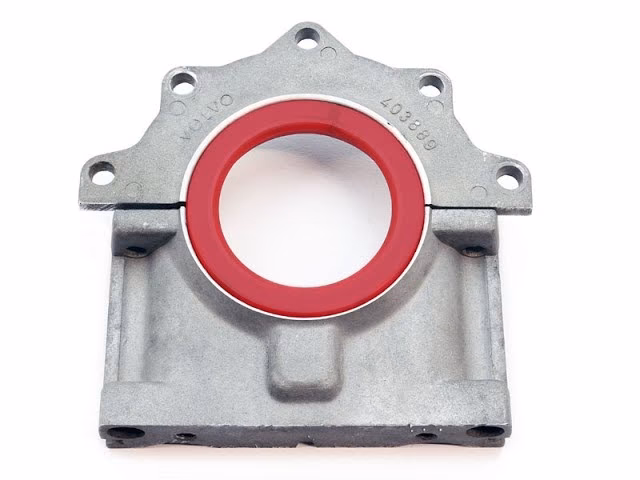

Replacing the Oil Seal

With the pulley and cog removed, the old crankshaft oil seal will be exposed. It's usually a simple press-fit into the engine block or a timing cover. You can often remove the old seal using a seal removal tool, a pry bar (carefully, to avoid damaging the seating surface), or even a slide hammer with a suitable attachment. Ensure you clean the seal housing thoroughly before installing the new one.

Installing the new seal requires precision. It must be driven in squarely and to the correct depth. Over-driving or driving it in at an angle can cause it to leak prematurely or fail. Use a seal driver kit, or a suitably sized socket or piece of pipe, to gently and evenly tap the new seal into place. Again, consult your manual for the correct depth and any specific lubrication requirements for the seal lip.

Reassembly

Reassembly is essentially the reverse of the removal process. This is where your timing belt service knowledge will be invaluable. Ensure the timing marks are perfectly aligned before refitting the timing belt cog, pulley, and central bolt. Torque the crankshaft pulley bolt to the manufacturer's specification. Refit the timing belt and tension it correctly. Then, reassemble all the other components you removed for access.

Tools You'll Likely Need

Based on your description and the nature of the job, here's a list of tools you should have on hand:

Common Pitfalls and Tips

• Damaging the Crankshaft Nose: Be extremely careful when using pullers or prying. The end of the crankshaft is critical for the seal and pulley interface.
• Incorrect Seal Installation: Driving the seal in too deep, not straight, or damaging the lip during installation will lead to immediate leaks.
• Forgetting to Time the Engine: If the timing belt is disturbed, ensure it's re-timed perfectly according to the manual. Misalignment can cause poor running or severe engine damage.
• Over-Tightening the Pulley Bolt: Use a torque wrench and the correct specification. Over-tightening can damage the crankshaft or the pulley.
• Not Replacing the Crankshaft Pulley Bolt: If it's a stretch bolt, failure to replace it can lead to it backing out, potentially causing catastrophic failure.

Frequently Asked Questions

Q1: Can I use a universal seal puller?
A1: While some universal pullers might work, a dedicated seal puller designed for oil seals is generally safer and more effective at preventing damage to the surrounding components.

Q2: How tight should the crankshaft pulley bolt be?
A2: This varies significantly by manufacturer and model. Always consult your vehicle's service manual for the precise torque specification. It's often a very high torque value, sometimes with an additional angle tightening procedure.

Q3: My engine is a diesel, does that change anything?
A3: Diesel engines often have higher compression and different torque specifications. The general principles remain the same, but it's even more critical to follow the specific manual for diesel engines.

Q4: Is it possible to damage the timing belt by removing the cog?
A4: If the timing belt is not tensioned correctly, or if the engine is turned while the belt is off, the timing can be lost. It's often advisable to replace the timing belt and tensioners when performing this job, especially if the belt shows signs of contamination or wear, as you plan to do.

Q5: My friend estimates 4 hours. Is that realistic?
A5: For an experienced mechanic with a lift and all the necessary tools, 4 hours is a reasonable estimate for this job, assuming no unforeseen complications. Given your 30 years of wrenching experience, you should be well within that timeframe, especially with proper preparation.

In conclusion, replacing a front crankshaft oil seal without removing the water pump is a feasible task for many vehicles, provided you have the correct tools, follow precise procedures, and are meticulous in your execution. Your proactive approach to replacing the timing belt concurrently is wise, ensuring a comprehensive service. With careful planning and execution, you can successfully address this oil leak and maintain your vehicle's optimal condition.
