DIY Gear Oil Change for Your Volvo Penta SX Stern Drive

Maintaining your boat's stern drive is paramount for its longevity and performance, and one of the most critical aspects of this maintenance is regularly changing the gear oil. For owners of a Volvo Penta SX stern drive, tackling this task yourself can not only save you a significant amount of money but also provide invaluable insight into your vessel's health. This comprehensive guide will walk you through the process, ensuring you have all the knowledge needed to confidently perform a professional-grade gear oil change right in your driveway or marina.

Why DIY Your Volvo Penta SX Gear Oil Change?

Many boat owners shy away from engine and drive maintenance, believing it's a job strictly for professional mechanics. However, changing the gear oil on your Volvo Penta SX is surprisingly straightforward with the right guidance and tools. By taking on this task, you gain several advantages:

• Cost Savings: Professional service can be expensive. Performing the change yourself eliminates labour costs, saving you a substantial sum that can be reinvested in other boat upgrades or simply kept in your pocket.
• Control and Quality Assurance: When you do it yourself, you have full control over the quality of the oil used and the meticulousness of the process. You can ensure every step is followed precisely, giving you peace of mind.
• Understanding Your Drive: Getting hands-on with your stern drive helps you become more familiar with its components. This understanding can be invaluable for diagnosing future issues or simply appreciating the engineering of your boat.
• Convenience: You can perform the maintenance on your schedule, without having to book appointments or transport your boat to a service centre.

Regular gear oil changes prevent premature wear on internal components, reduce friction, dissipate heat, and protect against corrosion. Neglecting this vital service can lead to costly damage and even complete drive unit failure.

Essential Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smooth and efficient:

• New synthetic gear oil (approximately 3 US quarts or 2.84 litres, ensure it meets Volvo Penta specifications).
• Gear oil pump (crucial for the bottom-up method of refilling). These are readily available at marine stores and even some larger retailers.
• Flathead screwdriver (for drain and fill plugs).
• Socket wrench set (for the cover bolts, usually 5/16 inch).
• Drain pan or large container (to catch old oil, minimum 3-litre capacity).
• Rag or shop towels.
• Funnel (optional, but helpful for pouring new oil into the pump reservoir).
• Gloves (nitrile or similar, to protect your hands).
• Safety glasses.
• New drain plug gaskets/washers (recommended for a tight seal).

Step-by-Step Guide to Changing Your Volvo Penta SX Gear Oil

Follow these steps carefully to ensure a successful gear oil change:

1. Preparation and Access

Begin by positioning your boat for easy access to the stern drive. Ensure the boat is secure and stable. Lower the stern drive completely using the trim function. This allows for maximum drainage of the old oil.

• Trim Down: Fully lower your drive unit. This ensures the oil drains completely from all internal cavities.

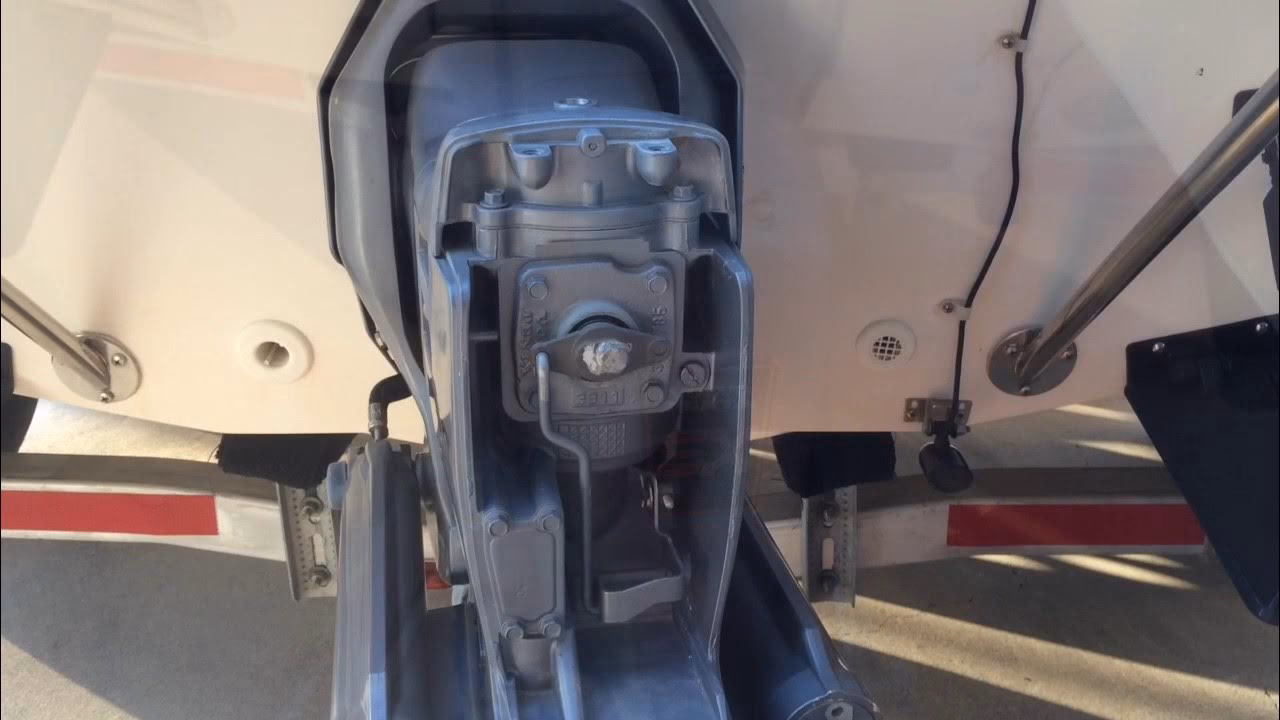

• Access the Cover: Locate the plastic cover on the top of the stern drive that typically bears the 'Volvo Penta SX' branding. This cover is usually held in place by three bolts. Carefully remove these bolts and lift off the cover. Keep the bolts safe.

2. Draining the Old Gear Oil

This is where the mess begins, so prepare your drain pan!

1. Position Drain Pan: Place your large drain pan directly underneath the lowest point of the stern drive unit.
2. Remove Bottom Drain Plug: Locate the drain bolt at the very bottom of the stern drive. It's typically a flathead screw. Using your flathead screwdriver, carefully unscrew and remove this plug. Be prepared for oil to start flowing out immediately.
3. Remove Fill/Vent Plug: With the cover already removed, you'll find a fill/vent screw inside this compartment, usually around the middle of the drive. Removing this plug, along with the dipstick at the very top of the drive, allows air to enter the system. This airflow is crucial for the oil to drain more easily and completely.
4. Remove Dipstick: Unscrew the dipstick from the top of the stern drive. This further aids in venting and complete drainage.
5. Allow to Drain: Let the old gear oil drain completely. This can take anywhere from 15 to 20 minutes, or even longer. You want to wait until the oil stops flowing in a steady stream and is only slowly dripping. The longer you let it drain, the more old contaminants will be removed.

3. Inspecting Plugs and Cleaning

While the oil is draining, take this opportunity to inspect the removed plugs.

• Clean Magnetic Plugs: The drain plug (and sometimes the fill plug) will have a magnetic tip designed to collect any metallic particles floating in the gear oil. This is a vital diagnostic tool. Carefully wipe off any metal shavings from the magnet. A small amount of fine metal dust is normal wear and tear. However, if you find larger chunks or an excessive amount of metal, it could indicate a more serious internal issue that warrants professional inspection.
• Inspect Gaskets: Check the condition of the rubber O-rings or fibre washers on all the plugs. It's good practice to replace these with new ones to ensure a leak-free seal when you reassemble.

4. Refilling with Fresh Gear Oil

This is the most critical part of the process and requires a specific technique: the bottom-up method.

1. Attach Oil Pump: Screw the hose of your gear oil pump securely into the bottom drain hole where you removed the drain plug. Ensure it's a snug fit to prevent leaks.
2. Start Pumping Slowly: Begin slowly pumping the new gear oil into the stern drive. It is crucial to pump slowly to avoid introducing unwanted air bubbles into the drive. Air pockets can lead to improper lubrication and potential damage.
3. Monitor Fill Level: Continue pumping until you see fresh gear oil begin to flow out of the middle fill/vent hole (the one you removed from behind the cover). This indicates that the stern drive is full.
4. Install Middle Plug: Once oil consistently flows from the middle hole, quickly screw in the fill/vent plug. Do not overtighten.
5. Install Dipstick: Screw the dipstick back into its top position.
6. Remove Pump and Install Bottom Plug: Carefully unscrew the pump hose from the bottom drain hole. Be ready for a small amount of oil to escape. Immediately install the bottom drain plug. Again, ensure the gasket is in place and tighten securely but do not overtighten.

Your Volvo Penta SX stern drive typically requires around 2.5 US quarts (approximately 2.36 litres) of gear oil, but always refer to your specific owner's manual for the precise capacity.

5. Final Checks and Post-Change Procedures

You're almost done! A few final steps ensure everything is perfect.

• Clean Up: Wipe down any spilled oil from the stern drive and surrounding areas. Ensure all tools are put away.
• Reinstall Cover: Replace the Volvo Penta SX cover that you removed at the beginning and secure it with its three bolts.
• Initial Run and Recheck: The most important final step is to run your boat for a short period (10-15 minutes) after the oil change. This allows the new oil to circulate thoroughly throughout the drive unit. After the run, let the boat sit for a while (e.g., an hour or two, or even overnight) to allow the oil to settle. Then, recheck the gear oil level using the dipstick. It's common for the level to drop slightly as air bubbles escape and the oil settles into all cavities. If needed, add a small amount of oil from the top (through the dipstick hole) to bring it back to the full mark. Always refer to your dipstick's markings for the correct full level.

Why Use Volvo Penta Specific Gear Oil?

The type of gear oil you use is as important as the change itself. While it might be tempting to opt for cheaper, generic oils, it's highly recommended to use synthetic gear oil that meets or exceeds Volvo Penta's specifications, or ideally, genuine Volvo Penta brand oil.

Volvo Penta designs its drive units to work optimally with specific lubricants that contain unique additive packages. These additives are formulated to protect against wear, corrosion, and breakdown under the extreme pressures and temperatures experienced within a marine stern drive. Using an unapproved or inferior oil, even if it has a similar viscosity rating, could lead to:

• Reduced protection for gears and bearings.
• Increased friction and heat generation.
• Premature wear and component failure.
• Voiding of your warranty.

The cost difference between genuine Volvo Penta oil and a cheaper alternative is often negligible when compared to the potential cost of repairing or replacing a damaged drive unit. As one experienced boater wisely put it, "You might be able to get an off the shelf oil cheaper but you can't guarantee that it has the same additives that VP specify and the cost saving is likely to be less than the cost of a pint. And one day when you change the oil and see water in there (it will happen) you'll be kicking yourself if you scrimped and bought the cheaper stuff." Invest in the right oil for peace of mind and long-term reliability.

Troubleshooting Common Gear Oil Change Issues

While the process is straightforward, sometimes minor issues can arise:

• Oil Not Draining Completely: Ensure all three points (bottom drain, middle fill/vent, and dipstick) are open. The trim angle being fully down is also crucial.
• Air Bubbles During Refill: Pumping too quickly is the primary cause. Slow down your pumping. If you suspect significant air, let the drive sit for a few hours after initial fill, then recheck and top off.
• Oil Leaking After Change: This usually points to improperly seated or damaged gaskets/O-rings on the plugs. Ensure they are new and correctly installed, and that plugs are tightened to the specified torque (refer to your factory manual).
• Incorrect Oil Level After Run: It's normal for the level to drop slightly. Always recheck and top up after the initial run. If the level drops significantly, suspect a leak.

Gear Oil Change Frequency and Importance

The general recommendation for Volvo Penta SX stern drives is to change the gear oil annually, or every 100 hours of operation, whichever comes first. However, if you operate your boat in harsh conditions, such as very cold water, heavy loads, or frequent short trips, more frequent changes might be beneficial. Always consult your factory manual for the exact service intervals for your specific model.

Regular changes are crucial because gear oil degrades over time due to heat, friction, and contamination. Water intrusion, even in minute amounts, can severely compromise the oil's lubricating properties, leading to corrosion and component failure. The magnetic plugs serve as an early warning system for internal wear, making their inspection a vital part of the oil change process.

Comparative Look: DIY vs. Professional Service

To help you weigh your options, here's a quick comparison:

Frequently Asked Questions (FAQs)

Q: How much gear oil does a Volvo Penta SX stern drive typically hold?

A: Most Volvo Penta SX stern drives hold approximately 2.5 to 3 US quarts (around 2.36 to 2.84 litres) of gear oil. Always consult your specific model's owner's manual for the exact capacity.

Q: Can I use any 90-weight gear oil for my Volvo Penta SX?

A: While many oils might share a weight rating, it's crucial to use a synthetic gear oil that specifically meets Volvo Penta's specifications, or ideally, genuine Volvo Penta brand oil. These oils contain specific additive packages designed for the unique demands of marine stern drives, offering superior protection against wear and corrosion.

Q: Why do I need to pump the oil in from the bottom?

A: Pumping from the bottom ensures that air is pushed upwards and out of the drive unit, preventing air pockets that can lead to inadequate lubrication. This is known as the bottom-up method and is standard practice for stern drives.

Q: What should I do if I see water in the old gear oil?

A: Water in your gear oil indicates a seal leak, which is a serious issue. If you find milky or emulsified oil, it means water has entered the drive. While you can refill with fresh oil, you must identify and fix the leak immediately to prevent severe damage to the internal components. This often requires professional attention to inspect and replace seals.

Q: How often should I check my gear oil level?

A: It's good practice to check your gear oil level regularly, perhaps before each major outing or at least once a month during boating season, in addition to the post-oil change check. This helps catch any potential leaks early.

Q: Is it necessary to replace the drain plug gaskets every time?

A: While some might reuse them, it is highly recommended to replace the drain plug gaskets or O-rings every time you change the gear oil. These components are inexpensive and crucial for creating a watertight seal, preventing leaks and water intrusion into the drive unit.

By following this detailed guide, you've not only saved yourself some money but also gained valuable experience and ensured your Volvo Penta SX stern drive is properly maintained for many more hours of reliable boating. Congratulations on a job well done!
