The Volvo 240, a stalwart of automotive engineering, is renowned for its durability and safety. A crucial element contributing to this reputation is its effective braking system. For owners and enthusiasts of this classic Swedish machine, understanding how its brakes function and how to maintain them is paramount to ensuring continued reliable performance and, most importantly, occupant safety.
Volvo's approach to braking in the 240 series, produced from the late 1970s through the early 1990s, was characteristic of its era: robust, reliable, and focused on providing dependable stopping power. While not featuring the complex electronic systems found in modern vehicles, the 240's hydraulic braking system is a masterclass in mechanical efficacy.
The Heart of the System: Hydraulic Power
At its core, the Volvo 240 employs a conventional hydraulic braking system. This means that when you press the brake pedal, you initiate a chain reaction that ultimately forces the brake pads against the rotors (or brake shoes against drums in some rear applications). The entire process is facilitated by brake fluid, which is virtually incompressible, allowing for the transmission of force from the pedal to the braking mechanisms at each wheel. This hydraulic pressure is the key to the entire operation.
Key Components of the Volvo 240 Braking System
To fully appreciate the system, let's break down its essential components:
- Brake Pedal: This is your interface with the system. Pressing the pedal actuates the master cylinder.
- Brake Booster (Servo): Most Volvo 240 models are equipped with a brake booster, typically a vacuum-assisted unit. This clever device uses engine vacuum to multiply the force you apply to the brake pedal, making it significantly easier to achieve strong braking force. Without it, braking would require considerably more leg effort. The presence and proper functioning of the brake booster are critical for a comfortable and effective braking experience.
- Master Cylinder: This is the component that converts the mechanical force from the brake pedal (amplified by the booster) into hydraulic pressure. It contains reservoirs for brake fluid and pistons that push the fluid through the brake lines. Volvo 240s typically use a tandem master cylinder, meaning it has two separate hydraulic circuits. This is a vital safety feature: if one circuit fails (e.g., due to a leak), the other circuit can still provide some braking ability, albeit with reduced effectiveness.
- Brake Lines: These are robust metal pipes and flexible rubber hoses that carry the brake fluid under pressure from the master cylinder to the brake assemblies at each wheel. The flexible hoses are used in areas where suspension movement or steering requires flexibility.
- Brake Fluid: This specialised fluid is the medium through which hydraulic pressure is transmitted. It's crucial that the correct type of brake fluid (usually DOT 3 or DOT 4 for the 240) is used and that it is kept clean and free from moisture, as moisture can reduce its boiling point and lead to a spongy pedal feel or even brake failure in extreme conditions.
- Brake Calipers (Front and Rear): These house the brake pads and pistons. When hydraulic pressure reaches the caliper, the pistons push the brake pads against the brake disc (rotor). Volvo 240s typically feature disc brakes on the front wheels and often on the rear as well, depending on the specific model and year.

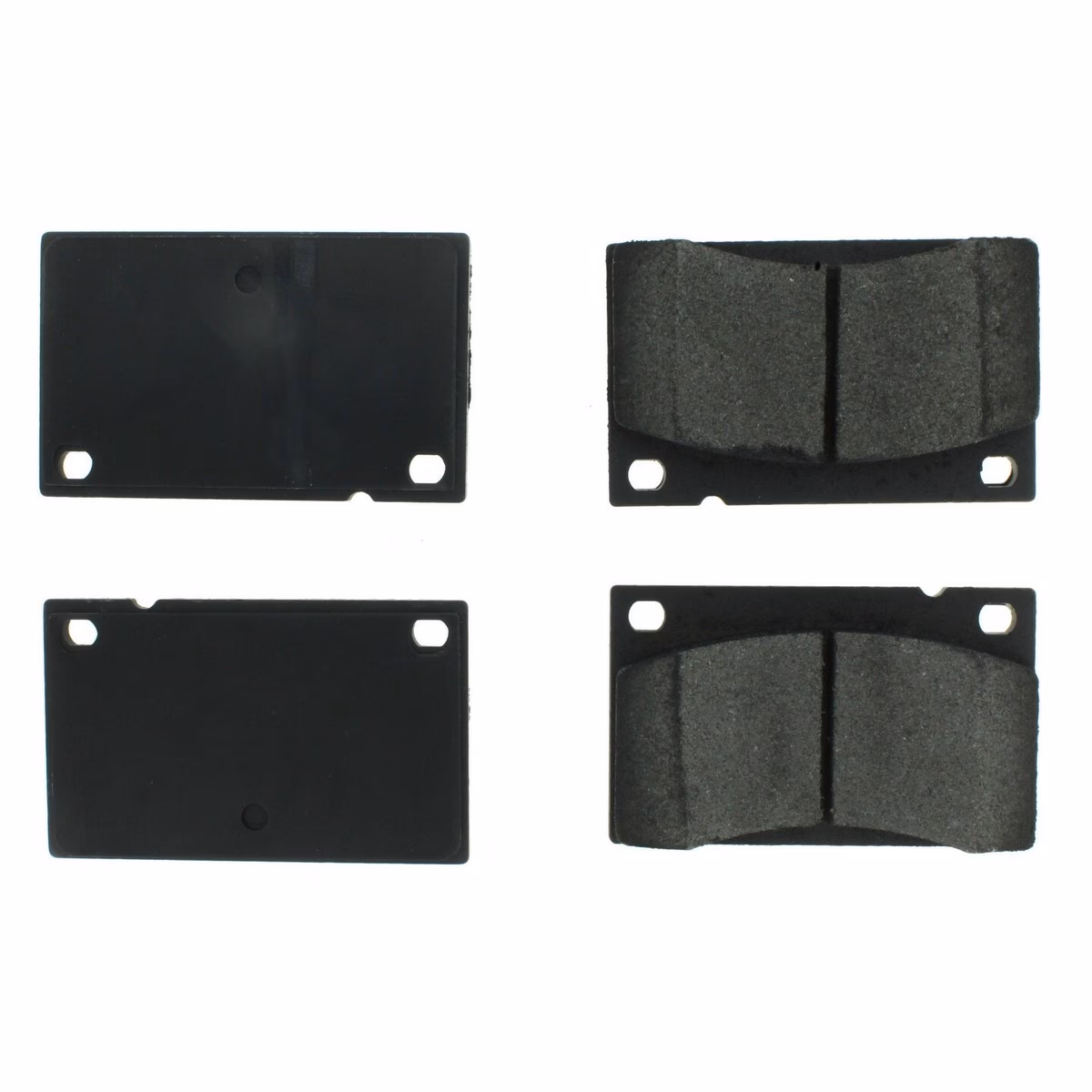

- Brake Pads: These are the friction material that makes contact with the brake discs. When applied, they create friction, converting the kinetic energy of the vehicle into heat, thus slowing it down.
- Brake Discs (Rotors): These are the metal discs that rotate with the wheel. The brake pads clamp onto these discs to create the braking force.
- Brake Drums and Shoes (Rear, on some models): While many 240s have rear disc brakes, some earlier or less performance-oriented models might have drum brakes at the rear. In a drum brake system, brake shoes, lined with friction material, are pushed outwards against the inside surface of a rotating drum.
How it All Works Together
The process is elegantly simple yet highly effective:
- You press the brake pedal.
- The brake booster amplifies your effort.
- The master cylinder converts this amplified force into hydraulic pressure, pushing brake fluid through the brake lines.
- This pressurized fluid reaches the calipers (or wheel cylinders in drum brakes).
- In disc brakes, the caliper pistons force the brake pads against the spinning rotor. In drum brakes, the wheel cylinder pistons force the brake shoes against the inside of the drum.
- Friction between the pads/shoes and the rotor/drum slows the wheel's rotation, bringing the vehicle to a halt.
The dual-circuit nature of the master cylinder means that if a leak occurs in one circuit, the other remains functional, providing a degree of control even in a failure scenario.
Common Volvo 240 Braking System Issues and Maintenance
Like any automotive system, the brakes on a Volvo 240 require regular inspection and maintenance to ensure optimal performance and longevity. Here are some common issues and maintenance tasks:
- Worn Brake Pads/Shoes: This is the most common wear item. Symptoms of worn pads/shoes include a squealing noise when braking, a spongy brake pedal, or a longer stopping distance. Regular visual inspection is recommended.
- Worn or Damaged Rotors/Drums: Over time, rotors can become scored, warped, or worn too thin. Drums can also wear unevenly. This can lead to vibrations felt through the brake pedal or steering wheel, or reduced braking efficiency.
- Brake Fluid Contamination/Degradation: Brake fluid absorbs moisture over time, lowering its boiling point and potentially causing corrosion within the system. It's recommended to flush and replace the brake fluid every 2-3 years, or as per Volvo's service recommendations.
- Leaking Brake Lines or Calipers: Hoses can crack or perish, and seals in calipers or the master cylinder can fail, leading to fluid leaks. A low brake fluid level or a very spongy pedal can indicate a leak.
- Brake Booster Malfunction: If the brake pedal becomes very hard to press, it could indicate a problem with the brake booster or its vacuum supply.
- Sticking Calipers: Corrosion or debris can cause the caliper pistons or slider pins to stick, leading to uneven braking, pulling to one side, or premature wear of brake pads on one side.
Maintenance Schedule and Recommendations
While specific intervals can vary based on driving conditions, a general guideline for Volvo 240 brake maintenance would include:
- Regular Visual Inspections: Check brake pad thickness, rotor condition, and for any signs of leaks at every oil change.
- Brake Fluid Flush and Replacement: Every 2-3 years.
- Brake Pad Replacement: When thickness reaches the minimum wear indicator (typically around 2-3mm of pad material remaining).
- Brake Rotor/Drum Resurfacing or Replacement: When they show signs of significant wear, scoring, or warping.
- Hose Inspection: Check flexible hoses for cracks, swelling, or signs of deterioration.
Table: Common Brake Issues and Symptoms
| Symptom | Possible Cause(s) | Solution |
|-----------------------------|----------------------------------------------------|-----------------------------------------------|
| Squealing noise | Worn brake pads, glazed pads, debris | Replace pads, inspect rotors, clean components |
| Spongy brake pedal | Air in brake lines, low brake fluid, master cylinder issue | Bleed brakes, check fluid level, inspect master cylinder |
| Pulsating brake pedal | Warped brake rotors, uneven pad wear | Resurface or replace rotors, replace pads |
| Car pulls to one side | Sticking caliper, uneven pad wear, brake fluid leak | Inspect and service calipers, replace pads, check brake lines |
| Hard brake pedal (no assist)| Brake booster failure, vacuum leak | Inspect booster and vacuum lines, replace booster if faulty |
Frequently Asked Questions
Q1: What type of brake fluid should I use for my Volvo 240?
A: Volvo 240s typically require DOT 3 or DOT 4 brake fluid. Always consult your owner's manual for the specific recommendation for your model year.
Q2: How often should I change my brake fluid?
A: It's generally recommended to flush and replace brake fluid every 2-3 years, as it absorbs moisture from the atmosphere over time.
Q3: My Volvo 240's brakes feel soft. What could be the problem?
A: A soft or spongy brake pedal can be caused by air in the brake lines, low brake fluid level, or a failing master cylinder or brake booster. It's important to have this checked by a qualified mechanic promptly.
Q4: Can I upgrade the braking system on my Volvo 240?
A: Yes, enthusiasts often upgrade to larger front brake kits or performance pads and rotors to enhance stopping power, especially for models used in performance driving or carrying heavier loads. However, ensure any modifications are compatible and installed correctly.
Q5: How do I know when my brake pads need replacing?
A: Listen for squealing noises when braking, or visually inspect the brake pads. Most pads have a wear indicator that makes a high-pitched noise when they are getting low. There's also a minimum thickness specification for the pad material.
In conclusion, the Volvo 240's braking system is a testament to thoughtful engineering, providing reliable and safe stopping power when properly maintained. By understanding its components and adhering to a regular maintenance schedule, you can ensure your classic Volvo continues to perform admirably for many years to come.
