Understanding Your Starter Clutch

When you thumb that starter button, a complex yet elegant dance of components begins, all designed to bring your motorcycle's engine roaring to life. At the heart of this initial ignition process lies a crucial, often overlooked, component: the starter clutch. This clever device ensures that the relatively small starter motor can safely and efficiently transfer its rotational energy to the much heavier engine crankshaft, without suffering damage from the sudden immense load or the engine's subsequent independent rotation. Without a functioning starter clutch, the delicate balance between starting power and engine protection would be lost, potentially leading to costly repairs and a very frustrating inability to start your ride.

The Essential Role of the Starter Clutch

The starter motor, designed for brief, high-torque bursts, cannot be rigidly connected to the engine's crankshaft. Imagine the strain if it were! The moment the engine fires up and begins its own powerful rotation, it would try to spin the tiny starter motor at an incredibly high and damaging speed. This is where the starter clutch comes into play. Its primary function is to provide a controlled, one-way engagement between the starter motor and the engine. It allows the starter motor to turn the engine over for starting, but then automatically disengages once the engine is running, protecting the starter motor from excessive speed and potential destruction. This ingenious mechanism is a testament to clever engineering, ensuring smooth operation and longevity for your vehicle's starting system.

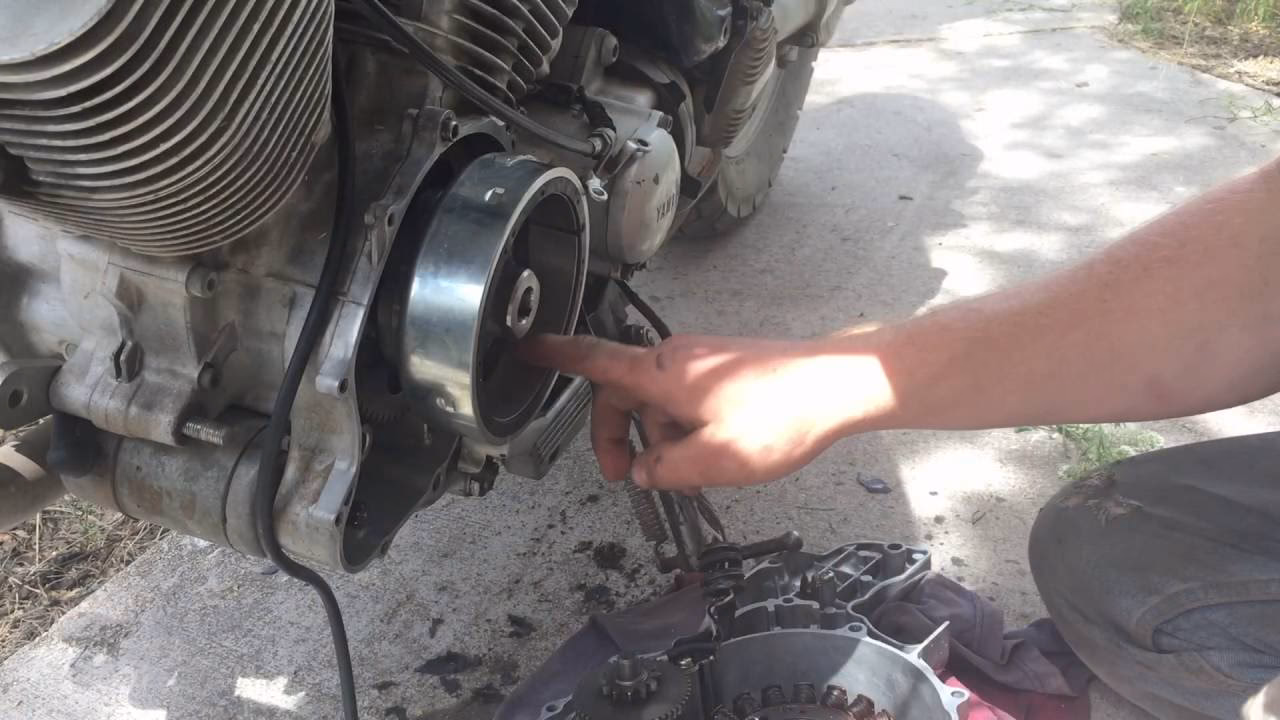

Where is the Starter Clutch Located?

The exact location and design of the starter clutch can vary depending on the motorcycle model and its engine architecture. However, it is always an integral part of the starting circuit, typically found in close proximity to the starter motor and the engine's flywheel. Its design is intrinsically linked to how it interacts with the starter motor's output and the crankshaft's input.

Starter Clutch on Yamaha XV400, XV500, and XV535 Virago Models (Roller Type)

For the Yamaha Virago XV400, XV500, and XV535 models, a specific type of starter clutch, often referred to as a roller-type or sprag clutch, is employed. This design is robust and effective for these smaller displacement engines.

Location and Mechanism

On these models, the starter clutch (often denoted as #3 in diagrams) is ingeniously mounted directly on the flywheel (also known as the rotor or magnet). This flywheel, in turn, is securely fixed onto the crankshaft axle, making the starter clutch an immediate intermediary in the power transfer. The starter motor initiates the process by transferring its rotation through a series of gears: first to idler gear 1 (#1), and then to idler gear 2 (#8). It is idler gear 2 that makes direct contact with the starter clutch.

The gradual transfer of rotation between idler gear 2 and the starter clutch is achieved through a clever arrangement of three internal rollers within the starter clutch assembly. In its idle state, these three rollers are designed to slightly squeeze the inner cylinder of idler gear 2. When the starter motor begins to rotate, it progressively transfers this rotation from the idler gears into contact with these rollers. This action causes the rollers to wedge, effectively engaging the starter clutch with the inner cylinder of idler gear 2, and subsequently transferring the rotation to the flywheel and, by extension, the crankshaft and the entire engine. Once the combustion engine successfully starts and begins its own rotation (meaning the flywheel and starter clutch are now rotating along with the crankshaft), the centrifugal force generated by this rotation acts on the rollers. This force pulls the rollers outwards, away from the centre, causing them to separate from the inner cylinder of idler gear 2. This separation effectively disengages the starter clutch from the starter motor, ensuring the starter motor is not overdriven by the running engine.

Evolution of the Roller-Type Starter Clutch

Yamaha implemented some revisions to the starter clutch design for the XV535 Virago models over their production run:

• Older Versions (1987-1996): These models utilised one specific design of starter clutch and flywheel gear.
• Newer Versions (from 1997 onwards): A revised starter clutch model was introduced in 1997. Interestingly, this newer design was also adopted for other Yamaha models, including the DragStar XVS400 and XVS650, indicating a successful and perhaps more efficient design.

For those seeking enhanced durability, alternative manufacturers offer heavy-duty starter clutches for the Yamaha XV535 Virago. These often feature an increased number of contact rollers, typically six, which are reported by users to provide improved reliability and longevity compared to the standard three-roller design.

Part Number Comparison (XV535 Virago)

Understanding the correct part numbers is crucial for maintenance and replacement. Here's a quick reference:

Starter Clutch on Yamaha XV700, XV750, XV920, XV1000, and XV1100 Virago Models (Bendix Type)

For the larger displacement Virago models, from the XV700 up to the XV1100, Yamaha opted for a different type of starter clutch mechanism, commonly known as a Bendix drive. This system operates on a different principle, relying on helical threads and inertia for engagement and disengagement.

Location and Mechanism

In the Bendix system, the starter motor's rotation is transferred to a component called the bendix gear (#5), also referred to as the starter wheel. This bendix gear is designed with helical outer threads. It works in conjunction with idler gear 2 (#7), which possesses corresponding helical inner threads. When the starter motor begins its rotation, it spins the starter gear (#1), idler gear 1 (#6), and the bendix gear (#5).

The key to the Bendix system's operation lies in the helical threads. As the bendix gear spins rapidly, the inertia and the design of these threads cause idler gear 2 to be propelled forward along the shaft. This forward movement causes the outer teeth of idler gear 2 to engage with a gear on the engine's flywheel (though not explicitly shown in all diagrams, this engagement is fundamental). Once engaged, the rotation is effectively transferred to the flywheel, the crankshaft, and consequently, the entire engine.

When the starter motor ceases its rotation, and the engine has successfully started and is rotating independently, the absence of the starter motor's driving force, combined with centrifugal force, causes idler gear 2 to retract. This retraction disengages idler gear 2 from the flywheel gear, once again protecting the starter motor from being overdriven. Some earlier Bendix designs also incorporated a compression spring to aid in this disengagement, though this was later deemed redundant and removed.

Evolution of the Bendix-Type Starter Clutch

The Bendix starter clutch on the larger Virago models also saw several generations of design changes aimed at improving reliability and performance:

• First Generation (1981-1985): Used from the launch of the XV750, these models featured both a compression spring and clips for securing the gears.
• Second Generation (1986-1995): This iteration saw the removal of the clips, simplifying the assembly, but the compression spring was retained.
• Third Generation (1996-1999): In a significant design update, the compression spring (#9) was eliminated entirely. This decision was based on the observation that the bendix gear would return to its disengaged position effectively through centrifugal force alone. Furthermore, it was discovered that the compression spring, even when fully compressed, could sometimes prevent idler gear 2 (#7) from achieving full engagement, leading to accelerated wear of its teeth. The removal of the spring aimed to improve engagement and reduce wear.

Part Number Comparison (Bendix Type Virago)

Here's a breakdown of the Bendix starter clutch components across the generations:

It's worth noting that worn out teeth on the idler gear and flywheel gear are a common issue, often indicating a problem with engagement or repeated failure to properly disengage. This can manifest as a grinding noise during starting or the starter spinning without engaging the engine.

Common Issues and Symptoms of a Failing Starter Clutch

A failing starter clutch can manifest in several noticeable ways, none of which are pleasant for a motorcycle owner. Recognizing these symptoms early can save you from being stranded or incurring more significant damage to your starting system.

• Starter Spins, Engine Doesn't Engage: This is perhaps the most common symptom. You press the starter button, you hear the starter motor whirring, but the engine doesn't turn over. This indicates that the starter clutch is failing to engage the flywheel, meaning the power isn't being transferred.
• Grinding or Whining Noise During Start-Up: If you hear a harsh grinding, whirring, or whining sound when attempting to start the bike, it could be a sign of worn or damaged teeth on the starter clutch gear, idler gears, or the flywheel gear itself. This suggests improper engagement.
• Intermittent Starting: Sometimes the bike will start perfectly, other times it won't. This can be a sign of a clutch that's on its way out, engaging only sporadically.
• Loud Clunk or Bang After Starting: If the starter clutch fails to disengage properly after the engine starts, you might hear a loud clunk or bang as the engine tries to overspin the starter motor. This is a very concerning symptom and should be addressed immediately to prevent severe damage to the starter motor.
• Engine Kicks Back: In some cases, a failing starter clutch might not disengage cleanly, causing the engine to "kick back" against the starter motor, which can feel like a jolt or sudden stop during the starting process.

Maintenance Tips for Your Starter Clutch

While the starter clutch is a sealed unit in many respects, certain practices can help prolong its life and the health of your starting system:

• Regular Battery Maintenance: A strong, fully charged battery is paramount. A weak battery can cause the starter motor to spin slowly, leading to improper engagement of the starter clutch and increased wear on its components as it struggles to connect. Ensure your battery terminals are clean and tight.
• Proper Engine Oil: Using the correct grade and type of engine oil is important. The starter clutch operates within the engine's oil bath, and the right lubrication helps ensure smooth operation of its internal components, especially the rollers or helical threads.
• Avoid Excessive Cranking: If your bike isn't starting, avoid continuously cranking the engine for extended periods. This puts immense strain on the starter motor and, by extension, the starter clutch. Give the starter motor time to cool down between attempts.
• Address Starting Issues Promptly: Don't ignore the early signs of a struggling starter. The sooner you diagnose and address a problem, the less likely it is to escalate into a more costly repair involving the starter clutch or other related components.

When to Consider Replacement

If you consistently experience the symptoms described above, especially the starter spinning without engaging the engine or loud grinding noises, it's highly likely that your starter clutch needs replacement. While some advanced mechanics might attempt to disassemble and clean a roller-type clutch, for most owners, a complete replacement is the most reliable solution. For Bendix types, wear on the teeth often necessitates replacing the entire Bendix set. Given the critical role of this component, opting for a quality replacement part, whether OEM or a reputable heavy-duty aftermarket option, is advisable to ensure reliable starting for years to come.

Frequently Asked Questions About Starter Clutches

Here are some common questions riders have about their starter clutches:

Q1: Can I ride my motorcycle if the starter clutch is failing?

A1: It is not advisable. If the starter clutch is failing to engage, you won't be able to start the bike normally. If it's failing to disengage, you risk severe damage to your starter motor and potentially other engine components due to over-spinning the starter. Always address starter clutch issues before riding.

Q2: Is a starter clutch the same as a sprag clutch?

A2: Yes, the terms are often used interchangeably, especially for the roller-type starter clutch found in models like the XV535 Virago. A sprag clutch is a type of one-way clutch that uses small, oddly shaped rollers or sprags to allow rotation in one direction but lock up in the other.

Q3: How difficult is it to replace a starter clutch?

A3: Replacing a starter clutch is generally considered a moderately to highly difficult task. It often requires removing engine covers, draining oil, and special tools to access the flywheel and starter clutch assembly. It's usually a job best left to an experienced DIY mechanic or a professional workshop.

Q4: Why did Yamaha change the starter clutch design on the larger Virago models?

A4: Yamaha revised the Bendix design, particularly by removing the compression spring in later generations, to improve reliability and reduce wear. The spring was found to sometimes hinder full engagement of the idler gear, leading to accelerated wear on the teeth. The centrifugal force alone was deemed sufficient for disengagement, simplifying the design and enhancing durability.

Q5: Can a faulty battery mimic starter clutch symptoms?

A5: Yes, absolutely. A weak or dead battery might not provide enough power for the starter motor to spin quickly enough to properly engage the starter clutch, leading to similar symptoms like the starter whirring without engaging the engine. Always check your battery first when troubleshooting starting issues.

The starter clutch, whether a roller-type or a Bendix drive, is a testament to the intricate engineering that goes into every motorcycle. It's a critical component that silently performs a vital function, ensuring your engine can reliably spring to life. Understanding its location, how it works, and the signs of its potential failure can save you from unexpected breakdowns and keep your cherished Yamaha Virago on the road, ready for your next adventure.
