Restoring Your Classic Car's Horn: A Guide

The humble car horn, often taken for granted, plays a crucial role in road safety, serving as a vital communication tool between drivers. Yet, it’s a component that typically receives little attention until it either falls silent or emits a less-than-impressive wheeze, sounding more like a cough than a commanding alert. For owners of classic and vintage motor cars, a properly functioning horn isn't just about safety; it's about preserving the vehicle's authentic character and that distinctive, often harmonious, sound that commanded respect on the roads of yesteryear. But what happens when that iconic bellow fades?

The Inner Workings of a Motor Car Horn: A Symphony of Vibration

Unlike the air horns found on lorries or fire engines, a typical electric automotive horn operates on a principle of rapid mechanical vibration. It's a fascinating piece of engineering that few truly understand. At its heart lies a spring steel diaphragm, which oscillates hundreds of times per second. This rapid movement, or 'oil canning' as it's sometimes called, pushes air through a die-cast megaphone horn body, amplifying the sound to create either a high or low pitch. Most modern vehicles utilise two horns – one high-pitch and one low-pitch – to produce a fuller, more audible harmony, often referred to musically as an 'A and C harmony'. Older vehicles, however, might only feature a single horn, which, while functional, often lacks the resonant presence of its dual-toned counterparts.

The magic behind this consistent vibration lies within the horn's seashell-shaped casing. Here, you'll find an electromagnet, a set of crucial contact points, and the aforementioned diaphragm. When the horn is at rest, the contact points are closed, ready to carry electrical current. The moment you press the horn button, electricity flows, energising the copper coil electromagnet. This magnet then pulls on the steel diaphragm, causing it to flex rapidly. As the diaphragm moves, it momentarily opens the contact points, which in turn de-energises the electromagnet, allowing the diaphragm to spring back to its resting position. This cycle of energising and de-energising, of pulling and releasing, happens at an astonishing rate – hundreds of times per second. This hyper-fast oscillation generates a powerful buzzing sound which is then projected and amplified by the horn's unique housing, blasting out that characteristic loud sound, typically around 95 decibels, from the horn's bell mouth.

Why Do Car Horns Fail? The Unseen Enemies

Despite their relatively infrequent use, car horns are susceptible to failure for a few primary reasons, often linked to their exposed position on the vehicle. The three most common culprits are:

1. Contact Point Damage or Corrosion: Much like the ignition points in older distributor systems, the horn's contact points are critical for completing the electrical circuit. Exposure to the elements – road dust, rain, and corrosive agents like salt spray – can lead to pitting, carbon build-up, or rust on these points. When they become dirty or corroded, they can no longer conduct electricity efficiently, or at all, rendering the horn inoperative.
2. Electromagnet Coil Burnout: The copper coil within the electromagnet is designed to handle significant electrical current. Vintage car horns, in particular, demand a lot of power, often drawing around eight or nine amps. This is a substantial draw, with only the starter motor and headlights typically requiring more current in a classic vehicle. Over time, or due to prolonged activation (though rare for a horn), the coil can overheat and burn out, leading to a complete failure of the horn's activation mechanism.
3. Mechanical Seizure Due to Corrosion: The intricate moving parts within the horn, particularly the diaphragm and its associated mechanisms, can seize up due to rust and dirt ingress. Road dust and moisture can accumulate inside the horn's body, creating a corrosive environment. When these components become stuck, the diaphragm cannot vibrate freely, and the horn will either produce no sound or a very weak, distorted one. Corrosion is indeed a horn's greatest enemy.

It's a curious paradox that while horns rarely wear out from overuse, they can suffer significantly from a lack of use. Infrequent activation allows moisture and debris to settle and promote deterioration, leading to the issues described above. They require consistent, albeit brief, operation to keep their internal mechanisms free and clear.

To DIY or Not to DIY: Fixing Your Vintage Car Horn

The idea of restoring your vintage car's horn might appeal to the classic car enthusiast who loves to get their hands dirty. However, it’s crucial to understand that car horns are not always a straightforward component for the average DIY mechanic to service. They often require extensive technical know-how, precise adjustments, and sometimes specialised tools. This is particularly true for certain types of horns. In many cases, you'll need to seek the expertise of a dedicated vintage car horn rebuilder.

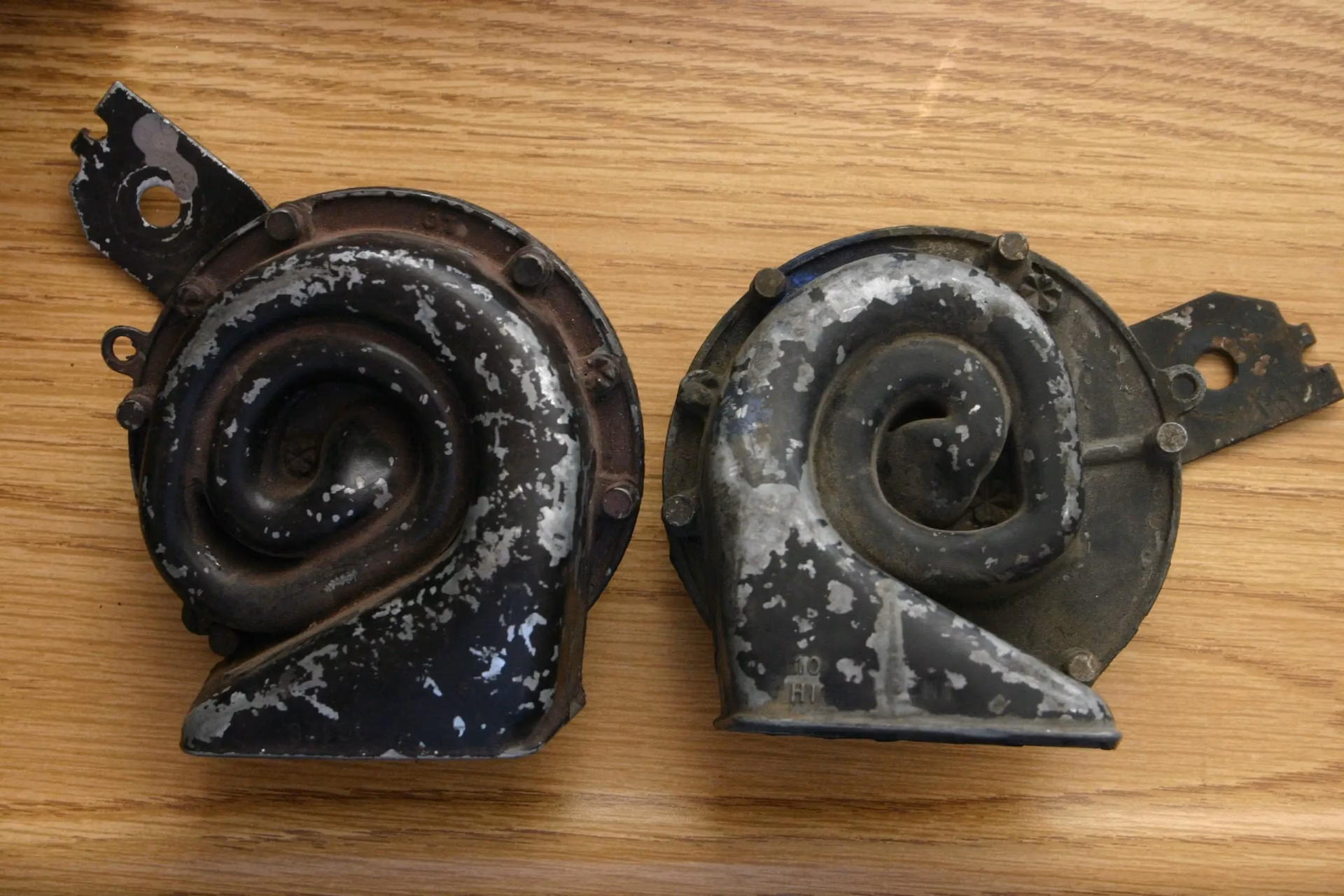

Pre-1965 Horns: The Behemoths of Sound

The larger, 'behemoth' car horns commonly found on vehicles manufactured prior to 1965 – the kind you might hear in old sitcoms – are, surprisingly, often easier to physically service. This is because many of them feature a removable cover, providing relatively easy access to the electromagnet and contact points. These horns are known for their deep, triumphant harmony.

However, there's a significant caveat: parts for these older horns are incredibly scarce. This means that if internal components are beyond repair, you'll need to find good 'cores' – old, non-working horns that can be cannibalised for salvageable parts, or even used as a complete replacement unit after being rebuilt. If you have good cores, and the issue primarily involves cleaning or minor adjustments, servicing these horns might be feasible in a home garage. A common issue to check is rust and seized components; a careful application of a penetrating lubricant like WD-40 can often help loosen things up, followed by a thorough cleaning.

Another vital consideration for these larger, earlier horns is the presence of a horn relay. These were typically used with the higher-amperage draw of these powerful trumpeters. If your large vintage horn stops working, the very first step should be to check this relay. Use a test light or multimeter to ensure that power is actually reaching the horns. It's imperative to remember that car horns are intolerant of electrical weaknesses; they demand a robust 12 to 14 volts and solid, clean connections to both positive power and a good ground. Any deficiency here will prevent them from functioning properly, regardless of their internal condition.

Post-1964 Horns: The Compact Evolution

The smaller, more compact car horns that became prevalent after 1964, whether manufactured by Autolite or Delco (which were quite similar in design), present a different set of challenges. Unlike their older counterparts, these horns are often riveted together, meaning disassembly requires grinding off the rivets – a task that inevitably leaves you needing to replace them with new rivets or small bolts and nuts for reassembly.

While simpler in their scaled-down size, they still rely on the same fundamental principles of contact points and an electromagnet. The electromagnet in these compact units can also suffer burnout, just like the larger ones. And while the contact points can often be dressed and cleaned up to restore functionality, the overall difficulty of disassembly and reassembly, combined with the precision required, often means these horns are best left to the expertise of a vintage car horn rebuilder or restorer. They possess the specialised tools and experience to handle the intricate work and ensure the horn is correctly calibrated for sound and reliability.

Troubleshooting and Basic Restoration Steps (for suitable horns)

For those pre-1965 horns with removable covers and good cores, here's a general guide to what a basic restoration might involve:

1. Initial Inspection: A rusty, seized horn is a clear indicator of its problems. Look for visible signs of corrosion or dirt ingress.
2. Loosening Seized Parts: If components are seized, a light tap with a hammer (being careful not to damage the adjustment nut/stud) can sometimes free them. Follow this with a generous application of WD-40 or a similar moisture-displacing lubricant to penetrate and lubricate the mechanism. Remember, while WD-40 helps initially, it does evaporate, so a more permanent solution might be needed long-term.
3. Cleaning Contact Points: These are paramount for electrical continuity. They must be "hospital-clean." Initially, dress the points with a fine file to remove pitting and carbon. Follow up with emery paper for a smooth finish. Any debris or corrosion here will disrupt the circuit and prevent the horn from working.
4. Blowing Out Debris: After cleaning, use compressed air (ideally dry compressed air from a can to avoid introducing moisture) to thoroughly blow out any dust, metal filings, or debris from the horn's interior.
5. Testing: When testing, be prepared for intense noise and potential arcing at the contact points as the horn pulls significant amps. Anchor the horn securely in a bench vise to manage the vibration. Connect the positive lead to the terminal and negative ground to the horn bracket.
6. Pitch Adjustment: The horn's pitch is adjusted via a screw. Tightening it (clockwise) generally yields a higher pitch, while loosening it results in a lower pitch. However, note that high and low-pitch horns are fundamentally different bodies with varying tube lengths to achieve their basic pitch. This adjustment fine-tunes it.

Remember, the electromagnet coil itself, being copper-wound, is difficult to repair if burnt out and usually necessitates a replacement or a good core with a functional coil.

Comparative Overview: Vintage Horn Types

To better understand the differences and challenges, here's a comparative look at the two main categories of vintage car horns:

Frequently Asked Questions About Car Horns

Q: Why does my car horn sound weak or sickly?

A: A weak or sickly sound often indicates partial failure. This could be due to corroded or pitted contact points not allowing full current flow, mechanical seizure of the diaphragm preventing full vibration, or insufficient voltage reaching the horn. Check connections and grounds first.

Q: Can I fix my car horn myself?

A: It depends on the horn type and your technical expertise. Older, pre-1965 horns with removable covers can sometimes be cleaned and adjusted by a skilled DIY enthusiast, especially if you have access to 'good cores' for parts. Newer, compact horns are more challenging due to their riveted construction. For most, professional expertise is recommended.

Q: What is a horn relay, and why is it important?

A: A horn relay is an electrical switch that uses a small current from the horn button to control a much larger current directly from the battery to the horn. This prevents the high current draw of powerful horns from damaging the horn button switch. It's crucial for larger, older horns that demand high amperage. If the relay fails, the horns won't receive power.

Q: How do I know if my horn needs to be replaced or rebuilt?

A: If your horn is completely silent, check fuses, relays, and wiring first. If power is reaching the horn but it's still silent, or if it makes a very poor sound, it likely needs internal attention. For vintage horns, replacement with an identical working unit is often difficult due to scarcity, making rebuilding the preferred option.

Q: What are 'cores' in the context of horn rebuilding?

A: 'Cores' refer to old, non-functional horn units that are used as a source for salvageable parts or as the base unit to be rebuilt. Because new parts for many vintage horns are unavailable, rebuilders rely on good cores to source diaphragms, electromagnets, or other components that are still in working order.

Q: How do car horns make sound?

A: Car horns produce sound through rapid mechanical vibration. An electromagnet pulls on a steel diaphragm hundreds of times per second. This rapid oscillation creates air pulses that are then amplified and directed by the horn's shaped housing (like a megaphone), resulting in the characteristic horn sound.

The Enduring Importance of a Working Horn

While often overlooked, the car horn is more than just a noise-maker; it's an indispensable safety device and, for vintage car owners, a key part of their vehicle's historical authenticity. Whether you're navigating modern traffic or showcasing your meticulously restored classic at a car show, a fully functional horn is essential. Given the intricate nature of these components, especially the vintage models, attempting a DIY repair might be tempting, but it often leads to frustration without the right knowledge and tools. For that iconic, commanding bellow to return, seeking out a professional vintage car horn rebuilder is frequently the most reliable and effective path. They possess the expertise to diagnose complex issues, source elusive parts (or cores), and meticulously restore your horn to its former glory, ensuring it commands respect on every journey.
