The Mighty VW 1.8T: Power, Tuning & More

The Volkswagen Golf, a name synonymous with practicality, fun, and German engineering, has graced our roads for decades. While the Golf itself has evolved through numerous generations and body styles, a significant part of its enduring appeal, particularly for those with a penchant for performance, lies beneath the bonnet. For many years, a particular engine family has been a cornerstone of the Golf's sporting credentials and a beloved platform for tuners worldwide: the Volkswagen 1.8T.

This compact yet potent powerplant, a 4-cylinder turbocharged marvel, first made its debut in the 1998 Volkswagen Golf. Since then, it has undergone continuous development, spawning various power outputs and finding its way into a multitude of popular Volkswagen and Audi models. From the Golf and Jetta to the Passat, Beetle, and even the sporty Audi A3, A4, and TT, the 1.8T has proven its versatility and capability.

A Symphony of Power and Efficiency: The 1.8T's Core

What makes the 1.8T so special? It's a masterful blend of power delivery and fuel efficiency, a combination that has captivated performance enthusiasts. At its heart lies the turbocharger, a device that compresses incoming air and forces it into the engine, significantly boosting both power and torque. This forced induction technology allows a relatively small engine to punch well above its weight class.

Further enhancing its performance credentials, many variations of the 1.8T also feature Variable Valve Timing (VVT). VVT dynamically adjusts the timing of the engine's valves, optimising both power output and fuel economy across the rev range. This means you get exhilarating performance when you demand it, without a crippling thirst for fuel during everyday driving.

Evolution of the 1.8T: Power Outputs Through the Years

The 1.8T engine isn't a one-size-fits-all affair. Volkswagen and Audi engineers refined and adapted it over time, leading to several distinct power outputs:

The Tuner's Playground: Performance Modifications Explained

The inherent potential of the 1.8T has made it a favourite for those looking to extract more performance. The engine responds exceptionally well to modifications, allowing owners to tailor their car's power delivery to their exact desires. Here's a breakdown of common tuning stages:

Stage 1: The Gentle Nudge

This is the most accessible entry point into tuning. For vehicles in stock condition, a Stage 1 tune involves remapping the engine's ECU (Engine Control Unit). This software optimisation adjusts parameters like fuel delivery and ignition timing to unlock a noticeable increase in power and efficiency without requiring any physical hardware changes.

Stage 2: Breathing Easier

Stepping up to Stage 2 typically involves fitting a few key 'bolt-on' modifications. These often include a less restrictive downpipe (which connects the turbocharger to the exhaust system), a free-flowing exhaust system, and an upgraded intercooler. The intercooler's role is crucial: it cools the compressed air from the turbo before it enters the engine, making it denser and allowing for more power. The ECU re-map is then adjusted to take full advantage of these new breathing capabilities, ensuring reliability and safety.

Stage 2+: Pushing the K04 Frontier

This advanced Stage 2 tune is designed to maximise power using a specific turbocharger upgrade: the K04. For transversely mounted engines (like those in the Mk4 Golf), the K04-001 is common, while longitudinal engines might use the K04-015. Crucially, this stage often utilises stock injectors and the stock MAF sensor, aiming for peak performance from this turbo within those constraints. It's important to note that hybrid turbos are generally not compatible with this specific stage, sticking to the designated K04 units.

Stage 3: The Bigger Picture

Stage 3 tuning marks a significant leap in performance. This usually involves fitting a larger turbocharger, such as a K04 variant (like the one from the 225hp Audi TT) or a hybrid turbocharger. To support this increased airflow, larger injectors and a larger MAF (Mass Air Flow) sensor housing are also required. The ECU re-map is then meticulously calibrated to manage these upgraded components, delivering a substantial increase in power and efficiency. Expect to see injectors like Bosch 550cc or 630cc become standard here, often available as plug-and-play kits.

Stage 4: Unleashing Maximum Potential

This is where the 1.8T truly transforms into a high-performance machine. Stage 4 typically involves fitting a 'big turbo' capable of producing 350+ wheel horsepower (whp). This is paired with even larger injectors (550cc, 630cc, or even 1000cc) and often a MAF-less setup or a significantly larger MAF housing. The ECU software is tailored to manage this extreme setup, optimising for maximum power and efficiency. A critical consideration at this level is engine internals. To reliably handle the immense forces involved, forged connecting rods are often a necessity to prevent catastrophic engine failure.

Popular 'Big Turbo' Options for the 1.8T 20v

For those embarking on Stage 4 or higher, a range of reputable turbocharger manufacturers offer excellent options:

• Garrett GTX2867R
• Garrett GT28RS
• Garrett GT2871R
• Garrett GT3071R
• Garrett GT35R
• BorgWarner EFR 7163
• Precision PT5858
• Precision PT6262

Understanding Your ECU: Narrowband vs. Wideband

A crucial point for 1.8T owners, especially those with earlier engine codes (like AMU, AWD, APH), is the type of ECU they have. Some factory ECUs are 'narrowband', designed to work with a narrowband oxygen sensor. While adequate for stock setups, a narrowband ECU struggles to provide the precise air-fuel mixture data required for optimal tuning above Stage 2. For any significant performance modifications, a wideband ECU swap is highly recommended. Wideband systems offer far greater accuracy, allowing tuners to achieve superior performance, fuel economy, and drivability.

Key Components and Their Roles

To help you understand the 1.8T's ecosystem, here's a look at some key components and their functions:

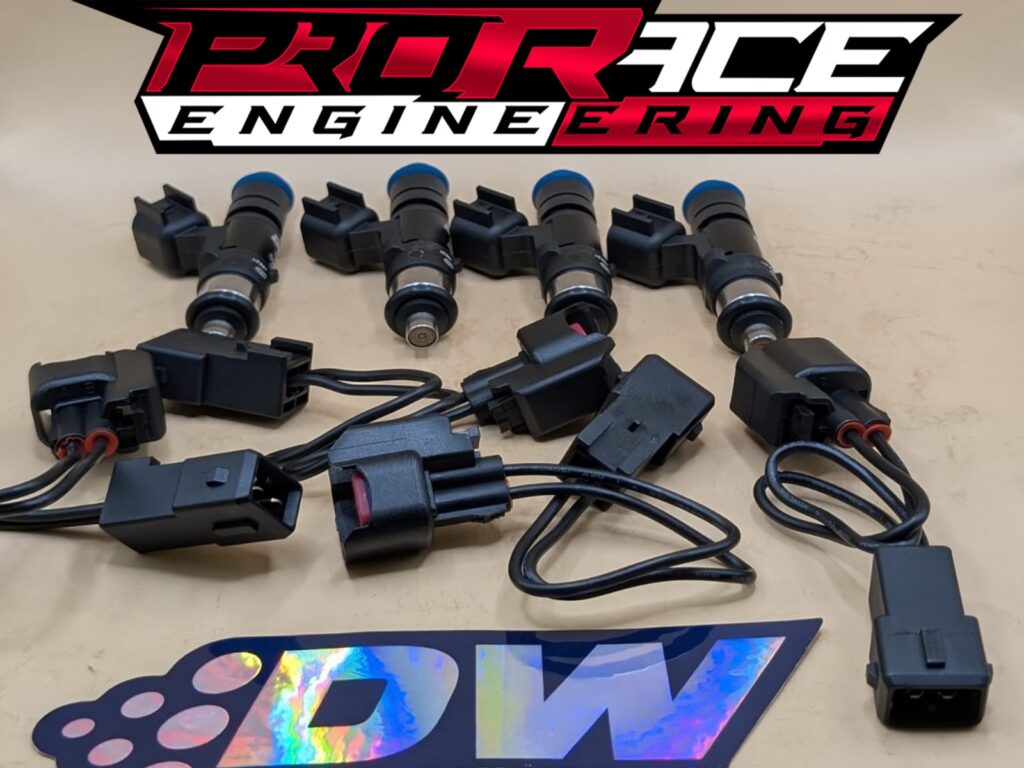

Will Bigger Injectors Add More Power to a Stock Car?

This is a common question, and the answer is generally no, not on their own. Bigger injectors are designed to deliver more fuel. While more power requires a greater air-fuel mixture, simply fitting larger injectors to a stock engine won't magically increase horsepower. They will only unlock additional power if the stock injectors are already at their limit and cannot supply sufficient fuel to meet the air entering the engine, as dictated by the ECU's tune. Fitting larger injectors without a corresponding ECU re-map can lead to an overly rich fuel mixture, potentially causing poor running and even damage.

The need for larger injectors is directly tied to your power goals and the specific engine code:

• Early Me3.8 ECU Cars (e.g., AGU): Typically use 205cc injectors, maxing out around 220bhp. Upgrades to 306cc (Vauxhall Calibra) or 346cc (Saab) are common, supporting around 250-280bhp. When upgrading injectors on these, a larger MAF housing (like from a Mk3 VR6) is often recommended for proper ECU scaling.
• Me7.1/7.5 Cars (e.g., ARZ, AUM, AUQ): Usually equipped with 315cc injectors, sufficient for a typical Stage 2 setup (around 240bhp). Upgrading to injectors from K04-equipped cars (386cc) is a direct fit and beneficial for more aggressive tunes.
• Me7.9 and K04 Equipped Cars (e.g., BAM, AMK, APX, APY): These came with 386cc injectors from the factory, supporting around 280bhp. For further upgrades, Bosch 550cc injectors are common for K03/K04 hybrid turbos (supporting ~350bhp), with Bosch 630cc injectors stepping up to support over 400bhp.

It's advisable to consult with your chosen tuner regarding injector choices, as they can recommend specific makes and models that they are comfortable working with and that will integrate seamlessly with your planned hardware and power targets. Injectors with an appropriate spray pattern are vital for even fuel distribution across the intake valves.

Common Issues and Troubleshooting

Despite its robust nature, the 1.8T can encounter specific issues:

• Boost Leaks: A common problem, often occurring at hose clamps or the diverter valve. Symptoms include poor performance, hesitant acceleration, and check engine lights. Visual inspection and smoke testing are effective diagnostic methods.
• Faulty Coolant Temperature Sensor: Particularly on earlier models, this can cause erratic running and poor fuel economy. Replacing with the updated 'green top' sensor is a common fix.
• MAF Sensor Contamination: Oil from the PCV system or aftermarket air filters can coat the MAF element, leading to inaccurate readings. Regular cleaning can prevent this.
• ECU Immobiliser Issues: When swapping ECUs, ensuring compatibility with the car's immobiliser system (Immo II or Immo III) is critical to avoid starting problems.
• Limp Mode: The ECU's safety feature to protect the engine. Triggered by excessive boost, fuel delivery issues, or sensor faults. Diagnosing codes with a tool like VAG-COM is essential.

In Conclusion

The Volkswagen 1.8T engine is a testament to intelligent engineering, offering a fantastic balance of everyday usability and thrilling performance potential. Whether you're looking for a subtle enhancement to your daily driver or building a track-focused machine, the 1.8T provides a robust and rewarding platform. Understanding its components, tuning stages, and common quirks will empower you to make informed decisions and truly unleash the spirit of this iconic powerplant.

If you have any questions about your 1.8T engine or are considering performance upgrades, don't hesitate to reach out. Expert advice can make all the difference in achieving your automotive goals.
