Mastering Fork Valve Reinstallation for Your Bike

Reinstalling a fork valve might seem like a daunting task, tucked away within the intricate mechanics of your motorcycle's front suspension. However, it's a critical procedure that directly impacts your bike's handling, comfort, and safety. Whether you've disassembled your forks for a full service, upgraded your valves, or are simply replacing worn components, getting this step right is paramount. This guide will walk you through the process, emphasising precision, cleanliness, and the often-overlooked details that make all the difference, ensuring your motorcycle's front end performs exactly as it should.

The Heart of Your Suspension: Understanding the Fork Valve

Before diving into the reinstallation, it’s beneficial to understand what a fork valve does. Essentially, fork valves, often referred to as 'damping rods' or 'cartridge kits' depending on your fork type, control the flow of fork oil within the fork leg. This controlled flow generates damping, which resists the compression and rebound of your suspension. Without proper damping, your forks would simply act like a pogo stick, bouncing uncontrollably. The valve's design, including its orifices and shims, dictates how smoothly and effectively your suspension absorbs bumps and maintains tyre contact with the road. A correctly installed valve, coupled with the right oil level and viscosity, ensures predictable handling, improved rider comfort, and enhanced safety, especially when cornering or braking hard.

Essential Preparations and Safety First

Preparation is key to a successful reinstallation. Begin by ensuring your workspace is clean, well-lit, and organised. Lay out all your tools and new components to avoid searching mid-procedure. Safety glasses are a must, and gloves can protect your hands from oils and solvents. You’ll need a sturdy motorcycle stand to elevate the front wheel, providing stable access to the forks. Gather the following essential tools:

• Torque wrench (for accurate tightening of fasteners)
• Appropriate sockets and wrenches
• Fork oil level tool (crucial for precise oil measurement)
• Measuring tape or ruler
• Clean rags or lint-free cloths
• Brake cleaner or a suitable degreaser
• New fork oil (of the correct weight/viscosity for your bike)
• Fluid drain pan
• A bendy flashlight (as suggested, invaluable for inspection inside the fork legs)
• Small brushes or pipe cleaners for intricate cleaning

Crucially, have your motorcycle's service manual to hand. This document is your bible, providing specific torque specifications, fork oil types, and the exact fork oil level for your particular model. Guessing these critical values can lead to poor performance or even dangerous failures.

Thorough Cleaning and Inspection: A Crucial Step

Before any reinstallation, meticulous cleaning and inspection are non-negotiable. As some might describe, the inside of a fork leg can look like it's been in a 'whale's intestine' – full of sludge, metal particles, and degraded oil. This grime can severely compromise the performance and lifespan of your new components. Here's how to approach it:

1. Drain Remaining Fluid: If you haven't already, thoroughly drain all old fork oil. Some forks have drain bolts at the bottom, making this easier. If not, you'll need to invert the fork leg to empty it. Pumping the fork leg (compressing and extending it) can help expel stubborn remnants.
2. Initial Rinse: Use a cheap, light oil (like ATF) or even some of the new fork oil to rinse the internals. Swirl it around, pump the leg, and drain. Repeat until the fluid coming out looks reasonably clean.
3. Degreasing and Deep Clean: This is where brake cleaner shines. Spray generous amounts of brake cleaner inside the fork leg. It evaporates quickly and effectively removes grease, varnish, and fine particles. Use your bendy flashlight to inspect the interior walls, ensuring they are 'clean as a whistle'. For stubborn areas or the damping rod itself, use small brushes or pipe cleaners. Ensure all orifices in the damping rod/cartridge are clear.
4. Component Inspection: While everything is disassembled, carefully inspect all components. Look for wear on bushings, scratches on the chrome inner tube (stanchion), and any damage to the fork valve itself or its shims. If you're reusing fork seals, inspect them for cracks or hardening, though it's highly recommended to replace them whenever the forks are disassembled to this extent. The bottom bolt, often associated with fork seals, should only be disturbed if you are indeed replacing the seals or performing a full strip-down. For a simple fluid change, if your fork has drain bolts, you might opt to use them to avoid disturbing this critical seal area.
5. Drying: Allow all components to air dry completely, or use compressed air (with caution) to ensure no cleaning residue or moisture remains.

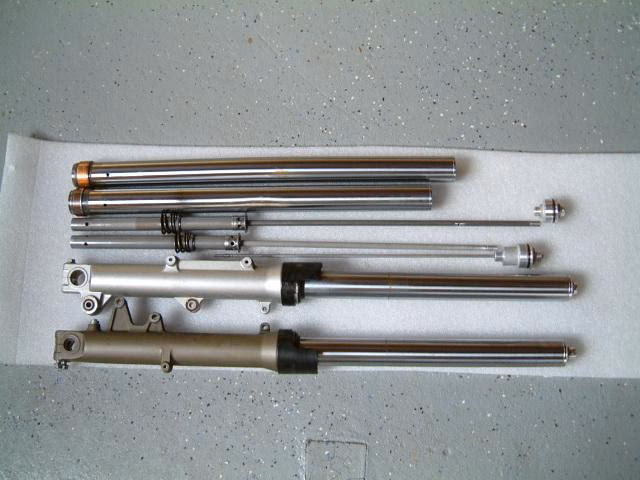

Reinstalling the Fork Valve: Precision is Key

With clean components, you're ready for reinstallation. This process varies slightly depending on whether you have a damping rod fork or a cartridge fork, but the principles remain similar.

1. Lubricate Components: Lightly coat any O-rings or sliding surfaces on the fork valve with clean fork oil. This aids in smooth assembly and protects seals.
2. Insert the Valve: Carefully slide the fork valve (or cartridge assembly) into the fork outer tube. Ensure it slides smoothly without binding. Some designs require the valve to pass through the lower bushing.
3. Secure the Bottom Bolt: This bolt holds the damping rod or cartridge in place at the bottom of the fork leg. Apply a thread-locking compound (e.g., blue Loctite) to the bolt threads, if recommended by your service manual. Tighten this bolt to the precise torque wrench specification provided in your manual. Overtightening can strip threads or damage components, while undertightening can lead to leaks or a loose internal assembly. This bolt can sometimes spin the internal rod, requiring an internal holding tool.
4. Install Inner Tube (Stanchion): If separate, slide the chrome inner tube into the outer tube, ensuring it aligns with the bushings.
5. Install Bushings and Seals: If you've replaced these, carefully install the new bushings, followed by the dust seal and oil seal, using appropriate seal drivers to avoid damage.

The Critical Step: Refilling and Setting Fork Oil Level

This is arguably the most crucial part of fork reassembly. The correct fork oil level dictates the air spring effect within the fork, significantly influencing the suspension dynamics and progression.

1. Compress the Fork: Fully compress the fork leg. This means pushing the inner tube completely into the outer tube, as if the suspension were bottomed out.
2. Remove the Spring: Crucially, ensure the fork spring is out of the fork leg before measuring the oil level. The spring displaces a significant volume, and leaving it in will result in an incorrect oil level.
3. Pour in New Fork Oil: Slowly pour the new, specified fork oil into the fork leg. Start with slightly less than the recommended amount to avoid overfilling.
4. Pump the Fork: Gently pump the fork leg up and down several times. This helps to bleed air from the damping system and ensures the oil fills all internal passages. You might see air bubbles rising to the surface. Continue pumping until no more bubbles appear. Allow a few minutes for any trapped air to rise.
5. Measure the Oil Level: This is where the fork oil level tool comes in handy. This tool typically consists of a syringe or pump connected to a tube with an adjustable stop.
• Set the tool's adjustable stop to the exact measurement specified in your bike's service manual (e.g., 125mm from the top of the fork leg). This measurement is taken from the very top edge of the inner tube, with the fork fully compressed and no spring installed.
• Insert the tube into the fork, ensuring the stop rests on the top edge of the inner tube.
• Draw out any excess oil using the syringe until the oil level precisely matches the set depth. If you're short, add a small amount of oil and re-measure.
• Use your bendy flashlight to visually confirm the oil level if possible, ensuring it's flat across the surface.
6. Reinstall Spring and Cap: Once the oil level is perfect, reinsert the fork spring (ensure correct orientation if it's progressive). Then, carefully thread on the top cap or cartridge rod nut. Be mindful not to cross-thread. Tighten the top cap to the specified torque wrench setting.

Understanding Fork Oil Level Impacts

The fork oil level directly affects the volume of air trapped above the oil. This trapped air acts as a secondary spring, influencing the fork's progression and bottoming resistance.

Reassembly and Final Checks

With the fork legs fully assembled, it's time to reinstall them onto your bike.

1. Install Fork Legs: Carefully slide the fork legs back into the triple clamps. Ensure they are aligned correctly and that both legs are at the same height in the clamps. This is crucial for proper steering and handling.
2. Tighten Triple Clamp Bolts: Start with the lower triple clamp bolts, tightening them to the torque wrench specification, then move to the upper triple clamp bolts. Follow the sequence recommended in your service manual (e.g., tighten lower, then upper, then re-check lower).
3. Reinstall Wheel and Brake Calipers: Mount the front wheel, ensuring the axle spacers are in their correct positions. Reinstall the brake calipers and tighten all fasteners to their specified torque settings.
4. Test Suspension: Once the bike is back on the ground, gently compress the front suspension several times. Listen for any unusual noises, feel for any binding, and observe the damping action. The movement should be smooth and controlled.
5. Final Check: Double-check all bolts you've loosened or tightened. A quick ride at low speed in a safe area will confirm proper function before heading out on the road.

Common Challenges and Troubleshooting Tips

• Stuck Bottom Bolt: If the internal damping rod spins when trying to loosen or tighten the bottom bolt, you'll need an internal holding tool. Some mechanics use an impact wrench to quickly 'shock' the bolt loose, but this isn't recommended for tightening.
• Leaking Seals: If you notice oil leaking after reassembly, it's likely a damaged or improperly installed fork seal. This requires disassembly and replacement of the seal. Ensure the chrome stanchion is perfectly smooth.
• Harsh or Mushy Ride: This often points to an incorrect fork oil level or incorrect oil viscosity. Refer back to the 'Fork Oil Level Impacts' table and your service manual.
• Air Trapped in Forks: If the forks feel 'springy' or inconsistent, you might not have fully bled the air. Re-pump the forks vigorously with the top cap off (but spring in), allowing air to escape before final reassembly.

Frequently Asked Questions (FAQs)

Q: Do I need to pull the fork oil out every time I work on the fork valve?
A: If you are re-installing a fork valve, it implies you've either replaced it or serviced it, which almost always necessitates draining and refilling the fork oil. While some forks have drain bolts that allow for fluid changes without full disassembly, accessing and reinstalling the internal valve typically requires the fork to be largely disassembled, making a full fluid change and level setting essential. You wouldn't go near the bottom bolt unless doing fork seals or a full internal service, both of which mean you'll be dealing with the oil.

Q: What is the correct fork oil level for my bike?
A: The correct fork oil level is specific to your motorcycle model and is always measured from the top of the fully compressed fork leg (with the spring out) to the oil surface. This precise measurement can only be found in your bike's service manual. For instance, some models might specify 125mm, but this varies wildly between manufacturers and models.

Q: How often should I service my motorcycle forks?
A: Service intervals vary depending on the bike, riding style, and manufacturer recommendations. Generally, a full fork service (including oil and seal replacement) is recommended every 15,000 to 20,000 miles, or every 2-3 years, whichever comes first. Aggressive riding or off-road use may necessitate more frequent servicing.

Q: Can I use a different weight of fork oil?
A: While it's possible to alter handling characteristics by using a slightly different oil weight (viscosity), it's generally recommended to stick to the manufacturer's specified weight, especially if you're not an experienced suspension tuner. Changing the oil weight will affect the damping characteristics; a higher weight increases damping, while a lower weight decreases it.

Q: What if I don't have a specific fork oil level tool?
A: While a dedicated fork oil level tool offers the most precision, you can improvise with a ruler and a large syringe or turkey baster with a piece of tubing attached. Mark the desired level on the tubing, insert it until the mark aligns with the top of the fork tube, and then suck out the excess oil. It requires more patience but can achieve acceptable results.

Conclusion

Reinstalling a fork valve is a detailed process that demands patience and precision, but the rewards are significant. A properly assembled and filled front fork system provides not just a comfortable ride, but also crucial control and feedback, directly contributing to your safety and enjoyment on the road. By following these steps, paying close attention to cleanliness, correct oil levels, and torque specifications, you'll ensure your motorcycle's front end is ready to tackle whatever the road throws at it with confidence and poise. Remember, your bike’s suspension dynamics are key to a great ride, so invest the time to get it right.
