VFR750 Fork Oil Guide

Understanding Fork Oil for Your 1990 VFR750

The 1990 Honda VFR750 is a legendary sport-touring motorcycle, renowned for its smooth V4 engine and capable handling. To keep that legendary handling sharp and responsive, the right fork oil and a proper oil change procedure are absolutely crucial. Over time, fork oil degrades, losing its viscosity and lubricating properties, which can lead to a harsh ride, poor damping, and even premature wear of internal fork components. This guide will delve into the specifics of fork oil for your '90 VFR750, explain why it's so important, and walk you through the process of changing it yourself.

Why Fork Oil Matters

Fork oil is more than just a lubricant; it's the lifeblood of your motorcycle's front suspension. It performs several vital functions:

• Damping Control: The primary role of fork oil is to control the speed at which the suspension compresses and rebounds. As the forks move, the oil is forced through small passages and valves within the damping system. The resistance created by the oil's viscosity dictates how quickly the forks absorb impacts and return to their original position.
• Lubrication: The oil lubricates the fork sliders, bushings, and seals, reducing friction and ensuring smooth operation. This prevents premature wear and tear on these critical components.
• Heat Dissipation: The constant movement and friction within the forks generate heat. The fork oil helps to dissipate this heat, preventing overheating and maintaining consistent damping performance.
• Corrosion Prevention: Fork oil contains additives that help prevent corrosion of internal fork components, protecting them from moisture and contaminants.

Using the incorrect type or weight of fork oil, or neglecting to change it, can lead to a host of problems, including a bouncy or harsh ride, a feeling of the front end being "loose" or "wandering," and increased wear on fork internals.

Choosing the Right Fork Oil for Your 1990 VFR750

When it comes to selecting fork oil for your 1990 VFR750, viscosity is the most important factor. Viscosity refers to the oil's resistance to flow. It's typically measured in centistokes (cSt) at a specific temperature (usually 40°C). Fork oils are generally categorized by their weight, such as 5W, 10W, 15W, and so on. However, "W" (weight) is a less precise measurement than cSt, as different brands can have oils with the same "W" rating but different actual viscosities.

For the 1990 VFR750, Honda typically specified a fork oil in the 10W range. However, it's always best to consult your owner's manual for the exact recommendation. If you don't have the manual, reputable motorcycle forums and service manuals are excellent resources.

Factors to consider when choosing fork oil:

• Riding Style: If you ride aggressively, especially on twisty roads or track days, you might prefer a slightly heavier oil (e.g., 12.5W or 15W) for increased damping and a firmer feel. For a more comfortable, standard ride, a 10W is usually ideal.
• Rider Weight: A heavier rider might benefit from a slightly heavier oil to compensate for the increased load on the suspension.
• Environmental Conditions: Extremely hot or cold temperatures can affect oil viscosity. While most modern fork oils are formulated to be relatively stable, it's something to keep in mind.
• Brand Quality: Stick with reputable brands known for producing high-quality motorcycle suspension fluids. Brands like Motul, Bel-Ray, Maxima, and Spectro are popular choices.

It's also important to note that some fork oils are labelled as "synthetic" or "mineral-based." Synthetic oils generally offer better performance, consistency, and longevity, making them a worthwhile investment for your VFR750.

How to Change Your VFR750 Fork Oil: A Step-by-Step Guide

Changing your fork oil is a moderately involved process that requires some mechanical aptitude and the right tools. If you're not comfortable with this type of work, it's best to have a qualified mechanic perform the service. However, if you're up for the challenge, follow these steps carefully:

Tools and Materials You'll Need:

• New fork oil (correct weight and quantity)
• Metric wrenches and sockets
• Allen keys
• Torque wrench
• Fork seal driver (optional, but recommended)
• Shop rags or paper towels
• Drain pan or bucket
• Syringe or graduated cylinder for measuring oil
• Zip ties or sturdy straps for securing the front wheel
• Motorcycle stand (front and rear, or a suitable jack)
• Gloves and eye protection

Step 1: Prepare the Motorcycle

Begin by placing your VFR750 on a stable motorcycle stand. Ensure the front wheel is lifted off the ground. You might need a front stand, or a rear stand can suffice if you can safely support the front end with a jack under the engine. Secure the motorcycle to prevent it from tipping over.

Step 2: Remove the Front Wheel and Fender

Loosen and remove the front axle nut and bolt. You may need to support the forks while doing this to prevent them from spinning. Once the axle is removed, carefully slide the front wheel out. Remove the front fender, as it will likely obstruct access to the fork bottoms.

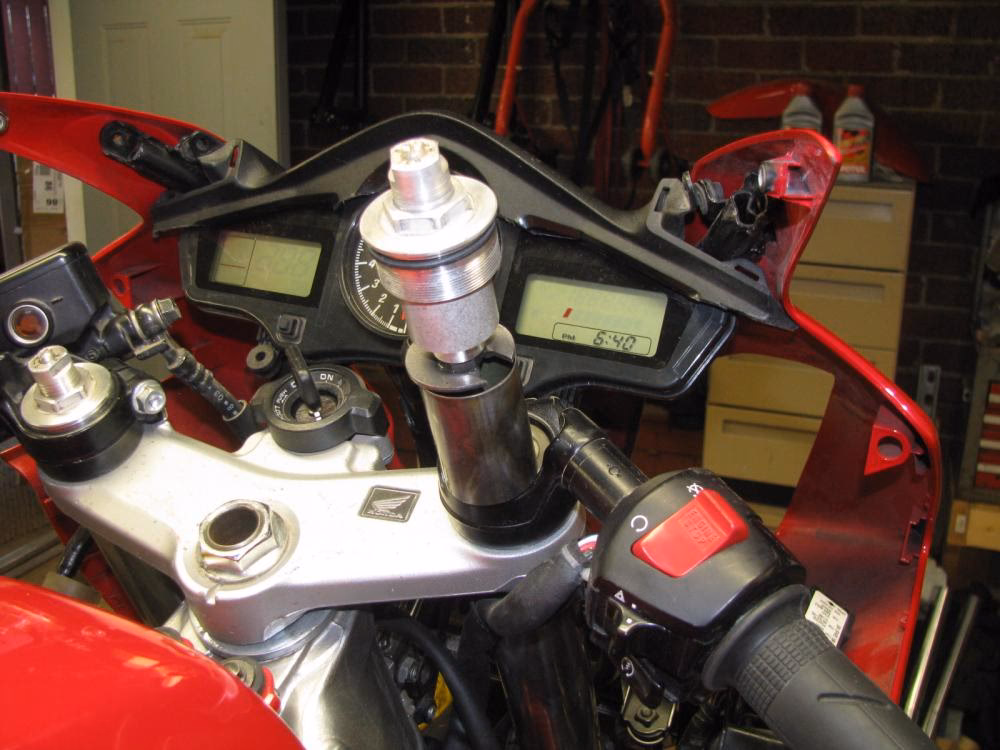

Step 3: Loosen Fork Top Caps

Locate the fork top caps. These are usually at the very top of the fork tubes. Before loosening the triple clamps, it's often easier to crack these loose. Use the appropriate wrench or socket. Be careful not to overtighten when reassembling.

Step 4: Loosen Triple Clamp Bolts

Loosen the bolts on the upper and lower triple clamps that hold the fork tubes in place. You don't need to remove them entirely, just loosen them enough to allow the fork tubes to slide out.

Step 5: Remove Fork Tubes

With the triple clamp bolts loosened, carefully slide each fork tube downwards and out of the triple clamps. Be prepared for them to be a bit heavy due to the oil inside. It's a good idea to have a rag ready to catch any drips.

Step 6: Drain the Old Fork Oil

Now that the fork tubes are out, you can drain the old oil. Most fork designs have a drain screw at the bottom of the fork leg, or you may need to unscrew the entire bottom cap. Place your drain pan underneath and let the oil drain completely. You can cycle the fork gently to help expel more of the old oil.

Step 7: Disassemble and Clean (Optional but Recommended)

For a thorough service, it's recommended to disassemble the fork legs further to clean out any sediment and inspect the seals and bushings. This typically involves removing the spring and then carefully unscrewing the internal damping rod assembly. Clean all parts with a mild solvent and inspect for any damage or excessive wear. If seals are leaking or bushings are worn, this is the time to replace them.

Step 8: Reassemble and Add New Fork Oil

Once you've drained the oil (and cleaned components if you chose to), you're ready to add the new oil. This is where precision is key. Refer to your VFR750's service manual for the exact amount of oil required per fork leg, or more commonly, the oil level measurement from the top of the fork tube with the spring removed and the fork fully compressed. This oil level measurement is often more accurate than a fixed volume.

Important Note on Oil Level: The oil level is critical for proper damping. Too much oil can make the suspension too stiff and potentially blow seals. Too little oil will result in poor damping and a "spongy" feel.

Use a syringe or graduated cylinder to accurately measure the fork oil. Slowly pour the new oil into the fork leg. Allow a few minutes for the oil to settle and any air bubbles to dissipate. You can gently pump the fork a few times to help distribute the oil and work out trapped air.

Step 9: Reassemble the Forks

Reinstall the fork springs, ensuring they are oriented correctly. Reassemble the fork internals according to your service manual. Once the fork tube is reassembled, carefully slide it back into the triple clamps. Ensure the alignment marks (if any) are correct.

Step 10: Tighten Triple Clamp Bolts and Top Caps

Tighten the triple clamp bolts to the manufacturer's specified torque. Then, tighten the fork top caps. Reinstall the front fender and the front wheel, ensuring the axle is torqued correctly.

Step 11: Test and Adjust

Lower the motorcycle off the stand. Bounce the front end a few times to allow the suspension to settle. Take your VFR750 for a short, gentle test ride. Pay attention to how the front suspension feels. Is it responsive? Does it absorb bumps smoothly? Does it feel stable in corners?

Common Fork Oil Weights and Their Effects

Here's a general overview of how different fork oil weights can affect your VFR750's suspension:

Frequently Asked Questions (FAQs)

Q1: How often should I change my fork oil?
It's generally recommended to change fork oil every 10,000 to 15,000 miles, or every two years, whichever comes first. However, if you ride aggressively or in harsh conditions, you may need to change it more frequently. Signs of degraded oil include a harsher ride, increased fork dive under braking, or a "spongy" feel.

Q2: Can I mix different weights of fork oil?
Yes, you can mix different weights of fork oil to achieve a custom viscosity. For example, mixing 5W and 15W in equal parts will give you a 10W equivalent. This is a common practice for fine-tuning suspension feel.

Q3: Do I need to replace my fork seals when changing the oil?
It's not mandatory, but it's highly recommended, especially if your fork seals are old or have started to leak. The process of disassembling the forks to change the oil provides easy access to the seals, and replacing them at the same time can save you from having to do the job again soon.

Q4: What happens if I use car oil in my motorcycle forks?
You should never use car oil in your motorcycle forks. Car engine oils have different additive packages and viscosities that are not designed for the extreme pressures and temperatures found in motorcycle forks. Using the wrong oil can lead to poor damping, premature wear, and potential damage to your suspension components.

Q5: How do I know if my fork oil needs changing?
Besides the mileage/time recommendation, pay attention to how your suspension feels. If you notice a significant change in ride quality – it feels harsher, bouncier, or less controlled – it's a strong indicator that your fork oil has degraded and needs to be replaced. Leaking fork seals are also a sign that it's time for maintenance, which often includes an oil change.

Conclusion

Maintaining the fork oil in your 1990 Honda VFR750 is a vital aspect of ensuring its legendary performance and your riding enjoyment. By understanding the role of fork oil, selecting the correct type, and following a proper maintenance schedule, you can keep your VFR's front suspension feeling precise and responsive for miles to come. Don't underestimate the impact of fresh, high-quality fork oil on your riding experience!
