Brake Caliper Tools: Your Essential Guide

Maintaining your vehicle's braking system is paramount for road safety. Among the various components, the brake caliper plays a critical role in bringing your car to a stop. When it comes time to replace worn brake pads or service a caliper, a specialised brake caliper tool becomes not just useful, but often essential. Without the correct equipment, what should be a straightforward maintenance task can quickly become frustrating, potentially damaging components or, worse, compromising your vehicle's safety.

This comprehensive guide will delve into the world of brake caliper tools, explaining their purpose, the different types available, and how they contribute to a successful and safe brake service. Whether you're a seasoned DIY mechanic or just starting to get your hands dirty, understanding these tools is fundamental to keeping your brakes in top condition.

What Exactly is a Brake Caliper?

Before we explore the tools, let's briefly recap the function of a brake caliper. The caliper is a vital component of a disc brake system, essentially acting as a clamp that holds the brake pads. When you press the brake pedal, hydraulic fluid pressure forces one or more pistons inside the caliper to push the brake pads against the spinning brake disc (rotor). This friction slows down and eventually stops your vehicle. Over time, as the brake pads wear down, the pistons extend further out of the caliper body. When fitting new, thicker brake pads, these pistons must be retracted back into the caliper to make space.

Why Do You Need a Brake Caliper Tool?

The primary reason for needing a brake caliper tool is to retract the caliper pistons. As brake pads wear, the pistons automatically adjust their position to maintain consistent contact with the disc. When installing new, thicker brake pads, these pistons need to be pushed or wound back into their bores within the caliper. Attempting to force them back without the correct tool can lead to several problems:

• Damage to Caliper Components: Using incorrect tools like screwdrivers or pliers can score the piston, damage the rubber dust boot, or even warp the caliper body itself, leading to costly leaks or complete caliper failure.
• Uneven Piston Retraction: Especially with multi-piston calipers, pushing one piston back at a time can cause others to extend, making the job difficult and potentially leading to uneven pad wear or braking performance issues.
• Difficulty with Wind-Back Calipers: Many modern vehicles, particularly those with electronic parking brakes (EPB) or integrated parking brake mechanisms, require the piston to be rotated (wound back) as it's pushed. Simply compressing these pistons will damage the internal mechanism.
• Safety Concerns: A compromised braking system is a major safety hazard. Using the right tool ensures the pistons retract correctly, allowing new pads to seat properly and the braking system to function as designed.

A dedicated brake caliper tool ensures the pistons retract smoothly, evenly, and without damage, making the brake pad replacement process far more efficient and secure.

Types of Brake Caliper Tools

Brake caliper tools come in various designs, each suited for specific types of calipers or tasks. Understanding the differences is key to selecting the right tool for your vehicle.

Piston Compression Tools (Push-Back Tools)

These are the most common type of brake caliper tool, designed to simply push the caliper piston straight back into its bore. They are suitable for calipers without an integrated parking brake mechanism that requires rotation.

• C-Clamp Style Piston Compressor

  This is arguably the simplest and most widely used brake piston compression tool. It resembles a large C-clamp with a flat pad on one end and a screw mechanism on the other. You position the flat pad against the piston and the other end against the back of the caliper, then tighten the screw to gradually push the piston back. They are effective for single-piston calipers and can sometimes be used for dual-piston calipers by pushing one piston at a time, though this can be cumbersome.

• Disc Brake Pad Spreader / Dual Piston Compressor

  These tools are designed to apply even pressure across two pistons simultaneously, or to spread the caliper body to allow for new pads. They often feature two parallel plates that can be widened or narrowed by a screw mechanism. This design is particularly useful for calipers with opposed pistons, ensuring both retract evenly and without binding. Some designs can also be used to push back a single piston by bracing one plate against the caliper body.



Wind-Back Tools (Rotation and Push-Back Tools)

For vehicles equipped with rear disc brakes that have an integrated handbrake mechanism (often found on cars with rear disc brakes and a cable-operated parking brake, or increasingly, electronic parking brakes), the caliper piston must be rotated as it is pushed back. This is because the parking brake mechanism uses a screw-type adjuster that extends and retracts the piston. Simply pushing these pistons back will damage the internal mechanism.

• Brake Caliper Cube Tool

  The brake caliper cube tool is a small, cube-shaped tool with various lug patterns on its faces. Each face corresponds to a different piston recess pattern. You insert the cube into the piston's face and use a ratchet or spanner to turn the cube, which in turn rotates and retracts the piston. They are inexpensive and compact but may not have the specific pattern required for all vehicles.

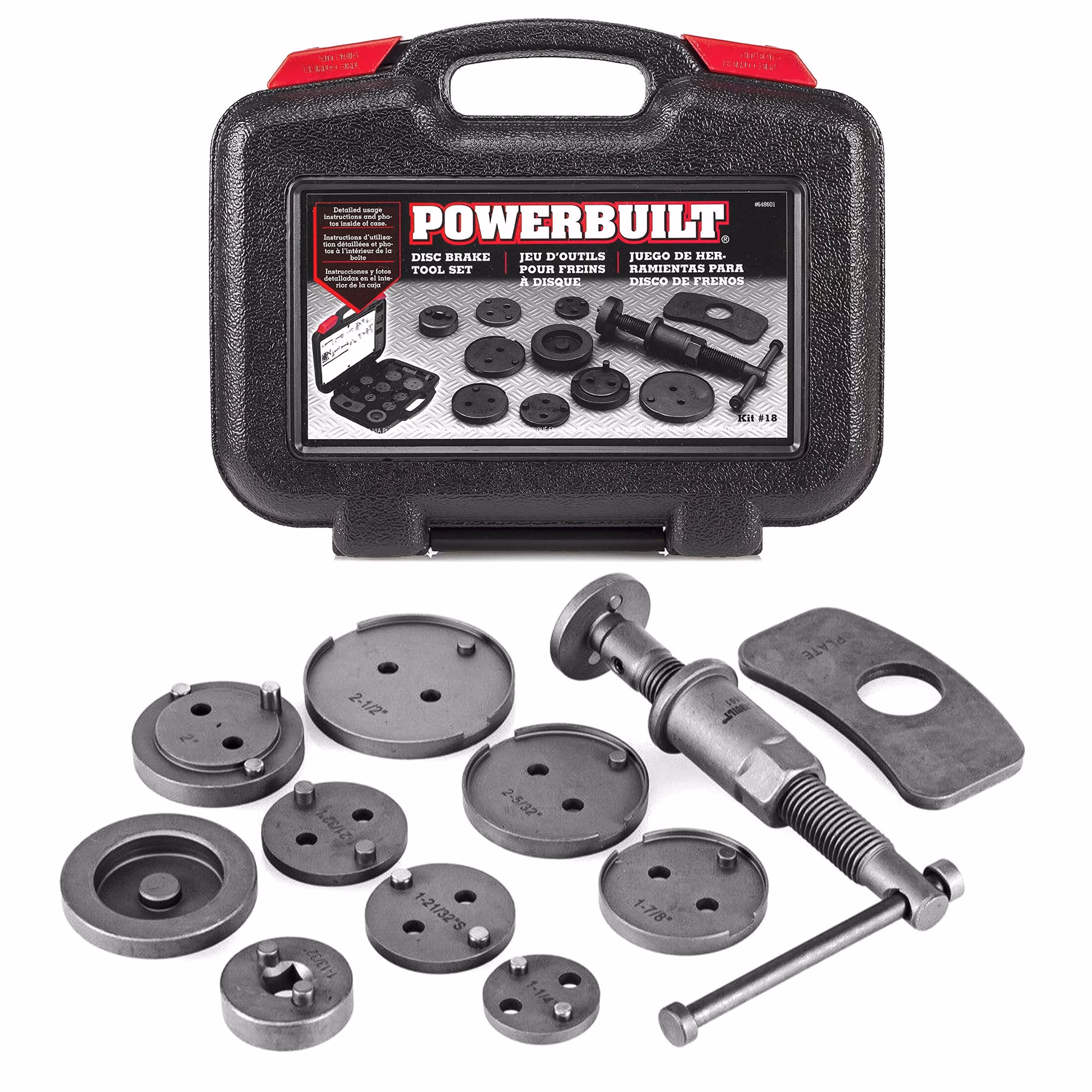

• Universal Wind-Back Kits

  These kits are more comprehensive, typically containing a main wind-back tool (a threaded shaft with a handle or drive) and a wide array of adapter plates. Each adapter plate has a specific pin pattern to engage with the recesses on different caliper pistons. The tool allows you to apply both rotational and axial (pushing) force simultaneously, making it suitable for a vast range of vehicles. They often include both 'right-hand thread' and 'left-hand thread' tools, as some vehicle manufacturers use pistons that retract by turning clockwise, while others require anti-clockwise rotation.

• Specific Wind-Back Tools

  For certain high-performance or very specific vehicle models, a universal kit might not suffice, and a dedicated tool designed for that particular caliper's piston pattern and winding mechanism might be necessary.

Other Related Tools

While not strictly 'caliper tools' for piston retraction, these items are often used in conjunction with caliper servicing:

• Brake Line Wrenches (Flare Nut Spanners)

  These are spanners specifically designed to grip the hex flats of brake line fittings without rounding them off. They have a nearly complete hex opening, providing more contact area than an open-ended spanner, crucial for the often-tight and corroded brake line fittings.

• Brake Bleeder Kits

  After opening the hydraulic system (e.g., when replacing a caliper), air can enter the lines. A brake bleeder kit, which can range from simple one-man bleeder bottles to vacuum pumps or pressure bleeders, helps remove this air to restore proper brake pedal feel and function.

• Caliper Hangers / Hooks

  These simple hooks allow you to suspend the brake caliper from the vehicle's suspension component (e.g., coil spring or chassis) once it's unbolted from the hub. This prevents the caliper from hanging by the flexible brake hose, which can damage the hose internally and lead to brake failure.



How to Use a Brake Caliper Tool (General Steps)

The exact procedure will vary slightly depending on your vehicle and the specific tool, but the general steps for brake pad replacement involving a caliper tool are as follows:

1. Preparation and Safety: Park the vehicle on a flat, stable surface. Engage the parking brake. Loosen the wheel nuts, then jack up the vehicle and secure it firmly on axle stands. Never work under a vehicle supported only by a jack. Remove the wheel.
2. Access the Caliper: Loosen the caliper guide pin bolts (often two per caliper). Depending on the design, you may need to remove both bolts to take the caliper off, or just the bottom one to pivot the caliper upwards.
3. Remove Old Pads: Once the caliper is loose or removed, slide out the old brake pads. Note their orientation and any shims or clips.
4. Retract the Piston(s):
   • For Push-Back Calipers: Place your C-clamp or pad spreader tool against the piston(s) and the back of the caliper. Slowly and evenly tighten the tool to push the piston(s) fully back into the caliper bore. As you do this, keep an eye on the brake fluid reservoir – the fluid level will rise. If it's at 'max', you may need to remove a small amount of fluid with a clean syringe to prevent overflow.
   • For Wind-Back Calipers: Select the correct adapter plate for your wind-back tool that matches the piston's recess pattern. Attach it to the wind-back tool. Insert the adapter into the piston. Turn the tool (clockwise or anti-clockwise as required for your vehicle) while applying gentle inward pressure to retract the piston fully.
5. Install New Pads: Once the piston is fully retracted, insert the new brake pads, ensuring any shims, clips, or wear indicators are correctly positioned.
6. Reassemble and Bleed (If Necessary): Re-position the caliper over the new pads and disc. Reinstall and torque the caliper guide pin bolts to the manufacturer's specifications. If you opened any brake lines or replaced the caliper, you will need to bleed the brake system to remove any air.
7. Final Checks: Reinstall the wheel and torque the wheel nuts. Before driving, gently pump the brake pedal several times until it feels firm. This re-seats the pistons against the new pads. Check the brake fluid level and top up if necessary. Take a short, slow test drive in a safe area to ensure the brakes are functioning correctly.

Choosing the Right Brake Caliper Tool

When selecting a brake caliper tool, consider the following:

• Vehicle Type: Determine if your vehicle has push-back or wind-back calipers (most rear calipers with integrated parking brakes are wind-back).
• Caliper Design: Single-piston, dual-piston, or opposed-piston calipers will influence the best type of compression tool.
• Frequency of Use: If you only do occasional brake jobs, a simple C-clamp or cube tool might suffice. For more frequent or varied work, a universal wind-back kit offers greater versatility.
• Quality: Invest in a good quality tool. Cheap tools can bend, break, or damage your caliper.

Benefits of Using the Correct Tool

The advantages of using the appropriate brake caliper tool extend beyond mere convenience:

• Prevents Damage: Protects expensive caliper components like pistons, seals, and dust boots from scoring or tearing.
• Ensures Proper Function: Guarantees that pistons retract evenly and fully, allowing new pads to seat correctly and promoting even wear.
• Time-Saving: Makes the job quicker and less frustrating than trying to improvise with inadequate tools.
• Enhanced Safety: A correctly serviced brake system performs optimally, which is crucial for your safety and the safety of others on the road.
• Professional Results: Achieves a clean, professional finish, reducing the likelihood of future brake issues related to improper installation.

Safety First: Important Considerations

Working on your vehicle's braking system requires strict adherence to safety protocols:

• Always use appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the vehicle is securely supported on axle stands on a firm, level surface. Never rely solely on a jack.
• Brake fluid is corrosive. Avoid contact with paintwork, skin, and eyes. Clean up any spills immediately.
• Never open the brake fluid reservoir cap unless necessary, and always use clean, fresh brake fluid from a sealed container. Brake fluid absorbs moisture from the air, which can degrade its performance.
• If you are unsure about any step, consult a professional mechanic. Your brakes are not an area to take chances with.

Comparison of Common Brake Caliper Tools

Frequently Asked Questions (FAQs)

Q: Can I replace brake pads without a caliper tool?

A: While it might be theoretically possible to force pistons back on some older, simpler calipers using large screwdrivers or pry bars, it is strongly advised against. Doing so risks damaging the piston, dust boot, or caliper bore, leading to fluid leaks, premature wear, or brake failure. For wind-back calipers, it's virtually impossible without the correct tool, and attempting it will almost certainly cause irreversible damage. A proper brake caliper tool is inexpensive compared to the cost of a new caliper or, more importantly, a potential accident.

Q: What's the difference between a push-back and wind-back tool?

A: A push-back tool (like a C-clamp) simply applies linear force to push the caliper piston straight back into its bore. A wind-back tool, on the other hand, applies both linear force and rotational force. It's designed for calipers where the piston must be rotated as it's pushed back, typically found on rear disc brakes with integrated parking brake mechanisms.

Q: Do all cars need a wind-back tool for the rear brakes?

A: Not all cars, but many modern vehicles with rear disc brakes and an integrated parking brake (either cable-operated or electronic parking brake - EPB) will require a wind-back tool. Some older or simpler rear disc brake systems might still use a push-back caliper, or have a separate drum-style parking brake inside the disc. Always check your vehicle's specific service manual or an online resource relevant to your make and model to confirm.

Q: How often should I service my brakes?

A: Brake pad wear varies significantly based on driving style, vehicle type, and mileage. Generally, brake pads should be inspected every 10,000-15,000 miles or at least annually. Brake fluid should typically be flushed and replaced every 2-3 years, as it degrades over time by absorbing moisture. Your vehicle's manufacturer will provide specific service intervals in the owner's manual.

Q: What are the signs of worn brake pads?

A: Common signs of worn brake pads include a squealing or grinding noise when braking (due to wear indicators or metal-on-metal contact), a longer stopping distance, a spongy or soft brake pedal, or the brake warning light illuminating on your dashboard. Visually inspecting the pads is the most reliable method.

In conclusion, a brake caliper tool is an indispensable part of any mechanic's or DIY enthusiast's toolkit when it comes to brake maintenance. By investing in the correct tool and understanding its proper use, you ensure your vehicle's braking system remains safe, efficient, and reliable for many miles to come. Prioritise safety and precision, and your brakes will thank you for it.
