The Vital Flex Hose: Keeping Your Exhaust System Sound

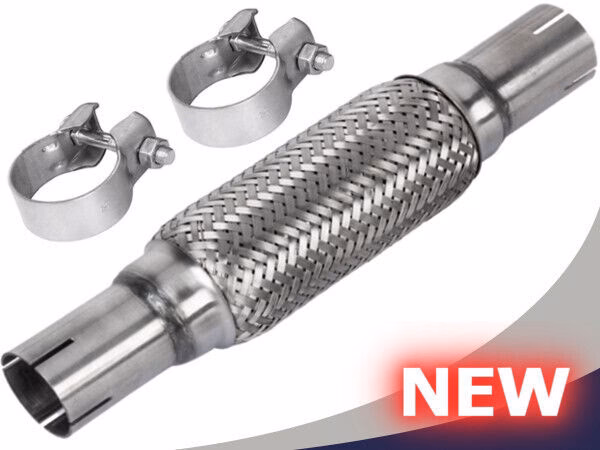

The exhaust system in your Vauxhall Zafira is more than just a pipe that vents fumes; it's a complex network designed to manage emissions, reduce noise, and ensure efficient engine operation. A critical, yet often vulnerable, component within this system is the flex pipe, also known as the corrugated exhaust pipe or flexible hose. This part is specifically engineered to absorb vibrations from the engine, preventing them from being transmitted through the rest of the exhaust system and potentially causing damage to other components. It also allows for slight movements of the engine during acceleration and braking without stressing the rigid exhaust pipes.

Over time, due to constant vibration, heat cycles, and exposure to road debris and moisture, the flex pipe can develop cracks or holes. Common signs of a failing flex pipe include a noticeable increase in exhaust noise, a rattling sound from under the vehicle, or even exhaust fumes entering the cabin. Addressing this issue promptly is crucial, not only for noise reduction but also for maintaining the integrity of your exhaust system and ensuring your vehicle passes its MOT.

Choosing the Best Flex Hose for Your Zafira

When it comes to selecting a replacement flex hose for your Vauxhall Zafira, quality and reliability are key. Our customers consistently recommend several reputable brands that offer durable and well-fitting components. While specific brand names were not provided, it's generally advisable to look for manufacturers known for their exhaust system components and those that offer a good warranty. Always ensure the part is specifically designed for your Zafira's make, model, and year.

Investing in a high-quality flex pipe can save you money in the long run by preventing premature failure and avoiding further damage to other exhaust components. Cheaper, generic alternatives might seem appealing initially, but they often lack the durability and precise fitment required for optimal performance and longevity.

Flex Pipe Pricing: What to Expect

The cost of a replacement flex pipe for your VAUXHALL ZAFIRA can vary significantly, typically ranging from £7 to £68. This price difference is influenced by several factors, including the manufacturer, the specific materials used, and the exact specifications required for your Zafira model. Generally, parts from premium brands or those with enhanced durability features might be at the higher end of this scale, while more basic or unbranded options will be at the lower end. Always compare prices from reputable suppliers and consider the overall value, not just the upfront cost.

Installation costs should also be factored in if you plan to have a garage fit the part. While some mechanically inclined individuals might attempt a DIY replacement, it often requires specialist tools and a good understanding of exhaust system repair.

Understanding Your Vauxhall Zafira B: A Closer Look

The Opel Zafira B, widely known as the Vauxhall Zafira B in the UK, was a prominent model produced between 2004 and 2014. It's also sometimes referred to as the Zafira Family. This generation of the Zafira introduced numerous advancements, particularly in its electrical system and electronic control units. For owners and mechanics alike, a detailed understanding of these systems, including the layout of fuse boxes and relays, is invaluable for troubleshooting, repairs, and general maintenance.

It's important to note that the exact configuration and purpose of elements within your Zafira B's fuse boxes can vary. These differences depend on the specific year of manufacture, the region for which the car was delivered (e.g., UK vs. continental Europe), and the level of electrical equipment installed in your particular vehicle. Always consult your vehicle's specific owner's manual or a service manual for the most accurate information pertaining to your Zafira B.

Navigating the Zafira B's Electrical System: ECUs, Fuse Boxes, and Relays

Modern vehicles, including the Vauxhall Zafira B, rely heavily on electronic control units (ECUs) to manage various functions, from engine performance to safety features. These ECUs, along with their associated fuse boxes and relays, form the backbone of the vehicle's electrical infrastructure. Knowing their locations and functions can save considerable time and effort when diagnosing an electrical fault.

Electronic Control Units (ECUs) - Where Are They?

The Zafira B houses numerous electronic control units, each dedicated to a specific set of functions. Here's a general layout of where you might find some of the key ECUs:

• ABS electronic control unit: Typically located under the expansion tank.
• Air conditioner electronic control unit: Manages the vehicle's HVAC system.
• Antenna signal boosters (1 & 2): Enhance radio and other signal reception.
• Shock Sensor (SRS): Front, and side impact sensors (driver's and passenger's side) for airbag deployment.
• Anti-theft alarm relay & siren: Components of the vehicle's security system.
• Additional heater control unit & relay: Often found behind the expansion tank, controls supplementary heating.
• Accumulator battery: The main power source for the vehicle's electrical system.
• Diagnostic connector (DLC): Your access point for reading fault codes and diagnostics.
• Electronic engine control unit: Diesel versions are typically behind the wheel arch; petrol versions are in the upper right part of the engine.
• Cooling fan motor relays (4 & 5): Located near the radiator.
• Glow plug control unit: Specific to diesel models, manages the glow plugs.
• Headlamp levelling control unit (adaptive additional headlights): Controls headlight aim.
• Heater blower motor resistor: Regulates fan speed for the cabin heater.
• Beeps (1 & 2): Horn mechanisms.
• Keyless entry control unit: Often behind a fuse/relay box.
• Multifunctional control unit 1: Built into the engine compartment fuse/relay box. Handles central locking, display, fog lights, fuel pump, headlights, washer, defogger, HVAC, horn, immobilizer, indicators, instrument cluster, interior lamps, remote control, luggage compartment lamp, rear window washer, reversing lights, brake lights, rear dimensions, windshield wiper/washer, rain sensor.
• Multifunction control unit 2: Integrated into the luggage compartment fuse/relay box. Functions include anti-theft system, central locking, fuel pump, heated rear window, instrument cluster, interior lamps, license plate lamp, rear window wiper, brake lights, trailer electrical connector, vanity mirror lamp.
• Ambient temperature sensor: Provides exterior temperature readings.
• Parking Assist Control Module: Behind the right rear trim panel.
• Seat heating control units (driver's & passenger's): Located under their respective seats.
• Steering column electronics control unit: Manages steering wheel functions and related electronics.
• SRS electronic control unit: Main airbag control unit.
• Suspension Control Unit: Present with active suspension systems.
• Telephone control unit: For integrated phone systems.
• Trailer control unit: Manages electrical connections for towing.
• Electronic gearbox control unit & Gear shift control unit: For automatic and Easytronic transmissions.
• Tire pressure monitor control unit: Monitors tyre pressure.
• Rain sensor (windshield wiper): Activates wipers automatically.
• Lateral movement sensor: Part of stability control systems.

Engine Compartment Fuse & Relay Box

This critical component is located on the left side of the engine compartment, typically next to the pillar, and is protected by a cover. It usually consists of two sections: a fuse and relay box, and a high-power fuse section. This box manages many vital engine and front-end electrical functions.

Table 1: Engine Compartment Fuse Diagram (FB & F series)

Of particular note for many Zafira owners: In one version of the Zafira B, fuse number 36 at 15A is responsible for the operation of the cigarette lighter. If this fuse is intact, check the unit in the luggage compartment.

Table 2: Engine Compartment Relay Diagram (K series)

It's worth noting that some individual relay elements might be located outside the main unit. Examples include: K30A Relay – radiator fan (FE5, FE6), K30B Relay – radiator fan (FE5, FE6), K84LD / RD Relay – Hydraulic Unit (Convertible Top) (FB1), K93 Relay – unlocking the gear lever (Automatic transmission AF17 / 4, AF22 / 4).

Luggage Compartment Fuse & Relay Box

Another crucial fuse and relay box is situated in the boot, behind the left-hand side trim panel. This unit primarily manages electrical components in the rear of the vehicle, as well as some shared functions.

Table 3: Luggage Compartment Fuse Diagram (Type 1 - FR series)

For Type 1 diagrams, fuse number 29 at 15A is responsible for the front cigarette lighter socket, and fuse 30 at 10A for additional rear sockets.

Table 4: Luggage Compartment Relay Diagram (Type 1 - K series)

Table 5: Luggage Compartment Fuse Diagram (Type 2 - F series)

For Type 2 diagrams, the auxiliary socket (rear cigarette lighter) is handled by fuse F52 at 15A.

Table 6: Luggage Compartment Relay Diagram (Type 2 - K series)

Frequently Asked Questions (FAQs)

Why is my Zafira B cigarette lighter not working?

The cigarette lighter, often used for charging devices, is a common point of failure due to blown fuses. For the Vauxhall Zafira B, check fuse number 36 (15A) in the engine compartment fuse box (for some versions) or fuse number 29 (15A) in the luggage compartment fuse box (Type 1 diagram). If you have additional rear sockets, check fuse 30 (10A) in the luggage compartment (Type 1) or fuse F52 (15A) (Type 2).

How often should I check my Zafira B's fuses?

Fuses generally don't require routine checks unless you're experiencing an electrical malfunction with a specific component. If a light isn't working, a window isn't moving, or your radio is dead, then checking the relevant fuse is the first step in troubleshooting. It's always a good idea to keep a spare set of common fuse amperages in your vehicle.

What are the signs of a failing exhaust flex pipe?

The most common signs are an increase in exhaust noise, particularly a loud hissing or rattling sound from under the vehicle, especially during acceleration. You might also notice a strong exhaust smell inside the cabin, which indicates a leak. A visual inspection might reveal cracks, holes, or frayed braiding on the flexible section of the pipe.

Can I replace a flex pipe myself?

Replacing a flex pipe can be a moderately challenging DIY task. It often requires lifting the vehicle safely, cutting out the old pipe, and welding or clamping in the new one. If you're not comfortable working under a car, don't have the necessary tools (like a grinder or welder/clamps), or lack experience with exhaust repairs, it's best to consult a professional mechanic. Incorrect installation can lead to leaks or further damage.

What does 'REC' mean in the fuse box diagrams?

REC typically refers to the 'Rear Electrical Centre' or 'Rear Electronic Module', indicating that a particular fuse or relay is part of, or connected to, the electrical distribution unit located in the rear of the vehicle, specifically the luggage compartment fuse box. Its presence can affect which fuses or relays control certain functions.
