The clutch is a vital component in any manual transmission vehicle, enabling you to smoothly change gears and transfer power from the engine to the wheels. When it starts to show signs of wear, such as slipping or difficulty engaging gears, the immediate thought for many car owners, and indeed mechanics, is often a full clutch replacement. This invariably conjures images of significant labour, high costs, and the dreaded phrase: gearbox removal. But is it ever possible to bypass this major undertaking?
For many, the idea of changing a clutch without extracting the gearbox seems like a dream scenario – a quicker, cheaper fix. However, for the vast majority of modern vehicles, the design of the drivetrain means that the gearbox must be completely removed from the engine to access the clutch assembly. This is because the clutch plate, pressure plate, and release bearing are typically housed within the bell housing, which is the part of the gearbox that bolts directly to the engine.
Why Gearbox Removal is Almost Always Essential
To understand why gearbox removal is standard practice, consider the components involved. The clutch assembly sits between the engine's flywheel and the gearbox's input shaft. When you depress the clutch pedal, the release bearing pushes against the diaphragm spring of the pressure plate, disengaging the clutch disc from the flywheel. This temporary disconnection allows you to change gears without grinding.
The entire clutch mechanism – including the clutch disc, pressure plate, and often the flywheel (especially with dual-mass flywheels) – is bolted directly to the engine's crankshaft. The gearbox then slides onto the clutch input shaft, and its bell housing encases the entire clutch assembly. To remove and replace these components, you need clear access to them, which is only possible by separating the gearbox from the engine. There are very few, if any, production cars where the clutch is designed to be removed from an access panel without splitting the engine and gearbox.
Some vehicles, particularly older models or those with specific transaxle designs, might have a 'changeover model' or a design where the gearbox casing itself forms part of the clutch housing. As experienced by one Astra owner, what might seem like a simple 'end plate' removal for some models can quickly escalate if it turns out the gearbox itself needs to be taken out due to its design. This can significantly increase the labour time and, consequently, the cost.
Understanding Clutch Slippage and Potential Temporary Fixes
A common symptom of a failing clutch is slipping, particularly when accelerating from a standstill or under heavy load. The engine revs increase, but the car doesn't accelerate proportionally. One Astra 1.4 owner experienced this exact issue: "slipping on take off but no slipping at speed." This specific symptom can sometimes be indicative of a clutch that isn't fully engaging, and surprisingly, in some cases, it might be due to a misadjusted clutch cable or hydraulic system, rather than outright wear.

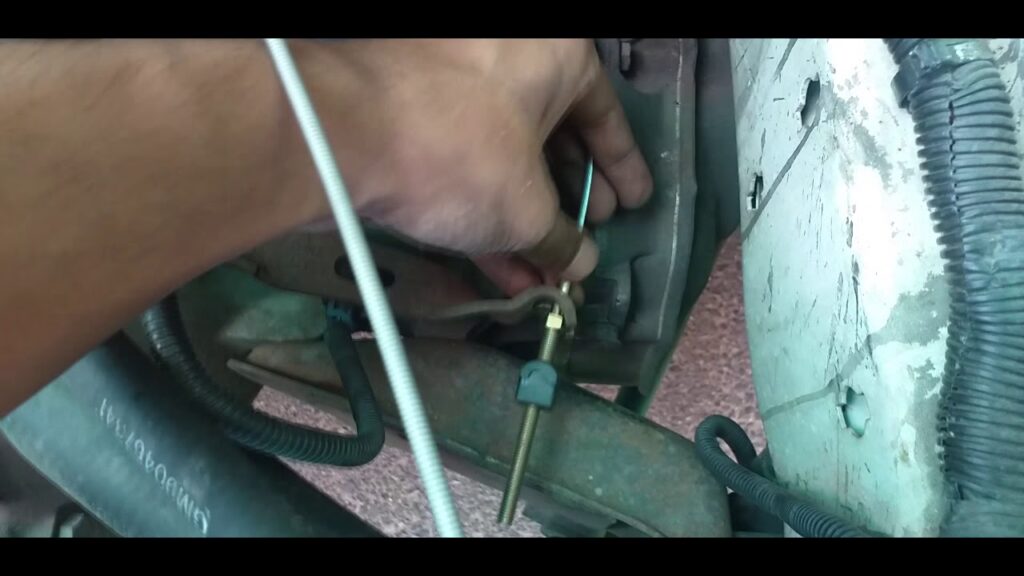

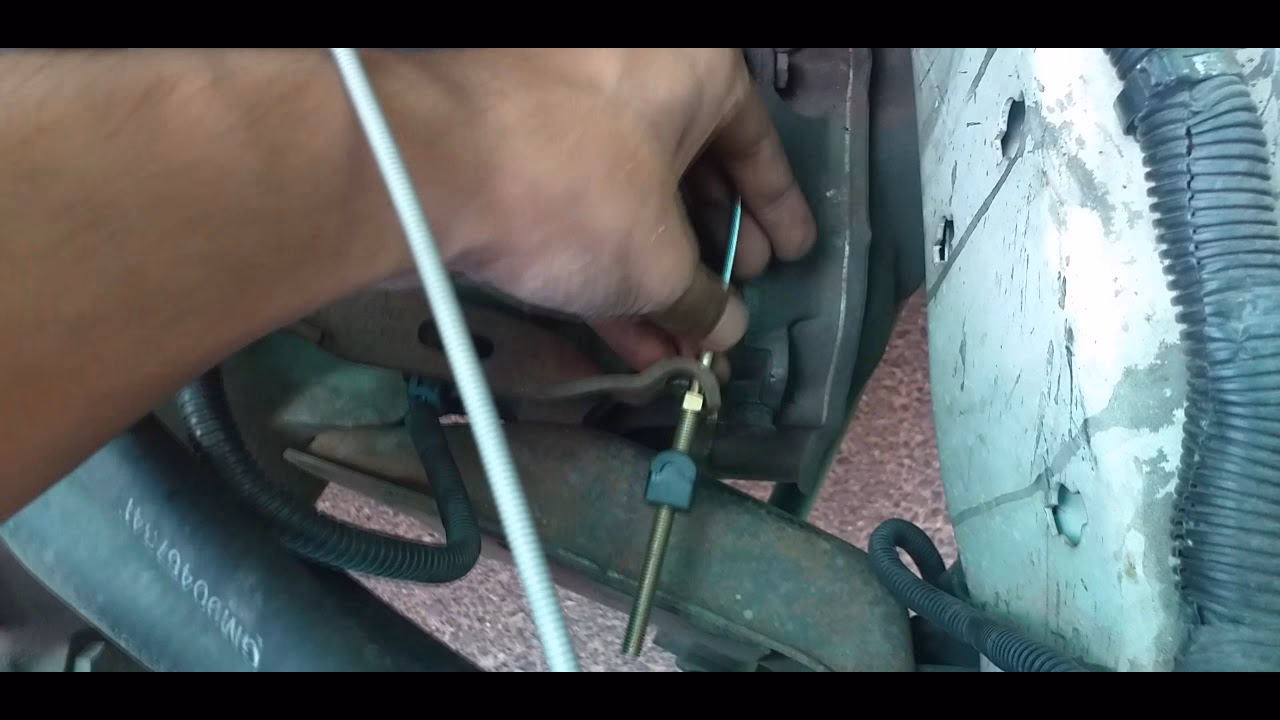

The Cable Adjuster Solution
For vehicles with a mechanical clutch cable, like many older Vauxhall Astras and Corsas, there is often an adjuster mechanism. This allows you to fine-tune the tension of the cable, which in turn affects the engagement point of the clutch pedal. If the cable is too tight, the clutch might not fully engage, leading to constant slight slippage and accelerated wear. Conversely, if it's too loose, the clutch might not fully disengage, making gear changes difficult.
The Astra owner's experience highlights a valuable point: "After a little experimenting its now a lot better and mine was exactly the same as yours - slipping on take off but no slipping at speed etc. Might not be a permanent fix but its gotta be worth a try." Adjusting the cable can sometimes provide a temporary reprieve, especially if the clutch is only marginally worn or if the issue is primarily one of incorrect pedal free play. It's a quick and easy job that costs nothing to try and can potentially extend the life of your clutch for a period, or at least confirm if a full replacement is truly imminent. However, it's crucial to understand that this is rarely a permanent solution for a genuinely worn clutch disc or pressure plate.
When Adjustment Isn't Enough
While a cable adjustment might offer a brief respite, it does not address the fundamental issue of a worn clutch. The clutch disc, over time, simply wears down, much like brake pads. Once the friction material is gone, no amount of adjustment will restore its gripping ability. Other common clutch issues, such as a failing pressure plate (leading to a 'hard' pedal or difficulty engaging gears) or a noisy release bearing, also cannot be fixed by cable adjustment.
Understanding Clutch Replacement Costs in the UK
Clutch replacement is one of the more significant maintenance expenses a car owner can face. The costs vary widely depending on the vehicle's make and model, the type of clutch system (e.g., dual-mass flywheel vs. single-mass), and the garage carrying out the work. The Astra owner's quotes provide a realistic snapshot:
- Nationwide Autocentres: Initially quoted £137, then £256 for a 'changeover model' requiring gearbox removal.
- Local Vauxhall Dealer: Quoted £320+.
This illustrates the typical price range. The initial lower quote from Nationwide Autocentres might have been for a simpler, less labour-intensive job, perhaps misdiagnosing the 'changeover model' aspect or assuming a different clutch design. When the true complexity was revealed, the price adjusted accordingly. Dealerships, as expected, often have higher labour costs due to their specialised tools, brand-specific training, and genuine parts.
Factors Influencing Clutch Replacement Costs:
| Factor | Impact on Cost | Notes |
|---|---|---|
| Vehicle Make/Model | Significant | Some cars have easier access to the clutch; others require extensive dismantling. |
| Clutch Kit Type | Moderate to High | Standard clutch kits are cheaper than those with dual-mass flywheels (DMFs). DMFs often need replacing with the clutch. |
| Garage Type | Significant | Independent garages typically charge less than main dealerships. |
| Labour Hours | Primary Cost Driver | Gearbox removal and reinstallation is highly labour-intensive. |
| Additional Parts | Variable | Pilot bearing, slave cylinder, gearbox oil, crankshaft seals might be replaced. |
The bulk of the cost for a clutch replacement is almost always labour. Removing and refitting a gearbox is a time-consuming process, often requiring specialist lifting equipment and considerable mechanical skill. While parts costs for a clutch kit can range from £100 to £400+, the labour can easily add another £300 to £800+, depending on the complexity and garage rates.
Preventative Maintenance and Clutch Longevity
While you can't avoid clutch wear indefinitely, certain driving habits can significantly extend its lifespan:
- Avoid Riding the Clutch: Don't keep your foot on the clutch pedal when not actively changing gears or pulling away.
- Use the Handbrake on Hills: Instead of slipping the clutch to hold the car on an incline, use the handbrake.
- Smooth Gear Changes: Avoid harsh or jerky shifts.
- Don't Lug the Engine: Avoid driving in too high a gear at low speeds, which puts strain on the clutch.
- Minimise Clutch Engagements: If stuck in traffic, consider putting the car in neutral rather than holding the clutch down.
Frequently Asked Questions About Clutch Replacement
Q: How long does a typical clutch last?
A: Clutch lifespan varies wildly depending on driving style, vehicle type, and conditions. Some clutches last over 100,000 miles, while others might fail at 30,000 miles in aggressive city driving. Generally, 60,000 to 80,000 miles is a reasonable expectation for a well-maintained clutch in mixed driving conditions.
Q: Can I drive with a slipping clutch?
A: While you might be able to for a short period, it's highly advised against. A slipping clutch not only reduces performance and fuel efficiency but also generates excessive heat, which can damage the flywheel, pressure plate, and even the gearbox input shaft seal. Driving with a severely slipping clutch can lead to complete failure, leaving you stranded.
Q: What's the difference between a mechanical and hydraulic clutch?
A: A mechanical clutch uses a cable to link the pedal to the clutch fork, as seen in older Vauxhall models. A hydraulic clutch uses fluid pressure, similar to brake systems, to operate the clutch. Hydraulic systems are generally smoother and self-adjusting, but can suffer from issues like air in the lines or slave/master cylinder failure. Cable systems are simpler but can stretch or break and may require periodic adjustment.
Q: Should I replace anything else when the clutch is done?
A: It's highly recommended to replace the clutch kit (clutch disc, pressure plate, and release bearing) as a complete unit. If your vehicle has a dual-mass flywheel (DMF), it's often advisable to replace it at the same time, as a worn DMF can cause vibrations and accelerate clutch wear. Additionally, consider replacing the clutch slave cylinder (if external to the gearbox) and inspecting the gearbox input shaft seal for leaks, as these are easily accessible with the gearbox out.
Q: Is clutch replacement a DIY job?
A: For most modern vehicles, clutch replacement is a complex and labour-intensive job that requires specific tools (e.g., gearbox jack, clutch alignment tool) and a good understanding of mechanics. It's generally not recommended for the average home mechanic unless they have significant experience, the right equipment, and a safe working environment. Mistakes can be costly and dangerous.
Conclusion
While the dream of changing a clutch without removing the gearbox remains largely a fantasy for most cars, understanding the nuances of clutch systems, potential temporary fixes like cable adjustment, and the true cost implications can empower you as a car owner. Always get a clear diagnosis for clutch issues and be prepared for the reality that gearbox removal is almost certainly part of the repair. However, a quick check of your clutch cable tension, if applicable to your vehicle, might just buy you a little more time and save you some quid in the short term, as one Astra owner discovered.
