DIY Brake Caliper Removal on Your Opel Antara

Tackling your car's brakes can seem like a daunting task, but with the right guidance and a methodical approach, removing a brake caliper and disc for maintenance or replacement is well within the capabilities of a dedicated DIY enthusiast. This comprehensive guide will walk you through the process, specifically tailored with insights for an Opel Antara, ensuring you understand each step from preparation to final checks. Remember, working on your vehicle's braking system is a critical safety undertaking, so attention to detail and adherence to proper procedures are paramount. Let's get started on ensuring your Antara stops safely and reliably.

Safety First: Essential Preparations

Before you even think about loosening a bolt, safety first must be your absolute priority. Working under a vehicle without proper support is extremely dangerous. Ensure you have the right equipment and take the necessary precautions.

• Vehicle Placement: Park your Opel Antara on a flat, level, and solid surface. Engage the parking brake firmly.
• Wheel Chocks: Place wheel chocks behind the rear wheels (if working on the front) or in front of the front wheels (if working on the rear) to prevent any unintended movement.
• Jacking and Supporting: Use a reliable hydraulic jack to lift the vehicle. Once lifted, immediately place sturdy jack stands under the vehicle's designated support points. Never rely solely on the jack. Ensure the vehicle is stable on the stands before proceeding.
• Personal Protective Equipment (PPE): Wear safety glasses to protect your eyes from debris or brake fluid splashes. Gloves are also advisable to protect your hands from grease, dirt, and chemicals.
• Brake Fluid Warning: Brake fluid is corrosive and can damage paintwork. It's also an irritant. Have rags ready and dispose of any spilled fluid responsibly.

Tools and Materials You'll Need

Having all your tools ready before you begin will save you time and frustration. For this job, you'll typically require:

• Telescopic wrench (or breaker bar with appropriate socket for lug nuts)
• Socket set (including sizes for caliper bolts and carrier bolts)
• Torque wrench (essential for correct reassembly)
• Screwdriver (flathead for prying, Phillips for retaining screws if present)
• Wire brush
• Brake cleaner spray
• High-temperature brake grease (synthetic, silicone-based)
• C-clamp or brake caliper piston compressor tool
• Brake fluid (correct type for your Opel Antara, check your owner's manual)
• Bleeder wrench (typically 8mm, 10mm, or 11mm, depending on your caliper)
• Drain pan (for brake fluid)
• Sturdy wire or bungee cord (to support the caliper)
• Rags or shop towels
• Penetrating oil (e.g., WD-40)
• Rubber mallet (optional, for stubborn discs)

Step-by-Step Guide to Caliper and Disc Removal

1. Preparing the Vehicle and Removing the Wheel

With your vehicle safely supported on jack stands, you can begin the physical work. Before lifting the car completely, it's often easier to loosen the wheel lug nuts while the wheel is still on the ground. Use your telescopic wrench to give them a good initial turn. Once loosened, lift the vehicle to a comfortable working height. Now, you can fully unscrew the lug nuts and carefully remove the wheel, setting it aside.

2. Accessing the Brake Caliper

With the wheel off, the brake caliper and disc assembly will be fully exposed. Take a moment to familiarise yourself with the components: the caliper itself, the brake pads inside, the caliper carrier (or bracket) which holds the caliper, and the brake disc (rotor).

3. Disconnecting the Brake Caliper

The caliper is typically held in place by two guide pins or bolts on the back side. These are usually 13mm or 14mm bolts. Using your socket wrench, carefully unscrew these pins. Once both pins are loose, you should be able to gently wiggle and pull the caliper off the brake disc. Be extremely careful not to damage the brake hose. Crucially, never let the caliper hang by the brake hose, as this can damage the hose and lead to brake failure. Instead, use a sturdy wire or bungee cord to suspend the caliper from a part of the suspension, ensuring the brake hose is not under any strain.

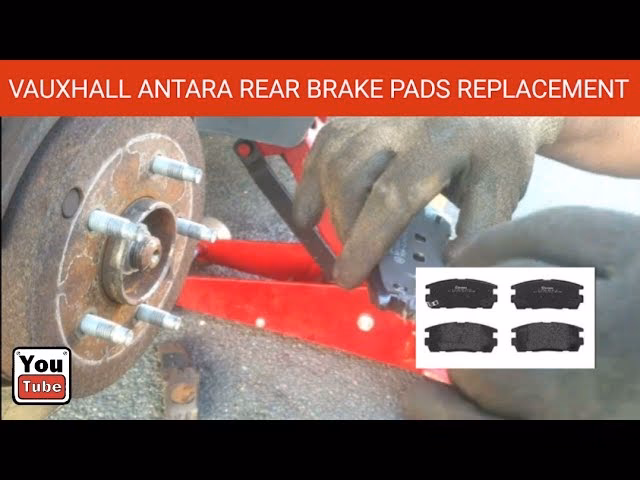

4. Removing the Brake Pads

With the caliper off, the brake pads will either fall out or be held in place by retaining clips or springs. Using a flathead screwdriver, carefully pry out the old brake pads. Note how they were seated, as this will be important for reassembly, especially if you're installing new pads.

5. Removing the Caliper Carrier (Bracket)

To remove the brake disc, you'll first need to remove the caliper carrier. This is the larger, more robust part that the caliper attaches to, and it's bolted directly to the steering knuckle. There are usually two larger bolts holding the carrier in place, typically 17mm or 19mm, and they can be quite tight. Use a breaker bar or your telescopic wrench for leverage. Once these bolts are unscrewed, carefully remove the caliper carrier and set it aside.

6. Removing the Brake Disc (Rotor)

The brake disc might be held in place by a small retaining screw (often a Phillips head) or simply by rust and corrosion on the wheel hub. If there's a screw, remove it. If the disc is stuck (which is common), you can try a few methods:

• Tapping: Use a rubber mallet or a hammer with a block of wood to gently tap around the face of the disc, near the hub. Rotate the disc and tap evenly to try and break the rust bond.
• Penetrating Oil: Apply penetrating oil to the centre of the hub where the disc meets it, and let it soak for a while.
• Leverage: In some stubborn cases, you might need to use a bolt threaded into a specific hole on the disc (if available) to push it off the hub, but this is less common on the Antara.

Once freed, pull the disc straight off the wheel hub. The original text mentions 'ruta hub', which is likely a mistranslation or colloquial term for the wheel hub itself, where the disc mounts.

7. Cleaning and Inspection

With all components disassembled, now is the perfect time for thorough cleaning and inspection. Use a wire brush to remove any rust, dirt, and old brake dust from the wheel hub, the caliper carrier, and any other components you've removed. Follow up with brake cleaner spray to degrease and clean all surfaces. Inspect the hub for any damage or excessive rust that could affect the new disc's seating. Check the caliper guide pins for corrosion or bends; if they're not smooth, they might need replacing.

8. Lubrication for Reassembly

Proper lubrication is key to smooth brake operation and preventing future seizing. Apply a thin layer of high-temperature synthetic brake grease to:

• The caliper slide pins: ensure they move freely within their boots.
• The contact points on the caliper carrier where the brake pads rest: this allows the pads to slide smoothly.
• The hub face where the brake disc mounts: a very thin layer can help prevent future rust adhesion, but ensure it doesn't get onto the braking surface.

Reassembly: Putting It All Back Together

Reassembly is essentially the reverse of disassembly, but with critical attention to torque specifications and proper brake system bleeding.

1. Mounting the New Brake Disc

Carefully slide the new brake disc onto the wheel hub. Ensure it sits flush against the hub face. If your vehicle had a retaining screw, reinsert and tighten it now. This screw is usually just to hold the disc in place during assembly, not to bear braking loads.

2. Reattaching the Caliper Carrier

Position the caliper carrier back onto the steering knuckle and reinsert its two large bolts. Crucially, tighten these bolts to your Opel Antara's specific torque wrench settings, which you can find in your vehicle's service manual. Overtightening can strip threads, while undertightening can be dangerous.

3. Installing New Brake Pads

Carefully insert the new brake pads into the caliper carrier. Ensure they sit correctly in their grooves and that any shims or clips are properly installed. If your old pads were very worn, the caliper piston will be extended. You'll need to compress the piston back into the caliper body to make room for the thicker new pads. Use a C-clamp or a dedicated caliper piston compressor tool for this. Place an old brake pad against the piston to protect it while compressing.

4. Reattaching the Brake Caliper

Slide the caliper back over the new pads and disc. Align the caliper's holes with the guide pin holes on the carrier. Reinsert the caliper guide pins and tighten them to the manufacturer's specified torque. Ensure the rubber boots on the guide pins are not twisted or pinched.

5. Brake System Bleeding

This is a critical step, especially if you opened the brake line or if air entered the system. Even if you didn't disconnect the line, it's good practice to bleed the caliper to ensure no air is trapped. Brake fluid is not oil, and it's essential to use the correct type for your vehicle. The original text mentions 'topping up previously drained oil', which is likely referring to brake fluid; typically, you'd only 'drain' it for a full flush. For caliper removal, you'll mainly be topping up any small loss and ensuring no air has entered.

For a basic bleed:

• Locate the bleeder nipple on the caliper.
• Attach a bleeder wrench to the nipple and a clear hose to the nipple, with the other end submerged in a small container of fresh brake fluid.
• Have a helper sit in the car.
• Your helper should pump the brake pedal several times until it feels firm, then hold it down.
• While the pedal is held down, you (at the caliper) open the bleeder nipple a quarter to half a turn. You'll see fluid and possibly air bubbles exit through the hose.
• Before the pedal reaches the floor, close the bleeder nipple.
• Tell your helper to release the pedal.
• Repeat this process until no more air bubbles appear in the fluid coming out of the hose. Keep a close eye on the brake fluid reservoir level under the bonnet and top it up as needed to prevent it from going dry and introducing more air.

6. Final Checks and Wheel Reinstallation

Once bleeding is complete and the bleeder nipple is tight, double-check that all bolts – caliper guide pins, caliper carrier bolts, and the bleeder nipple – are securely tightened to their correct torque specifications. Remount the wheel, hand-tighten the lug nuts, then lower the vehicle until the tyre just touches the ground. Now, use your torque wrench to tighten the lug nuts in a star pattern to the manufacturer's specified torque. This ensures even pressure and prevents the wheel from warping.

Post-Job Checks and Test Drive

With everything reassembled, there are a few final crucial steps:

• Pump the Brake Pedal: Before starting the engine, pump the brake pedal several times. It will feel soft at first as the caliper piston extends to meet the new pads. Continue pumping until the pedal feels firm.
• Check Brake Fluid Level: Open the bonnet and check the brake fluid reservoir. Top it up to the 'MAX' line if necessary.
• Test Drive: Take your Antara for a slow, careful test drive in a safe area. Avoid heavy braking initially. Listen for any unusual noises (grinding, squealing). Check that the car brakes in a straight line without pulling to one side. The brakes will need a period of 'bedding in' where the new pads conform to the disc surface, so avoid harsh braking for the first few hundred miles.

Frequently Asked Questions (FAQs)

Do I need to bleed the brakes every time I remove the caliper?

If you disconnect the brake hose from the caliper, then absolutely yes, you must bleed the brakes to remove any air that entered the system. If you simply unbolt the caliper and suspend it without disconnecting the hose, bleeding isn't strictly necessary but is highly recommended as a preventative measure to ensure optimal pedal feel and eliminate any potential minor air ingress.

What if my brake disc is stuck on the hub?

This is a common issue, usually due to rust. Try applying penetrating oil liberally to the centre of the disc where it meets the hub and letting it soak. Then, use a rubber mallet to tap firmly around the circumference of the disc, rotating it as you tap. Avoid hitting the braking surface directly. In more stubborn cases, a few sharp taps with a hammer on the disc's edge (away from the braking surface) can sometimes break the bond, but be careful not to damage the disc or hub.

Can I reuse old brake pads?

It is generally not recommended to reuse old brake pads when replacing the brake disc or caliper. New pads are designed to mate perfectly with new discs, ensuring even wear and optimal braking performance. Reusing old pads, especially if they are significantly worn or have an uneven wear pattern, can compromise braking efficiency and lead to premature wear of the new disc.

What is the 'ruta hub' mentioned in some guides?

The term 'ruta hub' appears to be a colloquialism or mistranslation. In automotive terms, the part being referred to is the 'wheel hub' or 'rotor hub'. This is the central component to which the brake disc mounts and which the wheel eventually bolts onto.

How often should I check my brake fluid?

It's good practice to check your brake fluid level as part of your regular maintenance routine, perhaps every time you check your engine oil, or at least every six months. Also, pay attention to the fluid's colour; if it's dark and murky, it might be time for a brake fluid flush, as brake fluid absorbs moisture over time, which can reduce its boiling point and lead to spongy brakes.
