Unlock Your Car's Secrets: Diagnostic Tools Explained

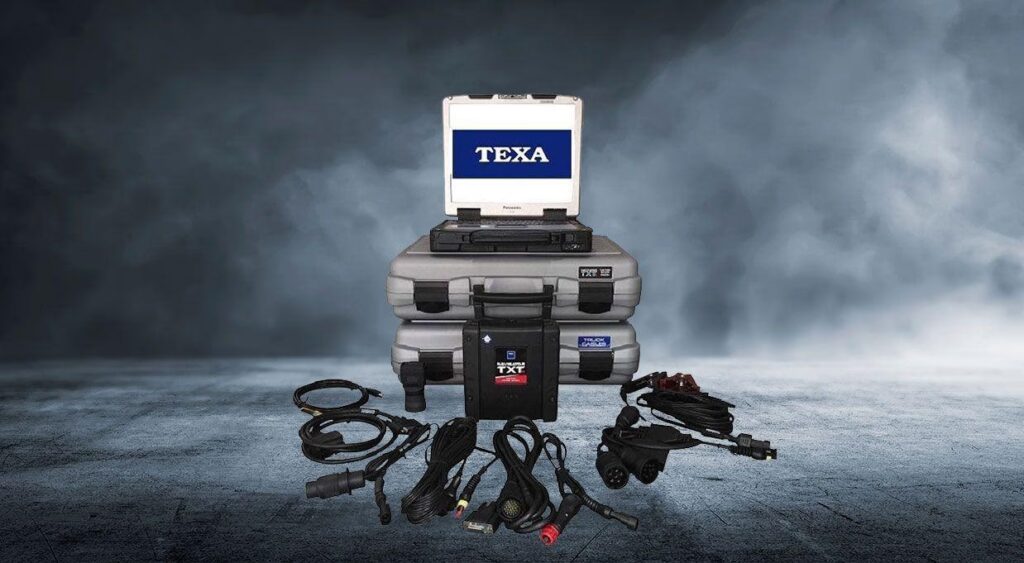

In today's increasingly complex automotive landscape, understanding what's happening under the bonnet has never been more crucial. Modern vehicles are sophisticated machines, brimming with electronic control units (ECUs) that manage everything from engine performance and transmission shifts to braking systems and safety features. When a warning light illuminates on your dashboard, or your car isn't performing as it should, pinpointing the exact issue can be a daunting task. This is where the humble, yet incredibly powerful, diagnostic tool, often referred to as a 'diagnostic suitcase' or 'scan tool', comes into its own.

What Exactly is a Car Diagnostic Tool?

At its core, a car diagnostic tool is an electronic device that connects to your vehicle's onboard computer system, typically via the On-Board Diagnostics (OBD) port. This port acts as a gateway, allowing the diagnostic tool to communicate with the various ECUs within the car. Think of it as a translator, capable of reading the car's internal language and presenting it in a way that a mechanic – or even a keen DIY enthusiast – can understand.

The primary function of these tools is to retrieve diagnostic trouble codes (DTCs). These codes are generated by the ECUs when they detect a fault or deviation from normal operating parameters. The tool then translates these cryptic codes into human-readable descriptions, providing valuable clues about the nature of the problem. Beyond just reading codes, many advanced diagnostic tools can also clear codes, reset service indicators, monitor live data streams from various sensors, perform component tests, and even carry out complex system calibrations.

The Evolution of Automotive Diagnostics

The need for diagnostic tools arose with the increasing integration of electronics in vehicles. While older cars relied heavily on mechanical systems that were relatively straightforward to diagnose and repair, the advent of engine management systems, anti-lock brakes, and airbags necessitated a new approach. Initially, manufacturers developed proprietary diagnostic systems, often requiring specific, expensive equipment for each brand. This made independent repairs and diagnostics challenging and costly.

The introduction of standardized OBD systems, particularly OBD-II, marked a significant turning point. Mandated in many regions, OBD-II provides a universal interface and a standardized set of codes, making it easier for a wider range of tools to communicate with a broader spectrum of vehicles. This has democratised diagnostic capabilities, empowering both professional garages and discerning vehicle owners.

Why Use a Diagnostic Tool? The Benefits Unveiled

The advantages of using a diagnostic tool are manifold, impacting everything from preventative maintenance to cost-effective repairs.

1. Accurate Fault Finding

The most immediate benefit is the ability to accurately identify the root cause of a problem. Instead of relying on guesswork or a process of elimination, a diagnostic tool provides specific DTCs that point directly to the faulty system or component. This significantly reduces the time and effort required for diagnosis, leading to quicker repairs.

2. Preventative Maintenance

Diagnostic tools aren't just for when things go wrong. Regular checks can reveal potential issues before they escalate into major problems. For instance, a slight misfire detected by the ECU, even if not yet noticeable to the driver, can be flagged by a diagnostic tool. Addressing such minor issues early can prevent more significant damage and costly repairs down the line. This proactive approach is key to machine reliability.

3. Resetting Service Indicators

After routine maintenance such as an oil change or brake pad replacement, service indicators on the dashboard need to be reset. Diagnostic tools allow for this simple yet essential task, ensuring that your car's maintenance schedule is accurately reflected. Some tools, like the Jaltest® mentioned, can perform more complex resets, such as those required after replacing a Diesel Particulate Filter (DPF).

4. Monitoring Live Data

A powerful feature of many diagnostic tools is the ability to view real-time data from the vehicle's sensors. This includes engine RPM, coolant temperature, fuel pressure, throttle position, and much more. By observing these live data streams, a technician can assess the performance of various components under different operating conditions, aiding in the diagnosis of intermittent faults or performance issues.

5. Calibration and Adaptations

Modern vehicles often require electronic calibration or adaptation procedures after certain components are replaced or repaired. This can include recalibrating the throttle body, resetting the steering angle sensor, or performing injector coding after replacement. Professional-grade diagnostic tools are essential for carrying out these sensitive operations correctly.

6. Cost Savings

While professional diagnostic equipment can be an investment, it ultimately saves money. By enabling faster and more accurate diagnosis, it reduces labour time. Furthermore, by identifying issues early, it prevents minor faults from becoming major, expensive repairs. For businesses with a fleet of vehicles, the ability to perform in-house diagnostics can lead to significant operational cost reductions.

OBD-I vs. OBD-II: Understanding the Connection

The OBD port is the physical connection point for diagnostic tools. The evolution from OBD-I to OBD-II is important to understand:

Most modern garages and professional diagnostic tools are equipped to handle both OBD-I and OBD-II connectors, ensuring compatibility with a wide range of vehicles.

Choosing the Right Diagnostic Tool: Professional vs. DIY

The market offers a spectrum of diagnostic tools, from basic code readers costing around £30 to sophisticated, professional-grade systems costing thousands. The choice depends on your needs:

• Basic Code Readers: These are affordable and primarily designed to read and clear DTCs. They are useful for identifying simple engine-related issues but lack advanced functionality.

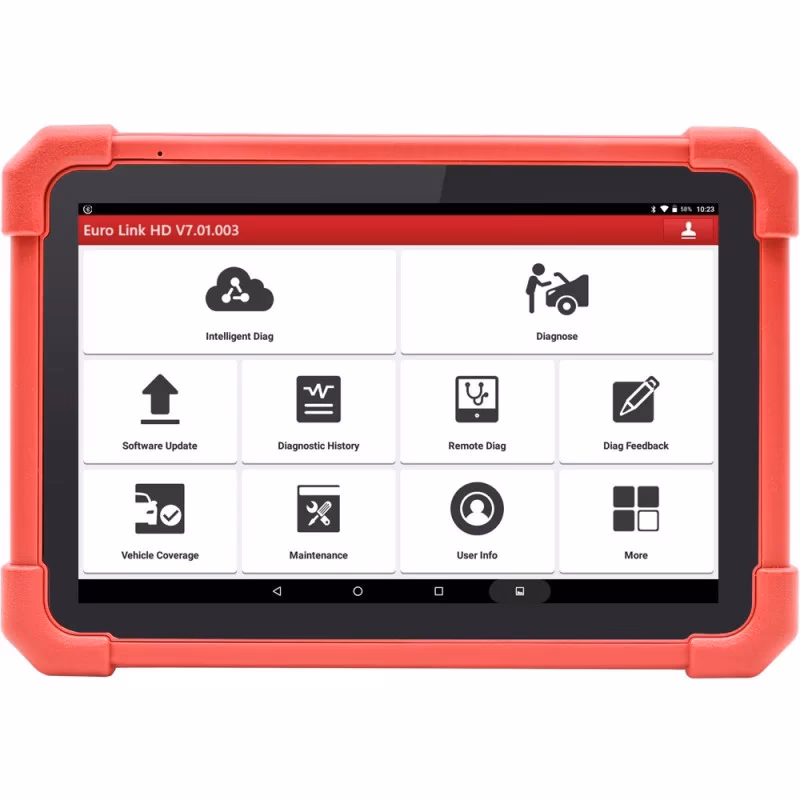

• Handheld Diagnostic Tools: Offering more features than basic readers, these can often read live data, perform some resets, and may support a wider range of ECUs. Brands like iCarSoft offer multi-system diagnostic tools that provide excellent value for money, catering to specific vehicle types like heavy-duty trucks.
• Professional Diagnostic Systems: These are comprehensive tools used by garages and dealerships. They offer the full suite of functions, including deep system diagnostics, programming, coding, and calibration for virtually all vehicle systems and brands. Examples include tools from manufacturers like Jaltest®, which provide extensive capabilities for fleet management and complex repairs, often accompanied by dedicated support and training.

For professional use, especially in commercial vehicle sectors like trucking, tools like Jaltest® offer significant advantages. Their ability to handle complex tasks such as gearbox and injector calibration, reading and explaining fault codes, and DPF resets contributes to efficient fleet maintenance. The availability of custom cable kits ensures compatibility with a diverse fleet, and ongoing support and annual licenses keep the tools up-to-date with the latest vehicle technology. This is crucial for maintaining operational efficiency.

Frequently Asked Questions

Q1: Can I use a diagnostic tool on any car?
Most OBD-II compatible tools can communicate with any vehicle manufactured from 2001 onwards. However, the depth of information and the range of functions available can vary significantly between tools and vehicle makes/models. For older OBD-I vehicles, you may need a specific tool or adapter.

Q2: Is it difficult to use a diagnostic tool?
Basic code readers are generally very user-friendly. More advanced tools require a learning curve, but most come with clear instructions and user interfaces. Professional systems often include training and support to ensure users can maximise their capabilities.

Q3: Will a diagnostic tool tell me exactly what part to replace?
A diagnostic tool provides codes and data that help pinpoint the faulty system or component. While it significantly narrows down the possibilities, interpreting the data and confirming the exact faulty part often still requires a skilled technician's expertise.

Q4: Can I use a diagnostic tool to fix my car myself?
For simple issues identified by DTCs, or for tasks like resetting service lights, a DIYer can certainly perform the repairs. However, complex procedures like ECU programming or major system calibrations are best left to professionals to avoid causing further damage.

Q5: How often should I use a diagnostic tool?
While not strictly necessary for every service, performing a diagnostic scan periodically, perhaps annually or before undertaking any significant repairs, can help identify developing issues early. For commercial vehicles or those used extensively, more frequent checks are advisable.

Conclusion

In essence, a car diagnostic tool is an indispensable asset in the modern automotive world. Whether you're a professional mechanic striving for efficiency and accuracy, or a vehicle owner keen on understanding and maintaining your car's health, these tools provide the insights needed to navigate the complexities of automotive electronics. From identifying a simple service reminder to diagnosing intricate system failures, the diagnostic tool empowers you to keep your vehicle running smoothly, reliably, and cost-effectively. Investing in the right diagnostic solution is not just about fixing problems; it's about ensuring the longevity and optimal performance of your vehicle, making it a truly valuable investment.
