Your VW Touareg's Brake Caliper: A Step-by-Step Removal Guide
Maintaining your VW Touareg's braking system is paramount for safety and performance. One of the key components in this system is the brake caliper, which houses the brake pads and applies pressure to the brake disc to slow your vehicle. If you're undertaking a brake pad replacement, disc change, or investigating a braking issue, knowing how to correctly remove the brake caliper is an essential skill. This guide will walk you through the process specifically for the VW Touareg (7LA, 7L6, 7L7 models), offering detailed instructions and helpful tips to ensure a smooth and successful operation.
Essential Tools and Preparation
Before you begin, gathering the necessary tools and preparing your workspace is crucial. Working on brakes requires precision and the right equipment. Here's what you'll likely need:
- Jack and Jack Stands: For safely lifting and supporting the vehicle. Never rely solely on a jack.
- Lug Wrench: To remove the wheel nuts.
- Socket Set and Ratchet Wrench: Specifically, a #22 drive socket is commonly required for the caliper fasteners on a VW Touareg.
- Wire Brush: For cleaning dirt and corrosion from fasteners.
- Penetrating Oil (e.g., WD-40): To loosen stubborn or corroded bolts.
- C-Clamp or Brake Caliper Piston Spreader Tool: To compress the brake caliper pistons.
- Crowbar or Pry Bar: For gently spreading the brake pads if needed.
- Torque Wrench: Essential for re-tightening bolts to the correct specifications.
- Brake Cleaner: For cleaning components.
- Ty-rap or Wire: To secure the caliper once removed, preventing it from hanging on the brake line.
- Safety Glasses and Gloves: To protect yourself from brake dust and fluid.
- New Caliper Bolts: It is highly recommended to replace the caliper mounting bolts whenever they are removed, as specified by many manufacturers.
Ensure you have a clean, well-lit, and level working area. Having a DIY garage with a lift can make certain steps, like loosening the main caliper bolts, significantly easier due to improved access.
Step-by-Step Caliper Removal
Let's break down the process of removing the brake caliper on your VW Touareg:
1. Secure the Vehicle and Remove the Wheel

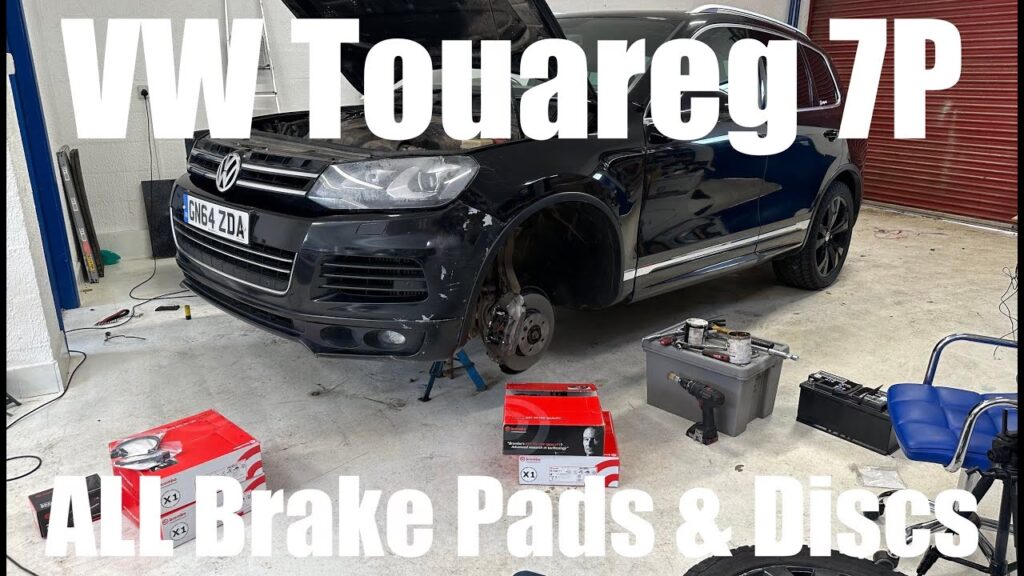

Begin by parking your Touareg on a level surface and engaging the parking brake. Loosen the lug nuts on the wheel you'll be working on while the car is still on the ground. Then, use your jack to lift the vehicle and place jack stands securely under the frame or designated jacking points. Once the vehicle is stable, fully remove the lug nuts and take off the wheel. This will give you access to the brake assembly.
2. Detach the ABS Sensor Connector
Locate the ABS sensor wire, which typically runs along the brake line or suspension components and connects to the hub or steering knuckle. Carefully detach the electrical connector. Sometimes, this connector might be secured with a small clip or tie-wrap. You may need to gently wiggle it or press a release tab. Be careful not to damage the wiring or the connector.
3. Clean the Brake Caliper Fasteners
You'll notice two main bolts that secure the brake caliper to the caliper bracket. These bolts can often be exposed to road grime, salt, and rust, making them difficult to remove. Use a wire brush to thoroughly clean the heads and threads of these bolts. This will remove any dirt or corrosion, ensuring your socket has a good grip and reducing the risk of stripping the bolt heads. Apply a penetrating oil like WD-40 spray to the bolts and allow it to soak in for a few minutes to further aid in loosening them.
4. Spread the Brake Pads (Optional but Recommended)
Before you remove the caliper, it's good practice to retract the caliper pistons. This makes it easier to manoeuvre the caliper off the disc and also prepares it for installing new, thicker brake pads. You can use a C-clamp or a dedicated brake caliper piston spreader tool. Place the tool against the piston and the back of the caliper bracket, and slowly tighten it to push the piston back into the caliper bore. Alternatively, if the pads are still in place and you need a bit more room, a crowbar can be carefully used to gently spread the brake pads apart, creating space.
Important Note: As you push the pistons back, monitor the brake fluid reservoir under the bonnet. The fluid level will rise. If it looks like it might overflow, use a syringe or turkey baster to remove some fluid. Avoid spilling brake fluid on painted surfaces, as it can damage the paint.
5. Unscrew the Brake Caliper Fastening Bolts
Now, using your #22 drive socket and a ratchet wrench, carefully unscrew the two caliper fastening bolts. These bolts hold the caliper assembly to the caliper bracket. They can be quite tight, so apply steady pressure. If they are very stubborn, a breaker bar might be helpful, but be careful not to overtighten or damage the bolts. Once the bolts are loosened, remove them completely.
6. Remove the Brake Caliper
With the bolts removed, you should be able to lift the brake caliper off the brake disc. It might require a gentle wiggle. Once it's free, do not let the caliper hang by the brake hose. This can damage the hose and compromise its integrity. Use a strong ty-rap or a piece of wire to secure the caliper to the suspension or chassis, keeping it elevated and relieving stress on the brake line.
What to Do After Caliper Removal
Once the caliper is removed, you'll have access to the brake pads and potentially the brake disc. If you're replacing the brake pads, this is the time to remove the old ones. They are usually held in place by retaining pins or clips, which can often be tapped out with a punch and hammer.
If you're also replacing the brake disc, you'll typically need to remove a small retaining bolt that holds the disc to the hub. Once this bolt is out, the disc should slide off. Clean the new disc thoroughly with brake cleaner before installation to remove any protective oils.
When reassembling, ensure you slide in the new brake pads, replace any wear indicators, and then reinstall the caliper. Use new caliper mounting bolts and torque them to the manufacturer's specifications. The torque for the two large bolts that hold the caliper is often around 180 Nm, but always confirm this for your specific model. Reconnect the ABS sensor and refit the wheel. Lower the vehicle, torque the wheel nuts, and check your brake fluid level. Remember to pump the brake pedal several times to re-seat the pistons before driving. Drive gently for the first few miles to allow the new pads and discs to bed in properly.
Common Issues and Troubleshooting
Stripped Bolts: If a caliper bolt is stripped, you might need to use a bolt extractor or, in severe cases, drill out the bolt and re-tap the hole. This is where professional help might be advisable.
Stuck Caliper: If the caliper is seized or difficult to remove, ensure you've cleaned the fasteners thoroughly and used penetrating oil. Sometimes, a sharp tap with a rubber mallet on the caliper body can help dislodge it, but be cautious not to damage it.
Brake Fluid Leaks: Always check for leaks after reassembly. If you notice any, the issue could be with the brake lines or seals, and the system may need professional attention.
Frequently Asked Questions (FAQ)
Q: Do I need to replace the caliper bolts every time?
A: While not always mandatory, it is highly recommended by many manufacturers. Caliper bolts are often torque-to-yield, meaning they are designed to be stretched to a specific tension and should ideally be replaced for safety and to ensure correct clamping force.
Q: Can I leave the caliper hanging on the brake line?
A: Absolutely not. This can damage the brake hose, leading to leaks or premature failure, which is extremely dangerous.
Q: How do I push the caliper pistons back?
A: Use a C-clamp or a dedicated brake caliper piston spreader tool. Place it against the piston and the back of the caliper bracket and slowly compress the piston into the caliper bore.
Q: What is the torque setting for the caliper bolts on a VW Touareg?
A: A common torque setting is around 180 Nm, but it's crucial to consult your vehicle's service manual for the exact specification for your model year.
Q: How long should it take to remove a brake caliper?
A: For an experienced DIYer, removing a caliper might take less than 20 minutes per side, assuming no major issues like seized bolts. For a beginner, it might take longer, and that's perfectly normal.
By following these steps, you can confidently remove and replace components of your VW Touareg's braking system, ensuring your vehicle remains safe and reliable on the road.
