For any Harley-Davidson V-twin owner, the quest for optimal performance, fuel efficiency, and unwavering reliability is a continuous journey. While many components contribute to a bike's overall prowess, the fuel injection system sits at the very heart of its power delivery. It dictates how precisely fuel is metered, how efficiently combustion occurs, and ultimately, how responsive and powerful your Harley feels on the road. Navigating the myriad of aftermarket options can be daunting, but for those seeking a system engineered for the most demanding conditions and proven on the track, the RSR Fuel Injection system stands out as a formidable contender.
Understanding the intricacies of fuel delivery is paramount when aiming to extract maximum performance from your V-twin. Unlike older carburettor systems, modern electronic fuel injection offers far greater precision, adaptability, and efficiency. However, not all EFI systems are created equal, especially when faced with the unique challenges posed by a Harley's inherent vibrations, heat, and diverse engine configurations. A truly superior system must be robust enough to withstand these elements while offering sophisticated control over the fuel-air mixture across all operating conditions.
The RSR Fuel Injection Philosophy: Precision and Durability
The RSR Fuel Injection system, developed by RB Racing over decades of experience in high-performance Harley applications, embodies a philosophy of uncompromising quality and engineering. This isn't merely an add-on; it's a comprehensive, integrated solution designed from the ground up to deliver unparalleled fuel delivery. What sets RSR apart is its dedication to building components to an 'insane level of quality and reliability', tackling head-on the common pitfalls that plague lesser systems.
From the outset, RSR recognised that a Harley's environment is inherently hostile to electronics. Vibration, heat, water, and even abrasive elements like sand or bondo dust can conspire to undermine a fuel injection system. To combat this, RSR ECUs and wiring harnesses are meticulously designed to be waterproof, featuring potted electronics and gold-plated connectors to ensure long-term integrity. This attention to detail means components are rated for the most demanding automotive specifications, often exceeding military-spec standards, ensuring they can withstand the rigours of the road and track without faltering.
Key Features and Engineering Excellence
The RSR system distinguishes itself through several core engineering principles and features:
- Closed-Loop Operation: Unlike many open-loop systems that rely on static 'maps', RSR EFI is a true closed-loop system. This means it constantly monitors engine conditions via an oxygen (O2) sensor and automatically adjusts the fuel delivery for optimal stoichiometry (14.7:1 air-fuel ratio) for cruising and efficiency, and richer mixtures for high-load conditions. This continuous self-adjustment ensures your engine runs optimally across varying altitudes, temperatures, and loads.
- Speed Density Tuning: RSR systems utilise manifold absolute pressure (MAP) and engine RPM as primary inputs for fuel calculation, a 'speed density' approach. This method is far more accurate than throttle angle-based systems, which merely infer airflow. By directly measuring manifold pressure, the system adapts instantly to changes in load, such as headwinds or inclines, even without throttle input. This results in smoother transitions and superior fuel control, mirroring the sophisticated systems found in modern automobiles.
- Autocal.V6 Professional Software: A cornerstone of the RSR experience is the proprietary Autocal.V6 software. This powerful tool empowers owners to write precise fuel calibrations for any engine configuration – from stock 74" to highly modified 145" or even turbocharged setups – in minutes, without the need for dyno experts or pre-made 'maps'. It allows for deep customisation, handling everything from injector size and fuel pressure to horsepower targets and power curve shaping, making hundreds of adjustments automatically based on your input.
- Robust Throttle Body Design: RB Racing's commitment to airflow is evident in their single butterfly throttle body design. Unlike dual butterfly setups that compromise airflow for emissions, RSR’s 56mm (2 3/16") single butterfly design maximises air intake, ensuring it never becomes a restriction to your engine's peak power potential, even with highly ported heads or monster cams.
- Optimised Injector Placement: RSR's design carefully considers injector placement, avoiding direct spray onto inlet valves. This, combined with their firing scheme, ensures optimal vaporisation and a homogenous mixture, contributing to equal spark plug readings and efficient combustion, even at idle with long duration camshafts.
- High-Quality Peripherals: Every component, from fuel pumps to connectors, is selected for maximum reliability. RSR sources high-quality, often German-made, fuel pumps rated for thousands of hours of life, featuring weather seals and screw-on terminals. Fuses are standard General Motors parts for ease of replacement.
Addressing Common Myths and Misconceptions
The world of motorcycle tuning is rife with myths, and RSR directly tackles several prevalent ones:
| Myth | RSR Reality |
|---|---|
| Closed-Loop Systems are Fully Self-Tuning | False. While closed-loop systems self-adjust, they require a correctly constructed base map for your specific engine. Autocal.V6 allows you to write this precise base map, giving the ECU a wide authority to self-correct within optimal parameters. Without a proper base map, even a closed-loop system can struggle or throw error codes. |
| Throttle Angle is Key for Harley EFI Tuning | False. Throttle angle systems infer airflow and are notoriously difficult to tune accurately, leading to 'notchy' performance. RSR's speed density system (using MAP and RPM) directly measures load changes, providing superior, automatic fuel control. Modern cars universally use speed density, not throttle angle. |
| Front & Rear Cylinders Need Separate Fueling Strategies | Largely false. While the rear cylinder runs hotter, RSR's closed-loop system, using a front cylinder O2 sensor and a 2-into-1 exhaust design, effectively provides correct fueling for both cylinders with a slight bias to protect the rear. The system’s precise control negates the need for complex, often ineffective, separate cylinder tuning. |
| Wideband O2 Sensors are Always Better | False for Harleys. High exhaust gas temperatures (often exceeding 1600°F) in Harley exhausts can damage wideband sensors. Furthermore, atmospheric contamination in low-restriction exhausts can lead to inaccurate readings. RSR uses a robust, heated narrow-band Bosch sensor strategically placed for accurate 14.7:1 stoichiometry, ideal for the demanding Harley environment. For racing and leaded fuels, EGT (Exhaust Gas Temperature) monitoring is preferred as O2 sensors can foul. |
A System, Not Just Parts
RB Racing emphasises a 'systems approach' to high performance. They don't offer simple bolt-on solutions to poorly engineered setups from other manufacturers. Instead, they provide an integrated EFI, exhaust, and turbocharger solution. This holistic design ensures that all components work in harmony, eliminating restrictions and compromises often found when mixing and matching parts from different suppliers. This integrated design is why RSR Fuel Injection has set numerous Bonneville, El Mirage, Maxton, and AHDRA records over two decades.
For those who value precision and control, the RSR system is delivered pre-programmed for your specific application. You provide details like cubic inches, compression ratio, expected horsepower, and cam/head setup, and RSR provides a tailored starting point. The included IBM Thinkpad laptop (or software for your PC) with Autocal.V6 allows you to refine this base map and make further adjustments yourself. The philosophy is clear: 'No Dyno, No Technician, No Tuning Center, Just Results'. You are empowered to be your own tuner, making logical changes based on real-world riding and observation of the included RSR Air Fuel Ratio Gauge.
What's Included in the RSR EFI Package?

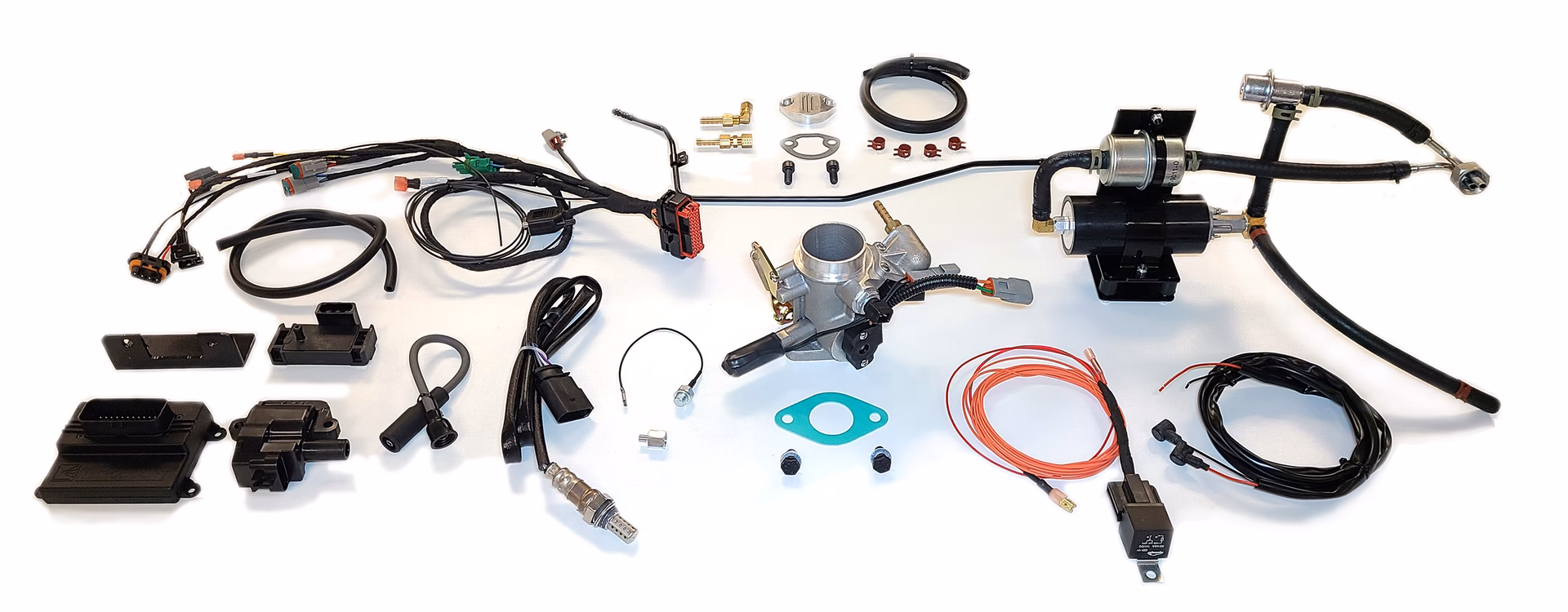

The RSR EFI package is comprehensive, providing everything needed for a complete, high-performance fuel injection conversion. While the initial sight of components might seem daunting, each part is meticulously designed for robust integration and easy access. The RSR ECU mounts discreetly beneath the steering neck, remaining cool and accessible. The MAP sensor, a standard GM part, is also easily reachable for replacement if ever needed.
The package typically includes:
- RSR Electronic Control Unit (ECU) – either 200i (up to 400+ hp) or 400i (up to 500+ hp, with special 2000cc/min injectors for methanol).
- Autocal.V6 Professional Software and serial communication software (often preloaded on a tested IBM Thinkpad laptop).
- Automotive-grade, solvent-resistant, fibreglass-sheathed wiring harness with silicone-sealed, waterproof connectors.
- High-quality fuel pump (different ratings for various horsepower levels), fuel filter, and quick-release return port for the fuel tank.
- Inlet manifold, 56mm throttle body, fuel rail, and high-quality RC Racing fuel injectors (configured as 2 or 4 injectors, or even up to 32 for extreme applications).
- Various sensors: air temperature, oil temperature, Bosch O2 sensor (narrow band), TPS sensor, MAP sensor, and Idle Air Control (IAC) motor.
- K&N air cleaner assembly (8" diameter).
- Fuel lines and fittings, fuel pressure regulator.
- Comprehensive instructions.
The entire system is designed for durability, ensuring that even in the most demanding conditions, your fuel injection system will not be the weak link. RSR states that in over 15 years, they have not seen any of their components fail, despite witnessing failures in virtually every other part of a Harley.
Frequently Asked Questions about Harley Fuel Injection
- Q: Can I use RSR Fuel Injection with my existing Harley engine, even if it's heavily modified?
- A: Absolutely. RSR Fuel Injection systems are designed for extreme flexibility. With Autocal.V6 software, you can write a precise calibration for virtually any Harley engine configuration – from stock 74" to 145" engines, high compression, turbocharged, supercharged, and even those running on alcohol. The system supports various injector setups (2, 4, or even up to 32 injectors) and different fuel pressure ratios.
- Q: Do I need a dyno or a professional tuner to get my Harley running correctly with RSR EFI?
- A: No. A core philosophy of RSR is to empower the owner. While the system comes pre-programmed for your specific engine setup, the Autocal.V6 software allows you to make precise adjustments yourself. You can observe the RSR Air Fuel Ratio Gauge in real-time and make logical changes to hundreds of fuel map points without entering complex numbers. This 'no dyno, no guru' approach is a significant benefit.
- Q: Why does RSR use a single butterfly throttle body instead of dual butterflies?
- A: Airflow is paramount for performance. Dual butterfly inlets, while sometimes used for emissions purposes, create sharp turns and restrictions that limit airflow. RSR's 56mm single butterfly throttle body is specifically designed to maximise airflow and will not be a restriction to your engine's top-end power, even with heavily ported heads or high-lift cams. This design reflects a no-compromise approach to performance.
- Q: Is the RSR EFI system truly 'bulletproof' as claimed?
- A: The provided information strongly supports this claim. RSR employs four-layer circuit boards, fully encapsulated electronics (using three different compounds), waterproof enclosures and wiring, and exclusively uses the highest quality components from reputable suppliers like Bosch, General Motors, Delphi, Ford, Visteon, and RC Racing. Every critical component is fused, and military-spec electronics are used to ensure long-term reliability even in harsh environments. This meticulous engineering is a hallmark of the system.
Conclusion
For the discerning Harley-Davidson owner who demands the absolute best in fuel delivery, the RSR Fuel Injection system presents a compelling case. It moves beyond the limitations of traditional carburettors and even many aftermarket EFI systems by offering a comprehensive, integrated, and incredibly robust solution. With its closed-loop speed density tuning, powerful Autocal.V6 software, and an unwavering commitment to quality and airflow, RSR enables riders to unlock their V-twin's full potential. Whether you're chasing records on the salt flats or simply seeking optimal performance and reliability on the open road, investing in a system proven to withstand the harshest conditions and deliver consistent, precise fueling is a decision that pays dividends in every mile.
